When engineers compare 3240 epoxy sheet vs FR4 epoxy sheet for industrial motor slot insulation, the decision is not only about electrical insulation. It is also about heat resistance, machining behavior, dimensional stability, fire safety, and long-term reliability under vibration and load.
For manufacturers, the right material can reduce maintenance risk, improve winding protection, and support more stable motor performance in demanding industrial environments.
Motor slot insulation works in a harsh environment. It must separate the copper winding from the iron core, resist heat aging, tolerate mechanical stress, and maintain insulation integrity even when the motor runs for long periods.
If the slot liner fails, the result can be partial discharge, winding damage, short circuits, or premature motor failure. That is why the material choice should always be based on real service conditions, not only on sheet thickness or price.

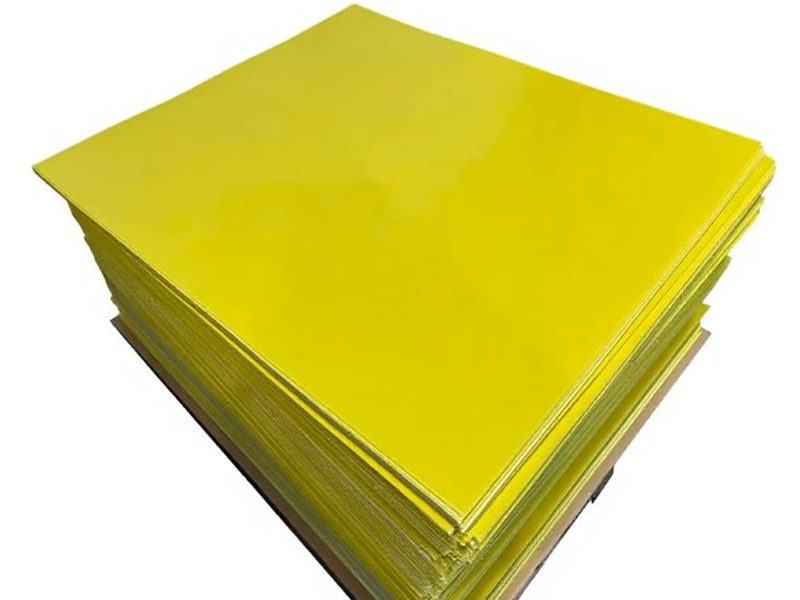

3240 epoxy sheet is a thermoset laminate made from woven glass cloth or cotton cloth reinforced with epoxy-based resin systems. It is known for good machinability, strong structural stability, and reliable insulation performance in industrial electrical components.
In motor applications, buyers often value it because it is easier to cut, drill, and shape into slot liners, spacers, end plates, and structural insulation parts.
FR4 epoxy sheet is a glass cloth laminate with flame-retardant epoxy resin. It is widely recognized for high dielectric strength, strong mechanical properties, low moisture absorption, and UL94 V-0 flame resistance in many grades.
For electrical and electronic uses, FR4 is often selected when fire safety and moisture stability are top priorities.
The table below highlights the most important differences for industrial motor slot insulation.
| Property | 3240 Epoxy Sheet | FR4 Epoxy Sheet |
|---|---|---|
| Base structure | Epoxy laminate with woven reinforcement | Glass cloth epoxy laminate with flame-retardant resin |
| Typical strength profile | High mechanical strength, easy machining | Very high mechanical strength, strong dimensional stability |
| Heat behavior | Often used in Class B service ranges | Commonly used where flame resistance and thermal stability matter |
| Flame resistance | Usually not the main advantage | Strong advantage due to flame-retardant formulation |
| Machinability | Excellent | Good, but generally harder on tools |
| Moisture resistance | Good | Very good |
| Electrical insulation | Reliable for motor insulation parts | Excellent for demanding electrical insulation |
| Best use case | Slot liners, spacers, supports, structural parts | Slot insulation where flame safety and dielectric performance are critical |

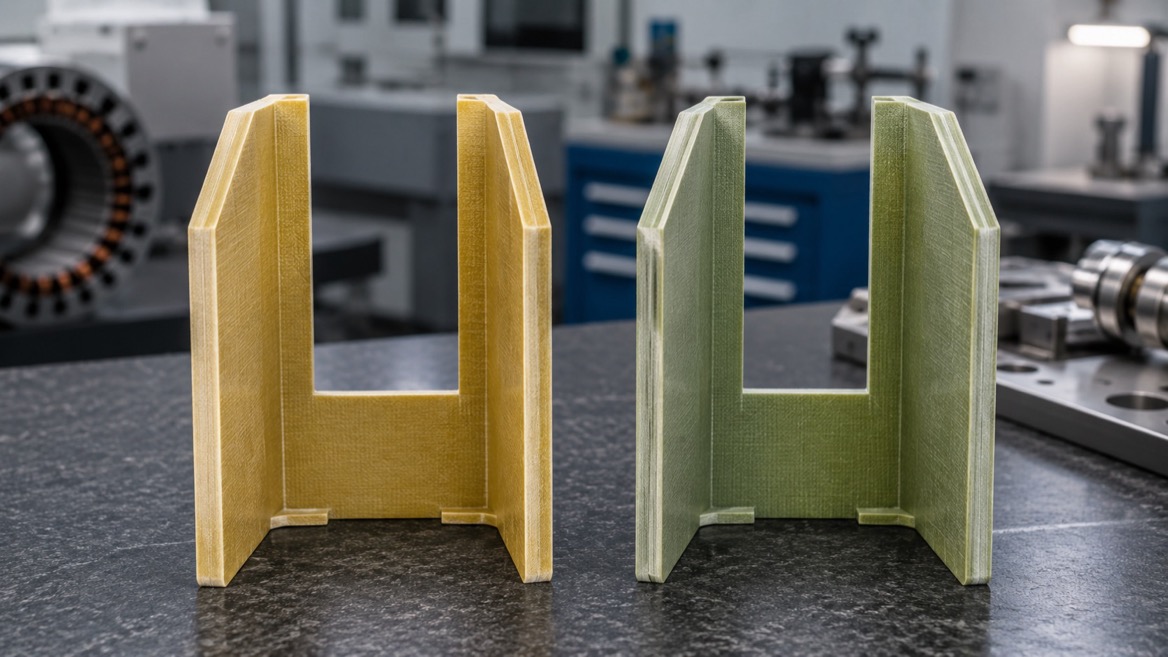

3240 is often preferred in motor slot insulation because it is straightforward to process into custom shapes. In production, this matters because slot liners are usually not used as simple flat sheets; they need accurate cutting, clean edges, and stable fit inside the stator slot.
Its practical advantage is not only performance, but also manufacturability. A material that machines well can save labor, reduce edge damage, and improve assembly consistency across batches.
3240 is also attractive when the design calls for a balance between cost and performance. For many industrial motors, especially general-purpose or medium-duty equipment, it provides enough dielectric support and mechanical toughness without the premium cost of more specialized flame-retardant laminates.
FR4 becomes more compelling when the motor operates in a hotter, more safety-sensitive, or more compact assembly. Its flame-retardant formulation and strong electrical behavior make it valuable when designers want extra protection against ignition risk or thermal abuse.
This is especially relevant in enclosed industrial machines, automation systems, and high-value equipment where insulation failure can create more than just downtime.
FR4 is also a strong candidate when moisture resistance and dimensional stability are critical. In environments with humidity, temperature cycling, or vibration, a stable laminate helps maintain fit and reduce the risk of insulation movement over time.
For motor slot insulation, temperature class is one of the first things engineers should check. A material may look strong on paper, but if it softens, ages quickly, or loses dielectric margin under continuous heat, it becomes a poor long-term choice.
3240 is often used where a practical Class B type solution is acceptable, while FR4 is selected when the application needs stronger flame performance and more robust protection under stress.
On the electrical side, both materials can perform well, but the best fit depends on the motor design. If the insulation layer must handle higher safety expectations, FR4 has the edge. If the project prioritizes ease of processing and stable structural support, 3240 is often the more efficient choice.

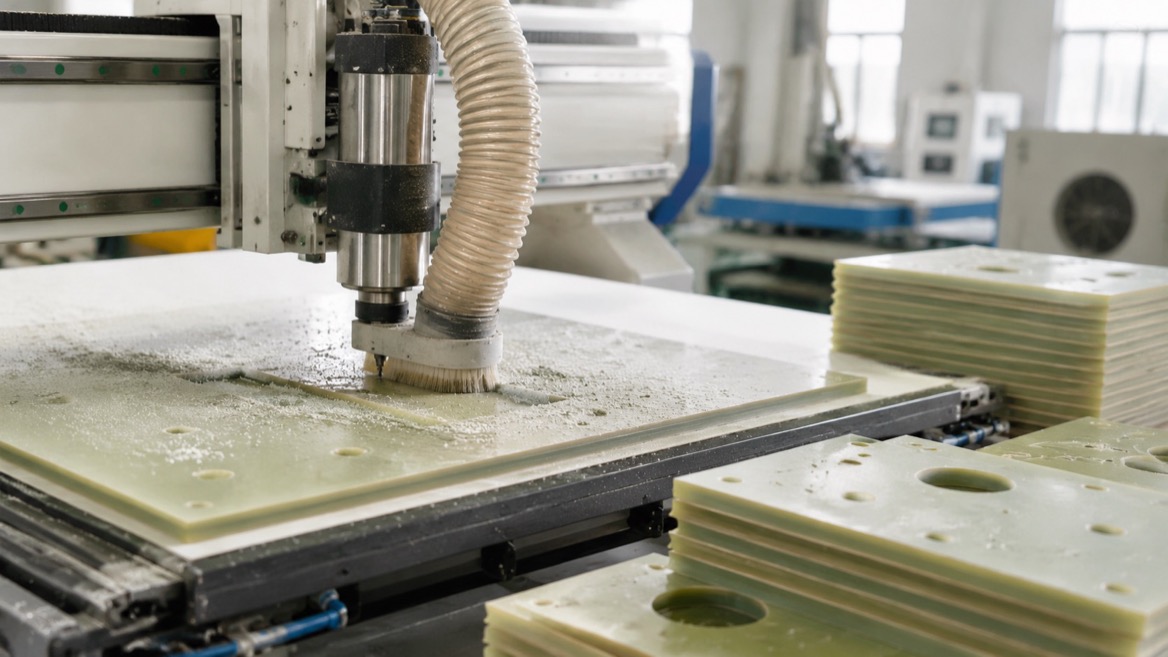

For manufacturers, raw material properties only matter if the sheet can be converted efficiently into finished parts. 3240 is widely appreciated because it can be cut, drilled, and milled with less difficulty, which helps reduce edge chipping and tool wear in many production lines.
That can be especially useful for custom motor insulation parts, where repeated sizing and prototyping are common.
FR4 is still machinable, but its glass-reinforced structure and flame-retardant formulation can make processing more demanding. This does not make it inferior. It simply means the shop must use more controlled tooling, sharper cutters, and tighter dust management to maintain consistent edge quality.
Use the following practical rule set when choosing between the two materials:
1. Choose 3240 epoxy sheet when the slot insulation part needs easy CNC or die cutting, stable fit, and cost-efficient structural insulation.
2. Choose FR4 epoxy sheet when the application demands stronger flame resistance, better moisture performance, and higher safety confidence.
3. Specify the thickness and tolerance based on slot geometry, because a technically correct material still fails if the fit is poor.
4. Confirm operating temperature, vibration level, humidity exposure, and expected electrical stress before final selection.
5. Ask for batch consistency and machining support if the material will be used in large-scale motor production.
A general-purpose industrial motor used in pumps, fans, or conveyors may benefit from 3240 slot liners because the material is easy to fabricate and durable enough for routine service conditions.
By contrast, a motor used in a tighter enclosure, a hotter environment, or a more safety-sensitive system may justify FR4 because the design benefits from the extra flame-retardant margin.
In real procurement work, the best choice often depends on the full part design, not just the name of the sheet. A slot liner, wedge, spacer, or end insulation plate may each require different mechanical behavior, even within the same motor platform.
From a manufacturing perspective, the most common mistake is choosing a sheet only by catalog description. The better method is to match the laminate to the actual service load, then confirm whether the supplier can hold thickness tolerance, cut quality, and delivery consistency at scale.
That is where an experienced insulation material producer adds value: not only by supplying sheets, but by helping customers choose the right grade for the final part and usage condition.
For export-oriented industrial buyers, supplier transparency matters as much as material performance. Clear technical data, repeatable batch quality, and secondary processing capability can reduce project risk and shorten development time.
- Choosing FR4 for every motor part even when machinability and cost are more important than flame resistance.
- Choosing 3240 only because it is easier to process, without confirming heat and safety requirements.
- Ignoring thickness tolerance, which can affect slot fit and winding protection.
- Overlooking moisture and vibration exposure, which can change long-term insulation reliability.
- Buying sheet material without checking whether the supplier can provide stable cutting and custom sizing support.
If your motor slot insulation project needs a practical balance of easy machining, structural stability, and reliable insulation, 3240 epoxy sheet is often the more efficient option.
If your application places more weight on flame resistance, moisture stability, and higher safety confidence, FR4 epoxy sheet is the stronger candidate.
For engineering teams and procurement managers, the smartest choice is to define the service condition first, then select the laminate that best matches that reality. A good supplier should be able to support both material selection and secondary processing, so the final insulation part performs well in production and in the field.
It depends on the service condition. 3240 is usually better when machinability and cost efficiency matter most, while FR4 is better when flame resistance and moisture stability are more important.
Not always in a simple way. FR4 is often chosen for its flame-retardant behavior, but 3240 can also perform well in industrial insulation environments where thermal and mechanical balance are required.
Yes. 3240 is widely used in motor slot insulation, especially when the design needs custom-cut parts that are easy to machine and assemble.
Because FR4 combines strong dielectric performance with flame-retardant characteristics and good moisture resistance, making it a reliable choice for demanding electrical uses.
Check operating temperature, thickness tolerance, slot geometry, moisture exposure, vibration level, and whether the supplier can provide consistent machining quality and batch stability.
