An epoxy glass sheet is a rigid composite laminate manufactured from layers of woven fiberglass cloth impregnated with epoxy resin. The material is cured under heat and pressure to create a stable sheet with strong insulating and mechanical characteristics.
The fiberglass reinforcement provides stiffness and strength. The epoxy resin bonds the glass layers together and contributes to the material's electrical, thermal, chemical, and dimensional properties.
Epoxy glass laminates are widely used where a component must perform two important functions at the same time:
- Provide reliable electrical insulation
- Support mechanical loads or maintain structural spacing
Common epoxy glass laminate grades include:
- FR4 sheet: A flame-retardant epoxy glass laminate commonly used for electrical insulation structures, PCB-related components, terminal boards, and insulating barriers
- G10 sheet: A glass-cloth epoxy laminate known for high mechanical strength, electrical insulation, and good machinability
- G11 sheet: A higher-temperature epoxy glass laminate designed for electrical and structural components exposed to elevated operating temperatures
- Customized epoxy glass sheet: A tailored laminate produced according to thickness, size, color, surface treatment, tolerance, or machining requirements

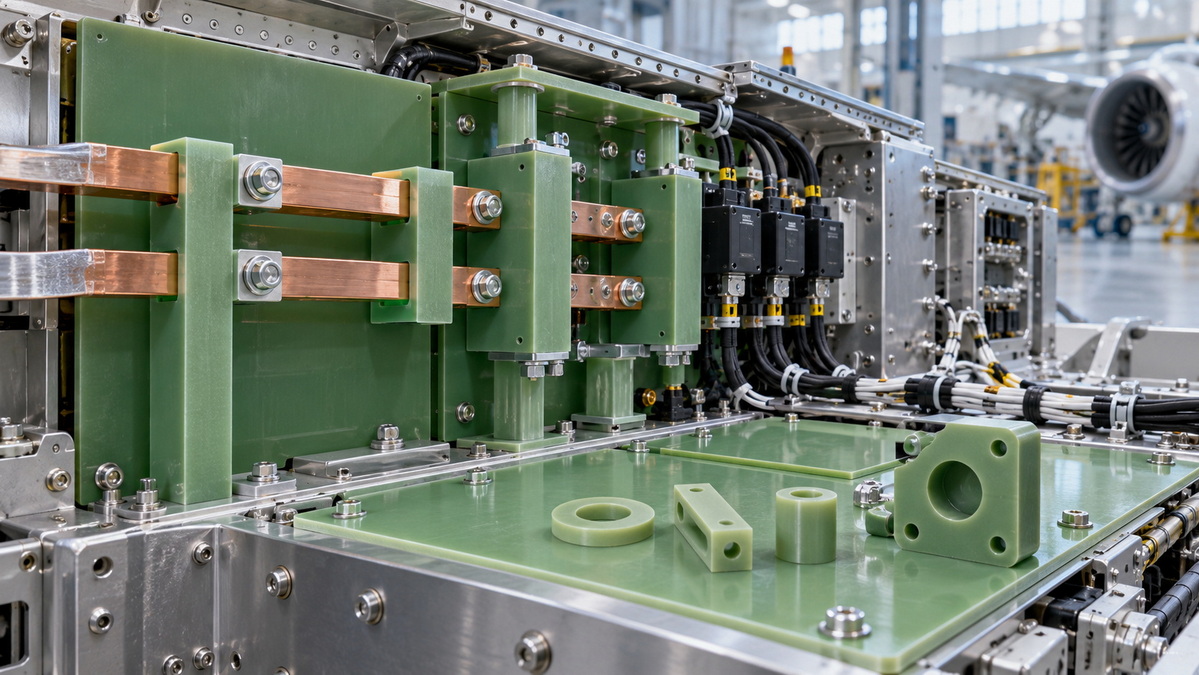

For aerospace electrical structures, epoxy glass sheet can be used in:
- Electrical isolation barriers
- High-voltage support plates
- Busbar supports
- Terminal boards
- Electrical spacers
- Relay and contactor insulation components
- Wiring harness support brackets
- Precision insulation washers
- Sensor mounting plates
- Structural electrical panels
- Electrical enclosure liners
- Custom CNC-machined insulating components
The major benefit of epoxy glass sheet is controlled performance. A defined laminate grade gives engineers clearer information about the material's resin system, reinforcement structure, thickness tolerance, heat resistance, electrical behavior, and fabrication characteristics.

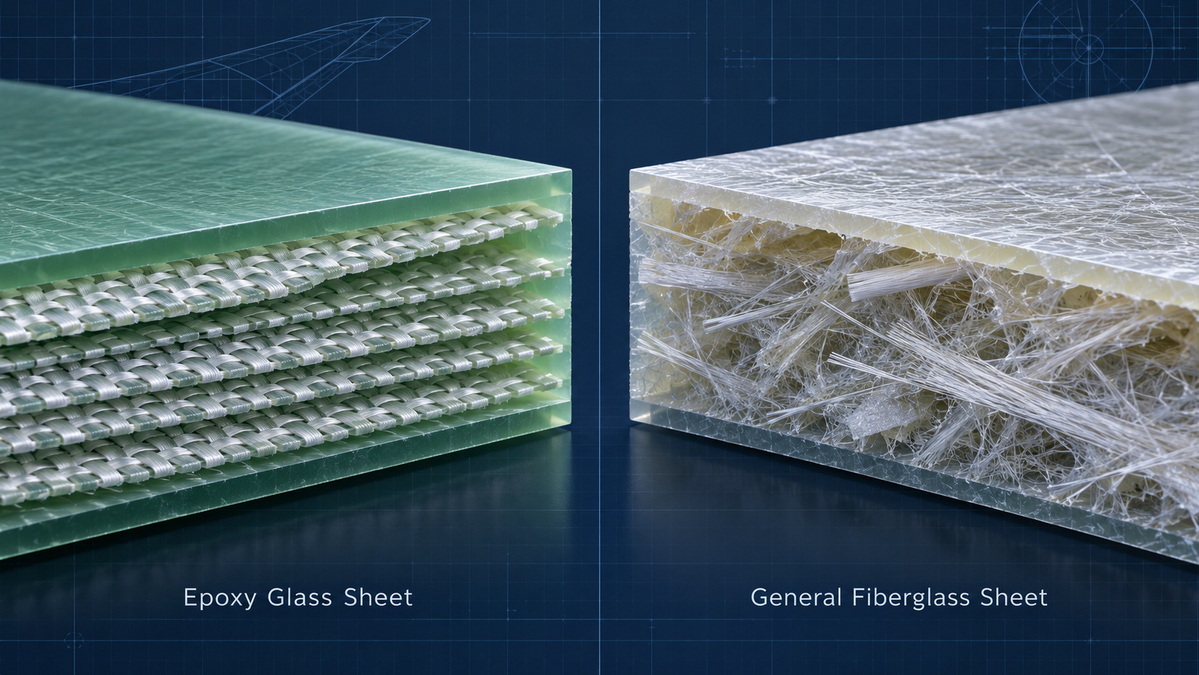

The term fiberglass sheet is broad. It can describe many kinds of glass-fiber-reinforced composite panels, including materials made with polyester resin, vinyl ester resin, epoxy resin, phenolic resin, thermoplastic resin, or other binding systems.
Fiberglass sheets may use different reinforcement structures, such as:
- Woven fiberglass cloth
- Chopped strand mat
- Continuous strand mat
- Random glass fiber reinforcement
- Multi-layer glass fiber fabric
- Hybrid reinforcement structures
Because fiberglass sheet can refer to many different material constructions, its performance can vary greatly. Two fiberglass sheets may look similar but behave very differently when exposed to electrical voltage, mechanical stress, high temperatures, humidity, vibration, or machining operations.
A general fiberglass panel may be designed for applications such as:
- Equipment covers
- Decorative panels
- Marine structures
- Industrial housings
- Corrosion-resistant enclosures
- Low-load structural components
- Building and construction panels
- General-purpose composite boards
These applications can be suitable for fiberglass composites. However, aerospace electrical structures often need more predictable performance than a general-purpose fiberglass sheet can provide.
The key difference is simple:
> Fiberglass describes the reinforcement. Epoxy glass sheet describes a more specific composite system that combines fiberglass reinforcement with a defined epoxy resin matrix.
For electrical insulation components, resin chemistry matters as much as the fiberglass itself.
| Comparison Factor | Epoxy Glass Sheet | General Fiberglass Sheet | Importance for Aerospace Electrical Structures |
|---|---|---|---|
| Reinforcement structure | Usually woven fiberglass cloth | Can use woven cloth, chopped mat, random fibers, or mixed reinforcement | Woven layers often provide more stable mechanical behavior |
| Resin system | Defined epoxy resin system | May use polyester, vinyl ester, epoxy, phenolic, or other resins | Resin determines insulation, heat resistance, flame behavior, and moisture resistance |
| Electrical insulation | Designed for electrical insulation applications | Highly variable depending on resin and construction | Electrical isolation is often the primary function of the component |
| Mechanical strength | High stiffness and structural support capability | Can range from flexible to rigid depending on material type | Important for mounting plates, brackets, supports, and spacers |
| Thermal resistance | Available in standard, flame-retardant, and high-temperature grades | Depends on resin type and production quality | Important near power equipment, engines, motors, and high-current systems |
| Flame performance | FR4 provides flame-retardant characteristics | May not have a defined flame rating | Important for electrical safety and system design |
| Moisture resistance | Generally stable when produced with a suitable epoxy system | Can vary depending on resin, fiber content, and void level | Moisture may reduce insulation resistance over time |
| Machinability | Suitable for CNC machining, drilling, routing, and milling | Quality can vary; some sheets may fray, chip, or delaminate | Precision machining is often required for aerospace parts |
| Thickness consistency | Usually controlled through laminate manufacturing processes | Can vary significantly by supplier and product category | Consistent thickness helps achieve reliable fit and insulation spacing |
| Best application | Electrical insulation combined with structural support | General composite covers, panels, and less demanding structures | Epoxy glass sheet is generally preferred for critical electrical parts |
The word "fiberglass" does not provide enough information for aerospace material selection. Fiberglass is only the reinforcement. The resin system determines many of the properties that matter in an electrical structure.
A material may contain a high percentage of fiberglass but still be unsuitable for a high-voltage support plate if the resin system cannot provide stable dielectric performance, heat resistance, low moisture absorption, or reliable machining quality.
Epoxy resin is commonly used in electrical insulation laminates because it provides a balanced combination of properties.
Key benefits of epoxy resin include:
- Strong adhesion between the resin matrix and glass fiber reinforcement
- Good dielectric properties for electrical insulation structures
- High mechanical bonding strength
- Low curing shrinkage
- Stable dimensional performance
- Good chemical resistance
- Reliable machining behavior
- Compatibility with flame-retardant formulations
- Suitability for precision laminate production
These properties help epoxy glass sheet maintain its shape and insulation performance after drilling, cutting, fastening, vibration, and temperature changes.
Some fiberglass sheets are made with polyester resin or other general-purpose resin systems. These materials may offer cost advantages and can be effective in noncritical structural, decorative, corrosion-resistant, or enclosure applications.
However, they may provide less predictable performance in demanding electrical environments.
Potential concerns include:
- Lower or less stable electrical insulation performance
- Reduced heat resistance compared with high-performance epoxy laminates
- Greater variation between suppliers
- Different flame behavior
- Increased risk of cracking or surface degradation in certain conditions
- Less consistent machining quality
- Limited test data for specialized electrical applications
For aerospace electrical structures, the material specification should identify the exact resin system instead of relying on a general description such as "fiberglass board" or "glass fiber panel."
Electrical insulation is one of the most important reasons to choose epoxy glass sheet for aerospace structures. The material must prevent current leakage, resist electrical breakdown, and maintain separation between energized components.
Dielectric strength describes the maximum electrical field a material can withstand before electrical breakdown occurs. It is often expressed in kilovolts per millimeter.
Epoxy glass sheets such as FR4 and G10 are widely used in electrical insulation applications because they provide a combination of dielectric strength, mechanical support, and stable processing characteristics.
However, dielectric strength should not be reviewed as a single isolated value. The actual application may also involve:
- Material thickness
- Surface condition
- Humidity
- Temperature
- Voltage type
- Electrical frequency
- Creepage distance
- Clearance distance
- Edge geometry
- Presence of contaminants
- Mechanical fastening pressure
A sheet that performs well in a dry laboratory test may behave differently after long-term moisture exposure or repeated temperature cycling. For this reason, engineers should assess the material under conditions similar to the final application.
Insulation resistance is another important property. It reflects the material's ability to resist current leakage through or across its surface.
High insulation resistance is particularly valuable for:
- High-voltage busbar supports
- Electrical separation plates
- Terminal boards
- Power distribution systems
- Battery-related electrical structures
- Switching equipment
- Transformer insulation components
- Motor control assemblies
For aerospace electrical structures, insulation performance must remain stable not only during normal operation but also under vibration, contamination risk, environmental humidity, and temperature variation.
For aerospace electrical structures used near high-frequency electronics, radar systems, antennas, RF equipment, or sensitive communication assemblies, engineers should also consider:
- Dielectric constant
- Dissipation factor
- Frequency-dependent performance
- Material uniformity
- Thermal stability during operation
- Surface finish quality
- Thickness consistency
Standard FR4 may be suitable for many electrical support components. However, high-frequency designs may require a material selected specifically for the relevant frequency range and electrical performance requirements.
Aerospace electrical insulation components are often required to perform as structural parts. A support plate may carry fastener loads, hold a busbar in position, maintain spacing between conductors, or resist repeated vibration during operation.
Epoxy glass sheet is well suited to these applications because woven fiberglass reinforcement provides rigidity and strength. The material can be fabricated into complex shapes while maintaining useful mechanical stability.
Aerospace electrical structures may require resistance to:
- Compression from fasteners
- Vibration and shock
- Bending loads
- Edge cracking
- Hole deformation
- Thermal expansion stress
- Repeated assembly and maintenance operations
- Fatigue caused by movement or equipment vibration
A generic fiberglass sheet may offer good strength in some applications, but its performance can vary significantly depending on fiber orientation, resin content, curing process, thickness, and internal structure.
Epoxy glass sheet provides a more consistent platform for engineered insulating components.
FR4, G10, and G11 sheets can be machined into custom insulation parts through CNC routing, milling, drilling, cutting, punching, and grinding.
Typical custom-machined components include:
- Insulation washers
- Slot insulation plates
- Electrical mounting brackets
- Terminal barriers
- High-voltage spacers
- Busbar support plates
- Custom gasket-style insulation parts
- Transformer insulation panels
- Electrical enclosure liners
- Motor insulation structures
Because fiberglass is abrasive, machining requires appropriate processing methods.
Important machining practices include:
1. Use carbide or diamond-coated cutting tools when appropriate.
2. Control feed speed and spindle speed to reduce edge damage.
3. Use dust extraction because glass fiber dust should be properly managed.
4. Maintain suitable hole-to-edge distances to reduce cracking risk.
5. Inspect drilled holes and routed edges for chipping or delamination.
6. Confirm flatness after machining, especially for thin electrical support plates.
7. Use protective equipment during fabrication and finishing operations.
A well-manufactured epoxy glass sheet can provide clean machining results and good dimensional repeatability when processed with suitable equipment and tooling.

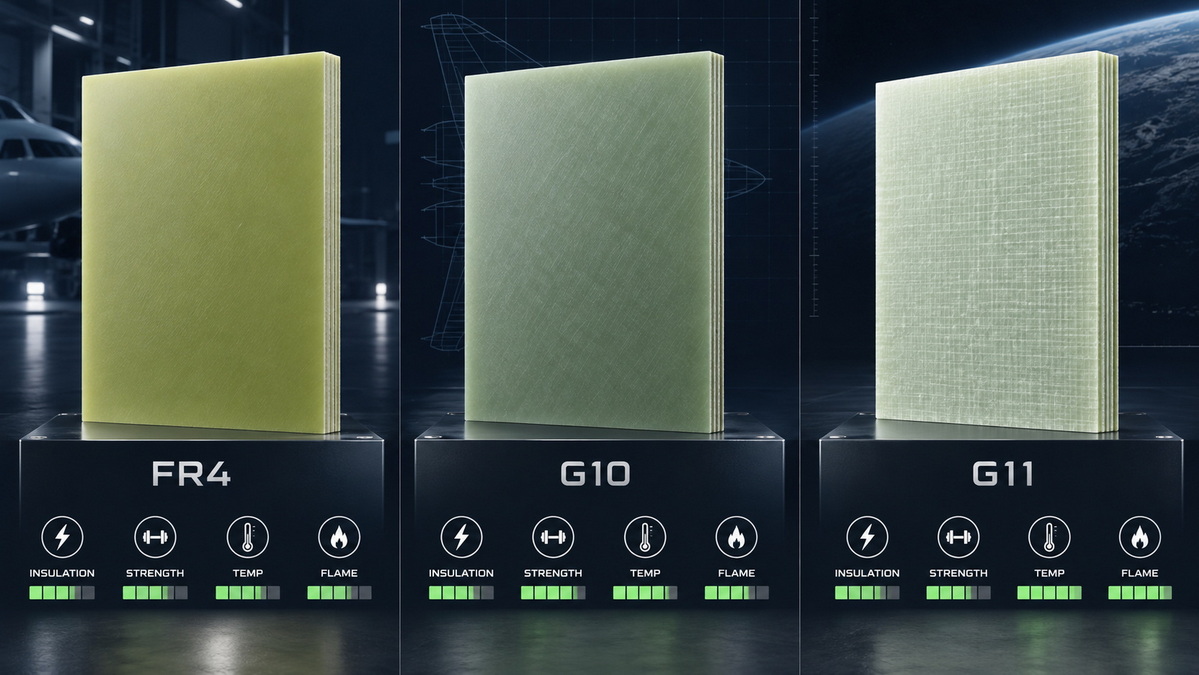

Not all epoxy glass sheets provide the same thermal, flame, and mechanical properties. Selecting the right grade is important.
| Material Grade | Main Characteristics | Suitable Aerospace Electrical Applications |
|---|---|---|
| FR4 Sheet | Flame-retardant epoxy glass laminate with good electrical insulation and machinability | Electrical barriers, terminal boards, relay insulation, PCB-related structures, busbar supports |
| G10 Sheet | Strong glass-cloth epoxy laminate with good mechanical strength and electrical insulation | Structural spacers, insulating brackets, mechanical-electrical supports, machined insulation components |
| G11 Sheet | Higher-temperature epoxy glass laminate with improved performance at elevated temperatures | Heat-resistant electrical structures, power system insulation, motor and generator components, high-temperature equipment supports |
FR4 is one of the most recognized epoxy glass laminate grades. It is commonly selected when a project needs electrical insulation combined with flame-retardant behavior.
FR4 is often used for:
- Electrical control panels
- PCB support structures
- Terminal boards
- Electrical barriers
- Insulation spacers
- Transformer parts
- Relay support plates
- High-voltage components
- Custom-machined insulation parts
FR4 is a strong choice when flame performance is an important design requirement. However, engineers should confirm the required test standard, tested thickness, application environment, and customer specification before final material approval.
G10 is a glass-cloth epoxy laminate valued for its strength, stiffness, insulation performance, and machinability.
It is often selected for:
- Structural insulation supports
- Electrical mounting plates
- Precision spacers
- Mechanical brackets
- Busbar support components
- Insulating washers
- Electrical fixtures
- Industrial electrical assemblies
G10 can be a practical choice when the application requires strong mechanical and electrical performance but does not specifically require the flame-retardant characteristics associated with FR4.
G11 is designed for higher-temperature applications. It is commonly considered when an electrical insulation structure will operate near heat-generating equipment or under sustained elevated temperatures.
G11 may be suitable for:
- High-temperature electrical insulation plates
- Motor insulation parts
- Generator support structures
- Power conversion equipment
- High-current electrical systems
- Heat-resistant terminal supports
- Industrial control equipment
- Engine-adjacent electrical structures
When thermal performance is the main concern, G11 can provide a more suitable operating margin than standard G10 or conventional FR4 materials.
Aerospace electrical components may be exposed to high temperatures from electrical current, nearby power equipment, motors, generators, batteries, or external environmental conditions.
The material must retain its insulation capability and structural shape as temperature changes.
When selecting epoxy glass sheet, consider:
- Continuous operating temperature
- Maximum short-term temperature
- Glass transition temperature
- Thermal expansion behavior
- Thermal cycling resistance
- Mechanical strength retention after heat exposure
- Electrical property retention after heat exposure
- Heat aging behavior
- Flame-retardant performance
A material may survive occasional high temperatures but still experience long-term property changes if it is continuously exposed to heat beyond its intended range.
For this reason, the actual temperature near the installed component should be measured or estimated carefully.
Flame resistance can be critical for electrical structures. FR4 is commonly selected because it is associated with flame-retardant laminate construction.
However, flame behavior should be evaluated based on the project requirement rather than a general material name.
Important questions include:
- Does the project require a specific flame classification?
- At what material thickness was the flame test performed?
- Does the application require low smoke or low toxicity characteristics?
- Will machining expose fibers or change the finished part surface?
- Does the final assembly include other materials that affect fire behavior?
- Are customer-specific test reports required?
Material selection should always match the complete system requirement.
Aerospace electrical structures may encounter humidity, condensation, temperature changes, cleaning agents, hydraulic fluids, dust, vibration, and contamination.
Moisture can influence insulation resistance, surface leakage, dimensional stability, and long-term material performance. A high-quality epoxy glass sheet is generally more stable than an undefined fiberglass sheet because the resin system and lamination process are controlled.
Environmental evaluation may include:
- Humidity exposure
- Water absorption
- Salt mist exposure
- Cleaning chemical resistance
- Hydraulic fluid exposure
- Fuel vapor exposure
- Thermal cycling
- Vibration
- Mechanical fatigue
- Surface contamination resistance
The required testing will depend on the final aerospace environment. A cabin electrical panel, a power distribution enclosure, an engine-adjacent electrical assembly, and a spacecraft component may all require different material validation methods.
Aerospace electrical material selection should be based on documentation and verification, not only appearance or general product claims.
Before approving epoxy glass sheet or fiberglass sheet, buyers and engineers should request clear material information.
- Product technical data sheet
- Material grade identification
- Resin system information
- Reinforcement type
- Thickness and dimensional tolerance
- Electrical performance data
- Mechanical performance data
- Thermal performance data
- Water absorption information
- Flame performance data when required
- Batch or lot traceability
- Certificate of conformity when required
- Inspection report for custom-machined parts
- Chemical compliance documents when applicable
- Sample approval or first-article inspection records
For space, satellite, optical, vacuum, and highly sensitive enclosed applications, material outgassing may require additional attention. In those cases, the material may need to be evaluated for volatile release and condensable contamination under vacuum conditions.
The qualification process should match the actual operating environment rather than relying on a generic material category.
The following process can help engineers and sourcing teams choose the right material for aerospace electrical structures.
Identify:
- Operating voltage
- Peak voltage
- Fault voltage
- Required insulation distance
- Creepage distance
- Clearance distance
- Current level
- Electrical frequency
- Risk of arc tracking
A high-voltage insulation plate may require different material thickness and geometry than a low-voltage control system spacer.
Determine:
- Normal operating temperature
- Peak temperature
- Heat source location
- Thermal cycling range
- Required service life
- Risk of localized hot spots
This step helps identify whether FR4, G10, G11, or another custom laminate should be considered.
Evaluate:
- Fastener compression load
- Vibration level
- Shock resistance
- Bending stress
- Hole size
- Slot design
- Edge distance
- Required flatness
- Finished-part tolerance
For thin components with multiple holes or narrow slots, machining quality and laminate consistency become especially important.
Consider:
- Humidity
- Condensation
- Fluid exposure
- Dust
- Chemical cleaning
- Salt mist
- Vacuum
- Radiation exposure
- Temperature cycling
The material should be evaluated after realistic conditioning when the application is highly demanding.
Use the application requirements to identify the best starting point:
- Choose FR4 when flame-retardant electrical insulation is a key requirement.
- Choose G10 when strong mechanical and electrical performance are needed in a moderate-temperature environment.
- Choose G11 when the electrical structure will operate at higher temperatures.
- Choose a custom epoxy glass laminate when the project requires specific thickness, color, thermal class, machining tolerance, or performance documentation.
The final part should be evaluated as an assembled component, not only as a raw sheet material.
Inspect:
- Thickness
- Flatness
- Hole quality
- Edge finish
- Delamination risk
- Surface cleanliness
- Dimensional tolerance
- Fit with fasteners
- Electrical spacing
- Mechanical stability after installation
Consider a busbar support plate used in a compact aerospace power distribution assembly.
The component must:
- Electrically isolate energized conductors
- Maintain stable spacing
- Resist fastener compression
- Tolerate vibration
- Remain dimensionally stable
- Operate near elevated temperatures
- Meet applicable flame-performance requirements
A general fiberglass sheet may appear to be a low-cost solution. However, if its resin system, dielectric performance, heat resistance, flame behavior, and thickness consistency are unknown, the material may introduce risk.
A more reliable selection process would involve:
1. Defining the voltage and insulation distance requirements.
2. Measuring the maximum operating temperature.
3. Reviewing fastener load and vibration conditions.
4. Confirming flame-performance requirements.
5. Comparing FR4, G10, and G11 grades.
6. Reviewing material data for the selected thickness.
7. Producing prototype parts.
8. Inspecting machining quality and finished dimensions.
9. Validating the part inside the complete electrical assembly.
For many electrical support structures, FR4 epoxy glass sheet is a practical option when flame-retardant performance is required. G10 can be suitable for strong, machined insulation parts in moderate-temperature environments. G11 can be a better option for applications exposed to higher sustained heat.
When comparing epoxy glass sheet vs fiberglass sheet for aerospace electrical structures, epoxy glass sheet is generally the more dependable choice for applications that require electrical insulation and mechanical support at the same time.
A generic fiberglass sheet may be appropriate for low-demand panels, covers, and noncritical composite structures. However, it may not provide sufficient information about resin chemistry, dielectric performance, thermal stability, flame behavior, machining consistency, or production traceability.
For aerospace electrical structures, material selection should focus on the complete laminate system:
- Epoxy resin formulation
- Fiberglass reinforcement structure
- Electrical insulation performance
- Mechanical strength
- Temperature resistance
- Flame behavior
- Environmental stability
- Machining quality
- Documentation and traceability
FR4, G10, and G11 epoxy glass sheets offer different advantages for different operating conditions. The correct grade depends on the real requirements of the electrical assembly rather than a general material description.
Guangdong Weishi New Materials Co., Ltd. provides high-performance epoxy glass laminates and customized insulation material solutions for customers who require reliable electrical insulation, mechanical durability, controlled machining, and flexible production support. By selecting the right epoxy glass sheet grade early in the design process, aerospace electrical manufacturers can improve component reliability, reduce qualification risk, and support stable long-term system performance.
No. Epoxy glass sheet is a specific fiberglass-reinforced composite made with woven glass cloth and epoxy resin. Fiberglass sheet is a broader term that may include different resin systems, fiber structures, and performance levels.
FR4 sheet can be suitable for many aerospace electrical insulation applications because it offers electrical insulation, mechanical stability, and flame-retardant characteristics. The final selection should still be based on the required temperature, voltage, mechanical load, flame performance, and environmental conditions.
G10 and G11 are both epoxy glass laminates. G10 is commonly selected for good mechanical strength and electrical insulation in moderate-temperature conditions. G11 is generally selected for applications requiring stronger thermal resistance and more stable performance at elevated temperatures.
Epoxy glass sheet is preferred because it combines electrical insulation with mechanical strength, dimensional stability, moisture resistance, and machinability. It can also be produced in defined grades such as FR4, G10, and G11.
Yes. FR4, G10, and G11 sheets can be CNC machined into insulating washers, spacers, barriers, brackets, terminal boards, support plates, and other custom electrical insulation parts. Appropriate tooling and dust control should be used because glass fiber is abrasive.
G11 sheet is usually the preferred starting point for high-temperature electrical structures because it is designed to retain useful electrical and mechanical properties at elevated temperatures. The final material choice should be confirmed according to the actual operating temperature and application requirements.
Not always. A generic fiberglass sheet may use a different resin system and may not provide the same electrical insulation performance, flame-retardant characteristics, thickness consistency, heat resistance, or machining quality as FR4 sheet.
Provide the required material grade, thickness, sheet size, finished-part drawing, operating temperature, voltage requirement, flame-performance requirement, quantity, tolerance, machining details, color, and any documentation or inspection requirements.
1. NASA Goddard Space Flight Center. [Outgassing Database]
2. NASA Goddard Space Flight Center. [Outgassing Database User Guide]
3. Ready Plastics. [NEMA G11 — Glass-Cloth Epoxy High-Temperature Laminate]
4. Ready Plastics. [FR4 Properties and Datasheet — Mechanical, Thermal, and Electrical]
5. Samcomposites. [NEMA G10 Product Information]
6. Samcomposites. [FR4 Electrical Insulation Sheet Product Information]
7. Glenair. [Aerospace Grade Wire, Cable and Assemblies]
