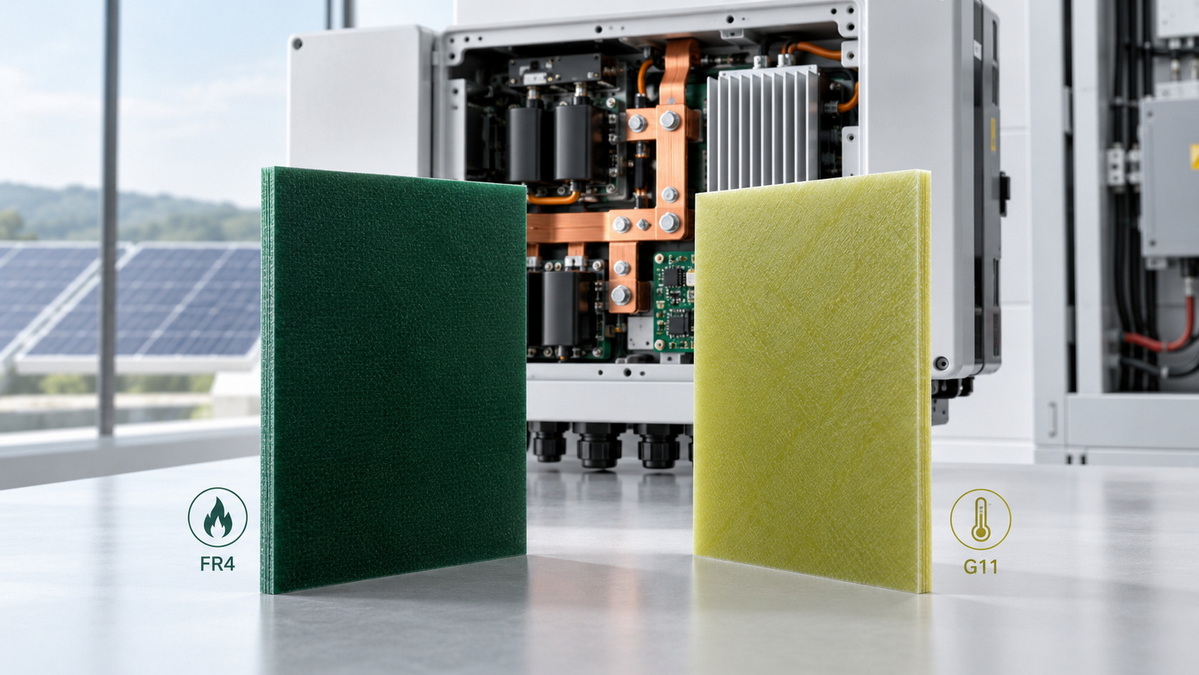

● G11 vs FR4: Main Differences for Solar Inverters
● Thermal Performance: Why G11 Often Has an Advantage
>> When G11 Is Usually Recommended
● Flame Retardancy: Why FR4 Can Be the Better Choice
>> When FR4 Is Usually Recommended
>> Important Material Selection Note
● Electrical Insulation Performance in High-Voltage Inverters
>> Why Creepage and Clearance Matter
>> Practical Design Recommendation
● G11 vs FR4 for Different Solar Inverter Components
● A Practical Hybrid Material Strategy
>> Step 1: Divide the Inverter Into Thermal Zones
>> Step 2: Select G11 for High-Stress Areas
>> Step 3: Select FR4 for Lower-Stress Areas
>> Step 4: Verify the Finished Assembly

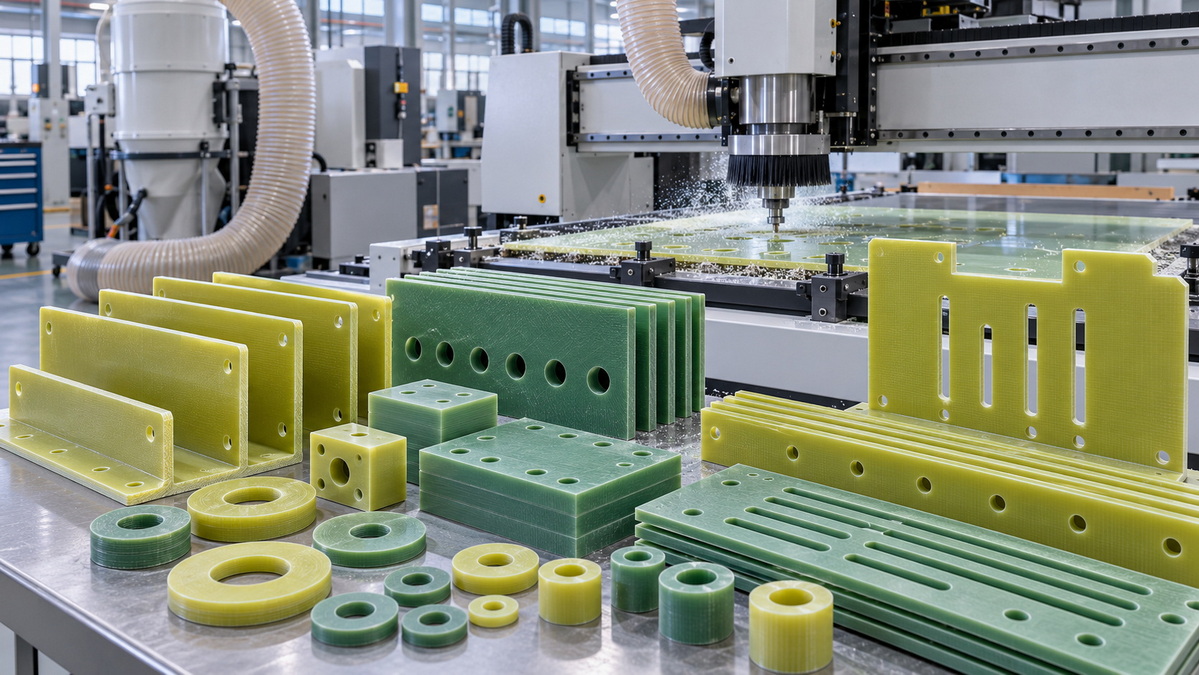

● Machining G11 and FR4 for Custom Insulation Parts
>> Design Tip for Better Reliability
● How to Select the Right Material
>> Questions to Ask Before Purchasing
● Material Recommendation Summary
● FAQ
>> 1. Is G11 better than FR4 for solar inverter insulation components?
>> 2. Can FR4 be used near a solar inverter heat sink?
>> 3. Is G11 suitable for busbar insulation supports?
>> 4. Does G11 have flame-retardant performance?
>> 5. Can G11 and FR4 be CNC machined?
>> 6. Which material is more cost-effective, G11 or FR4?
>> 7. Should a solar inverter use only one insulation material?
>> 8. What information is needed to select the right insulation material?
Choosing between G11 and FR4 for solar inverter insulation components affects far more than material cost. The decision influences thermal stability, electrical insulation reliability, flame performance, mechanical strength, machining quality, and long-term service life.
Solar inverters operate under demanding conditions. Internal parts may experience high voltage, continuous heat, repeated thermal cycling, vibration, humidity, dust, and mechanical stress. An insulation board that performs well at room temperature may not provide the same level of reliability after years of operation near power modules, busbars, transformers, or heat sinks.
For many inverter applications, FR4 epoxy glass sheet is a cost-effective and flame-retardant insulation solution. G11 epoxy glass laminate is usually preferred when components face higher temperatures or need stronger mechanical retention under thermal stress. The most suitable choice depends on the actual working temperature, component position, electrical design, flame-performance requirement, machining geometry, and project qualification standards.
A solar inverter converts direct current generated by photovoltaic panels into alternating current for commercial, industrial, residential, or utility-scale power systems. During this conversion process, the inverter's internal electrical and electronic components generate heat and experience electrical stress.
The insulation components inside a solar inverter must separate conductive parts, prevent electrical leakage, maintain safe spacing, support mechanical assemblies, and reduce the risk of short circuits or surface tracking.

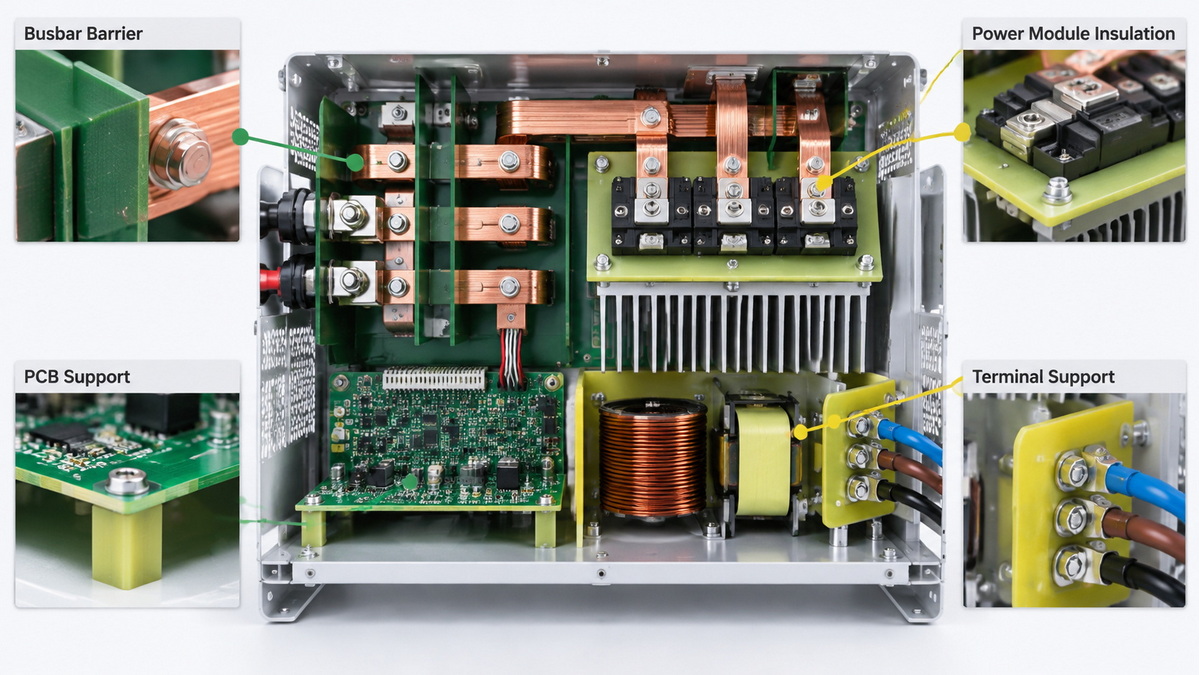

Typical solar inverter insulation parts include:
- Busbar barriers
- High-voltage partition boards
- Terminal support plates
- Power module insulation sheets
- Transformer insulation components
- Inductor support parts
- PCB support panels
- Electrical standoffs
- Insulation washers
- CNC-machined brackets
- Phase separators
- Heat-resistant mounting plates
These parts are often made from fiberglass-reinforced epoxy laminates because they combine high dielectric strength, good mechanical properties, heat resistance, and machinability.
However, not every epoxy laminate performs equally under the same conditions. This is why understanding the differences between G11 and FR4 is essential before selecting materials for solar inverter insulation components.
FR4 is a flame-retardant fiberglass epoxy laminate. It is made by bonding woven glass fabric with an epoxy resin system and curing it under heat and pressure.
FR4 is widely used in printed circuit boards, electrical insulation structures, industrial electrical equipment, and precision-machined insulating components. It offers a balanced combination of electrical insulation, mechanical strength, dimensional stability, and flame-retardant performance.
In solar inverter manufacturing, FR4 insulation board is commonly used for components that require electrical separation but are not exposed to the highest operating temperatures.
FR4 is valued for the following characteristics:
- Good electrical insulation performance
- Stable mechanical strength at moderate temperatures
- Flame-retardant material behavior
- High dimensional stability
- Good resistance to moisture absorption
- Suitable for CNC machining
- Compatible with drilling, milling, punching, and cutting
- Widely available in different thicknesses
- Cost-effective for large-volume applications
FR4 is often selected for inverter components located near control boards, lower-temperature busbar areas, terminal protection structures, electronic assemblies, and internal safety barriers.
FR4 can be used for many solar inverter insulation components, including:
- PCB support plates
- Control-board insulation panels
- Terminal separators
- Electrical mounting boards
- Internal barrier sheets
- Small insulation spacers
- Low-load electrical brackets
- Insulation washers
- Moderate-temperature phase separators
- Protective isolation plates
For many standard inverter designs, FR4 offers an effective balance between performance and cost.
G11 is a high-performance fiberglass epoxy laminate designed for electrical insulation applications that require better heat resistance and stronger mechanical stability at elevated temperatures.
Like FR4, G11 is made from glass cloth and epoxy resin. However, its resin system and performance profile are designed to support applications where insulation components may experience more demanding thermal conditions.
G11 is widely used in high-temperature electrical insulation, industrial equipment, motors, generators, transformers, power electronics, and mechanical insulation structures.
In solar inverter systems, G11 is commonly considered for areas close to power semiconductors, heat sinks, high-current busbars, inductors, transformers, and other heat-generating components.
G11 epoxy glass laminate is known for:
- Higher heat resistance than standard FR4
- Better mechanical strength retention at elevated temperatures
- High dielectric strength
- Good insulation resistance
- Strong structural performance
- Good dimensional stability
- Suitable machinability for CNC processing
- Good resistance to thermal cycling
- Reliable performance in high-temperature electrical environments
- Strong suitability for load-bearing insulation components
G11 is often selected when the component must maintain shape, strength, and electrical insulation performance after extended exposure to heat.
The main difference between G11 and FR4 is not simply that one is "better" than the other. The key difference is how each material performs under specific operating conditions.
| Comparison Factor | G11 Epoxy Glass Laminate | FR4 Epoxy Glass Laminate | Solar Inverter Selection Value |
|---|---|---|---|
| Main Material Positioning | High-temperature electrical insulation laminate | Flame-retardant electrical insulation laminate | Choose based on heat level and safety requirements |
| Heat Resistance | Higher thermal resistance | Good resistance for moderate-temperature environments | G11 provides more thermal margin near heat sources |
| Mechanical Strength at High Temperature | Better strength retention | May gradually lose stiffness at higher temperatures | Important for structural parts close to power modules |
| Electrical Insulation | Excellent | Excellent | Both can provide reliable dielectric performance |
| Flame Retardancy | Depends on the specific grade | Commonly designed for flame-retardant use | FR4 is often preferred when flame behavior is a priority |
| Moisture Resistance | Good | Good | Both require validation for humid operating environments |
| CNC Machining | Suitable | Suitable | Both can be machined into custom insulation parts |
| Cost Level | Usually higher | Usually lower | FR4 can reduce cost in qualified lower-temperature zones |
| Typical Inverter Application | High-temperature barriers and structural supports | Control-side barriers and moderate-temperature components | A hybrid approach may be the best solution |
The correct choice depends on how the insulation component will perform inside the inverter over its full service life.
Heat is one of the most important factors affecting inverter reliability. Power semiconductors, busbars, transformers, inductors, and heat sinks can generate high local temperatures during operation.
Even if the inverter enclosure temperature appears acceptable, individual components may experience higher temperatures because of limited airflow, thermal concentration, or direct proximity to heat-generating parts.
Common heat sources inside solar inverters include:
- IGBT modules
- MOSFET power devices
- Silicon carbide power modules
- Copper busbars
- Transformers
- Inductors
- Switching circuits
- DC input terminals
- AC output terminals
- Heat sinks
- High-current connection points
A material may perform well during short-term testing but lose performance over time when exposed to repeated heat cycles.
Long-term thermal stress can contribute to:
- Reduced mechanical strength
- Material softening
- Loss of dimensional stability
- Warpage
- Cracking
- Delamination
- Reduced insulation resistance
- Increased stress around mounting holes
- Surface tracking risk
- Reduced fastening reliability
- Damage caused by expansion and contraction

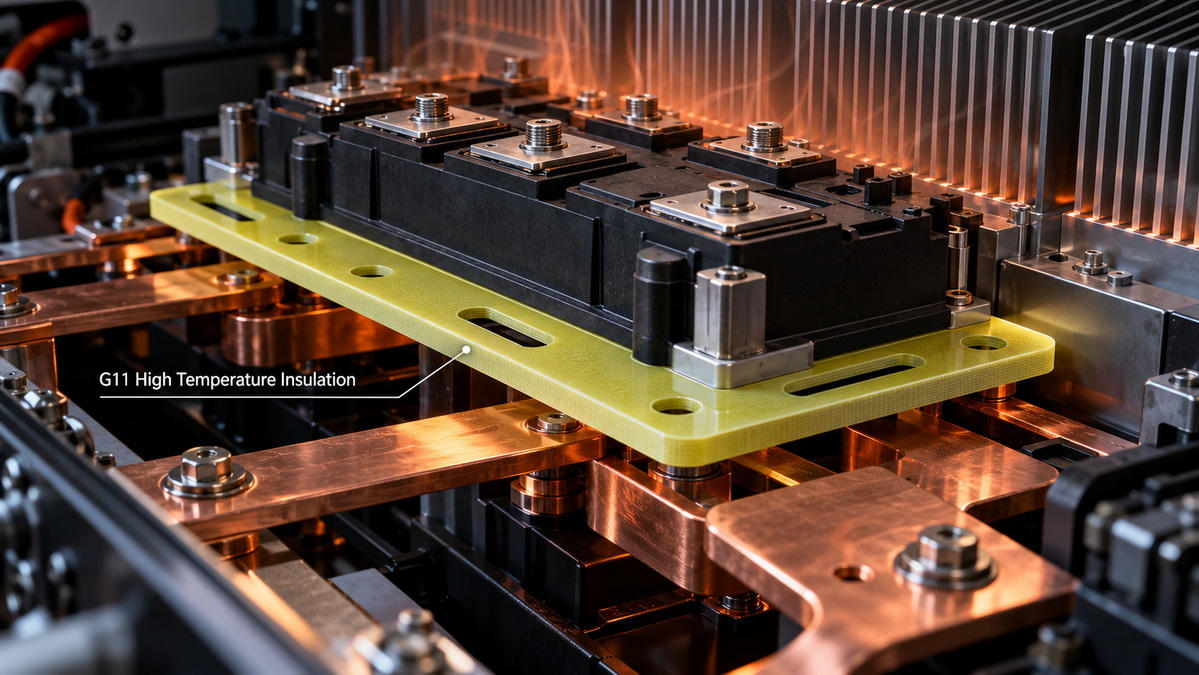

G11 is commonly selected when the insulation part is located close to a power module, transformer, inductor, busbar assembly, or heat sink.
G11 should be considered for solar inverter insulation components when:
- The component is located near a heat source.
- The local operating temperature is high.
- The part experiences repeated thermal cycling.
- The part supports mechanical loads.
- The component includes thin sections that must remain rigid.
- The insulation board is mounted near high-current busbars.
- The part is used near transformers or inductors.
- Long-term reliability is more important than minimum material cost.
- The inverter is designed for harsh outdoor environments.
- The insulation structure must maintain strength after extended heat exposure.
G11 is especially useful for inverter designs with compact internal layouts, high power density, and limited cooling space.
FR4 is widely recognized for its flame-retardant material behavior. This makes it a practical option for many electrical insulation applications where fire-performance considerations are important.
In solar inverter production, FR4 can be suitable for insulation components that are located away from the hottest internal zones but still require stable electrical separation and flame-conscious material selection.
FR4 is often a practical choice when:
- The component operates in a moderate-temperature area.
- Flame-retardant material behavior is required.
- The part is not heavily loaded mechanically.
- The insulation component is near PCB assemblies.
- The design requires cost control.
- The part is used for internal barriers or electrical separation.
- The project requires stable supply for large-volume production.
- The application does not require the high-temperature margin of G11.
FR4 is often selected for small and medium-sized inverter insulation parts because it is versatile, widely available, and easy to process.
It is important not to assume that every sheet described as FR4 or G11 has identical properties. Material performance can vary depending on:
- Resin system
- Glass cloth construction
- Thickness
- Manufacturing process
- Flame-retardant formulation
- Moisture condition
- Test method
- Supplier quality control
- Batch consistency
For this reason, inverter manufacturers should evaluate the actual technical data sheet, qualification samples, and finished machined parts before approving a material for mass production.
Both G11 and FR4 provide strong electrical insulation performance. However, dielectric strength alone should never be the only factor used to select solar inverter insulation material.
The electrical safety of an inverter also depends on the full design of the insulation system.
Important engineering factors include:
- Working voltage
- Surge voltage
- Peak voltage
- DC voltage level
- AC voltage level
- Creepage distance
- Clearance distance
- Pollution level
- Humidity exposure
- Condensation risk
- Altitude
- Material thickness
- Surface condition
- Edge geometry
- Hole location
- Busbar spacing
- Mechanical assembly method
- Fastening pressure
- Surface tracking resistance
- Long-term thermal aging
A material with high dielectric strength can still fail if the component design includes sharp metal edges, narrow spacing, poor machining quality, excessive mounting pressure, contaminated surfaces, or water condensation.
Creepage distance is the shortest path between two conductive parts measured along the surface of an insulation material.
Clearance distance is the shortest distance through air between two conductive parts.
Both factors are essential in high-voltage solar inverter design. A thick insulation board cannot replace proper creepage and clearance design.
For example, a busbar barrier may use a high-quality G11 or FR4 sheet, but if the barrier is too short, has sharp corners, includes rough drilled holes, or is positioned too close to conductive hardware, electrical stress can still create risk.
When designing G11 or FR4 insulation components for solar inverters:
1. Use adequate material thickness.
2. Maintain safe creepage and clearance distances.
3. Avoid sharp internal corners when possible.
4. Add radii to high-voltage barrier edges.
5. Keep mounting holes away from high-voltage conductor paths.
6. Prevent metal burrs from contacting the insulation board.
7. Avoid overtightening screws and bolts.
8. Inspect all machined edges.
9. Keep surfaces clean during assembly.
10. Validate the final installed part rather than testing sheet material only.
Not every inverter component requires the same material. A practical material strategy separates high-temperature zones from moderate-temperature zones.
| Solar Inverter Component | Suggested Material | Selection Reason |
|---|---|---|
| Power module insulation plate | G11 | Better high-temperature stability and structural strength |
| Heat sink isolation board | G11 | Suitable for heat-exposed electrical insulation structures |
| High-current busbar support | G11 | Good strength retention under elevated temperature |
| Transformer insulation support | G11 | Suitable for thermal and mechanical stress |
| Inductor mounting insulation part | G11 | Better for heat and vibration exposure |
| High-temperature terminal support | G11 | Suitable for load-bearing insulation applications |
| PCB support plate | FR4 | Balanced cost, electrical insulation, and flame performance |
| Internal control-board separator | FR4 | Suitable for moderate-temperature areas |
| Low-load terminal barrier | FR4 | Practical for electrical separation applications |
| Small insulation washers | FR4 | Easy to machine and cost-effective |
| Moderate-temperature phase barrier | FR4 | Suitable when thermal exposure is controlled |
| Hybrid inverter assembly | G11 + FR4 | Uses each material where it provides the most value |
A hybrid G11 and FR4 material strategy can improve both performance and cost efficiency.
Using G11 throughout the entire inverter may provide strong thermal performance, but it may also increase material cost unnecessarily. Using FR4 everywhere may reduce cost, but it may not provide enough thermal margin in high-temperature areas.
A more balanced approach is to use both materials according to the actual operating environment.
Identify:
- High-temperature zones
- Moderate-temperature zones
- High-voltage zones
- High-current zones
- PCB and control-board zones
- Transformer zones
- Busbar zones
- Heat sink zones
- Terminal zones
Use G11 for areas that experience high heat, mechanical loading, thermal cycling, or direct exposure to power electronics.
Use FR4 for insulation parts that require flame-retardant material behavior, stable electrical separation, and cost-effective machining in lower-temperature areas.
Material approval should include the finished component, not only the sheet material.
The validation process should evaluate:
- Machined edge quality
- Hole accuracy
- Thickness consistency
- Flatness
- Electrical withstand performance
- Insulation resistance
- Mechanical stability
- Heat-aging performance
- Thermal cycling performance
- Humidity resistance
- Assembly torque resistance
- Surface condition after testing
This approach can help inverter manufacturers improve product reliability while controlling material cost.
Both G11 and FR4 can be processed into customized insulation parts using CNC machining, drilling, routing, milling, punching, and precision cutting.
However, because these materials contain glass fiber reinforcement, they require professional machining processes and suitable cutting tools.
G11 and FR4 can be manufactured into:
- Insulation sheets
- Support plates
- Busbar barriers
- Terminal boards
- Electrical partitions
- Insulation washers
- Spacer rings
- Insulation brackets
- Mounting blocks
- Slot boards
- Structural insulation panels
- Transformer support components
- Power-module insulation structures
During machining, the following factors should be controlled carefully:
- Tool wear
- Cutting speed
- Feed rate
- Hole quality
- Burr control
- Delamination prevention
- Edge smoothness
- Dust extraction
- Flatness control
- Dimensional tolerance
- Surface cleanliness
- Packing protection
Poor machining quality can reduce insulation reliability. Rough edges, delaminated holes, damaged surfaces, or excessive burrs may create stress points and reduce the performance of the finished part.
Whenever possible, use rounded corners instead of sharp corners on insulation barriers and support plates.
Rounded edges can improve machinability, reduce local stress concentration, and support better electrical-field distribution near high-voltage components.
The best material selection process begins with actual application requirements.
Before choosing G11 or FR4, define the following conditions:
- Maximum operating temperature
- Peak local temperature
- Continuous temperature exposure
- Thermal cycling frequency
- Working voltage
- Surge voltage
- Electrical spacing requirements
- Humidity level
- Condensation risk
- Mechanical loading
- Vibration exposure
- Flame-performance requirement
- Material thickness
- CNC machining requirement
- Part tolerance
- Quantity requirement
- Expected service life
- Installation environment
Before purchasing G11 or FR4 insulation materials, ask:
1. What is the maximum temperature at the actual component location?
2. Is the part close to a power module, busbar, transformer, or heat sink?
3. Does the component carry mechanical load?
4. Does the project require flame-retardant material behavior?
5. Is the part exposed to humidity, condensation, or outdoor temperature changes?
6. Does the component require CNC machining?
7. What thickness and tolerance are required?
8. Does the part include holes, slots, sharp corners, or thin walls?
9. What electrical voltage and spacing conditions apply?
10. Does the material need to maintain performance after long-term heat exposure?
The answers to these questions will usually make the G11 versus FR4 decision much clearer.
| Application Condition | Better Starting Material Choice |
|---|---|
| High-temperature power module area | G11 |
| Heat-exposed busbar support | G11 |
| Transformer or inductor support | G11 |
| Load-bearing insulation part | G11 |
| Repeated thermal cycling environment | G11 |
| Moderate-temperature internal barrier | FR4 |
| PCB support structure | FR4 |
| Flame-conscious insulation application | FR4 |
| Low-load terminal separator | FR4 |
| Cost-sensitive moderate-heat component | FR4 |
| Multi-zone high-reliability inverter | G11 + FR4 hybrid solution |
The most effective decision is not to ask whether G11 or FR4 is universally better. The real question is which material provides the right balance of thermal resistance, electrical insulation, flame performance, mechanical strength, machining quality, and cost for a specific solar inverter component.
G11 and FR4 are both important fiberglass epoxy insulation materials for solar inverter applications. Each material offers useful advantages when selected for the correct working environment.
G11 epoxy glass laminate is usually the stronger choice for high-temperature, high-strength, heat-exposed, and thermally demanding inverter insulation components. It is especially suitable for power-module insulation plates, heat sink isolation structures, high-current busbar supports, transformer supports, and load-bearing electrical components.
FR4 epoxy glass sheet is often the more practical solution for moderate-temperature insulation structures that require good electrical performance, flame-conscious material behavior, stable machining quality, and cost efficiency. It is widely used for PCB supports, terminal barriers, control-side insulation boards, internal separators, and lower-stress electrical insulation components.
A combined G11 and FR4 material strategy can provide the best overall balance. G11 can be used in the highest-stress thermal zones, while FR4 can be used in qualified lower-temperature zones. This approach helps optimize inverter safety, long-term durability, manufacturing efficiency, and total project cost.
Guangdong Weishi New Materials Co., Ltd. provides high-performance epoxy insulation boards and customized composite insulation components, including FR4 sheets, G10 sheets, G11 sheets, and epoxy fiberglass laminates. With stable material quality, flexible machining capability, and experience in industrial electrical insulation applications, the company supports customers in selecting and processing insulation materials for solar inverters, electrical equipment, electronic assemblies, machinery, and industrial systems.
For custom solar inverter insulation parts, material selection should be based on engineering drawings, temperature conditions, electrical requirements, thickness, machining tolerances, flame-performance needs, and operating environment. A well-defined material specification can help prevent unnecessary failures and support more reliable inverter operation over the full product life cycle.
G11 is generally better for high-temperature and heat-exposed components because it offers stronger mechanical stability at elevated temperatures. FR4 is often better for moderate-temperature insulation parts where flame-conscious material selection and cost efficiency are priorities.
FR4 can be used near a heat sink if the actual local temperature remains within the qualified operating range of the selected FR4 grade. The temperature should be measured at the insulation component location, not only in the surrounding enclosure air.
Yes. G11 is often suitable for high-current busbar supports and electrical barriers because it offers strong electrical insulation, good mechanical performance, and better heat resistance for demanding inverter environments.
The flame-performance characteristics of G11 depend on the specific grade, thickness, resin system, and supplier specification. G11 should not automatically be considered equivalent to FR4 in flame-retardant behavior.
Yes. Both G11 and FR4 can be CNC machined into customized insulation barriers, support plates, spacers, brackets, washers, terminal boards, and other solar inverter insulation components.
FR4 is generally more cost-effective for moderate-temperature applications. G11 may cost more, but it can provide better long-term reliability in high-temperature or high-stress areas.
Not always. Many inverter designs benefit from a hybrid material strategy. G11 can be used in high-temperature zones, while FR4 can be used in lower-temperature areas where its performance is sufficient.
The key information includes operating temperature, voltage, component location, material thickness, mechanical load, thermal cycling conditions, humidity exposure, flame-performance requirement, machining drawing, tolerance, and expected service life.
1. International Electrotechnical Commission. [IEC 62477-1:2022 — Safety requirements for power electronic converter systems and equipment]
2. International Electrotechnical Commission. [IEC 62477-1:2022/COR1:2024]
3. U.S. Department of Energy. [High Reliability Inverter Initiative]
4. Jiujiang Xinxing Insulation Material Co., Ltd. [NEMA FR4 Technical Data Sheet]
5. Jiujiang Xinxing Insulation Material Co., Ltd. [NEMA G11 Technical Data Sheet]
6. Von Roll. [The NEMA LI 1 Standard: An Overview]
7. Ready Plastics. [NEMA FR4 Flame-Retardant Glass-Epoxy Laminate]
8. U.S. Department of Energy. [WBG-Based PV Inverter Systems]
