In arc-resistant switchgear, mica sheet and FR4 fiberglass sheet solve different problems. Mica is the stronger choice for extreme heat and direct arc exposure, while FR4 is better for structural insulation, machining precision, and cost-efficient fabrication in many switchgear parts.
Arc-resistant switchgear is growing because industries are putting more weight on safety, uptime, and worker protection. The market is forecast to expand from USD 2,384.3 million in 2025 to USD 4,200 million by 2035, which shows that material selection inside switchgear is becoming more important, not less.
From a materials engineering view, the wrong insulation sheet can shorten service life, weaken dielectric performance, or increase maintenance risk. From a buyer's point of view, the right choice can improve reliability, reduce total cost, and make certification easier in demanding electrical environments.
Arc-resistant switchgear is designed to contain and redirect arc energy so that equipment damage and personnel exposure are reduced. That means internal materials must handle heat, electrical stress, mechanical load, and in some cases flame exposure without losing integrity.
For sheet materials used inside this type of equipment, the priorities are usually:
- High dielectric strength.
- Strong thermal stability.
- Good mechanical support.
- Stable performance under humidity and aging.
- Clean machining and repeatable dimensions.
Mica and FR4 both belong in electrical insulation design, but they are optimized for different parts of the system.
Mica sheet is a mineral-based insulation material known for excellent heat resistance and arc performance. Industry guidance shows mica can withstand very high temperatures, with continuous temperature capability reaching roughly 500–1000°C depending on grade and binder system.
That makes mica especially valuable in zones where the insulation may be exposed to severe thermal shock or near-flame conditions. It is also preferred when low smoke, low loss, and strong fire survivability matter more than easy structural machining.
Typical strengths of mica sheet include:
- Excellent heat tolerance.
- Strong arc resistance.
- Good dielectric performance at high temperature.
- Low smoke characteristics in fire-sensitive applications.
Its main limitation is mechanical practicality. Mica is more brittle or less structurally versatile than reinforced laminates, so it is often used as a functional insulation layer rather than as the main load-bearing component.

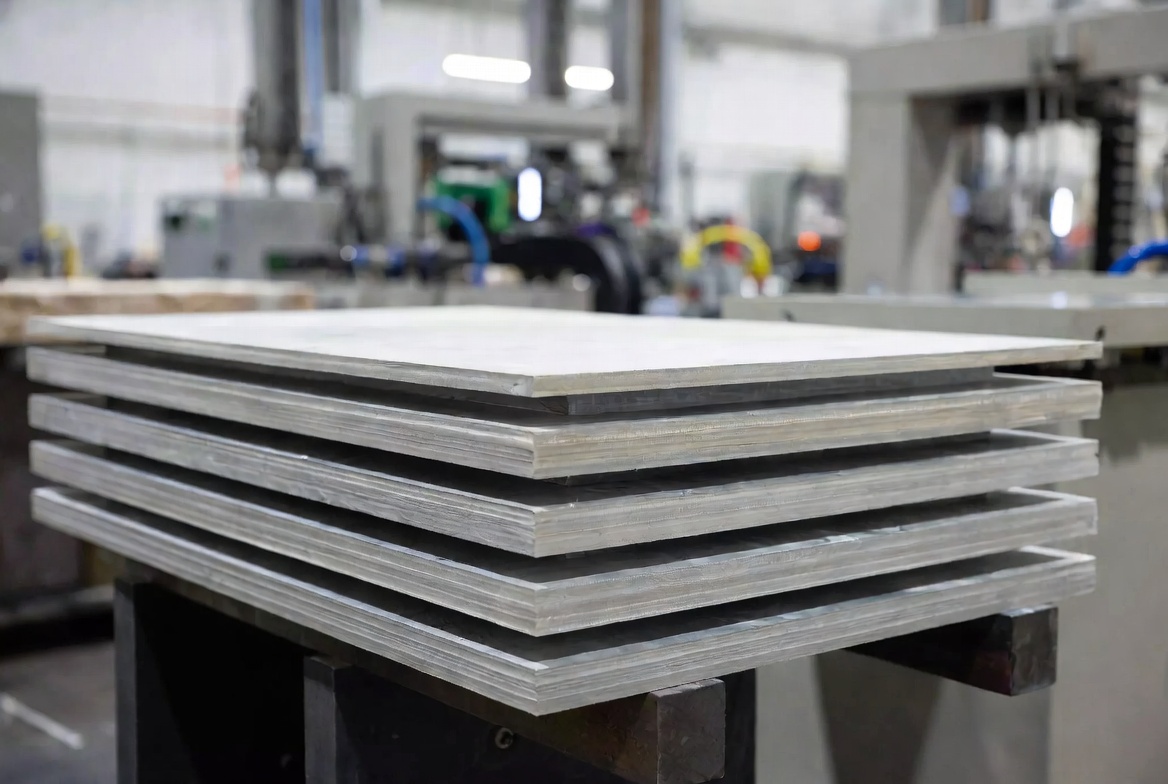

FR4 fiberglass sheet is a woven glass cloth reinforced with flame-resistant epoxy resin. It is widely used in electrical and electronic systems because it combines good electrical insulation, dependable mechanical strength, and manageable processing characteristics.
For switchgear-related applications, FR4 is often chosen for insulating barriers, support parts, mounting plates, and machined components where dimensional precision matters. Technical references describe FR4 as having dielectric strength in the 20–40 kV/mm range, moisture absorption around 0.05–0.15%, and a typical continuous operating range up to about 130°C for standard grades.
Its practical advantages include:
- High mechanical strength.
- Good machinability.
- Stable electrical properties.
- Better fabrication efficiency for custom parts.
- Broad industrial availability.
Its weakness is heat endurance under severe arc conditions. Compared with mica, FR4 is far less suitable when the part sits very close to direct arc exposure or sustained extreme heat.
| Property | Mica Sheet | FR4 Fiberglass Sheet |
|---|---|---|
| Heat resistance | Excellent, suitable for very high temperatures | Good, but limited compared with mica |
| Arc resistance | Very strong | Moderate to good, depending on grade and design |
| Mechanical strength | Good, but not ideal as a primary structural part | Strong and easier to use in structural parts |
| Machinability | More specialized and less convenient | Easier to machine and fabricate |
| Moisture behavior | Generally stable, but depends on binder system | Low water absorption and stable in normal industrial use |
| Cost efficiency | Usually higher for critical use cases | Often more economical for mass production |
| Best fit | Hot zones, arc-prone zones, fire-sensitive barriers | Support parts, barriers, insulating panels, structural components |
In real switchgear design, the best choice depends on location inside the cabinet. A material that performs well in a cool structural panel may fail quickly near an arc path, so the answer is usually application-specific rather than universal.
Use mica sheet when the part needs:
- Extreme thermal resistance.
- Arc exposure tolerance.
- Fire containment support.
- Thin insulation in a high-heat zone.
Use FR4 fiberglass sheet when the part needs:
- Strong structural support.
- Easy CNC machining.
- Stable electrical isolation.
- Better economics in regular insulation zones.
For many manufacturers, the smartest design is a hybrid layout: mica near arc-risk hotspots and FR4 in cooler, load-bearing zones.
One of the most practical developments in modern switchgear design is not choosing one material everywhere, but combining materials by function. This approach reduces material waste and improves reliability because each sheet is used where its strengths are most valuable.
A hybrid design strategy can work like this:
1. Place mica closer to arc-prone regions.
2. Use FR4 for support plates and barriers away from direct thermal stress.
3. Verify thickness, surface finish, and edge quality on all critical parts.
4. Test the assembly under thermal and electrical stress before mass production.
For OEMs and panel builders, this often produces a better balance of safety, cost, and manufacturability than relying on one sheet type alone.
When engineering or sourcing switchgear insulation, professionals should evaluate more than just the material name. The following factors often decide final performance:
- Operating temperature.
- Arc exposure distance.
- Required thickness tolerance.
- Mechanical load and vibration.
- Environmental humidity.
- Processing method, including punching, milling, and drilling.
- Certification needs for the end product.
In practice, FR4 can be the better commercial choice for many custom fabricated parts, while mica becomes the premium choice when thermal survivability is the top priority.
From a manufacturing standpoint, FR4 is usually easier to convert into accurate parts. It can be CNC machined, drilled, and cut with good repeatability, which helps when switchgear designs demand tight tolerances.
Mica is more specialized. It can deliver exceptional thermal performance, but it generally requires more careful processing and may be selected in targeted layers or inserts instead of large load-bearing structures.
For a manufacturer like Guangdong Weishi New Materials Co., Ltd., this is important because customers often need both:
- High-temperature resistance for critical safety zones.
- Reliable fabrication and customized dimensions for production efficiency.
That is why many industrial buyers ask for both material engineering support and custom machining support in the same project.
If the switchgear zone is exposed to direct arc risk, high thermal shock, or fire containment requirements, choose mica sheet. If the zone needs structural insulation, cost efficiency, and precision fabrication, choose FR4 fiberglass sheet.
For most arc-resistant switchgear projects, the winning solution is not "mica or FR4" in isolation. It is "mica where heat is severe, FR4 where structure and manufacturability matter." That is the most practical path for long-term reliability.
Before selecting a supplier, check these points:
- Material grade and temperature class.
- Dielectric performance data.
- Thickness tolerance.
- Machining capability.
- Batch consistency.
- Application history in switchgear or power equipment.
- Custom size and drawing support.
A good supplier should be able to explain not only the material properties, but also where that material belongs in the final switchgear assembly.
Yes, if the part is close to arc exposure or high heat. Mica performs better in extreme thermal conditions, while FR4 is better for general structural insulation.
Not in the hottest or most arc-prone areas. FR4 works well in many insulating parts, but it does not match mica's thermal endurance.
FR4 is generally easier to machine and process into accurate parts. Mica is more specialized and is usually selected for performance rather than ease of fabrication.
FR4 is usually more cost-effective for standard insulation and structural components. Mica often costs more, but it can be justified in safety-critical hot zones.
Usually a combination of both. Mica is best near arc-risk areas, while FR4 is better for support panels and insulating parts farther from direct heat.
