Selecting the right insulation material for a generator is not only a matter of electrical resistance. It is also a decision about heat stability, mechanical strength, vibration resistance, moisture exposure, machining accuracy, and long-term operating reliability.
For many generator manufacturers, repair companies, and industrial maintenance teams, the key question is simple: Should generator end insulation use phenolic sheet or G11 fiberglass sheet?
Both materials can be machined into insulating barriers, terminal boards, support blocks, spacers, and structural components. However, their internal construction and performance at elevated temperatures are very different.
In most high-duty generator applications, G11 fiberglass sheet provides a stronger and more reliable solution. It offers better retained mechanical strength at elevated temperatures, stronger vibration resistance, improved dimensional stability, and more dependable electrical insulation performance in demanding industrial conditions.
Phenolic sheet remains useful for lower-temperature and lower-load electrical parts. It can be a cost-effective option when the application is dry, stable, and not structurally demanding. The correct selection depends on the actual operating environment and the function of the finished insulation component.

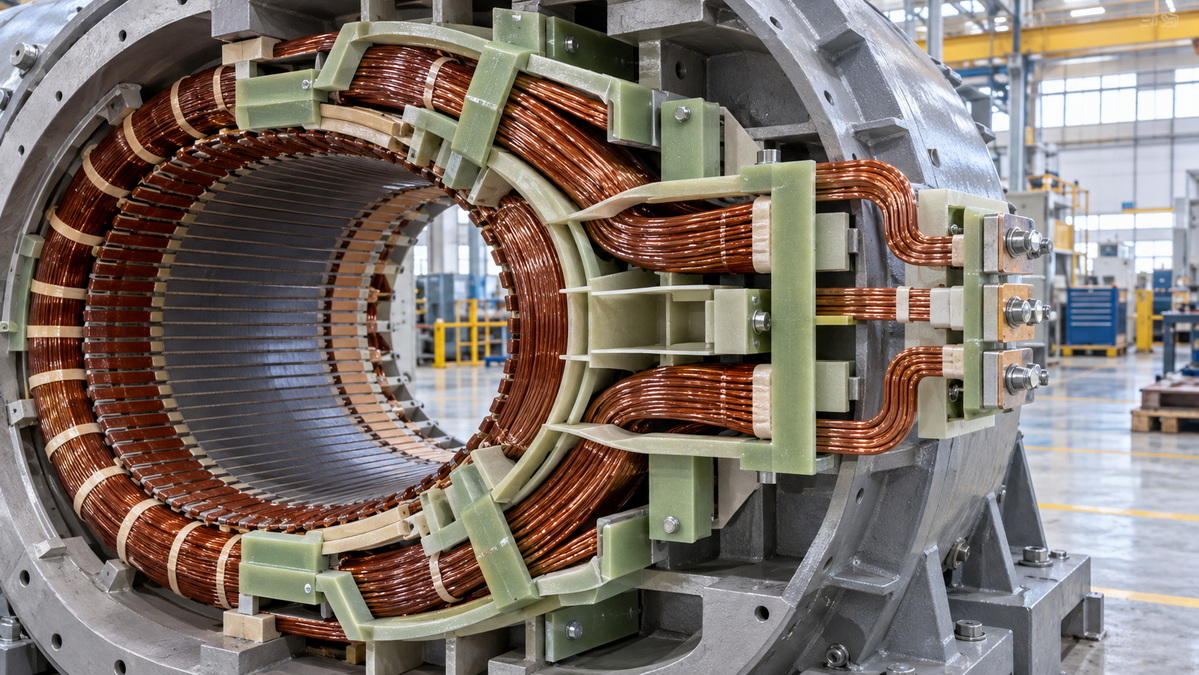

Generator end insulation refers to insulating and supporting components installed around the stator end winding area, coil overhangs, terminals, phase connections, lead exits, and support structures.
These parts must separate energized conductors while holding the winding system in a stable position.
In practical generator construction, end insulation components may include:
- End-winding support blocks
- Coil spacers
- Phase barriers
- Terminal boards
- Insulating support rings
- Connection plates
- Lead supports
- Rotor insulation parts
- Custom-machined structural insulation components
The generator end region is often exposed to more demanding conditions than the central winding area. It can experience repeated heat cycles, electromagnetic vibration, airflow changes, moisture, dust, oil mist, and mechanical movement.
A material that looks acceptable at room temperature may not remain reliable after thousands of operating hours.
For this reason, generator insulation materials should be selected according to the full operating environment rather than only initial purchase cost.
Phenolic sheet is a rigid thermoset laminate produced by combining phenolic resin with a reinforcement material.
The reinforcement may be:
- Paper
- Cotton fabric
- Fine woven fabric
- Glass fabric
In electrical applications, the most common phenolic product is often paper phenolic sheet. It is widely known as Bakelite sheet, paper-based phenolic laminate, or phenolic insulation board.
Phenolic sheets are commonly used in electrical panels, switchgear, terminal boards, low-voltage barriers, mechanical fixtures, and general-purpose insulating parts.
Phenolic sheet remains popular because it has several practical benefits.
- Lower initial material cost
- Good electrical insulation in dry environments
- Easy drilling, cutting, punching, and routing
- Good availability in standard sheet sizes
- Suitable for simple insulating barriers
- Useful for low-load terminal boards
- Can be machined with less tool wear than glass-reinforced laminates
For low-voltage equipment or controlled indoor environments, phenolic sheet may provide adequate performance at an economical cost.
It is particularly useful when the component does not need to withstand high mechanical stress or sustained elevated temperature.
Phenolic sheet is not always the best material for generator end insulation.
The main limitation is its reduced ability to retain strength and stiffness at higher temperatures. When exposed to repeated heating cycles, phenolic resin can become more brittle. This may increase the risk of cracking, edge damage, and long-term dimensional change.
Paper-based phenolic grades can also be more sensitive to moisture than glass epoxy laminates. Moisture exposure may affect insulation resistance, dimensional stability, and mechanical behavior.
In generator end regions, these limitations become important because the insulation part may be exposed to:
- Continuous heat
- Thermal expansion and contraction
- Electromagnetic vibration
- Mechanical loading
- Oil mist
- Condensation
- Dust contamination
- Frequent maintenance activity
Phenolic sheet may still be suitable for non-critical parts. However, it is usually not the first choice for high-temperature end-winding support structures.
G11 fiberglass sheet is a rigid laminated composite material made from woven glass cloth and a high-temperature epoxy resin system.
The material is produced by impregnating fiberglass fabric with epoxy resin, stacking multiple layers, and curing the laminate under controlled heat and pressure.
The finished G11 sheet has a dense, strong, and stable structure. It is commonly green in color, although appearance can vary depending on the supplier and resin formulation.
G11 fiberglass sheet belongs to the same broad family as G10 and FR4, but it is generally selected for applications that require stronger high-temperature performance.
G11 is widely used in electrical and industrial equipment because it combines insulation performance with structural strength.
Its main advantages include:
- High mechanical strength
- Excellent flexural performance
- Strong vibration resistance
- Good dielectric insulation
- Better heat resistance than common phenolic sheet
- Good dimensional stability
- Strong resistance to deformation
- Reliable performance in demanding electrical equipment
- Suitable for CNC machining
- Useful for custom structural insulation parts
The woven fiberglass reinforcement is especially important. It gives the laminate stronger resistance to bending, cracking, compression, and repeated mechanical loading.
This makes G11 fiberglass sheet highly suitable for generator components that must hold their shape under heat and vibration.
G11 fiberglass sheet can be machined into a wide range of generator insulation components.
Common applications include:
- Stator end-winding support blocks
- Coil restraint components
- Phase insulation barriers
- Terminal boards
- Rotor insulation plates
- Slot wedges
- Insulation spacers
- Support rings
- Electrical isolation plates
- High-strength mounting structures
- Custom CNC-machined insulation parts
For demanding end-winding support applications, G11 often provides a stronger engineering margin than phenolic laminate.

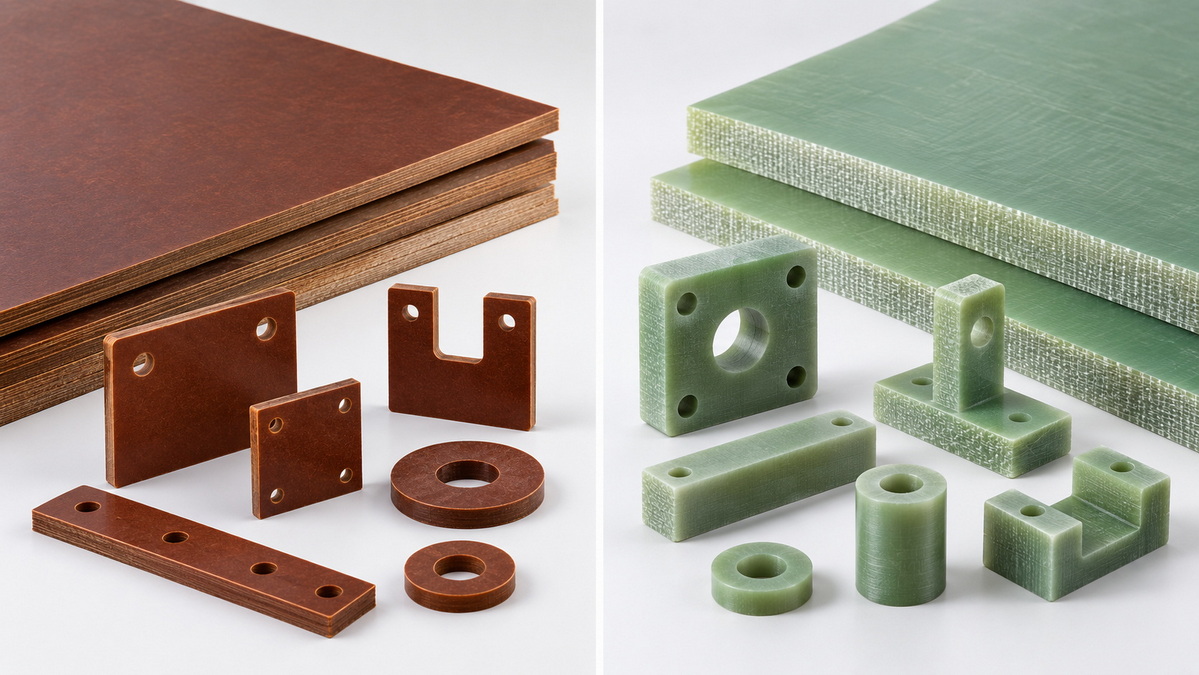

The following comparison shows why material selection should be based on actual generator operating conditions.
| Property | Phenolic Sheet | G11 Fiberglass Sheet | Preferred Material |
|---|---|---|---|
| Main resin system | Phenolic resin | High-temperature epoxy resin | G11 |
| Common reinforcement | Paper, cotton fabric, or glass fabric | Woven fiberglass cloth | G11 |
| Thermal resistance | Moderate | High | G11 |
| Mechanical strength | Moderate | High | G11 |
| Strength retention at high temperature | Lower | Better | G11 |
| Vibration resistance | Limited in demanding applications | Excellent | G11 |
| Dimensional stability | Moderate | High | G11 |
| Moisture resistance | Varies by grade; paper types are more sensitive | Generally stronger | G11 |
| Electrical insulation | Good in dry environments | Excellent in demanding electrical applications | G11 |
| Machinability | Very easy | Good, but requires appropriate tooling | Phenolic |
| Tool wear during machining | Lower | Higher due to glass fiber reinforcement | Phenolic |
| Material cost | Lower | Higher | Phenolic |
| Long-term suitability for generator end supports | Limited | Strong | G11 |
The table shows that phenolic sheet has two major advantages: lower cost and easier machining.
However, generator end insulation is often a high-consequence application. If the material loses stiffness, cracks, or allows coil movement, the cost of repair can be far greater than the initial material savings.
For critical structural insulation, G11 fiberglass sheet is usually the more dependable option.
Heat is one of the most important factors when selecting insulation materials.
Generator temperature can rise because of:
- High load operation
- Poor cooling airflow
- High ambient temperature
- Restricted ventilation passages
- Long operating hours
- Frequent start-stop cycles
- Harmonic current
- Overload conditions
- Dust accumulation
- Aging cooling systems
When an insulation component operates near its thermal limit, its mechanical and electrical performance may gradually decline.
Phenolic sheet can perform well in moderate-temperature environments. However, prolonged high-temperature operation can reduce its stiffness and may make the material more brittle over time.
G11 fiberglass sheet is designed for higher-temperature industrial insulation applications. Its epoxy resin system and fiberglass reinforcement help it maintain useful mechanical strength and electrical insulation performance when exposed to elevated temperatures.
A generator end-winding support part must remain rigid. If it becomes soft, distorted, cracked, or loose, the end winding can move.
Even small movement can create larger problems over time.
Potential consequences include:
- Coil abrasion
- Insulation wear
- Electrical tracking
- Loose connections
- Noise and vibration
- Reduced winding stability
- Unplanned maintenance
- Shortened generator service life
For this reason, the best insulation material is not simply the one with acceptable room-temperature electrical properties. It is the material that can maintain its function after long-term exposure to heat and vibration.
Generator windings are subject to electromagnetic forces. During operation, these forces can create repeated vibration in the stator end region.
The insulation components in this area must do more than separate conductors. They must help maintain coil position and prevent movement.
Phenolic sheet can be suitable for flat barriers, low-load terminal boards, and simple insulation spacers.
However, paper-based phenolic materials are generally less suitable for parts that must withstand repeated vibration or heavy mechanical support loads.
When exposed to heat and vibration over time, a phenolic part may become more vulnerable to:
- Cracking
- Chipping
- Edge damage
- Loosening
- Compression deformation
- Reduced rigidity
This does not mean phenolic sheet is unsuitable for all generator components. It means its use should be limited to applications where structural demand is low.
G11 fiberglass sheet is better suited to structural insulation applications because woven glass cloth reinforces the epoxy laminate.
The glass reinforcement improves:
- Flexural strength
- Compression resistance
- Dimensional stability
- Impact resistance
- Resistance to vibration
- Resistance to thermal deformation
For generator end-winding supports, coil blocks, rigid spacers, and custom insulating brackets, G11 can provide a higher level of confidence.

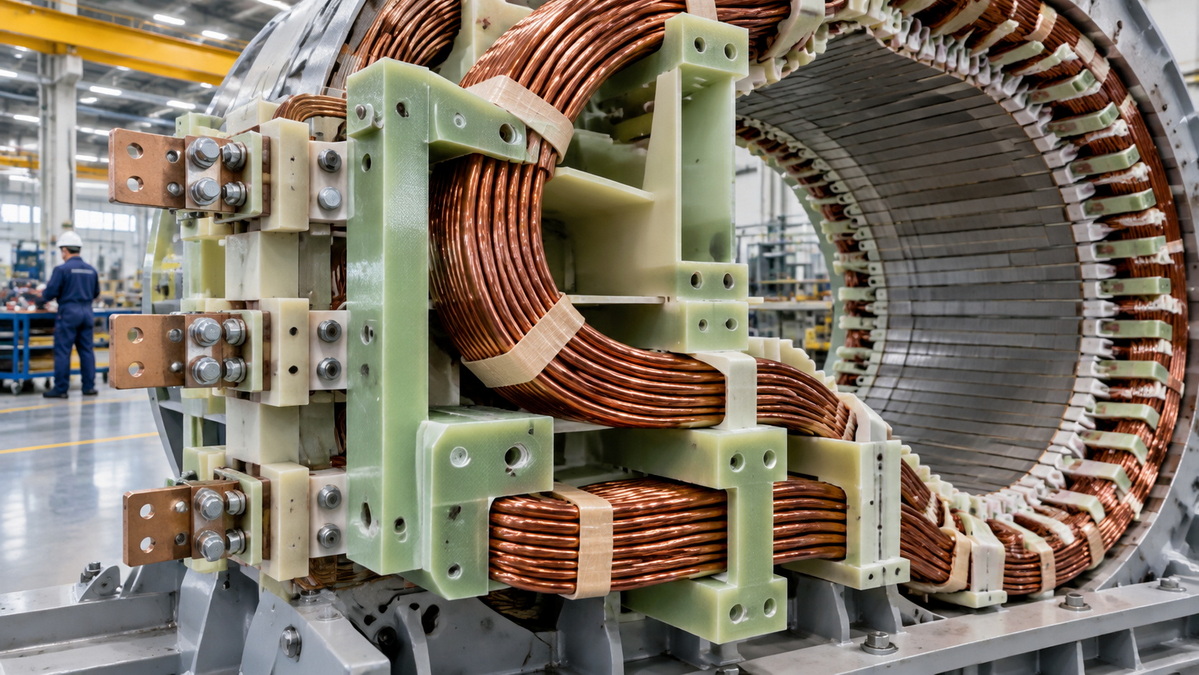

Imagine a generator stator end winding supported by multiple insulating blocks.
At first, both phenolic and G11 support blocks may appear strong enough. However, after repeated heat cycles and continuous vibration, the materials may behave differently.
A phenolic support block may gradually lose stiffness or develop small cracks. Once the part can no longer hold the coil securely, vibration may increase.
A correctly specified G11 support block is more likely to retain its geometry and mechanical support function. This helps reduce coil movement and protects the surrounding insulation system.
Both phenolic sheet and G11 fiberglass sheet are electrical insulation materials. However, electrical performance is affected by more than the dry dielectric strength of a new sample.
In real generator environments, insulation components may be exposed to:
- Humidity
- Condensation
- Dust
- Oil mist
- Thermal cycling
- Mechanical stress
- Surface contamination
- Electrical field concentration
- Long-term aging
Phenolic sheet can provide good insulation in dry and controlled environments. It is widely used for electrical panels, switchgear components, and terminal boards.
However, paper phenolic types can absorb more moisture than glass epoxy laminates. Higher moisture exposure may affect both electrical resistance and dimensional stability.
G11 fiberglass sheet generally provides more stable performance in demanding industrial conditions. Its glass cloth reinforcement and epoxy resin system make it more suitable for generator insulation structures that may encounter humidity, elevated temperature, and mechanical stress.
Do not choose an insulation sheet based only on a dielectric strength value.
Also consider:
- Operating temperature
- Thermal cycling frequency
- Relative humidity
- Condensation risk
- Voltage level
- Mechanical loading
- Thickness requirement
- Part geometry
- Edge exposure
- Surface tracking requirements
- Expected service life
A material that performs well during a short laboratory test may not deliver the same reliability during years of generator operation.
Machining performance is an important part of the material-selection process.
Phenolic sheet is usually easier to machine. It can be drilled, punched, cut, routed, and milled with relatively low tool wear. This makes it attractive for high-volume, simple, and low-cost electrical components.

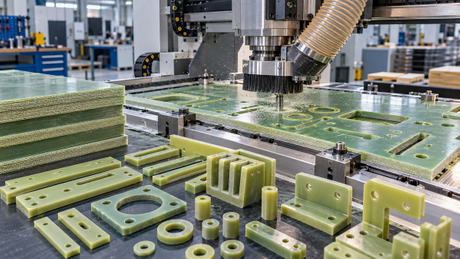

G11 fiberglass sheet can also be machined into precise parts. However, its fiberglass reinforcement is abrasive, so proper cutting tools, machining parameters, dust control, and edge finishing are important.

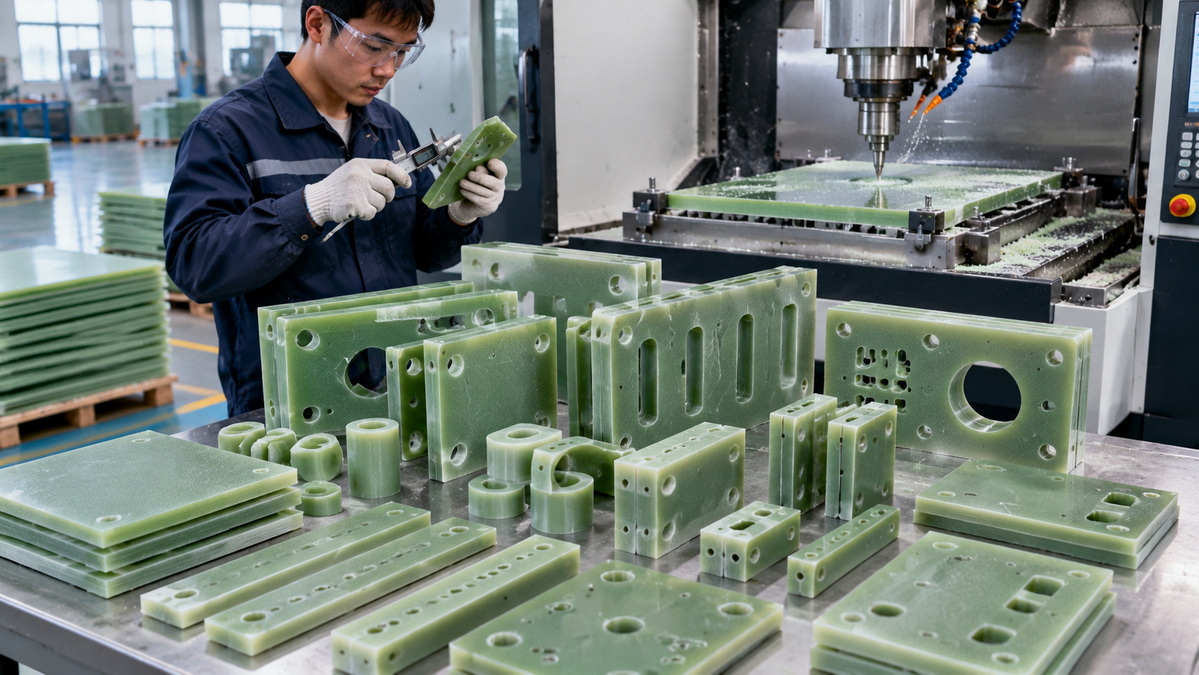

When producing custom G11 generator insulation parts, manufacturers should control:
- Sheet thickness tolerance
- Hole position accuracy
- CNC routing precision
- Burr removal
- Edge smoothness
- Corner radius design
- Layer delamination prevention
- Dust extraction
- Final dimensional inspection
Poor machining can reduce the value of even a high-quality material. Rough edges, incorrect hole positions, sharp corners, or poor fit can introduce stress points during assembly.
For generator end insulation, it is often beneficial to source both the raw G11 sheet and the finished machined part from the same experienced material supplier.
This can improve dimensional consistency, simplify communication, and reduce fit-related problems during installation.
A reliable selection process should begin with application requirements.
Ask for the expected temperature at the actual installation point.
Consider:
- Normal operating temperature
- Local hot spots
- Overload conditions
- Emergency temperature exposure
- Heat cycling frequency
- Cooling performance
If the component operates in a high-temperature region, G11 fiberglass sheet should be strongly considered.
Determine whether the part is only an electrical barrier or a load-bearing support.
Use phenolic sheet for:
- Low-load barriers
- Basic terminal boards
- Light-duty spacers
- Controlled indoor electrical components
Use G11 fiberglass sheet for:
- End-winding supports
- Coil restraint blocks
- Structural spacers
- High-strength insulation brackets
- High-temperature phase barriers
- Generator support components exposed to vibration
Ask whether the generator operates in:
- Humid factories
- Coastal areas
- Marine environments
- Hydropower stations
- Outdoor enclosures
- Chemical plants
- Dusty workshops
- High-condensation locations
When moisture, temperature variation, or industrial contamination is present, G11 provides a more reliable foundation for structural insulation components.
The raw sheet is only one part of the project.
Before ordering, confirm:
- Required thickness
- Part dimensions
- Hole diameter
- Hole position tolerance
- CNC machining details
- Surface finish
- Flatness requirement
- Quantity
- Drawing format
- Sample requirements
Custom-machined parts can reduce installation time and improve generator assembly consistency.
A green insulation sheet is not automatically G11.
Color does not confirm thermal class, resin chemistry, fiberglass content, electrical performance, or machining quality. Always request technical documentation and confirm the actual material grade.
G10, FR4, and G11 are all glass epoxy laminate materials, but they are designed for different performance priorities.
- G10 is commonly used for strong electrical insulation and mechanical parts at moderate temperatures.
- FR4 is a flame-retardant glass epoxy laminate widely used in electrical and electronic applications.
- G11 is generally selected when elevated-temperature performance and mechanical strength retention are especially important.
For generator end-winding support parts, G11 is often the stronger choice.
Low material cost can be attractive during procurement. However, a lower-cost sheet may create higher expenses if it causes premature replacement, insulation damage, coil movement, or unexpected maintenance.
The more useful comparison is not sheet price alone. It is total cost over the service life of the generator component.
Incorrect hole placement, rough edges, sharp corners, and poor tolerance control can all affect the installation and performance of insulation parts.
For critical generator applications, choose materials and machining processes that support reliable assembly.
G11 fiberglass sheet is often preferred because it provides a better balance of electrical insulation and structural durability.
Its value becomes especially clear when generator components must operate under combined stress from heat, vibration, electrical fields, and environmental exposure.
G11 is particularly suitable when the insulation part must:
- Maintain rigidity near end windings
- Support coils under vibration
- Resist thermal deformation
- Provide stable electrical separation
- Withstand long operating cycles
- Fit accurately into a complex generator assembly
- Remain reliable in industrial environments
Phenolic sheet remains a useful option for selected low-duty parts. But for critical end-winding supports and high-temperature generator insulation structures, G11 offers a more dependable engineering solution.
Guangdong Weishi New Materials Co., Ltd. supplies G11 fiberglass sheets, G10 sheets, FR4 sheets, epoxy glass laminates, and custom-machined electrical insulation parts for industrial electrical equipment.

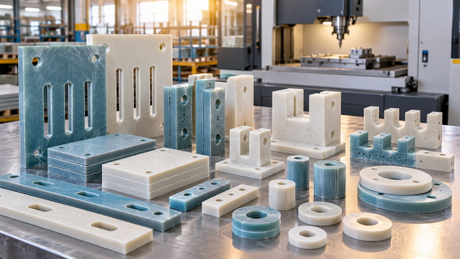

With flexible production and precision processing capability, the company can support customers who require insulation sheets, finished parts, drilled components, CNC-machined blocks, spacers, barriers, and specialized structural insulation solutions.
When comparing phenolic sheet vs G11 fiberglass sheet for generator end insulation, the right choice depends on the actual duty of the component.
Phenolic sheet can be a cost-effective option for low-temperature, dry, non-critical, and low-load insulation parts. It is easy to machine and works well in many general electrical applications.
However, G11 fiberglass sheet is generally the better option for demanding generator end insulation. It offers stronger mechanical support, higher thermal resistance, better vibration performance, greater dimensional stability, and more dependable long-term insulation behavior.
For end-winding support blocks, coil restraint parts, phase barriers, high-temperature terminal structures, and custom generator insulation components, G11 is often the safer long-term investment.
For dependable G11 fiberglass sheet, FR4 sheet, G10 sheet, and precision-machined generator insulation components, share your drawings, dimensions, operating temperature, voltage level, and quantity requirements with Guangdong Weishi New Materials Co., Ltd. to receive a suitable material and processing recommendation.
Yes. G11 fiberglass sheet is usually better for generator end-winding supports because it offers higher mechanical strength, stronger vibration resistance, improved thermal stability, and better dimensional consistency under demanding conditions.
Yes. Phenolic sheet can be used for selected generator insulation parts, such as low-load barriers, terminal boards, and simple insulating spacers. It is less suitable for critical structural parts exposed to high temperature and vibration.
The main difference is material construction. Phenolic sheet uses phenolic resin with paper, cotton, or glass reinforcement. G11 uses woven fiberglass cloth and high-temperature epoxy resin. G11 normally provides better high-temperature mechanical and electrical performance.
Yes. G11 is commonly selected for high-temperature electrical insulation applications because it can retain useful mechanical and electrical properties at elevated temperatures. The exact performance depends on the specific material formulation and production standard.
Yes. G11 fiberglass sheet can be CNC machined into custom insulation blocks, terminal boards, support plates, spacers, barriers, and other precision components. Suitable tools and machining parameters are important because fiberglass reinforcement is abrasive.
No. FR4 and G11 are both glass epoxy laminates, but they are not identical. FR4 is known for flame-retardant performance, while G11 is usually selected for improved high-temperature mechanical and electrical performance.
Useful information includes material grade, thickness, dimensions, technical drawing, hole details, machining requirements, operating temperature, voltage level, environmental conditions, annual quantity, and sample requirements.
1. Ready Plastics. "NEMA G11 — Glass-Cloth Epoxy High-Temperature Laminate." Available at: [Ready Plastics G11 Material Guide]
2. The Gund Company. "NEMA Grade G-11, Class H EPGC 308 Glass Epoxy." Available at: [G11 Glass Epoxy Technical Data]
3. Stenbacka. "Vetronit G11 Technical Data Sheet." Available at: [Vetronit G11 Material Data]
4. XX Insulation. "G11 EPGC203 Technical Data Sheet." Available at: [G11 EPGC203 Technical Information]
5. Ready Plastics. "Phenolic Sheet — Paper Phenolic Sheet, NEMA Grades X and XX." Available at: [Paper Phenolic Sheet Guide]
6. MISCO. "Paper Bakelite Technical Data Sheet." Available at: [Paper Phenolic Electrical Insulation Data]
7. International Electrotechnical Commission. "IEC 60893-2: Industrial Rigid Laminated Sheets for Electrical Purposes." Available at: [IEC 60893-2 Standard Information]
8. DIN Media. "EN IEC 60893-3-2: Industrial Rigid Laminated Sheets Based on Thermosetting Resins." Available at: [IEC 60893-3-2 Material Specification]
9. Fenhar. "Engineering Insulation Materials for Electric Generators." Available at: [Generator Insulation Material Application Guide]
