Choosing insulation materials for an industrial furnace is not simply about selecting the product with the highest heat resistance. Mica sheets and epoxy fiberglass boards perform very different roles in thermal, electrical, and mechanical insulation systems.

For furnace areas exposed to sustained high temperatures, mica sheets are usually the more suitable choice. For lower-temperature support structures, electrical mounting parts, and precision-machined insulation components, epoxy fiberglass boards such as FR4, G10, and G11 can offer stronger mechanical performance and greater fabrication flexibility.

At Guangdong Weishi New Materials Co., Ltd., we help industrial buyers evaluate insulation materials based on actual operating conditions. The correct choice depends on temperature, thermal cycling, electrical requirements, mechanical loads, moisture exposure, part geometry, and the component's real position within the furnace system.

What Are Mica Sheets?

Mica sheets are high-temperature insulation materials made from natural mica minerals, commonly muscovite or phlogopite, combined with suitable binders and reinforcement materials when required.

They are widely used in industrial heating systems, electric furnaces, thermal barriers, heating elements, insulation washers, high-temperature electrical separators, and heat-resistant electrical assemblies.

Mica is known for its ability to provide both thermal insulation and electrical insulation in demanding high-temperature environments.

Key characteristics of mica sheets include:

- High heat resistance

- Strong electrical insulation capability

- Low thermal conductivity

- Thin-profile insulation performance

- Good flame and arc resistance

- Stable performance in high-temperature applications

- Suitability for furnace heating assemblies and electrical insulation barriers

Muscovite mica sheets are commonly used in moderate-to-high-temperature applications. Phlogopite mica sheets are generally preferred in hotter environments because they offer stronger thermal endurance.

For furnace applications, phlogopite mica is often selected for areas near heating elements, hot electrical interfaces, and high-temperature insulation barriers.

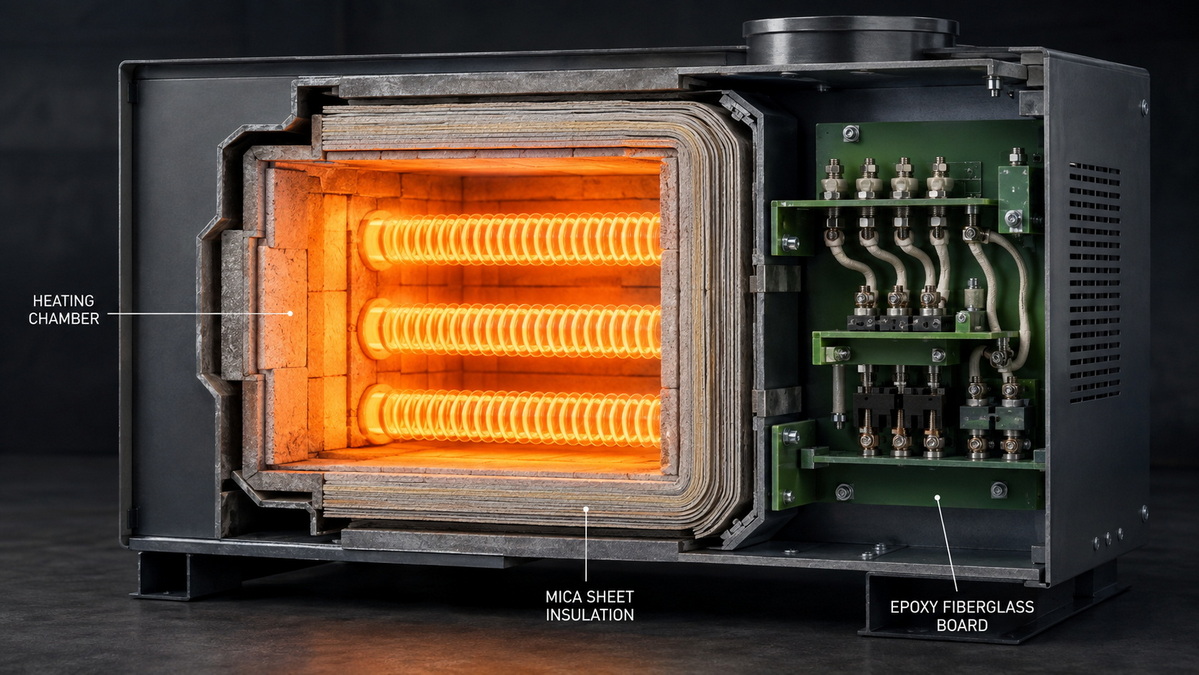

Industrial Furnace Insulation Material Comparison

What Is Epoxy Fiberglass Board?

Epoxy fiberglass board is a laminated composite material made from woven fiberglass cloth and epoxy resin. The material is manufactured under heat and pressure to create a rigid, durable, electrically insulating sheet.

Common epoxy fiberglass board grades include:

- G10 epoxy fiberglass board

- FR4 epoxy fiberglass board

- G11 epoxy fiberglass board

These materials are widely used in electrical equipment, transformer systems, switchgear, control panels, industrial machinery, molds, fixtures, CNC-machined parts, terminal insulation, and structural insulation components.

Epoxy fiberglass boards are valued for their combination of:

- High mechanical strength

- Excellent dimensional stability

- Reliable electrical insulation

- Good resistance to moisture

- Strong machinability

- Custom CNC processing capability

- Durable performance under mechanical stress

Unlike mica sheets, epoxy fiberglass boards are not primarily designed for direct exposure to extreme furnace temperatures. Their epoxy resin matrix has a defined temperature limit, and excessive heat can gradually reduce mechanical strength, electrical performance, and dimensional stability.

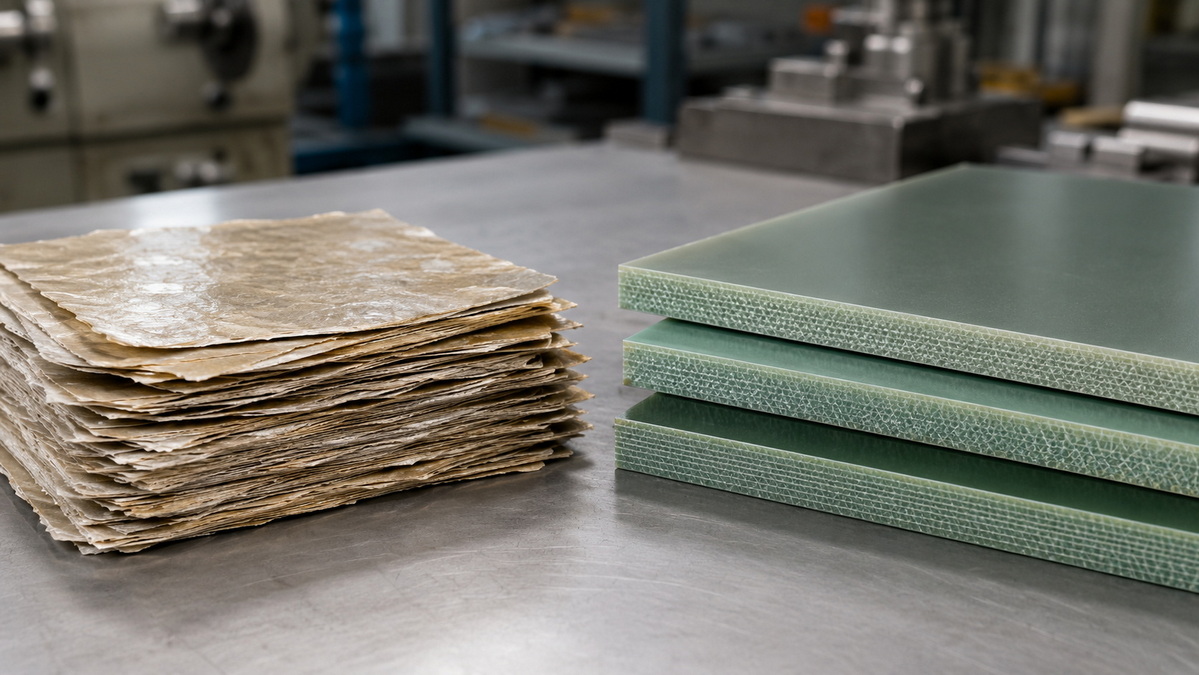

Mica Sheet And Epoxy Fiberglass Board Materials

Mica Sheets vs Epoxy Fiberglass Board: Main Differences

Property	Mica Sheets	Epoxy Fiberglass Board
Main material	Natural mica mineral with binder	Woven fiberglass cloth and epoxy resin
Primary role	High-temperature thermal and electrical insulation	Structural and electrical insulation
Temperature resistance	Suitable for high-temperature furnace zones	Suitable for lower- to medium-temperature industrial areas
Mechanical strength	Moderate; may be brittle in some applications	High strength and strong load-bearing capability
Electrical insulation	Excellent, including at elevated temperatures	Excellent within its recommended operating temperature range
Machinability	Can be cut and drilled, but requires careful handling	Easy to CNC machine, drill, route, slot, and shape
Thermal barrier performance	Strong performance near hot zones	Not intended as a direct furnace hot-zone barrier
Moisture resistance	Depends on mica type and binder system	Generally good, especially in glass epoxy laminates
Flame performance	Mineral base provides natural heat resistance	FR4 provides flame-retardant properties
Typical application	Heating elements, furnace insulation barriers, thermal shields	Electrical panels, terminal boards, structural supports, machined insulation parts

The most important distinction is simple: mica sheets are designed to survive closer to heat, while epoxy fiberglass boards are designed to provide stronger mechanical and machining performance in controlled-temperature areas.

Temperature Resistance for Industrial Furnace Applications

Temperature is usually the first selection factor, but furnace designers should avoid looking only at the furnace setpoint.

A furnace may operate at 600°C, while an external support plate may only reach 120°C because of air gaps, insulation layers, cooling systems, and distance from the heating chamber.

For this reason, material selection should be based on the actual temperature at the component location.

Mica Sheet Temperature Performance

Mica sheets are commonly used in high-temperature insulation systems because they can maintain their insulating function at temperatures beyond the normal operating range of epoxy fiberglass laminates.

Muscovite mica is generally used for moderate-to-high-temperature electrical insulation. Phlogopite mica is often selected for more demanding thermal conditions and may be used in applications with prolonged exposure to higher temperatures.

Mica sheets are especially suitable for:

- Electric furnace heating elements

- Heating coil insulation

- High-temperature electrical separators

- Furnace terminal insulation

- Thermal barriers

- High-temperature washers

- Heat shields

- Kiln and oven insulation assemblies

- Electric heater components

Epoxy Fiberglass Board Temperature Performance

FR4, G10, and G11 boards offer strong electrical and mechanical insulation performance, but their temperature resistance is linked to the resin system.

Standard FR4 and G10 materials are generally used in lower-temperature industrial electrical applications. G11 epoxy fiberglass board is typically selected when higher heat resistance is required.

However, even G11 should not be treated as a replacement for mica sheets in a furnace hot zone.

When an epoxy fiberglass board is exposed to temperatures above its design range, potential problems include:

- Resin softening

- Surface discoloration

- Reduced flexural strength

- Warping

- Loss of dimensional stability

- Declining dielectric performance

- Delamination after repeated thermal cycles

- Carbonization in extreme conditions

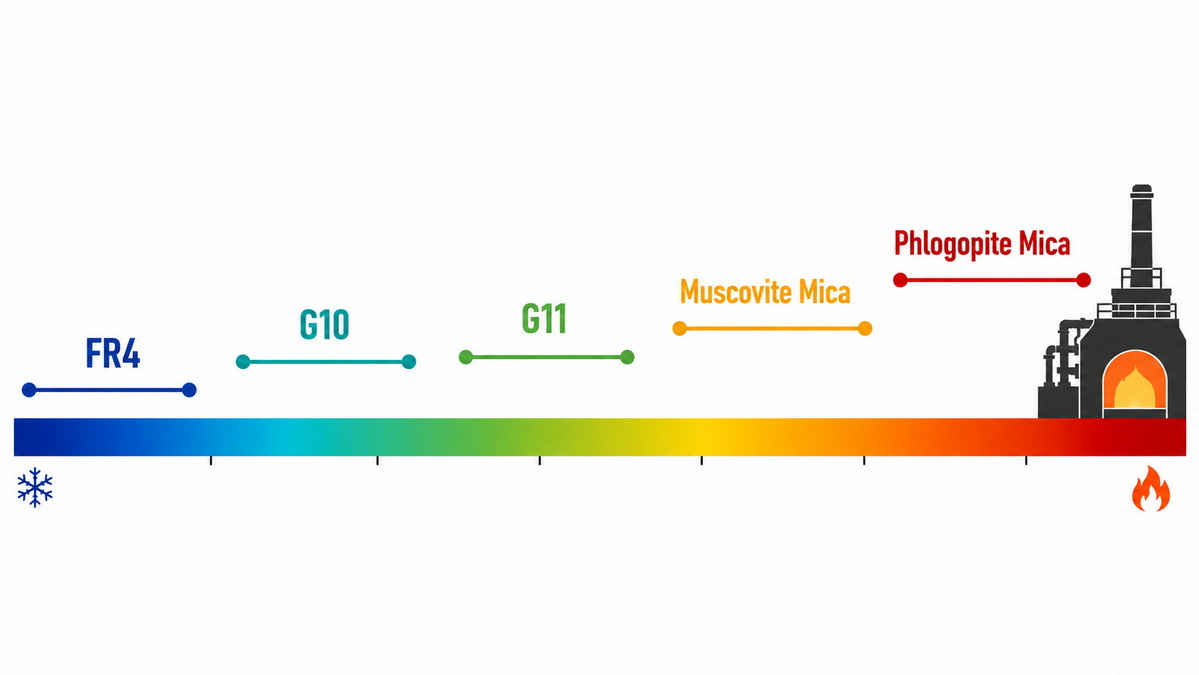

Industrial Insulation Temperature Performance

Mechanical Strength and Machining Performance

Mechanical load is another major factor in selecting insulation material.

Mica sheets work well as thermal barriers and electrical separators, but they can be more brittle than epoxy fiberglass laminates. Thin mica sheets may crack if drilled incorrectly, overtightened with fasteners, or exposed to strong vibration.

Epoxy fiberglass boards are significantly more suitable for parts that require structural strength, tight tolerances, repeated fastening, or complex machining.

When Mica Sheets Are Suitable

Mica sheets are a practical option for components that require:

- Flat insulation layers

- Thin heat-resistant barriers

- Electrical isolation near heating elements

- High-temperature gasket-style insulation

- Thermal separation between hot metal parts

- Insulation washers and separators

- Low-load furnace insulation components

When Epoxy Fiberglass Boards Are Better

FR4, G10, and G11 boards are usually better for applications requiring:

- CNC machining

- Drilled holes and precision slots

- Tight dimensional tolerance

- Structural support

- Repeated fastening

- High compression resistance

- Electrical mounting boards

- Insulation blocks and spacers

- Jigs, fixtures, and machine components

- Terminal plates and busbar supports

For example, a furnace terminal assembly may use mica sheet near the heating element, while G11 epoxy fiberglass board supports the external electrical connection structure.

This combination helps the system manage both high temperature and mechanical stress.

FR4 vs G10 vs G11 for Furnace-Adjacent Parts

Although FR4, G10, and G11 are all epoxy fiberglass laminates, they are not identical.

Material Grade	Main Advantage	Typical Use in Furnace-Related Equipment
G10	Good mechanical strength and electrical insulation	General industrial insulation parts, fixtures, supports, spacers
FR4	Flame-retardant epoxy fiberglass laminate	Electrical panels, terminal boards, control cabinets, insulation plates
G11	Higher-temperature epoxy fiberglass laminate	Furnace-adjacent supports, higher-temperature electrical insulation structures

G10 Epoxy Fiberglass Board

G10 is widely used where strong mechanical strength and electrical insulation are required. It is a reliable material for CNC-machined insulation parts, industrial fixtures, machine components, and support structures.

It is best used in areas where the temperature remains controlled and below the material's recommended operating range.

FR4 Epoxy Fiberglass Board

FR4 is a flame-retardant glass epoxy laminate. It is commonly selected for electrical applications where flame resistance is important.

FR4 is suitable for:

- Electrical cabinets

- Terminal boards

- Switchgear components

- Insulating mounting plates

- Busbar supports

- Control panel insulation

- Electrical machine components

FR4 should not be selected solely because it is flame-retardant. Flame resistance does not mean the material can withstand direct furnace heat for long periods.

G11 Epoxy Fiberglass Board

G11 is generally the preferred epoxy fiberglass board for furnace-adjacent areas that experience higher temperatures than standard industrial electrical equipment.

It is often used for:

- High-temperature insulation supports

- Electrical mounting components near heat sources

- High-temperature terminal structures

- Furnace external support plates

- Electric motor and transformer insulation parts

- Machined electrical insulation components

G11 provides a better thermal margin than standard G10 or FR4, but it still requires careful temperature validation before installation.

Best Material by Furnace Zone

A well-designed furnace insulation system often uses different materials in different zones.

Furnace Area	Recommended Material	Main Reason
Near heating elements	Phlogopite mica sheet	High-temperature electrical insulation
Furnace hot-zone barrier	Mica sheet or specialized refractory insulation	Strong heat resistance
Hot electrical separator	Mica sheet	Stable insulation in high-temperature conditions
External terminal panel	FR4 or G10/FR4 board	Strong, machinable, electrically insulating
Cooler electrical support	FR4, G10, or G11	Good structural and electrical performance
Medium-temperature support area	G11 board	Better heat resistance than standard epoxy grades
Precision-machined insulation spacer	G10, FR4, or G11	Strong, stable, and easy to machine

This material zoning strategy improves long-term reliability and helps avoid over-specifying expensive high-temperature materials where they are not required.

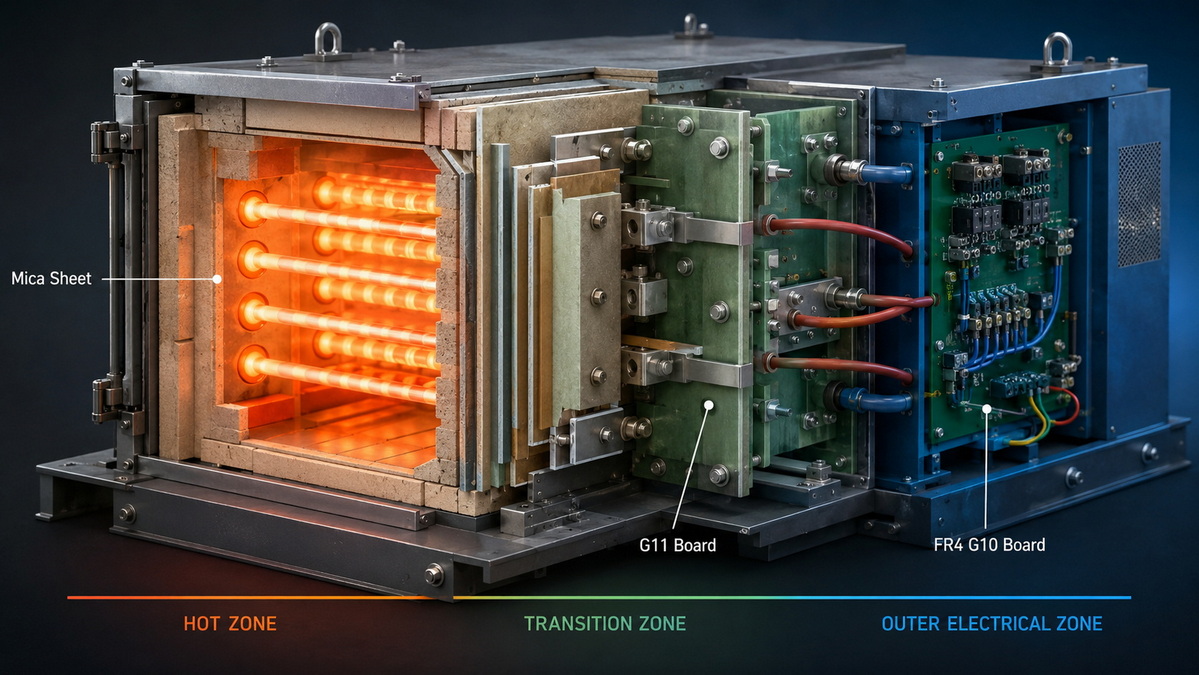

Multi Zone Furnace Insulation Design

Practical Example: Electric Furnace Insulation Design

Consider an industrial electric resistance furnace operating at approximately 600°C.

The heating elements and the inner thermal barrier are exposed to the highest temperature. In these locations, mica sheets are more suitable because they can provide electrical insulation while tolerating elevated heat.

Further away from the heating chamber, the system may include a metal frame, terminal supports, cable routing parts, and external connection plates. These components may operate at a significantly lower temperature.

In the cooler external section:

- Mica sheet can provide the first high-temperature insulation barrier

- An air gap or thermal break can reduce heat transfer

- G11 epoxy fiberglass board can support electrical connections in medium-temperature areas

- FR4 board can be used for lower-temperature terminal panels and control structures

- G10 board can be used for custom-machined supports, spacers, and fixtures

This layered approach uses each material where it performs best.

Common Material Selection Mistakes

Using FR4 in the Furnace Hot Zone

FR4 is a highly capable electrical insulation material, but it is not a high-temperature furnace lining material. Installing FR4 too close to heating elements can lead to resin degradation, deformation, reduced strength, and insulation failure.

Treating Flame Resistance as Heat Resistance

Flame-retardant performance and high-temperature endurance are not the same thing.

A flame-retardant material may resist ignition under defined conditions, but it may still lose mechanical or electrical performance during continuous exposure to elevated furnace temperatures.

Ignoring Thermal Cycling

Industrial furnaces repeatedly heat and cool. This creates thermal expansion and contraction in metal, mica, epoxy fiberglass board, fasteners, and support structures.

If the materials expand at different rates, repeated cycling can cause:

- Cracking

- Loosening of fasteners

- Warping

- Delamination

- Reduced electrical clearance

- Premature component failure

Focusing Only on Initial Cost

Lower-cost material is not always the most economical choice.

A poorly selected insulation board can create unplanned maintenance, production interruptions, replacement costs, and safety risks. The best material is the one that delivers stable performance throughout the expected service life of the furnace component.

How to Select the Right Insulation Material

Before selecting mica sheets, FR4, G10, or G11 boards, collect the following project information:

1. Maximum continuous operating temperature at the exact component location

2. Peak temperature and duration of heat exposure

3. Furnace type, such as resistance furnace, induction furnace, kiln, drying oven, or heat-treatment furnace

4. Required electrical insulation level

5. Voltage, current, creepage distance, and clearance requirements

6. Mechanical load, compression force, vibration, and bolt torque

7. Moisture, oil, dust, chemicals, and furnace atmosphere

8. Required sheet thickness and dimensions

9. Part drawing and machining tolerance

10. Required compliance or customer specifications

For custom insulation parts, it is important to evaluate the material and part design together.

A thin mica sheet with multiple holes may require a different design approach than a thick G11 insulation plate with CNC-machined slots and mounting features.

Summary

Mica sheets and epoxy fiberglass boards are both valuable insulation materials, but they solve different industrial furnace challenges.

Mica sheets are generally the better option for high-temperature furnace zones, heating element insulation, thermal barriers, and electrical isolation close to the heat source.

Epoxy fiberglass boards are generally the better option for structural, electrical, and precision-machined insulation components located in controlled-temperature or furnace-adjacent areas.

FR4 is suitable where flame-retardant electrical insulation is important. G10 offers strong general-purpose mechanical and electrical performance. G11 provides a better choice for higher-temperature structural insulation applications.

The most dependable furnace insulation system often combines materials: mica sheets near the heat source and epoxy fiberglass boards in cooler areas where mechanical strength and custom machining are required.

For projects involving industrial furnace insulation, Guangdong Weishi New Materials Co., Ltd. can provide FR4, G10, G11, epoxy fiberglass boards, and customized machined insulation components based on your specific drawing, operating temperature, application environment, and performance requirements.

FAQ

What is the best insulation material for high-temperature industrial furnaces?

Mica sheets are often one of the best choices for high-temperature electrical insulation near furnace heating elements and hot zones. For extremely high-temperature applications, mica may also be used together with specialized refractory insulation materials.

Can FR4 board be used in an industrial furnace?

FR4 board can be used in lower-temperature furnace-adjacent areas, such as terminal panels, electrical mounting plates, and external insulation structures. It is generally not suitable for direct installation in a high-temperature furnace hot zone.

Is G11 better than FR4 for high-temperature applications?

G11 is often selected for higher-temperature applications because it uses a higher-temperature epoxy system than standard FR4 or G10 grades. However, G11 is still not a direct replacement for mica sheet in high-temperature furnace interiors.

What is the difference between mica sheet and G10 board?

Mica sheet is mainly used for high-temperature thermal and electrical insulation. G10 board is mainly used for mechanical and electrical insulation parts that need strength, dimensional stability, and machining capability.

Can mica sheet and epoxy fiberglass board be used together?

Yes. This is often the best approach. Mica sheet can be used near heating elements and hot electrical interfaces, while FR4, G10, or G11 board can be used for external supports, terminal plates, and custom-machined insulation components.

Which epoxy fiberglass board is best for CNC machining?

G10, FR4, and G11 can all be CNC machined. The most suitable grade depends on operating temperature, flame-retardant requirements, mechanical load, thickness, and dimensional tolerance.

What information is needed to select the correct insulation board?

The most important information includes actual operating temperature, peak temperature, electrical requirements, mechanical load, installation location, environmental conditions, part drawing, thickness, and machining requirements.
