Epoxy glass sheet vs G10 for industrial saw guides is not a comparison between two completely different materials. G10 belongs to the epoxy glass laminate family. The practical distinction is between a broadly described epoxy glass sheet and a documented G10-grade material selected for a specific component.
For an industrial saw, that distinction matters. A structural mounting plate supporting a guide assembly has different requirements from a sliding guide pad touching the blade. Strength and insulation may be important for the first component. Friction, wear, and blade compatibility become critical for the second.
The most useful starting point is therefore application: what does the component do, and how does it interact with the blade?
This guide explains the material differences, compares their selection requirements, and provides a practical qualification process for industrial buyers.

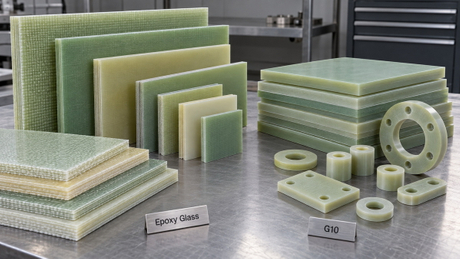

An epoxy glass sheet is a composite made from glass-fabric reinforcement bonded with a cured epoxy resin system. The glass reinforcement contributes strength and stiffness. The resin binds the reinforcement into a solid laminate.
However, "epoxy glass sheet" is a broad description rather than a complete engineering specification.
It does not independently establish:
- The material grade.
- The resin formulation.
- Mechanical properties.
- Thickness and flatness tolerances.
- Temperature limitations.
- Flame-retardant performance.
- Batch inspection requirements.
A generic sheet may be suitable for a saw-guide component. The problem is not necessarily its performance, but the uncertainty created by an incomplete specification.
G10 identifies a recognized glass-epoxy laminate grade. It is commonly selected for applications requiring mechanical strength, stiffness, electrical insulation, and low moisture absorption.
For industrial saw-guide supports, these characteristics make G10 a credible candidate for evaluation.
Nevertheless, the grade name does not guarantee that every supplied sheet has identical properties or dimensional quality. Buyers still need product-specific documentation and an agreed inspection standard.
From a specification perspective, I would favor a documented material over an impressive but unsupported product description.
FR4 is a related flame-retardant glass-epoxy laminate. Suppliers often present G10 and FR4 together because their mechanical and electrical applications overlap.
However, a combined "G10/FR4" label should not replace a clear specification when flame performance matters.
More importantly, flame retardancy does not establish low friction, blade compatibility, or wear resistance. Those requirements need separate consideration.

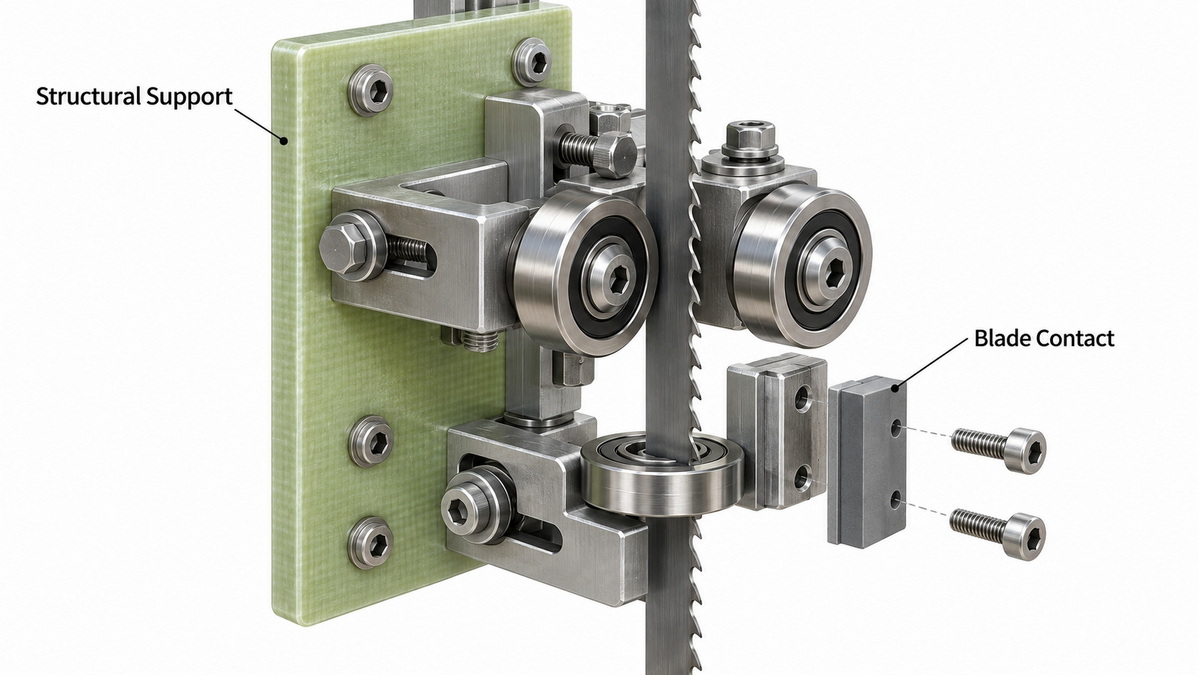

The term "saw guide" can describe several components within the same assembly:
- Structural mounting plates.
- Insulating spacers.
- Roller or bearing supports.
- Sliding blade-contact pads.
- Replaceable wear blocks.
Treating these parts as interchangeable creates an unreliable material comparison.
A structural support maintains the position of the guide assembly under load. Its job is to preserve alignment without unacceptable deformation.
Important selection factors include:
- Stiffness.
- Dimensional stability.
- Fastener support.
- Machining accuracy.
- Resistance to the operating environment.
G10 can be considered for these applications, but its suitability depends on the complete design. Thickness, unsupported span, mounting geometry, and local loading all influence performance.
A sliding guide pad interacts directly with a moving blade.
Its performance depends on the combination of guide material, blade surface, contact pressure, lubrication, contamination, and operating temperature.
High mechanical strength does not automatically make a laminate suitable for this interface.
Glass reinforcement is abrasive during machining. Consequently, exposed reinforcement deserves attention when evaluating blade contact. This is a reason for controlled testing, not proof that every G10 guide will damage a blade.
| Selection factor | Unspecified epoxy glass sheet | Documented G10-grade sheet |
|---|---|---|
| Material identity | Broad description requiring clarification | More clearly defined grade designation |
| Mechanical evaluation | Requires product-specific data | Starts with grade documentation and supplier verification |
| Thickness and flatness | Must be specified and inspected | Must also be specified and inspected |
| Moisture performance | Cannot be established from the generic name | Low absorption is commonly reported; verify the supplied product |
| Structural support use | Potentially suitable after qualification | Credible candidate for qualification |
| Direct blade contact | Requires operating trials | Also requires operating trials |
| Machining requirements | Depend on reinforcement and resin | Abrasive reinforcement requires suitable tooling |
| Purchasing certainty | Limited when documentation is incomplete | Better specification clarity, but not automatic application approval |
The main advantage of documented G10 is reduced ambiguity.
A well-documented epoxy glass sheet may be equally suitable for a particular component. Conversely, an unsupported G10 label may provide less assurance than a buyer expects.
Strength describes resistance to failure. Stiffness describes resistance to deformation.
A guide-support plate may remain intact while deflecting enough to affect alignment. Therefore, material selection should consider the installed component rather than the sheet alone.
Review:
- Plate thickness.
- Unsupported length.
- Hole positions.
- Fastener arrangement.
- Contact loading.
- Support beneath the component.
A stronger material cannot automatically compensate for an unsuitable geometry.
Low moisture absorption is a useful characteristic of G10, especially when dimensional consistency matters.
However, water-absorption performance does not establish compatibility with every cutting fluid or cleaning chemical.
Before approval, identify the actual exposure conditions:
- Coolant type and concentration.
- Continuous exposure or occasional splashing.
- Cleaning chemicals.
- Storage humidity.
- Repeated wetting and drying.
Evaluate the supplied material under conditions representative of the equipment.
A laminate's published temperature information does not provide a complete operating limit for a saw-guide assembly.
For blade-contact components, friction can create localized heating. Contact pressure, adjustment, lubrication, and debris can influence that temperature.
Measure the relevant interface during a controlled trial. Do not assume that general heat resistance establishes acceptable sliding performance.
Guide wear and blade wear are different outcomes.
A guide pad that changes dimension slowly may still be unsuitable if blade condition deteriorates. Conversely, a replaceable guide material may wear faster while protecting a more expensive blade.
Evaluate both components together.
Useful observations include visible wear patterns, surface condition, adjustment frequency, cut consistency, and the presence of abnormal heat or vibration.
Machining quality influences the finished component's dimensional accuracy and edge condition.
Potential defects include:
- Chipped edges.
- Hole breakout.
- Exposed fibers.
- Layer separation.
- Uneven contact surfaces.
These issues should be included in the inspection plan. Checking overall length and thickness alone is not enough.
A controlled trial provides stronger evidence than a general claim that one material is "better."
The following process is a proposed evaluation method, not a reported customer case.
Record whether the part supports another guide element or directly contacts the blade.
Document the saw type, blade specification, workpiece material, lubrication method, operating conditions, and current failure problem.
This establishes what the replacement material must accomplish.
Keep geometry consistent wherever practical.
Match thickness, mounting arrangement, contact area, and specified finish. Otherwise, a design improvement may be mistaken for a material improvement.
When geometry must change, record that change separately.

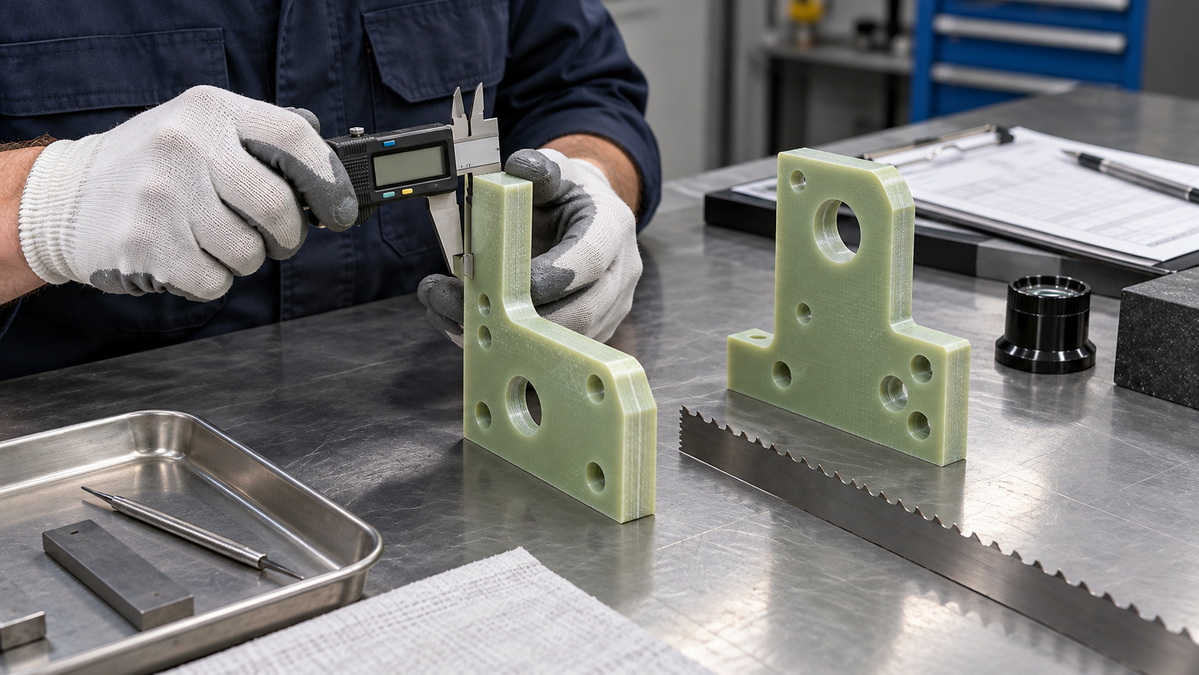

Inspect the existing component before testing an alternative.
Record:
- Replacement interval.
- Adjustment frequency.
- Wear pattern.
- Operating temperature.
- Cut consistency.
- Blade condition.
Use consistent inspection locations and methods.
Follow the equipment manufacturer's setup and clearance instructions.
Keep the blade, workpiece, lubrication, and operating conditions comparable. Establish stop criteria before the trial begins.
Possible stop conditions include abnormal heating, vibration, visible delamination, accelerated blade wear, or deteriorating cut quality.
Define success before reviewing the results.
Consider alignment, blade condition, guide wear, maintenance demand, and cost per useful operating interval.
A successful short trial should be followed by inspections over a representative maintenance cycle before broad production adoption.
The comparison between epoxy glass sheet and G10 can obscure a more important question: should the component use glass-epoxy laminate at all?

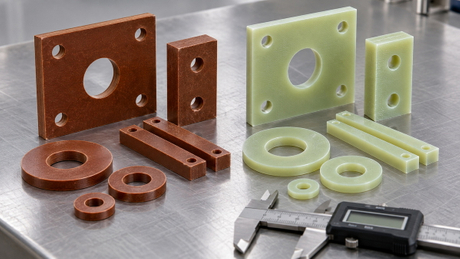

For structural plates and insulating spacers, glass-epoxy characteristics may align well with the application.
For continuously sliding blade-contact pads, purpose-designed guide materials deserve separate evaluation.
Industrial suppliers offer phenolic-based bandsaw guide blocks containing integrated lubricants. Their design priorities include friction reduction and control of operating temperature.
This does not prove that every phenolic material outperforms every G10 laminate. It demonstrates why blade-contact selection should consider tribological performance—the behavior of interacting surfaces—rather than structural properties alone.

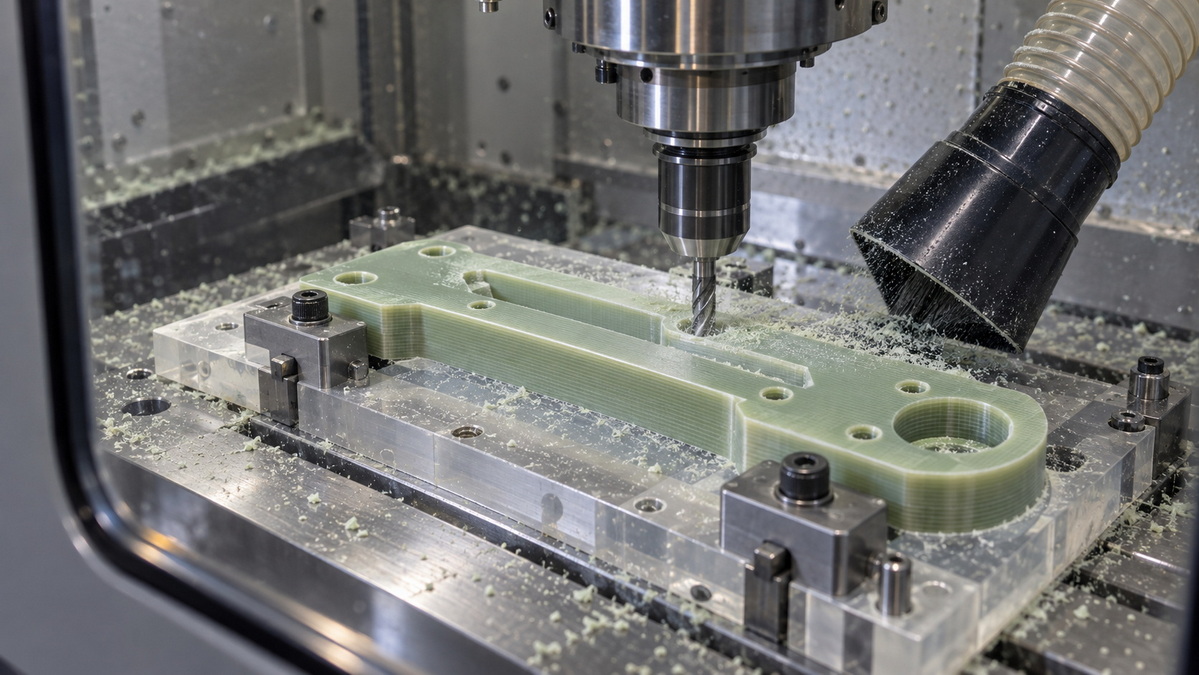

Glass-epoxy machining requires suitable tooling and effective particulate control.
A practical machining and inspection sequence is:
1. Select sharp carbide or diamond tooling appropriate to the operation.
2. Support the workpiece to reduce exit-side breakout.
3. Avoid unnecessary rubbing and localized heating.
4. Control dust at its source.
5. Inspect dimensions, holes, edges, and contact faces.
Obtain the supplied material's safety data sheet and establish controls through the workshop's safety assessment.
Respiratory protection should not replace a properly designed dust-control process.
For buyers without composite-machining capability, ordering finished parts to a drawing can simplify procurement. Application qualification and incoming inspection remain necessary.
A useful quotation request should include:
- Required material grade and documentation.
- A dimensioned drawing.
- Functional tolerances.
- Critical flatness requirements.
- Contact-face requirements.
- Hole positions and edge details.
- Coolant and chemical exposure.
- Whether the part contacts the blade.
- Prototype quantity and production volume.
- Inspection and traceability requirements.

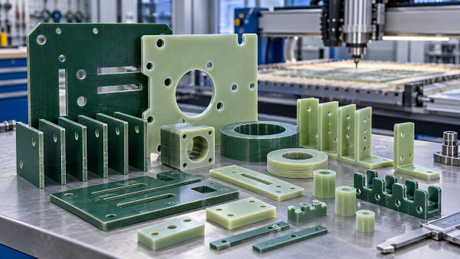

Guangdong Weishi New Materials Co., Ltd. supplies epoxy glass, FR4, and G10/G11 insulation materials and offers customized processing.
For saw-guide projects, a drawing supported by operating information provides a more useful starting point than a request for "strong fiberglass board."
Ask for product-specific data and an agreed inspection plan. Do not transfer another supplier's published properties directly into the specification for a different product.
The useful distinction is not simply epoxy glass sheet versus G10. It is an unspecified material versus a documented grade, followed by a structural application versus a sliding-contact application.
For structural supports, documented G10 offers a credible starting point for evaluation. For blade-contact pads, require operating evidence and consider purpose-designed alternatives.
Send Guangdong Weishi New Materials Co., Ltd. your component drawing, blade-contact details, operating environment, and prototype requirements. Request a material proposal and inspection plan that can be validated before production approval.
Not necessarily. Epoxy glass sheet describes a broad material family, while G10 identifies a particular grade. Confirm the grade and documentation before treating a generic sheet as equivalent.
It is a candidate for certain structural or insulating components. Direct blade-contact applications require separate evaluation of friction, temperature, guide wear, and blade condition.
No. FR4 introduces a flame-retardant consideration, but that does not establish better sliding performance or longer guide life. Select the material against the component's actual requirements.
A universal outcome cannot be assumed. Its glass reinforcement makes contact compatibility a legitimate testing concern. Inspect the guide and blade together during representative operation.
Use suitable carbide or diamond tooling, adequate support, and effective particulate control. Inspect for chipping, delamination, and dimensional error after machining.
No. Compare finished-part cost, machining effort, replacement frequency, blade condition, and downtime. A lower purchase price or higher material strength does not independently establish lower operating cost.
1.[Curbell Plastics — G10/FR-4 Glass Epoxy]. Supports the description of glass-epoxy composition, stiffness, strength, electrical properties, and mechanical applications. [curbellplastics]
2.[Boedeker Plastics — G-10 FR-4 Epoxy Glass Laminate Sheet, Rod & Tube]. Provides supplier-specific material descriptions and typical properties. Published values should not be treated as universal guarantees. [boedeker]
3.[Current Composites — How to Machine G-10]. Supports guidance on abrasive reinforcement, carbide and diamond tooling, machining defects, and particulate control. [currentcomposites]
4.[Burton Mill Solutions — Phenolic-Based Bandsaw Guide Blocks & Scrapers]. Documents a purpose-designed industrial guide material with integrated lubricants. Performance statements are supplier claims, not independent comparative trial results. [burtonmill]
5.[Plastics International — Laminate G-10/FR-4 Glass Epoxy]. Supports the discussion of glass-epoxy composition and FR4's flame-retardant distinction. [plasticsintl]
6.[Laminated Plastics — G-10 Technical Data Sheet]. Provides additional grade descriptions and typical technical data, including the relationship between G10 and FR4. [laminatedplastics]
