Selecting an insulation material for semiconductor equipment is not simply a choice between two boards. It is a decision that can influence electrical safety, thermal reliability, machining quality, maintenance frequency, and equipment uptime.
Both FR4 fiberglass sheet and epoxy resin sheet are used in electrical insulation applications. However, they are not interchangeable. FR4 is a glass-fiber-reinforced epoxy laminate with strong structural performance and flame-retardant characteristics. Epoxy resin sheet is a broader category that may include unreinforced, filled, cast, or specialty epoxy materials.
For semiconductor equipment, the right material depends on the part's electrical load, working temperature, mechanical stress, dimensional tolerance, machining complexity, and safety requirements.

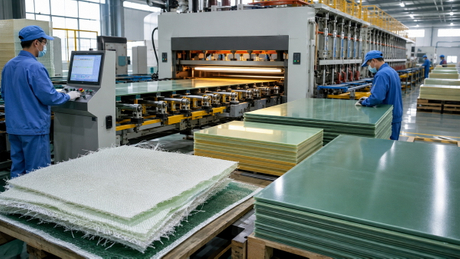

An FR4 fiberglass sheet is a composite insulation material. It is typically made by combining woven fiberglass cloth with epoxy resin under heat and pressure. The glass fabric provides strength and stiffness, while the cured epoxy resin provides electrical insulation and environmental resistance.
An epoxy resin sheet can refer to many different materials. Some are solid cast epoxy boards. Some contain mineral fillers. Others use different reinforcement systems. Certain grades may be designed for high temperature, chemical resistance, anti-static performance, or improved surface finish.
This is why buyers should not rely on a generic description such as "epoxy board."
A more useful question is:
> Does the material's construction and tested performance match the real conditions inside the semiconductor equipment?
| Feature | FR4 Fiberglass Sheet | General Epoxy Resin Sheet |
|---|---|---|
| Material structure | Woven fiberglass reinforced with epoxy resin | May be unreinforced, filled, cast, or reinforced epoxy |
| Mechanical strength | High | Varies by formulation |
| Dimensional stability | Excellent for machined structural parts | Can be lower without reinforcement |
| Electrical insulation | Strong and consistent when correctly specified | Good to excellent, depending on grade |
| Flame-retardant availability | Common in verified FR4 grades | Must be verified separately |
| Machining behavior | Stable but abrasive to cutting tools | Often easier to machine |
| Surface appearance | Fabric texture may appear on machined edges | Often smoother and more uniform |
| Typical best use | Structural electrical insulation parts | Specialized or non-structural insulation parts |

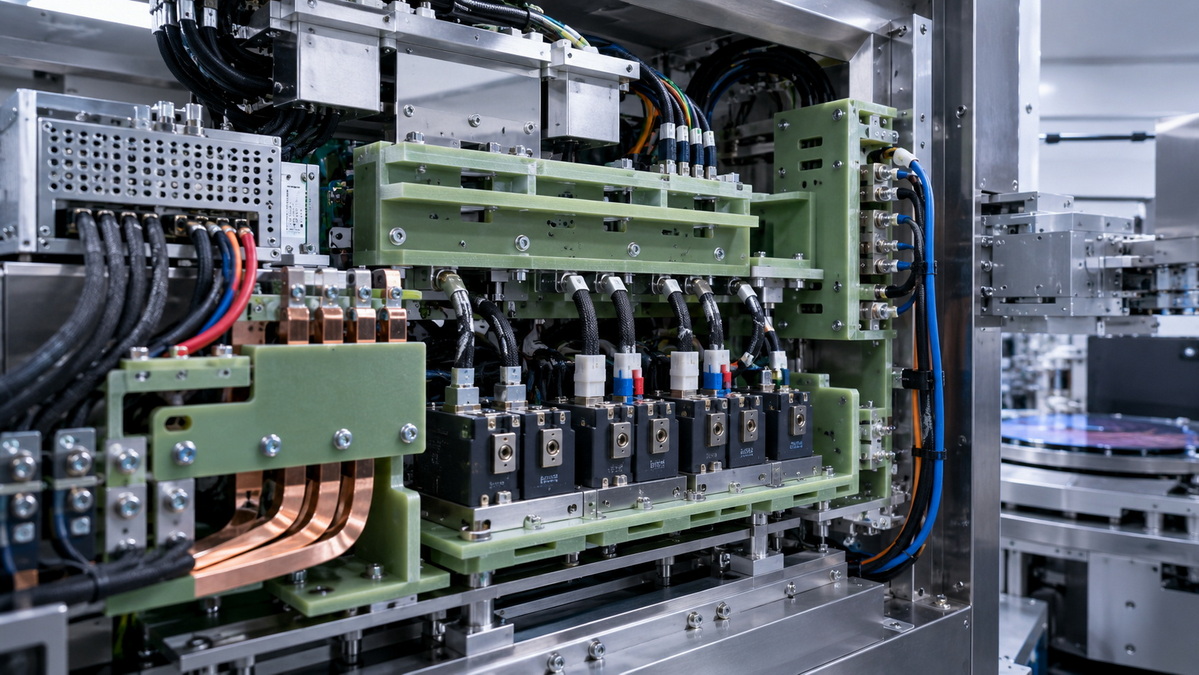

Semiconductor equipment combines electrical systems, precision mechanical assemblies, thermal processes, fluid handling, sensors, controls, and automation components. Many insulating parts operate close to energized terminals, control modules, power supplies, heaters, relays, transformers, and cable-management systems.
A material failure can create more than a cosmetic issue. It may lead to electrical leakage, cracking, deformation, equipment shutdown, difficult maintenance, or expensive replacement work.
Common insulation component requirements include:
- Electrical isolation between live parts and grounded metal frames.
- Stable support for terminals, busbars, relays, and control devices.
- Resistance to heat from power electronics or heating assemblies.
- Consistent machining quality for holes, slots, pockets, and mounting surfaces.
- Low risk of deformation under mechanical load.
- Long-term performance in humid, heated, or chemically exposed environments.
- Controlled flame behavior where equipment design requires it.
In practical equipment design, the insulation material must often perform two jobs at the same time: provide electrical separation and act as a mechanical support structure.
That dual requirement is one reason FR4 fiberglass sheet is commonly selected for precision industrial insulation components.
FR4 fiberglass sheet is widely used in electrical, electronic, automation, power distribution, machinery, and industrial control applications. It is especially useful when the component must remain electrically insulating while also carrying mechanical load.
The woven fiberglass reinforcement is the main advantage of FR4. It gives the sheet greater bending strength and stiffness than many unreinforced epoxy resin boards.
This makes FR4 suitable for parts such as:
- Electrical mounting plates.
- Busbar supports.
- Terminal boards.
- Insulating brackets.
- Relay and contactor supports.
- Transformer insulation components.
- CNC-machined spacers.
- Motor insulation structures.
- Internal power cabinet barriers.
- Precision fixture plates.
An unreinforced epoxy sheet may offer acceptable electrical insulation. However, it may flex, crack, or deform more easily if the part must support heavy components, resist bolt tightening force, or maintain a tight flatness requirement.
For load-bearing insulation applications, FR4 is usually the stronger starting point.
Semiconductor equipment assemblies often require tight positioning of drilled holes, slots, threaded inserts, countersinks, cable-routing channels, and component mounting features.
FR4 fiberglass sheet provides better dimensional stability than many plain epoxy sheets because the glass cloth reinforcement limits material movement. It can be machined into repeatable custom parts for equipment builders, panel manufacturers, automation system integrators, and industrial electronics suppliers.

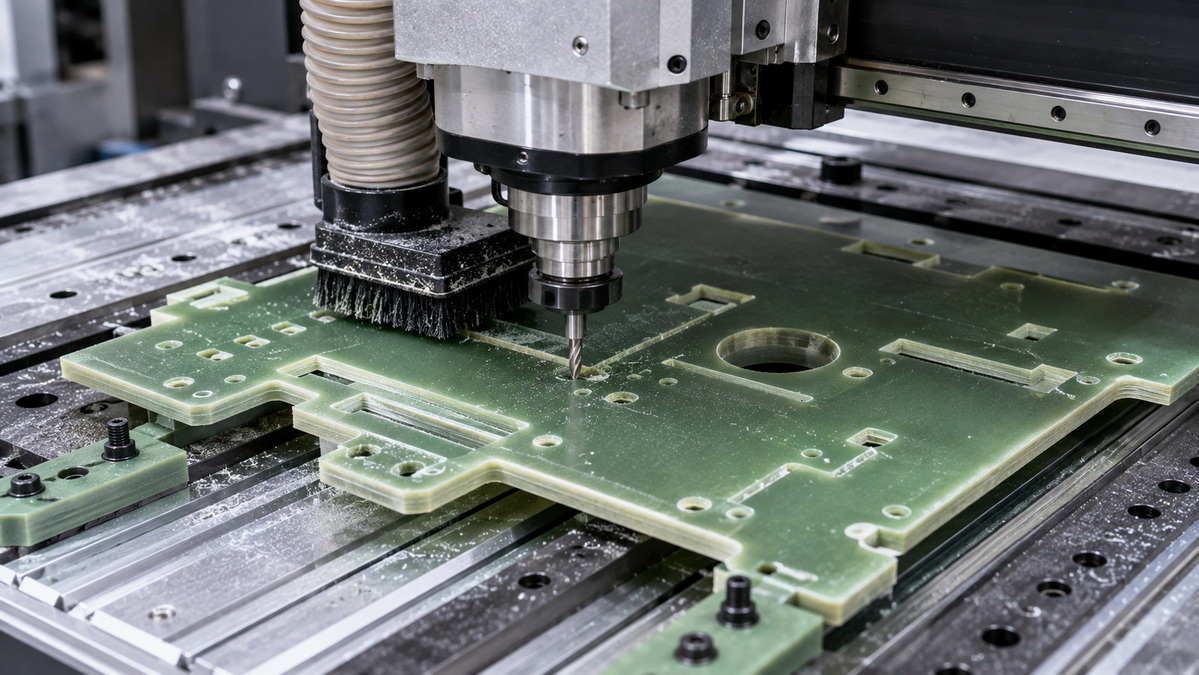

However, FR4 machining requires the right production approach.
Key considerations include:
- Use sharp, wear-resistant cutting tools.
- Maintain effective dust extraction.
- Avoid excessive tool pressure near thin features.
- Review hole-to-edge distance before production.
- Consider edge finishing for visible or high-contact components.
- Specify thickness tolerance and flatness clearly.
- Confirm whether tapped holes, bonded inserts, or through-bolts will be used.
For a part with narrow webs, complex cutouts, deep pockets, or high positional tolerances, a machining review before production can prevent scrap and assembly problems.
FR4 is commonly associated with flame-retardant performance. Many grades are supplied as flame-retardant glass-epoxy laminates and may be available with a UL 94 V-0 classification.
However, the rating must always be confirmed for the exact material grade and thickness. Material performance can vary between manufacturers, resin systems, thicknesses, and tested product configurations.
For semiconductor equipment, verified flame performance may be especially relevant for:
- Electrical enclosures.
- Power-distribution assemblies.
- High-voltage control panels.
- Relay and transformer mounting systems.
- Internal insulating barriers.
- Equipment where electrical fault risk must be managed.
Flame resistance should be treated as one part of the total design. It does not replace correct creepage distance, clearance distance, grounding design, overcurrent protection, enclosure design, or proper installation practices.
FR4 offers strong dielectric properties for many industrial applications. It can isolate electrical components while resisting moisture exposure and normal industrial environmental stress.
Yet dielectric strength alone should not determine the final material choice.
The real part performance also depends on:
- Actual voltage level.
- Continuous and peak electrical load.
- Surface cleanliness.
- Humidity and condensation risk.
- Edge geometry.
- Fastener placement.
- Creepage and clearance distance.
- Operating temperature.
- Exposure to chemicals or process fluids.
For critical equipment components, request technical data for the selected grade rather than relying on a general material name.
Useful data to review includes:
- Dielectric strength.
- Insulation resistance.
- Water absorption.
- Flexural strength.
- Flammability classification.
- Thermal performance.
- Thickness tolerance.
- Sheet flatness.
- Surface finish.
- Material traceability, if required.
Epoxy resin sheet is not a single product. It may refer to a standard cast sheet, a highly filled insulation board, a resin-rich laminate, or an engineered material with specialized additives.
This broad category can provide important advantages when a part does not need high fiberglass-reinforced strength.
A plain epoxy resin sheet may have a smoother and more uniform surface than an FR4 fiberglass laminate. This can be useful for non-structural barriers, covers, insulation panels, test fixtures, and custom components where surface appearance or finishing quality matters.
Potential benefits include:
- Smooth machined edges.
- Less visible fabric texture.
- Clean surface finish.
- Good suitability for low-load covers.
- Easier polishing or finishing.
- Flexible resin formulation options.
For example, a non-load-bearing electrical shield may not require woven fiberglass reinforcement. A smooth epoxy resin sheet can be a reasonable option if it meets electrical, thermal, and safety requirements.
Fiberglass is strong, but it is abrasive. FR4 machining can wear cutting tools faster than machining an unreinforced epoxy sheet.
Epoxy resin sheets may be easier to cut, drill, mill, and finish. This can be beneficial for parts with:
- Small features.
- Complex profiles.
- Fine holes.
- Tight-radius corners.
- Decorative edges.
- Surface-finish requirements.
- High-volume CNC processing.
However, easier machining does not automatically mean better equipment performance. A material that machines quickly but lacks sufficient rigidity may lead to warpage, cracking, or poor mounting stability.
The correct choice depends on the function of the finished part.
Specialized epoxy resin sheets can be formulated for unique application conditions. Depending on the supplier and material system, options may include:
- High-temperature epoxy systems.
- Mineral-filled epoxy insulation boards.
- Low-shrinkage epoxy sheets.
- Chemical-resistant epoxy grades.
- Anti-static or ESD-dissipative epoxy composites.
- Low-halogen material systems.
- Resin-rich sheets with improved surface properties.
These options can be valuable in semiconductor-related equipment where static control, chemical exposure, or a specialized operating environment influences material selection.
Before specifying a specialty sheet, define the application conditions in writing. Terms such as "anti-static," "high temperature," and "chemical resistant" should be supported by documented performance values for the actual material grade.

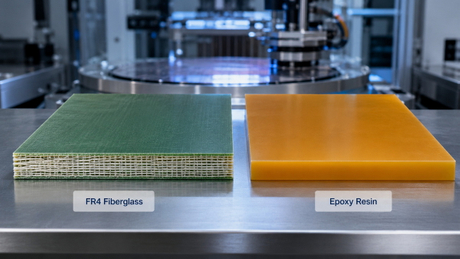

| Selection Factor | FR4 Fiberglass Sheet | Epoxy Resin Sheet | Recommended Direction |
|---|---|---|---|
| Structural strength | High | Variable | Choose FR4 for load-bearing parts |
| Bending resistance | High | Usually lower without reinforcement | Choose FR4 for rigid panels |
| Electrical insulation | Excellent when correctly specified | Varies by resin system | Review test data for both |
| Dimensional stability | Strong | Can vary with temperature and load | Choose FR4 for precision components |
| Flame-retardant availability | Common in verified grades | Not automatic | Choose verified FR4 where required |
| Surface smoothness | Good | Often better | Choose epoxy resin sheet for smooth finishes |
| CNC tool wear | Higher | Often lower | Choose epoxy resin sheet for easy machining |
| Complex custom shapes | Suitable with proper tooling | Often easier | Compare machining cost and rigidity |
| High-volume repeatability | Excellent | Good when formulation is stable | Choose based on drawings and tolerance |
| Specialty chemical properties | Available in select grades | Broad formulation flexibility | Choose epoxy resin sheet if specialized chemistry is required |

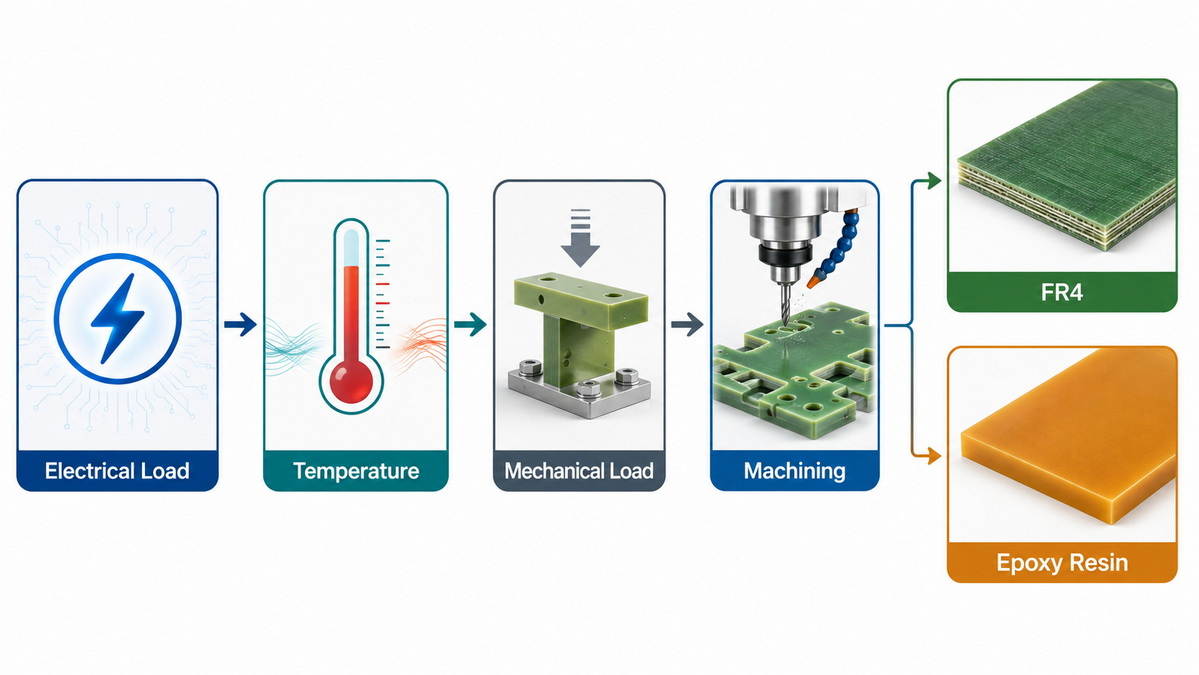

The best selection process starts with engineering requirements, not with a generic material name.
Document the operating conditions before comparing materials.
Include:
- Continuous voltage.
- Peak or surge voltage.
- Electrical isolation distance.
- Risk of condensation.
- Nearby conductive structures.
- Cable and terminal arrangement.
- Grounding method.
- Internal safety requirements.
A high dielectric-strength number alone does not guarantee a safe finished part. Geometry, contamination, fastener locations, edge design, and environmental exposure all influence real-world performance.
Ask whether the part will experience continuous heat, temperature cycling, or occasional temperature spikes.
A panel near a low-power control circuit may have modest temperature demands. A part near power electronics, heating systems, transformers, or high-current terminals may require a higher-temperature laminate or specialty epoxy system.
For higher-temperature applications, compare:
- Maximum continuous operating temperature.
- Glass transition temperature.
- Thermal aging characteristics.
- Heat distortion behavior.
- Retained mechanical strength at elevated temperature.
- Long-term exposure conditions.
Do not assume every FR4 sheet has the same temperature capability. Standard FR4, high-temperature FR4, G10, and G11 grades can have different thermal profiles.
FR4 fiberglass sheet is usually the preferred option when the part must perform as a structural insulator.
Choose FR4 when the part must:
- Carry mounted components.
- Remain flat under load.
- Resist bending.
- Handle fastening torque.
- Support cables, terminals, or electrical hardware.
- Keep precise spacing between live components.
- Maintain alignment after transport or maintenance.
Choose epoxy resin sheet when the part mainly acts as a low-load insulating layer, protective cover, specialty chemical barrier, or smooth-finish component.
A material and machining review should happen at the same time.
Provide the manufacturer with:
1. A 2D drawing or 3D model.
2. Required material grade.
3. Thickness and tolerance.
4. Flatness requirement.
5. Hole sizes and positional tolerance.
6. Edge-finish requirements.
7. Operating temperature range.
8. Electrical environment.
9. Quantity forecast.
10. Inspection or documentation requirements.
This approach reduces the risk of selecting a sheet that appears suitable in theory but does not perform well during machining or final assembly.
The most common error is treating FR4, G10, G11, and epoxy resin sheet as interchangeable products.
They have different material structures and performance priorities.
- FR4 is typically a flame-retardant glass-epoxy laminate.
- G10 is a glass-epoxy laminate that is generally not flame retardant.
- G11 is a higher-temperature glass-epoxy laminate category.
- Epoxy resin sheet is a broad category that may be unreinforced, filled, flame-retardant, or specially formulated.
Another mistake is choosing the lowest-cost board without checking the actual production requirement. This can result in poor flatness, inconsistent thickness, edge chipping, rapid tool wear, cracking near fasteners, or difficulty maintaining component alignment.
A better sourcing specification includes the material grade, operating conditions, machining drawing, thickness tolerance, flame requirement, flatness requirement, and inspection expectations.
FR4 fiberglass sheet is a practical choice for:
- Electrical insulation barriers.
- Busbar supports.
- Terminal boards.
- Switchgear components.
- Power-control insulation panels.
- Transformer mounting plates.
- Relay support plates.
- CNC-machined brackets.
- Industrial automation components.
- Semiconductor equipment electrical supports.
Epoxy resin sheet can be a good choice for:
- Smooth-surface insulation covers.
- Low-load electrical barriers.
- Custom resin-based fixtures.
- Specialty chemical-resistant components.
- Selected anti-static or ESD-related applications.
- Non-structural insulation panels.
- Parts requiring lower tool wear during machining.
- Components with specialized resin chemistry requirements.
For most semiconductor equipment components that require both mechanical support and electrical insulation, FR4 fiberglass sheet is the more dependable all-around choice. Its fiberglass reinforcement improves stiffness, strength, dimensional stability, and machining reliability for structural parts.
Epoxy resin sheet can be the better option when the part has lower mechanical demands and requires a smooth surface, reduced tool wear, or a specialized resin formulation.
The strongest material strategy is to match the grade to the actual part function. Specify the electrical load, operating temperature, mechanical stress, machining geometry, and required flame performance before placing an order.
Guangdong Weishi New Materials Co., Ltd. provides FR4 fiberglass sheets, epoxy glass laminates, G10/G11 insulation boards, and customized CNC-machined insulation parts for industrial and semiconductor equipment applications. Share your drawings and performance requirements to develop a material solution that supports stable production, precision assembly, and long-term equipment reliability.
FR4 is a glass-fiber-reinforced epoxy laminate. Its woven fiberglass layers provide high stiffness, mechanical strength, and dimensional stability, while the cured epoxy resin provides electrical insulation.
"Epoxy resin sheet" is a broader term that can include unreinforced cast epoxy, mineral-filled epoxy, resin-rich boards, or specialty formulations. Its strength, thermal capability, flame resistance, and electrical properties depend on the specific grade.
Yes. FR4 is often suitable for semiconductor equipment components that require both electrical insulation and mechanical support, such as terminal boards, busbar supports, insulating mounting plates, relay supports, CNC-machined brackets, and internal electrical barriers.
The material should still be selected based on the actual operating voltage, temperature, mechanical load, chemical exposure, dimensional tolerance, and applicable equipment safety requirements.
FR4 fiberglass sheet is generally the better choice for load-bearing insulation parts. The fiberglass reinforcement improves bending resistance, rigidity, fastening strength, and long-term dimensional stability.
For example, if an insulating plate must support terminals, cables, relays, transformers, or power-distribution hardware, FR4 will usually provide a more reliable structural foundation than a standard unreinforced epoxy sheet.
In many cases, yes. Unreinforced or lightly filled epoxy resin sheets are often easier to cut, drill, mill, and finish because they do not contain abrasive glass fibers.

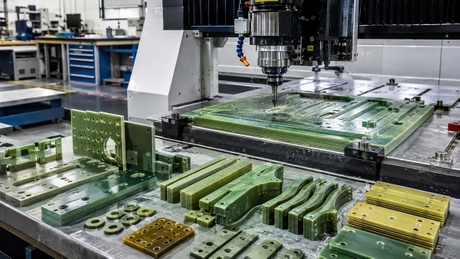

FR4 can be machined accurately, but its fiberglass reinforcement causes faster tool wear and requires suitable carbide, coated, or diamond tooling, controlled feed rates, and effective dust extraction. Easier machining should not be the only selection criterion, because the finished part must still meet rigidity and dimensional-stability requirements.
No. FR4 is commonly associated with flame-retardant performance, and many FR4 grades are available with UL 94 V-0 classification. However, buyers should verify the rating for the exact manufacturer, material grade, sheet thickness, color, and tested configuration.
A generic claim that a board is "FR4" or "flame retardant" is not sufficient for safety-critical equipment. Request the supplier's technical datasheet, UL file information where applicable, and material traceability documentation.
G10, FR4, and G11 are all glass-epoxy laminate categories, but they are designed around different priorities.
Actual properties vary by manufacturer and resin system, so material grade documentation is essential before using any of these materials in semiconductor equipment.
FR4 may be used near high-voltage components when the overall part design meets electrical safety requirements. Material dielectric strength alone does not ensure safe equipment performance.
The design should also account for creepage distance, clearance distance, surface contamination, humidity, condensation, edge geometry, fastener locations, grounding, voltage spikes, enclosure design, and overcurrent protection.
For semiconductor equipment insulation parts, request data for the exact proposed material grade, including:
- Dielectric strength and insulation resistance
- Flexural strength and flexural modulus
- Water absorption
- Thermal class or continuous operating temperature
- Glass transition temperature, where relevant
- Flammability classification
- Thickness tolerance and sheet flatness
- Surface finish and color
- Chemical-resistance information
- ESD, anti-static, or dissipative properties, if required
- Material traceability and inspection documentation
- CNC machining capability and dimensional inspection standards
Potentially, but only if the specific epoxy grade is engineered and tested for static-control performance. Standard epoxy and standard FR4 are generally insulating materials; they should not automatically be described as anti-static or ESD-dissipative.
For ESD-sensitive applications, specify the required surface resistance, volume resistance, grounding approach, environmental conditions, and applicable internal or customer standards. Ask for test data for the exact sheet grade rather than relying on marketing terms such as "ESD epoxy board."
A specialty epoxy resin sheet may be the better option for a smooth, non-load-bearing insulation cover. It can offer a more uniform surface, smoother machined edges, lower visible fabric texture, and easier finishing than woven fiberglass FR4.
However, FR4 may still be preferable if the cover must resist bolt-tightening force, remain flat over a large area, support attached components, or maintain tight alignment under mechanical stress.
FR4 temperature performance depends on the specific resin system and grade. Standard FR4 may be suitable for many industrial electrical applications, but high-temperature processes, power electronics, heaters, transformers, or repeated thermal cycling may require high-Tg FR4, G11, or a specialty epoxy composite.
Before selection, compare continuous operating temperature, glass transition temperature, retained mechanical strength at elevated temperature, thermal-aging performance, and exposure duration.
Common causes include incorrect tooling, excessive feed pressure, poor support during drilling, undersized hole-to-edge spacing, aggressive countersinking, thermal buildup, dull cutting tools, and unsuitable machining parameters.
To reduce risk, use wear-resistant tooling, appropriate cutting speeds, effective dust extraction, fixture support, and a design review for thin walls, narrow webs, deep pockets, and tight-radius features.
FR4 generally performs well in many standard industrial environments, but chemical resistance varies according to the resin system, temperature, duration of exposure, concentration, and specific chemicals involved.
For parts exposed to cleaning agents, solvents, acids, alkalis, process fluids, or vapor, request chemical-compatibility data for the exact grade. A specialty filled epoxy or chemical-resistant resin system may be more appropriate than standard FR4 in certain process areas.
A complete RFQ should include:
- 2D drawing or 3D CAD model
- Required material grade
- Finished thickness and tolerance
- Flatness requirement
- Hole sizes and positional tolerances
- Threaded-hole, insert, or through-bolt requirements
- Surface-finish and edge-finish expectations
- Operating voltage and temperature range
- Mechanical loading conditions
- Flame-retardant or UL requirements
- ESD or chemical-resistance requirements
- Required quantity and forecast volume
- Inspection, packaging, and traceability requirements
Providing these details early helps the supplier select a suitable sheet grade and machining method before production begins.
For most electrical supports that need to carry mechanical load while maintaining electrical separation, FR4 fiberglass sheet is the stronger default choice. Its reinforced structure supports better rigidity, dimensional stability, and repeatable CNC machining.
Choose a specialty epoxy resin sheet when the component is non-structural or when it requires smoother surfaces, lower machining-tool wear, chemical resistance, high-temperature performance, or qualified ESD-dissipative behavior.
1. [UL Solutions — Combustion and Fire Tests for Plastics]
2. [UL Code Authorities — Understanding UL 94 Ratings and Limitations]
3. [TÜV SÜD — Semiconductor Equipment Testing and SEMI S2]
4. [Intertek — Understanding SEMI S2 for Semiconductor Equipment]
5. [IPC — IPC-4101 Specification for Rigid and Multilayer Printed Boards]
6. [Atlas Fibre — FR4 Epoxy Material Specifications]
