Wind turbine generators operate under demanding conditions. Their insulation components must withstand electrical stress, vibration, heat, humidity, thermal cycling, and mechanical loading over long service periods.

For this reason, choosing between G11 fiberglass sheet and FR4 sheet is not simply a material purchasing decision. It directly affects generator reliability, assembly quality, safety requirements, maintenance intervals, and lifecycle cost.

Both materials are epoxy fiberglass laminates. Both offer strong electrical insulation, good mechanical strength, low moisture absorption, and excellent machinability. However, their performance priorities differ.

G11 fiberglass sheet is generally the better choice for high-temperature structural insulation. It is often used near hot windings, stator slot areas, and mechanically demanding support locations.

FR4 sheet is generally preferred for flame-retardant insulation applications. It is widely used for terminal boards, barriers, spacers, control-area panels, and lower-temperature electrical insulation parts.

The best choice depends on the real application environment. Temperature, voltage, flammability requirements, installation location, mechanical loading, and component geometry should all be reviewed before material approval.

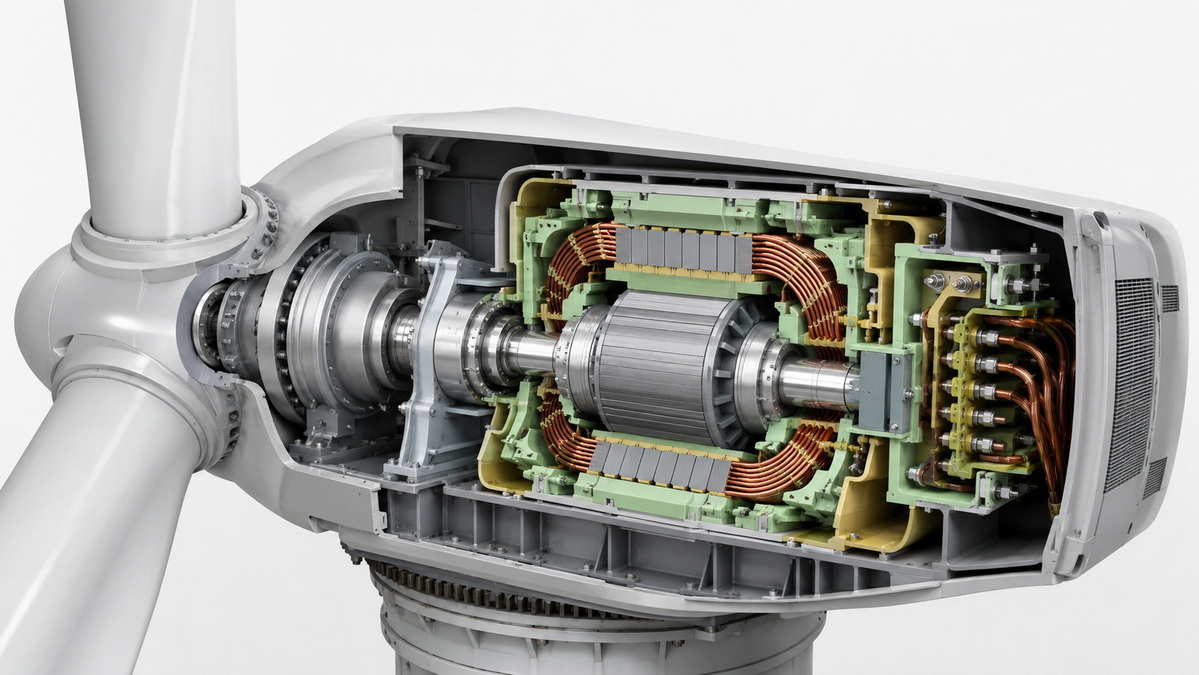

Wind Turbine Generator Insulation System

Why Wind Turbine Generator Insulation Requires Careful Material Selection

Wind turbine generators are not ordinary electrical assemblies. They operate in environments where loads can change rapidly and where access for maintenance may be limited.

A generator inside a wind turbine nacelle can experience:

- Continuous vibration from drivetrain movement and blade rotation

- Temperature changes caused by varying electrical loads and ambient weather

- Humidity and condensation in coastal, offshore, or high-humidity locations

- Mechanical stress during operation, transportation, assembly, and maintenance

- Electrical stress around stator windings, terminals, coils, and bus connections

- Long-term aging from heat, electrical fields, and repeated thermal expansion

The insulation system must maintain safe separation between conductive parts. It must also provide mechanical support for coils, windings, and structural electrical components.

Common wind turbine generator insulation parts include:

- Stator slot wedges

- Coil support blocks

- End-winding supports

- Phase barriers

- Terminal boards

- Insulating spacers

- Insulation washers

- Structural insulation plates

- Custom-machined electrical support components

A material that works well in a standard electrical cabinet may not be suitable near the hottest sections of a generator. Similarly, a high-temperature laminate may not be necessary for every component.

Selecting the right grade helps balance performance, reliability, manufacturability, and cost.

What Is G11 Fiberglass Sheet?

G11 fiberglass sheet is a rigid glass-fabric reinforced epoxy laminate. It is made by bonding woven fiberglass cloth with a high-temperature epoxy resin system under heat and pressure.

The material is designed for applications that require reliable insulation performance at elevated temperatures.

Compared with many standard epoxy glass laminates, G11 typically provides stronger thermal resistance. It can retain mechanical strength and dimensional stability under conditions where lower-temperature laminates may soften, deform, or lose long-term reliability.

Main Properties of G11 Fiberglass Sheet

G11 fiberglass sheet is valued for the following characteristics:

- High-temperature resistance

- Strong mechanical strength

- Reliable dielectric insulation

- Good dimensional stability

- Low water absorption

- Resistance to thermal cycling

- Good resistance to oil and common industrial environments

- Suitable for CNC machining, drilling, milling, and cutting

G11 is often associated with Class F or Class H insulation applications, depending on the specific resin system and product grade.

This makes G11 a strong material option for wind turbine generator components exposed to sustained heat or high mechanical stress.

Typical G11 Applications in Wind Turbine Generators

G11 fiberglass sheet is commonly considered for:

- Stator slot wedges near winding hot spots

- Coil support structures

- High-temperature separator plates

- End-winding clamping parts

- Insulating blocks under compression

- Precision-machined structural insulation parts

- High-load spacers and support plates

For these applications, G11 offers additional confidence where temperature and mechanical stability are the primary concerns.

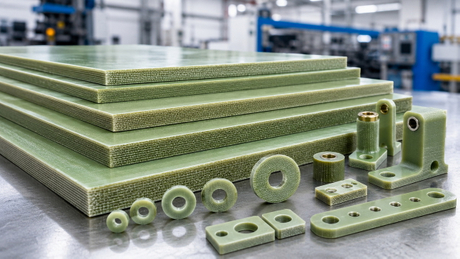

What Is FR4 Sheet?

FR4 sheet is another glass-fabric reinforced epoxy laminate. Its key feature is its flame-retardant epoxy resin system.

FR4 is widely used in electrical and electronic equipment because it combines insulation performance, strength, dimensional stability, and practical processing capability.

The material is often selected when flame retardancy is required along with dependable electrical and mechanical performance.

Main Properties of FR4 Sheet

FR4 sheet commonly provides:

- Flame-retardant performance

- Strong dielectric insulation

- Good mechanical strength

- Low moisture absorption

- Stable thickness and flatness

- Good machining performance

- Resistance to many industrial chemicals

- Cost-effective performance for general electrical insulation

FR4 is frequently used in industrial electrical equipment, switchgear systems, transformers, circuit assemblies, terminal boards, and mechanical-electrical support structures.

Typical FR4 Applications in Wind Turbine Generators

FR4 sheet can be used for:

- Terminal boards

- Electrical barrier plates

- Flame-retardant mounting panels

- Insulating washers

- Low-to-medium temperature spacers

- Control-area insulation components

- Connector support plates

- Machined electrical insulation parts

FR4 is particularly useful when a component must meet flame-retardant requirements but does not face the highest continuous operating temperatures in the generator.

G11 Fiberglass Sheet vs FR4 Sheet: Key Differences

Both G11 and FR4 are fiberglass-reinforced epoxy laminates. Their core structures are similar, but their service priorities are different.

Comparison Factor	G11 Fiberglass Sheet	FR4 Sheet	Practical Effect in Wind Turbine Generators
Main advantage	High-temperature resistance	Flame-retardant performance	Choose based on the primary application risk
Resin system	High-temperature epoxy resin	Flame-retardant epoxy resin	Resin chemistry affects long-term thermal and fire behavior
Thermal capability	Generally higher	Generally lower than G11	G11 provides more thermal margin near windings
Flame retardancy	May not meet the same rating as FR4	Commonly flame retardant	FR4 is suitable when fire performance is specified
Electrical insulation	Excellent	Excellent	Both can be used as dielectric insulation materials
Mechanical stability at heat	Better at elevated temperatures	Good at moderate temperatures	G11 is preferred for hot structural support parts
Moisture resistance	Good to excellent	Good to excellent	Both can be used in humid generator environments with proper design
Machining ability	Suitable for CNC machining	Suitable for CNC machining	Both can be converted into custom insulation parts
Cost position	Often higher	Often more economical	FR4 can be a practical option in lower-temperature areas

The correct material should never be selected only by name. Product performance can vary between manufacturers, resin formulations, thicknesses, and test methods.

A technical review should consider the approved material data sheet, finished-part geometry, operating conditions, and generator insulation-system requirements.

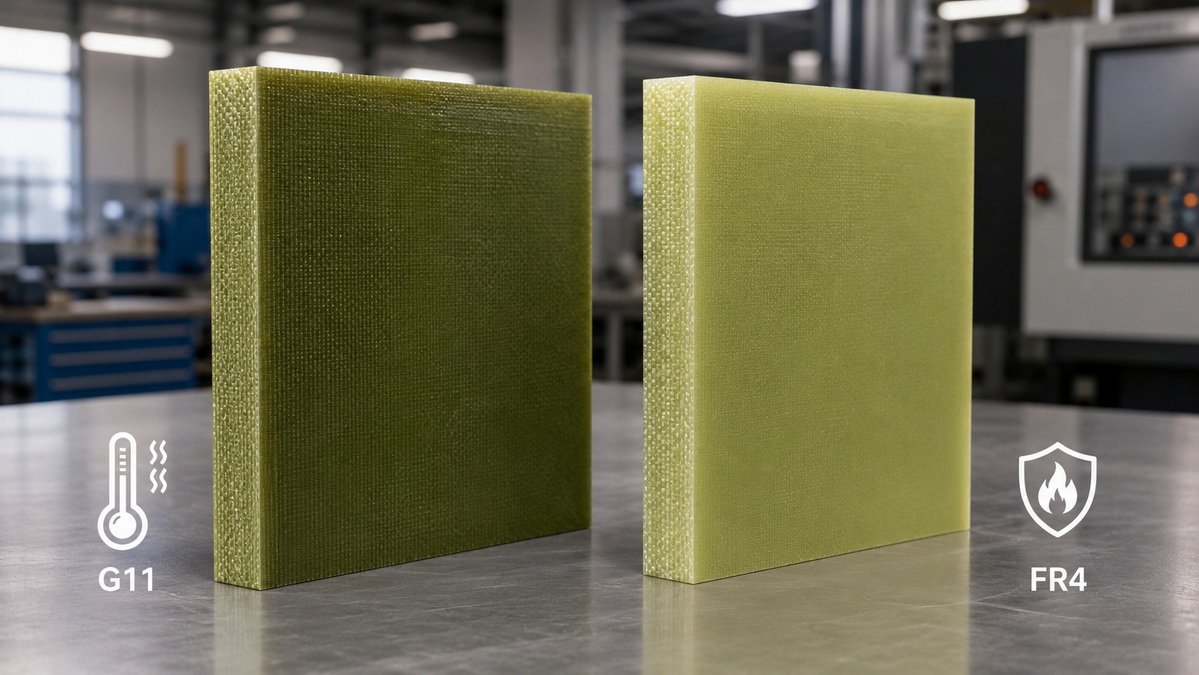

G11 And FR4 Sheet Comparison

Thermal Resistance: Why G11 Often Performs Better Near Windings

Temperature is often the most important factor when comparing G11 fiberglass sheet with FR4 sheet.

Inside a wind turbine generator, copper windings generate heat during operation. Localized hot spots can develop around stator slots, coil ends, winding supports, and high-current electrical connections.

Over time, excessive heat can accelerate insulation aging.

When an insulation sheet is exposed to temperatures beyond its long-term capability, several problems may occur:

- Loss of mechanical stiffness

- Dimensional distortion

- Reduced compressive strength

- Cracking caused by thermal cycling

- Delamination

- Lower dielectric reliability

- Movement of coils or winding supports

- Reduced electrical clearance

G11 provides stronger thermal stability than standard FR4 in many applications. This is why it is often selected for generator components that operate close to hot windings or support parts under continuous mechanical pressure.

Thermal Margin Is More Important Than Nominal Temperature

A generator may have an average operating temperature that appears acceptable for FR4. However, local hot spots may be significantly higher than the average temperature.

Material selection should include:

1. Maximum continuous temperature at the component location

2. Short-term peak temperature

3. Expected thermal cycling frequency

4. Distance from stator windings

5. Heat transfer conditions

6. Mechanical load during high-temperature operation

7. Target service life of the generator

A structural insulation part near a stator winding should have sufficient thermal margin. Choosing a material too close to its operating limit can increase the risk of earlier degradation.

For high-temperature zones, G11 is often the safer option.

Flame Retardancy: Why FR4 Can Be the Better Choice

FR4 is designed with flame-retardant properties. This makes it particularly valuable when a project requires insulation materials with controlled burning behavior.

Flame-retardant performance may be important for:

- Terminal boards

- Electrical connection areas

- Control cabinets

- Switching sections

- Connector supports

- Electrical enclosures

- Customer specifications requiring flame-retardant laminate

FR4 is commonly associated with UL 94 V-0 flame-retardant performance. This means the material is designed to resist sustained flame and reduce flame propagation under standardized test conditions.

For generator applications, FR4 can provide an effective balance of:

- Electrical insulation

- Mechanical support

- Flame resistance

- Machining flexibility

- Cost control

However, flame retardancy should not be confused with high-temperature endurance. A material may resist flame while still having a lower long-term temperature capability than G11.

When an application requires both high-temperature resistance and flame retardancy, the project may require a specialized high-temperature flame-retardant epoxy laminate rather than standard G11 or conventional FR4.

Electrical Insulation Performance

Both G11 and FR4 offer strong electrical insulation properties. They can be used to separate conductive parts, support energized components, and maintain safe distances inside a generator assembly.

However, material selection should not rely only on a single dielectric-strength figure.

Electrical performance in a real generator is influenced by:

- Operating voltage

- Impulse voltage

- Electrical clearance

- Creepage distance

- Humidity

- Condensation

- Dust and surface contamination

- Sharp edges around machined holes

- Thickness variation

- Surface finish

- Compatibility with varnishes and resin systems

A sheet with high dielectric strength can still create a weak point if the finished component has poor edge finishing or incorrect installation clearance.

Expert Perspective: Finished Parts Matter as Much as Raw Sheets

In practical generator production, insulation reliability depends on the finished component.

A high-quality G11 or FR4 sheet should be transformed into a part with:

- Accurate thickness

- Stable flatness

- Smooth edges

- Rounded corners where required

- Correct hole spacing

- Controlled machining tolerances

- Clean surfaces without burrs

- Appropriate fit with coils, terminals, and support structures

Sharp internal corners may create stress concentration. Rough drilled holes can damage nearby winding insulation. Poor dimensional control can reduce electrical clearance.

For this reason, custom-machined insulation components should be reviewed as engineering parts rather than simple sheet products.

Mechanical Strength and Vibration Resistance

Wind turbine generators experience vibration throughout their operating life.

The vibration may come from blade rotation, gearbox movement, shaft dynamics, changing wind conditions, transport movement, and generator start-stop cycles.

Mechanical insulation components must remain stable under these conditions.

Both G11 and FR4 can provide good room-temperature mechanical strength. The major difference is how well the material retains performance at elevated temperature.

G11 is generally more suitable for high-temperature structural support.

It is often selected for parts that must remain rigid while exposed to heat and compression.

Examples include:

- Slot wedges

- End-winding support blocks

- Compression plates

- High-temperature coil separators

- Insulating structural brackets

- Heavy-duty support spacers

FR4 is also suitable for many mechanical insulation parts.

It is often used where temperature is controlled and flame retardancy is more important than maximum thermal margin.

Examples include:

- Terminal support boards

- Mounting plates

- Barrier panels

- Control-area spacers

- Flame-retardant insulation covers

- Electrical connector supports

The material should be matched to both mechanical loading and temperature exposure. A component under high compression near a hot winding requires a different selection approach from a lightly loaded terminal-board spacer.

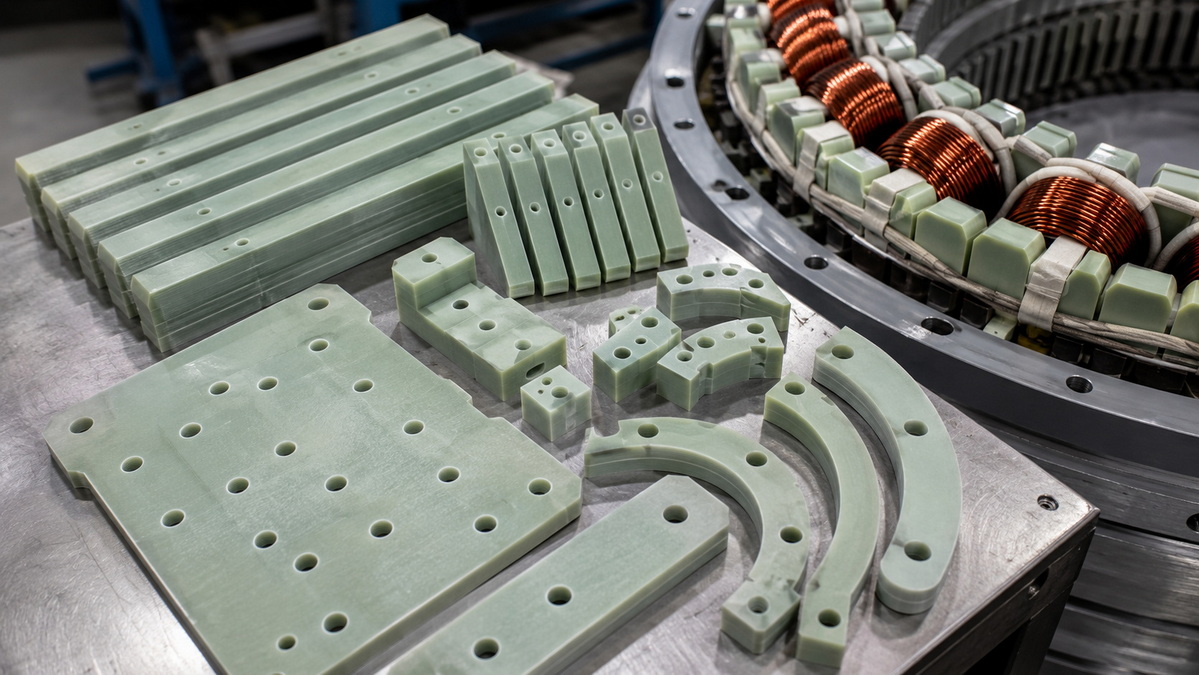

High Temperature Generator Insulation Parts

G11 vs FR4 by Wind Turbine Generator Component

Generator Component	Recommended Starting Material	Main Selection Reason
Stator slot wedge near hot winding	G11 fiberglass sheet	High thermal stability and structural strength
End-winding support block	G11 fiberglass sheet	Better high-temperature mechanical retention
Coil separator in high-heat zone	G11 fiberglass sheet	Stronger thermal margin during cyclic operation
High-temperature insulating support plate	G11 fiberglass sheet	Better dimensional stability under heat
Terminal board	FR4 sheet	Flame-retardant electrical insulation performance
Control-area insulation panel	FR4 sheet	Practical and flame-retardant material choice
Insulating washer or spacer	FR4 sheet	Cost-effective for lower-temperature locations
Connector mounting board	FR4 sheet	Electrical insulation with flame resistance
High-temperature and flame-retardant component	Special engineered grade	May require a different high-performance laminate

This guide provides a starting point for material selection. The final decision should be based on the project drawing, maximum temperature, electrical requirement, flammability requirement, and generator design standard.

How to Select the Right Insulation Sheet

Selecting a reliable insulation material requires more than comparing basic product names.

Use the following process before approving G11 fiberglass sheet or FR4 sheet for a wind turbine generator project.

Step 1: Define the Component Location

Identify where the part will be installed.

Ask whether it is near stator windings, terminals, high-current connections, control components, or structural supports.

The closer the component is to the generator hot spot, the more important thermal stability becomes.

Step 2: Confirm Temperature Conditions

Determine:

- Normal operating temperature

- Maximum continuous temperature

- Short-term peak temperature

- Ambient temperature range

- Frequency of temperature cycling

This information helps determine whether FR4 provides sufficient margin or whether G11 is necessary.

Step 3: Review Electrical Requirements

Confirm the expected voltage, insulation thickness, creepage distance, and clearance requirement.

Also consider surface contamination, humidity, condensation, and electrical stress around drilled holes or machined edges.

Step 4: Check Flame-Retardant Requirements

If the customer specification requires a flame-retardant grade, FR4 may be a suitable option.

If the application also has high thermal requirements, request an engineered material that meets both conditions.

Step 5: Review Mechanical Loading

Check whether the part supports coils, resists compression, holds terminals, or experiences frequent vibration.

High-load parts close to heat sources often benefit from G11.

Step 6: Confirm Custom Machining Requirements

Provide detailed drawings for holes, slots, bevels, radii, thickness tolerances, and flatness requirements.

Good material selection and accurate machining work together to create a reliable generator insulation component.

Custom G11 and FR4 Machining for Generator Parts

Raw insulation sheets are only one part of the solution. Wind turbine generator manufacturers often need precisely machined components that fit directly into their production process.

Guangdong Weishi New Materials Co., Ltd. can supply epoxy fiberglass laminate sheets and custom-made insulation parts for demanding industrial applications.

Available processing options can include:

- CNC milling

- CNC drilling

- Precision cutting

- Slotting

- Edge finishing

- Custom thickness processing

- Complex shaped insulation components

- Small-batch and volume production

- Drawing-based manufacturing

Custom-machined G11 and FR4 parts can help reduce assembly time and support more consistent installation quality.

A well-designed insulation component improves fit, reduces handling steps, protects winding surfaces, and helps maintain stable electrical separation.

CNC Machined Generator Insulation Components

Conclusion

G11 fiberglass sheet and FR4 sheet are both valuable materials for wind turbine generator insulation. They offer strong dielectric performance, mechanical strength, dimensional stability, and processing flexibility.

The most important difference is their core advantage.

G11 fiberglass sheet is typically the stronger option for high-temperature structural insulation. It is well suited to stator slot wedges, coil supports, end-winding structures, and other generator parts exposed to sustained heat and mechanical stress.

FR4 sheet is typically the stronger option where flame-retardant performance is essential. It is a practical choice for terminal boards, barrier plates, mounting panels, spacers, and lower-temperature electrical insulation components.

The correct decision should be based on real operating temperature, local hot spots, electrical stress, fire requirements, mechanical loading, environmental exposure, and finished-part geometry.

For wind turbine generator projects requiring dependable epoxy insulation materials, Guangdong Weishi New Materials Co., Ltd. can provide G11 fiberglass sheets, FR4 sheets, and custom-machined components based on your drawings, application conditions, and quality requirements. Share your technical specifications with our team to identify the most suitable insulation material and processing solution for your generator assembly.

Frequently Asked Questions

Is G11 fiberglass sheet better than FR4 sheet for wind turbine generator insulation?

G11 fiberglass sheet is usually better for high-temperature generator components and structural support parts near hot windings. FR4 sheet is often preferred where flame retardancy is required and the operating temperature is within its approved range.

Can FR4 sheet be used inside a wind turbine generator?

Yes. FR4 sheet can be used for terminal boards, barrier plates, spacers, mounting panels, insulating washers, and other electrical insulation components. It is best suited to areas with moderate temperature exposure.

Is G11 fiberglass sheet flame retardant?

Standard G11 should not automatically be considered equivalent to FR4 in flame-retardant performance. G11 is primarily selected for high-temperature resistance. If flame retardancy is required, request verified material documentation or consider a specialized engineered laminate.

What is the main difference between G11 and FR4?

G11 is mainly known for stronger high-temperature performance. FR4 is mainly known for flame-retardant performance. Both provide good electrical insulation and mechanical strength.

Which material is suitable for stator slot wedges?

G11 is often a preferred material for stator slot wedges near high-temperature windings because it provides stronger thermal stability and mechanical support.

Can G11 and FR4 sheets be CNC machined?

Yes. Both G11 and FR4 sheets can be CNC cut, drilled, milled, and shaped into custom insulation components. Proper tooling and edge finishing are important because fiberglass laminates are abrasive.

What information is needed before ordering G11 or FR4 insulation parts?

Provide the material grade, thickness, finished-part drawing, operating temperature, voltage requirement, flame-retardant requirement, machining tolerance, application environment, expected quantity, and required inspection documents.
