Marine electrical equipment operates in demanding conditions. Shipboard control panels, switchgear systems, cable supports, terminal blocks, busbar assemblies, battery compartments, and offshore electrical cabinets may be exposed to humidity, salt-laden air, condensation, vibration, oil, elevated temperatures, and long operating cycles.

For these applications, insulation materials must do more than separate electrical conductors. They must remain stable under mechanical stress, help maintain electrical safety, resist moisture-related performance loss, and support the overall fire-risk management of the equipment.

This is why the comparison between G10 epoxy sheet vs FR4 epoxy sheet for marine electrical equipment is important for equipment designers, marine electrical contractors, shipbuilders, offshore operators, and industrial component buyers.

Both G10 and FR4 are glass-fabric-reinforced epoxy laminates. They are widely used for electrical insulation, structural support, CNC-machined components, and high-strength industrial parts. Their appearance and general physical properties can be similar. However, the key difference is that FR4 epoxy sheet is formulated for flame-retardant performance, while standard G10 epoxy sheet is generally selected when flame retardancy is not a primary requirement.

For many marine electrical applications, FR4 is the more conservative material choice. G10 can still be suitable for specific low-risk or non-flame-critical insulation components when the application conditions and project requirements allow it.

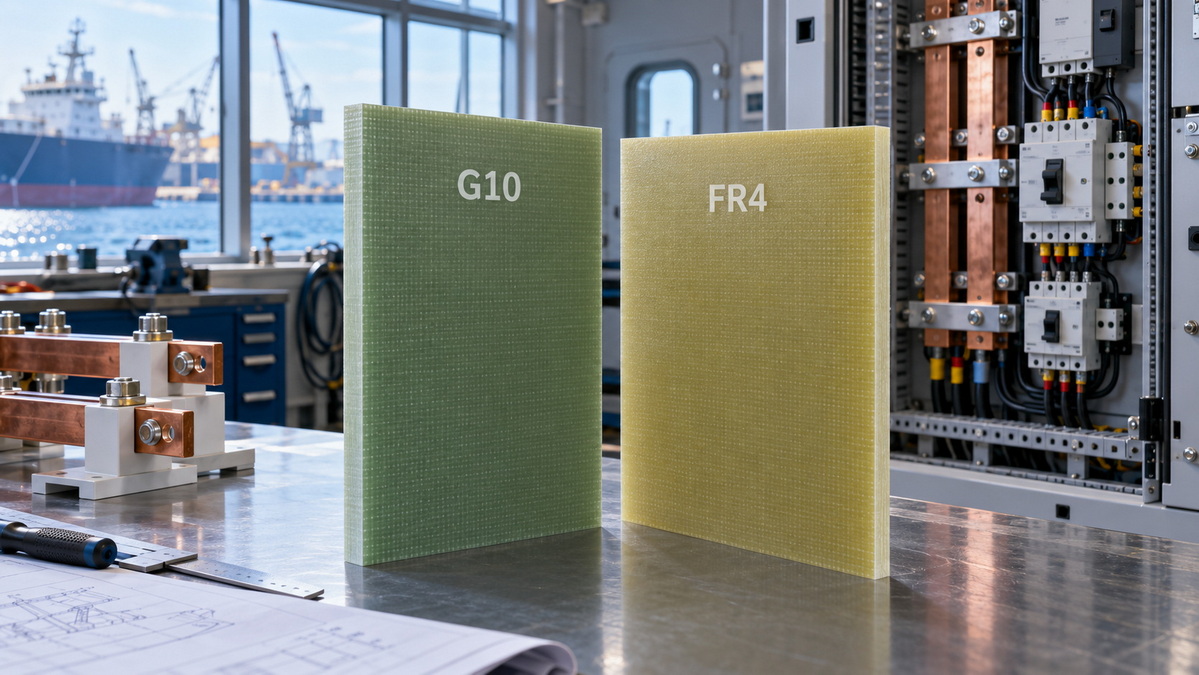

G10 And FR4 Marine Insulation Comparison

What Is G10 Epoxy Sheet?

G10 epoxy sheet is a rigid fiberglass-reinforced epoxy laminate. It is produced by combining woven glass cloth with epoxy resin under high heat and pressure. The finished material has strong mechanical properties, good electrical insulation performance, low moisture absorption, and reliable machinability.

G10 is often selected for parts that require a combination of insulation strength and structural durability.

Common G10 epoxy sheet applications include:

- Electrical insulation washers

- Terminal spacers

- Busbar support components

- Industrial mounting plates

- Precision-machined insulating fixtures

- Electrical equipment brackets

- Mechanical wear-resistant parts

- Transformer and motor insulation components

- High-strength insulation blocks

G10 is popular because it can be drilled, milled, cut, punched, and CNC machined into complex shapes. It also offers stable performance in many industrial environments.

However, standard G10 should not automatically be used in every marine electrical application. Its main limitation is that it is not normally chosen for applications where flame-retardant material performance is required.

For this reason, G10 may be suitable for protected insulation parts, mechanical support structures, and non-flame-critical components. It should be selected only after reviewing the working temperature, voltage level, enclosure environment, fire requirements, and customer specifications.

What Is FR4 Epoxy Sheet?

FR4 epoxy sheet is also a fiberglass-reinforced epoxy laminate. It uses woven glass fabric and epoxy resin, but its resin system is designed to offer flame-retardant performance.

The letters "FR" refer to flame retardancy. In practical terms, FR4 is widely used where electrical insulation and fire safety are both important.

FR4 epoxy sheet is commonly used in:

- Marine electrical control panels

- Switchgear insulation barriers

- Electrical cabinet panels

- Busbar support plates

- Circuit-board-related insulation structures

- Transformer insulation components

- Electrical terminal supports

- High-voltage insulation plates

- Motor insulation parts

- Battery system insulation barriers

- CNC-machined electrical components

FR4 is often specified for equipment used in electrical distribution systems, industrial control cabinets, energy storage systems, marine power systems, and electronic assemblies.

The major advantage of FR4 over standard G10 is its flame-retardant behavior. This makes FR4 a more suitable choice for electrical applications where an electrical fault, overheating condition, or nearby ignition source may create a potential fire hazard.

However, buyers should always confirm the actual test documentation, product thickness, resin system, and manufacturing batch. Material grades can vary between suppliers, and a product name alone should not be used as the only basis for technical approval.

G10 Epoxy Sheet vs FR4 Epoxy Sheet: Quick Comparison

Property	G10 Epoxy Sheet	FR4 Epoxy Sheet	Marine Electrical Importance
Base structure	Glass cloth reinforced with epoxy resin	Glass cloth reinforced with flame-retardant epoxy resin	Both provide rigid electrical insulation
Flame resistance	Standard G10 is usually not flame-retardant	FR4 is designed for flame-retardant performance	FR4 is generally preferred in electrical enclosures
Electrical insulation	Excellent	Excellent	Both can be used for insulation barriers and supports
Mechanical strength	High	High	Both provide structural reliability
Moisture resistance	Good	Good	Important for humid and salt-exposed environments
Machinability	Excellent	Excellent	Suitable for CNC machining and custom parts
Dimensional stability	Good	Good	Useful for precision electrical assemblies
Typical use	Non-flame-critical insulation and structural parts	Flame-conscious electrical applications	FR4 is often preferred for marine equipment
Cost consideration	Often cost-effective	May have a higher cost depending on grade	Material selection should prioritize performance requirements
Thermal options	Standard grade with moderate temperature capability	Standard and high-temperature options available

The main conclusion is simple: G10 and FR4 offer similar core insulation and mechanical benefits, but FR4 provides an additional flame-retardant advantage that is highly relevant for marine electrical equipment.

Why Marine Electrical Equipment Requires Careful Material Selection

Marine electrical equipment is not exposed to normal indoor conditions. Even when equipment is installed inside a sealed cabinet, the environment can still involve humidity, temperature changes, vibration, salt contamination, and maintenance challenges.

The following factors influence material performance in marine applications.

High Humidity and Condensation

Marine environments often experience high relative humidity. During temperature changes, condensation may form inside electrical enclosures, cable compartments, and control systems.

Moisture can affect insulation performance, especially when it combines with dust, salt residue, oil, or conductive contamination. Although G10 and FR4 have relatively low moisture absorption, surface contamination can still reduce insulation reliability.

For this reason, marine electrical equipment should include:

- Adequate insulation spacing

- Suitable creepage distance

- Proper clearance distance

- Controlled enclosure ventilation

- Moisture-resistant sealing where needed

- Regular inspection and cleaning

- Proper edge finishing after machining

Salt Spray and Salt Contamination

Salt-laden air is one of the most challenging conditions for marine electrical systems. Salt deposits can form conductive paths on insulation surfaces, especially in humid conditions.

The insulation sheet itself may remain structurally stable, but contamination on the surface can lead to leakage current, surface tracking, or reduced electrical reliability.

FR4 and G10 should therefore be used as part of a complete marine electrical design. The material alone cannot prevent failures caused by poor enclosure design, insufficient spacing, loose terminals, or contaminated surfaces.

Vibration and Mechanical Shock

Marine vessels and offshore structures experience continuous vibration from engines, pumps, generators, propellers, wave movement, and machinery.

Electrical support materials must remain stable under vibration. They should not crack easily, deform under clamping force, or loosen around mounting holes.

Both G10 and FR4 provide good mechanical strength and stiffness. They are suitable for insulation supports, mounting plates, terminal spacers, busbar supports, and precision-machined electrical components.

Fire Risk in Electrical Systems

Fire risk is one of the most important reasons to choose FR4 epoxy sheet for marine electrical equipment.

Electrical systems can generate heat due to overload, loose connections, short circuits, damaged insulation, arc faults, or poor maintenance. When an insulation material is installed near live conductors, terminals, busbars, or switching components, flame performance becomes an important design consideration.

FR4 is commonly selected because it offers flame-retardant behavior. It is generally a more suitable material for electrical panels, switchboards, control cabinets, and other marine electrical assemblies where fire safety is important.

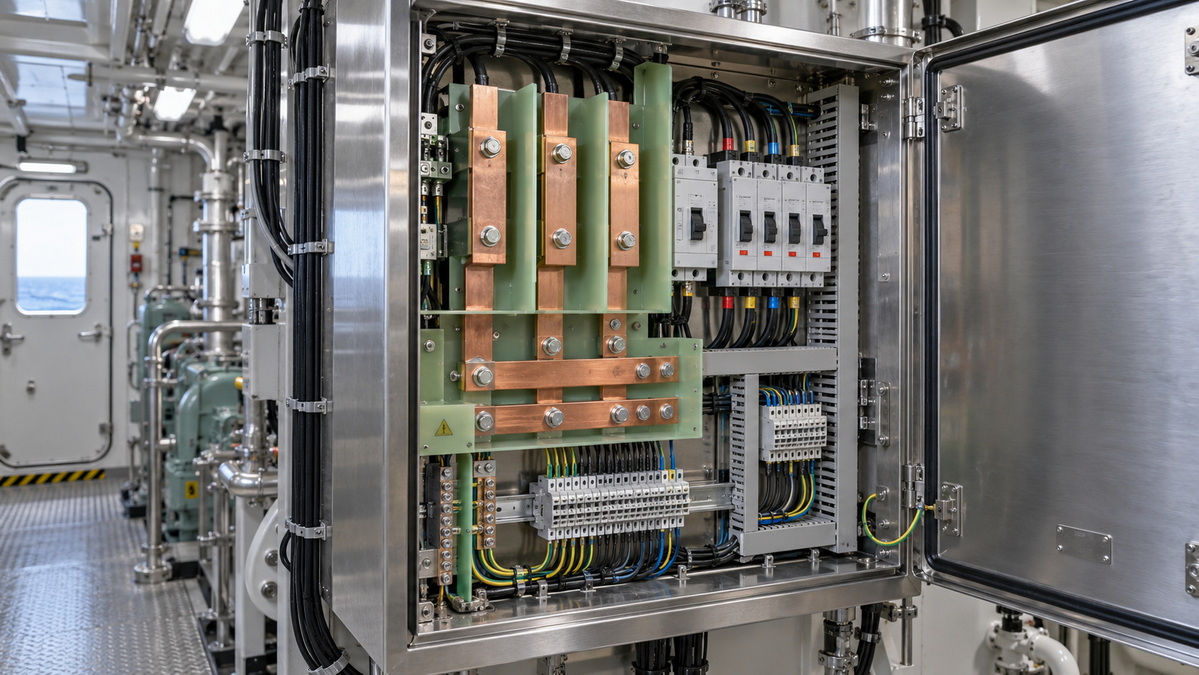

FR4 Marine Electrical Control Panel

Flame Resistance: The Most Important Difference

The main technical difference between standard G10 epoxy sheet and FR4 epoxy sheet is their flame behavior.

G10 is a glass-epoxy laminate with good insulation and mechanical properties. However, standard G10 is not normally selected because of flame-retardant performance.

FR4 is a glass-epoxy laminate designed to offer flame-retardant characteristics. It is commonly associated with vertical flame resistance performance and is widely used in electrical and electronic applications.

This difference becomes especially important in marine electrical equipment.

When Flame Resistance Matters Most

FR4 epoxy sheet is often the better choice for:

- Marine switchgear systems

- Electrical distribution panels

- Control cabinets

- Battery compartment insulation

- Busbar insulation barriers

- High-current electrical assemblies

- Electrical terminal supports

- Generator control systems

- Offshore electrical equipment

- Equipment installed near heat-generating components

In these applications, FR4 provides a stronger material selection position because it supports the flame-safety objectives of the overall electrical system.

Important Material Verification Points

When selecting FR4 epoxy sheet, buyers should confirm:

1. The exact FR4 grade being supplied

2. The sheet thickness required for the project

3. The flame-performance classification

4. The applicable testing conditions

5. The material data sheet

6. The production batch or lot number

7. The continuous operating temperature

8. The dielectric performance data

9. The machining requirements

10. The final application environment

Different thicknesses, resin systems, colors, suppliers, and formulations may have different performance characteristics. Reliable documentation is essential for professional marine projects.

Electrical Insulation Performance

Both G10 and FR4 epoxy sheets are widely used because of their electrical insulation performance.

They are commonly used to separate conductive components, support energized busbars, isolate electrical terminals, and create protective barriers inside electrical assemblies.

Typical Electrical Applications

G10 and FR4 can be used for:

- Busbar support blocks

- Insulation partitions

- Terminal boards

- Transformer spacers

- Motor insulation structures

- Electrical mounting plates

- Switchgear barriers

- Cable support components

- High-voltage insulation plates

- Battery pack insulation parts

The electrical performance of a finished part depends on more than the sheet material. The final design must consider voltage level, thickness, creepage distance, clearance distance, humidity, contamination, temperature, and installation conditions.

Surface Insulation in Marine Conditions

In marine applications, surface insulation is particularly important.

Salt residue, moisture, dust, oil, and carbon deposits can create conductive paths across an insulation surface. A material may have excellent dielectric strength in a laboratory test but still experience problems in the field if the installation environment is poorly controlled.

To improve insulation reliability:

- Keep insulation surfaces clean

- Avoid sharp corners and rough edges

- Use adequate spacing between conductive parts

- Design for drainage and moisture control

- Avoid unnecessary contamination during assembly

- Inspect parts for cracks or carbon tracking

- Use protective coatings when the application requires them

- Ensure fasteners do not damage or crush the laminate

A properly designed FR4 or G10 component can provide reliable electrical separation. However, its performance depends on both material quality and engineering design.

Moisture Resistance and Marine Durability

G10 and FR4 are both suitable for humid operating environments because they have relatively low moisture absorption compared with many other insulation materials.

This makes them useful for marine electrical equipment, coastal industrial systems, outdoor enclosures, and high-humidity production environments.

However, moisture resistance does not mean that marine installation conditions can be ignored.

Key Considerations for Moisture Exposure

When selecting an epoxy insulation sheet for marine use, consider:

- Continuous humidity level

- Condensation frequency

- Salt spray exposure

- Cabinet sealing performance

- Cleaning chemical exposure

- Oil and fuel contact

- Temperature cycling

- Surface contamination risk

- Long-term maintenance access

In practical use, the largest risk is often not the amount of water absorbed by the sheet. The larger concern is moisture and salt contamination on the surface of the installed component.

For example, a busbar support plate inside a marine electrical cabinet may remain mechanically strong. But if salt-laden condensation forms around the support and the electrical spacing is insufficient, the system may develop surface leakage or tracking.

This is why material selection must be combined with good equipment design and routine maintenance.

Mechanical Strength and Structural Reliability

Marine electrical equipment often needs insulation materials that can carry mechanical loads as well as provide electrical isolation.

Busbars create weight and vibration loads. Terminals experience tightening force. Mounting plates need to remain flat. Electrical components can create stress around drilled holes and fastener locations.

Both G10 and FR4 provide high mechanical strength. They are rigid, durable, and suitable for many structural insulation applications.

Typical Mechanical Benefits

Both materials offer:

- High compressive strength

- Good flexural strength

- Strong dimensional stability

- Good wear resistance

- Reliable screw and fastener support

- Stable machining behavior

- Resistance to deformation under normal operating loads

- Good performance for precision components

For marine electrical equipment, these properties are useful for manufacturing:

- Busbar support structures

- Electrical insulation plates

- Terminal mounting panels

- Insulating brackets

- CNC-machined spacers

- Electrical barriers

- Transformer insulation parts

- Generator insulation components

- Switchgear support blocks

Installation Considerations

Even strong epoxy laminates can be damaged if installed incorrectly.

Avoid the following issues:

- Over-tightening bolts

- Drilling holes too close to the edge

- Using damaged or dull cutting tools

- Creating sharp internal corners

- Exposing the material to excessive machining heat

- Installing parts with visible cracks or delamination

- Applying uneven clamping force

- Ignoring vibration during component design

Proper design and installation improve the long-term service life of both G10 and FR4 components.

Machining G10 and FR4 for Custom Marine Components

One of the main advantages of G10 and FR4 epoxy sheets is their machining flexibility.

They can be processed into custom parts using CNC milling, drilling, routing, punching, sawing, and precision cutting. This makes them suitable for both prototype development and volume production.

Common Custom-Machined Parts

Custom G10 and FR4 components include:

- Busbar insulation barriers

- Terminal support plates

- Electrical spacers

- Insulation washers

- Flange insulation parts

- Slot wedges

- Control panel inserts

- Electrical mounting boards

- Transformer spacers

- High-strength insulating blocks

- Precision-drilled laminate panels

Recommended Machining Practices

For reliable part quality, manufacturers should follow suitable processing methods.

1. Use sharp carbide cutting tools to reduce fiber pull-out and edge damage

2. Control machining speed and feed rate to prevent overheating

3. Use dust extraction equipment to manage fiberglass and epoxy dust

4. Deburr all cut edges and holes to improve handling and assembly safety

5. Inspect drilled holes for cracking before shipment or installation

6. Maintain tolerance control for precision electrical assemblies

7. Use suitable packaging to protect machined parts from impact and moisture during transport

For marine electrical projects, custom machining can reduce installation time and improve consistency. Instead of cutting sheets on site, buyers can receive finished insulation components that match approved drawings and assembly requirements.

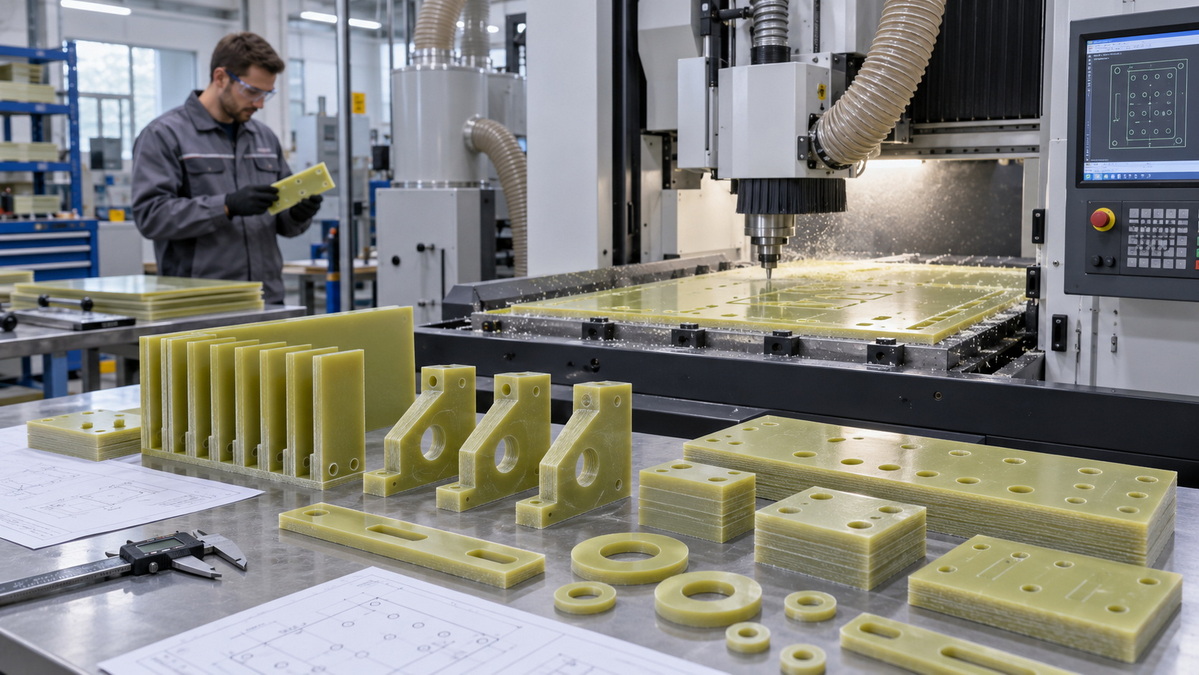

CNC Machined FR4 Electrical Components

Temperature Performance and Grade Selection

Standard G10 and standard FR4 are suitable for many electrical insulation applications. However, temperature performance should always be reviewed before final material approval.

Electrical equipment can generate heat from current flow, switching operations, transformers, motors, batteries, and nearby engines.

The correct material selection depends on the maximum operating temperature, continuous service temperature, temperature cycling, and required service life.

When Standard FR4 May Be Suitable

Standard FR4 may be appropriate for:

- Control cabinets

- Electrical terminal supports

- General switchgear insulation

- Low-to-medium temperature busbar systems

- Electrical mounting plates

- Marine electronic enclosures

- General-purpose insulation barriers

When Higher-Temperature Materials May Be Needed

Higher-temperature grades should be considered when the application involves:

- Engine-room electrical equipment

- High-current busbar assemblies

- Transformer insulation

- Motor insulation structures

- High-temperature generator systems

- Repeated thermal cycling

- Continuous elevated operating temperatures

- Special customer thermal requirements

In these cases, materials such as G11 epoxy sheet, FR5 epoxy sheet, or high-temperature FR4 grades may provide a more suitable solution.

G11 is generally chosen for higher-temperature insulation applications. FR5 is commonly used when higher thermal resistance and flame-retardant performance are both required.

The best material is not always the lowest-cost material. It is the material that can maintain electrical, mechanical, and safety performance throughout the expected service life of the equipment.

How to Choose Between G10 and FR4

The following selection guide can help equipment manufacturers and buyers make a practical decision.

Choose G10 Epoxy Sheet When

G10 may be suitable when:

- The component does not require flame-retardant performance

- The part is used in a protected environment

- Good electrical insulation is required

- High mechanical strength is required

- The application temperature is within the material's suitable range

- The component is non-flame-critical

- Cost efficiency is an important factor

- The final equipment specification allows G10

Typical example: a machined insulating spacer or mechanical support part inside a protected industrial electrical system where flame resistance is not a specified requirement.

Choose FR4 Epoxy Sheet When

FR4 is generally the preferred option when:

- The application involves marine electrical equipment

- Flame-resistant insulation is required

- The part is installed in an electrical control cabinet

- The component is near busbars, terminals, or live conductors

- The equipment is used in switchgear or electrical distribution systems

- Safety documentation is important

- The project involves shipboard or offshore electrical installations

- The customer has a flame-performance requirement

- The system operates in a fire-conscious environment

Typical example: an FR4 insulation barrier used between conductive sections in a marine switchboard or electrical control panel.

Marine Material Selection Checklist

Before ordering G10 or FR4 epoxy sheet for marine electrical equipment, review the following points.

Question	Why It Matters
What is the required material grade?	Prevents incorrect material substitution
Is flame-retardant performance required?	Helps determine whether FR4 is necessary
What thickness is needed?	Affects insulation, strength, and machining
What voltage level will the part support?	Influences electrical spacing and material design
What is the operating temperature?	Determines whether a standard or high-temperature grade is needed
Will the component be exposed to humidity or salt air?	Supports proper marine-environment design
Is the part installed inside or outside an enclosure?	Changes moisture and contamination risk
Does the part require CNC machining?	Helps define tolerance and production needs
Are custom holes, slots, or shapes needed?	Supports accurate quotation and fabrication
What mechanical load will the part carry?	Helps prevent cracking or deformation
Is traceability required?	Important for controlled projects and quality records
What packaging is required for shipping?	Protects sheets and finished parts during transport

A complete material specification should include grade, thickness, dimensions, tolerance, machining drawing, operating conditions, temperature range, flame requirements, and packaging needs.

Common Selection Mistakes

Choosing Material Only by Price

The lowest-cost sheet may not be the best solution if it does not meet flame, temperature, tolerance, or documentation requirements.

A material issue discovered after installation can cause production delays, replacement costs, equipment downtime, and customer quality concerns.

Treating G10 and FR4 as Fully Interchangeable

G10 and FR4 share many basic properties, but they are not automatically interchangeable. The flame-retardant difference is especially important for marine electrical equipment.

Ignoring Surface Contamination

Low moisture absorption does not eliminate the risk of surface leakage. Salt, moisture, oil, dust, and improper spacing can create electrical problems even when the insulation material itself is technically suitable.

Using Generic Material Data

Always review the data for the actual supplied grade. Material properties can vary by thickness, resin formulation, production method, and supplier.

Overlooking Machining Quality

Poor drilling, rough edges, cracks, delamination, and incorrect hole locations can reduce the performance of an otherwise high-quality insulation sheet.

Final Summary

For marine electrical equipment, the choice between G10 epoxy sheet and FR4 epoxy sheet should be based on the complete operating environment rather than a simple material-price comparison.

Both materials offer strong electrical insulation, mechanical durability, moisture resistance, dimensional stability, and good machining performance. They can be used for electrical barriers, busbar supports, terminal plates, insulation spacers, mounting boards, and custom-machined industrial components.

However, FR4 epoxy sheet is generally the more suitable option for marine electrical applications where flame retardancy, electrical safety, and documentation are important. Its flame-retardant characteristics make it a stronger choice for control panels, switchboards, electrical cabinets, busbar assemblies, terminal supports, and other fire-conscious equipment.

G10 epoxy sheet remains a reliable material for non-flame-critical insulation parts and mechanical support applications. It can provide excellent performance when the operating environment, temperature range, and equipment requirements are properly understood.

Guangdong Weishi New Materials Co., Ltd. focuses on the development, production, and supply of high-performance epoxy insulation sheets and composite materials. Our product range includes G10 epoxy sheet, FR4 epoxy sheet, G11 epoxy sheet, and custom-machined insulation components for electrical, electronics, mechanical processing, mold manufacturing, and industrial equipment applications.

With stable material quality, advanced production processes, flexible customization capabilities, and precision machining support, we help global customers select reliable insulation-material solutions for demanding applications.

FAQ

1. Is FR4 epoxy sheet better than G10 epoxy sheet for marine electrical equipment?

FR4 epoxy sheet is generally better for marine electrical equipment when flame-retardant performance is important. Both materials provide good insulation and mechanical strength, but FR4 offers an additional flame-resistance advantage that is valuable in electrical cabinets, switchgear systems, and marine power equipment.

2. Can G10 epoxy sheet be used in humid marine environments?

Yes. G10 epoxy sheet can be used in humid environments because it has good electrical insulation properties and relatively low moisture absorption. However, the equipment design should still control salt contamination, condensation, surface leakage, and electrical spacing.

3. Is every FR4 epoxy sheet flame retardant?

FR4 is commonly identified as a flame-retardant glass-epoxy laminate. However, buyers should always confirm the actual material data, thickness range, test conditions, and production documentation for the specific product being purchased.

4. What is the main difference between G10 and FR4?

The main difference is flame performance. G10 and FR4 are both fiberglass-reinforced epoxy laminates with good electrical and mechanical properties. FR4 is designed to provide flame-retardant performance, while standard G10 is generally not selected for this purpose.

5. Can FR4 epoxy sheet be CNC machined?

Yes. FR4 epoxy sheet can be CNC machined into custom insulation barriers, busbar supports, terminal plates, electrical spacers, washers, mounting boards, and other industrial electrical parts.

6. Is FR4 suitable for marine switchboards?

Yes. FR4 is commonly suitable for marine switchboards, electrical panels, terminal supports, insulation barriers, and busbar structures when the required thickness, operating temperature, voltage level, and flame-performance requirements have been confirmed.

7. When should G11 or FR5 be selected instead of standard FR4?

G11 or FR5 should be considered when the application requires higher temperature resistance than standard FR4 can provide. These materials are often used in high-temperature electrical systems, transformer insulation, motor components, generator equipment, and demanding industrial applications.
