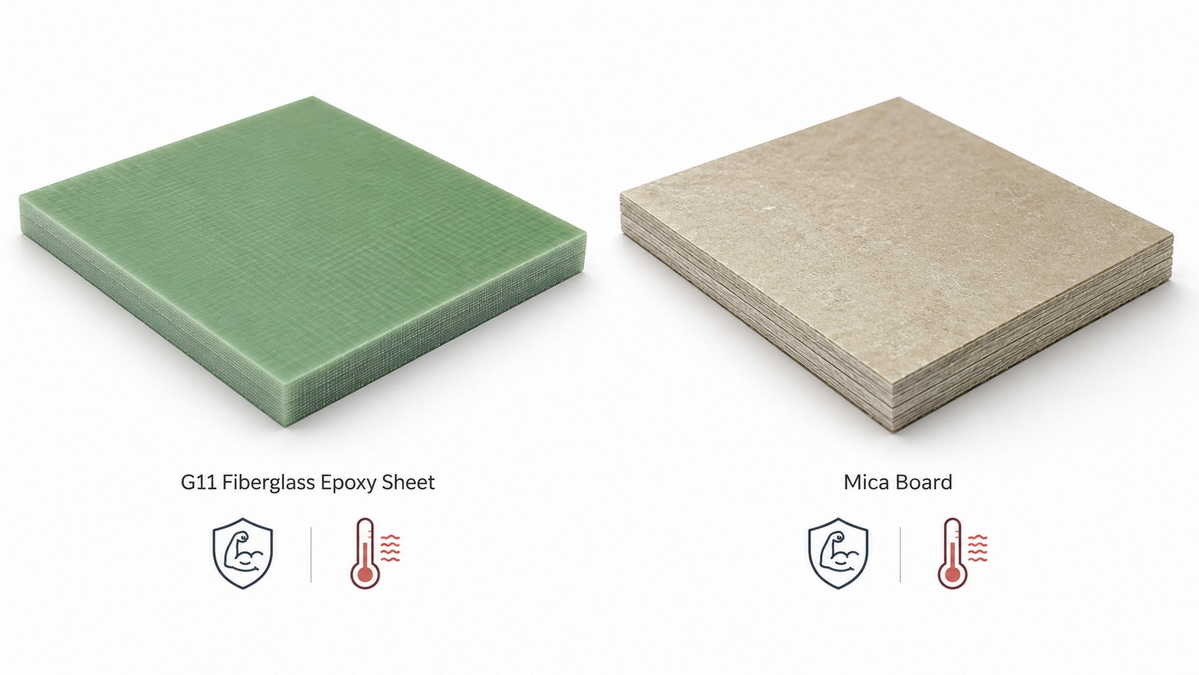

When specifying insulation materials for continuous 180°C electrical equipment, G11 fiberglass sheet and mica board are two of the most commonly considered options. Both can withstand high temperatures and harsh electrical environments, but they differ significantly in mechanical strength, processability, and behavior under local overheating and arcing.
As a manufacturer of high‑performance epoxy fiberglass laminates such as G11, FR4, and G10, Guangdong Weishi New Materials Co., Ltd. focuses on helping equipment designers and OEMs balance thermal performance, electrical reliability, and manufacturability in demanding industrial applications.
G11 fiberglass sheet is a rigid laminate made from woven fiberglass cloth impregnated with a high‑temperature epoxy resin system and cured under heat and pressure. It is categorized as a Class H material, designed for continuous operation at around 180°C.
Key characteristics of G11 fiberglass sheet include:
- High mechanical strength, especially in flexural and compressive loading
- Stable electrical insulation performance at elevated temperatures
- Low moisture absorption, supporting long‑term dimensional and dielectric stability
- Good machinability for complex, tight‑tolerance insulating components
These features make G11 widely used in motors, generators, transformers, and power electronic assemblies that must operate reliably at elevated temperatures.
Mica board is a rigid insulating material produced from natural or synthetic mica paper combined with a high‑temperature binder, such as silicone or epoxy resin, and pressed into sheets. The mica flakes provide exceptional heat resistance and electrical insulation, while the binder system determines the mechanical integrity and processability.
Typical characteristics of mica board include:
- Very high temperature capability, often far above 180°C in appropriate grades
- Excellent dielectric strength across a wide temperature range
- Outstanding arc and flame resistance, especially in zones exposed to direct heating or arcing
- Moderate mechanical strength and a more brittle structure compared with fiberglass laminates
Mica board is commonly used in heating equipment, furnace insulation, commutators, slip rings, and other high‑energy electrical interfaces.

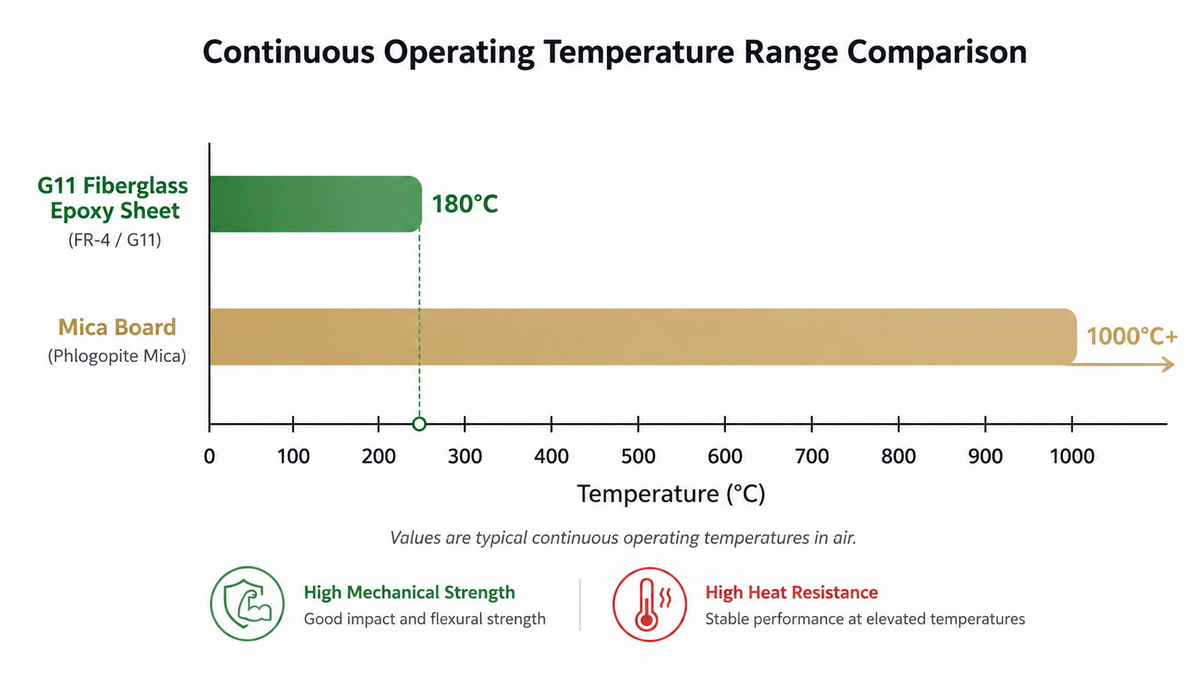

G11 fiberglass sheet is engineered for continuous operation around 180°C. It is typically classified as a Class H material, meaning its resin system and glass reinforcement are selected to maintain acceptable mechanical and electrical properties at that temperature for a long service life.
Mica board, by contrast, has a thermal window that extends far beyond the Class H range. Pure mica can withstand several hundred degrees Celsius and, in many specialized forms, even above 1000°C. In practical mica boards, the actual temperature limit is determined mainly by the binder system, but 180°C is usually well within its safe operating range.
In continuous 180°C service:
- G11 works in the temperature band it was specifically designed for
- Mica board is operating comfortably below its typical upper thermal limit
Industrial electrical equipment rarely operates at perfectly uniform temperatures. Short‑term overloads, switching events, and localized heat sources can create hot spots above the nominal 180°C rating.
In this context:
- G11 can tolerate short over‑temperature conditions, but significant, repeated excursions far above 180°C will accelerate aging of the epoxy system and may reduce mechanical strength over time
- Mica board can endure much higher local temperatures and is often selected for zones where direct radiation, arcs, or flames are expected
For the bulk of the structure that runs close to 180°C, G11 is usually sufficient. For areas subject to severe hot spots or open flames, mica board remains a safer and more robust choice.
Both materials provide high dielectric strength suitable for demanding electrical applications.
G11 fiberglass sheet offers:
- High dielectric strength, typically in the tens of kilovolts per millimeter depending on test method and thickness
- Stable insulation performance under elevated temperature and humidity when properly processed
- Reliable performance as slot wedges, phase separators, and insulating plates in rotating machines and power equipment
Mica board provides:
- Comparable or higher dielectric strength values in many grades
- Very low electrical conductivity even at very high temperatures
- Excellent behavior in the presence of arcs, surges, and partial discharges
In continuous 180°C electrical equipment, G11 generally meets or exceeds the electrical requirements for windings, supports, and barriers. Mica board is usually reserved for zones with intense arcing, switching, or extreme transient conditions.
A major difference between G11 and mica appears in response to arcs and flame:
- G11, as an epoxy‑based laminate, has good resistance but will eventually char under sustained arcing or open flame exposure
- Mica board is widely known for its arc and flame resistance and can maintain insulating properties even when exposed to very high local temperatures and arc energy
For components inside arc chutes, furnace terminals, high‑voltage commutators, or heating elements where direct flame or plasma is present, mica board is commonly preferred.
Mechanical behavior is often the deciding factor between G11 and mica board in real projects.
G11 fiberglass sheet:
- Provides high flexural, tensile, and compressive strength
- Retains a significant portion of that strength at elevated temperatures around 180°C
- Exhibits low moisture absorption, which helps maintain dimensional stability and clamping force over time
Mica board:
- Offers good compressive strength but generally lower flexural and impact resistance
- Is more brittle and prone to cracking or chipping, especially at thin sections and sharp corners
- Shows mechanical performance strongly influenced by the chosen binder and density
In rotating machines, power electronics, and structural insulators subjected to vibration, torque, or repeated tightening of fasteners, G11 usually offers a more robust and durable solution.
From a manufacturing standpoint, the differences are even clearer.
G11 fiberglass sheet:
- Can be CNC machined, drilled, milled, countersunk, and tapped
- Allows tight tolerances and consistent repeatability in series production
- Supports complex geometries, including three‑dimensional forms, thin yet strong webs, and precision slots
Mica board:
- Can be cut, punched, and machined, but with greater tool wear and higher risk of edge chipping
- Is better suited to flat shapes, simple cut‑outs, and low‑stress geometries
- Can be challenging to maintain fine features and tight tolerances, especially in thin sections
For complex insulating parts that must be accurately positioned, screwed down, or repeatedly assembled and disassembled, G11 is usually the more practical option.
In many applications, continuous 180°C operation is combined with humidity, oil mist, dust, and industrial pollutants. Material choice must account for these factors.
G11 fiberglass sheet typically offers:
- Low water absorption, supporting stable dielectric strength in humid environments
- Chemical resistance to many oils, solvents, and varnishes commonly used in motors and transformers
- Compatibility with standard impregnation systems, coatings, and encapsulation processes
Mica board, depending on the binder, may also show very good resistance to moisture and chemicals, but performance is more grade‑specific. The inherent stability of mica is excellent, yet the binder and board structure determine how it behaves in real industrial environments.
Where long‑term dimensional and electrical stability in humid, polluted atmospheres is required at 180°C, high‑quality G11 from a specialized manufacturer can provide highly predictable results.
In continuous 180°C electrical equipment, G11 is often the preferred material for structural and mechanically loaded insulating parts. Typical uses include:

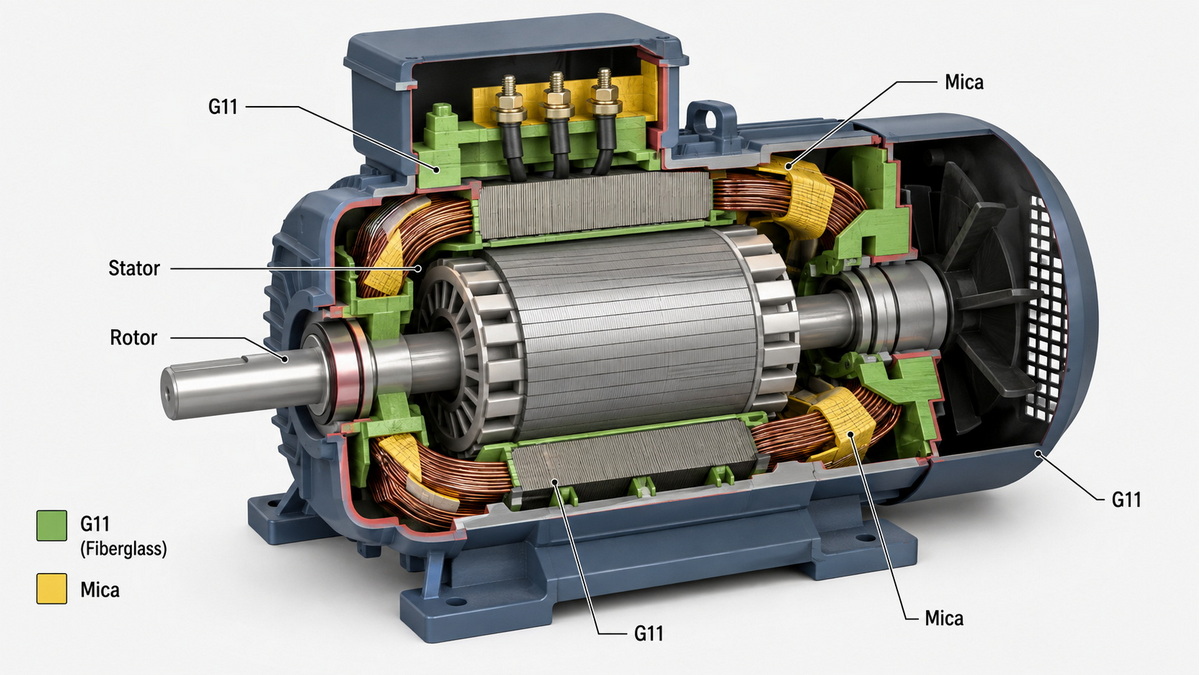

- Slot wedges, phase separators, and spacers in Class H motors and generators
- Terminal boards, coil supports, and structural barriers in transformers
- Busbar supports, insulating fixtures, and backup plates in inverters and power converters
- High‑temperature fixtures, guide rails, and insulating clamps in industrial machines
G11 offers a balanced combination of heat resistance, insulating capability, machinability, and mechanical strength that suits these components well.
Mica board plays a more specialized but critical role in areas where thermal and arc conditions exceed what epoxy‑glass laminates comfortably handle. Common uses include:
- Support plates and insulation in heating elements and furnaces
- Barriers and supports in commutators, slip rings, and brush gear exposed to intense arcing
- Terminal insulators and shields near open flames or very high local temperatures
- Components where the primary requirement is extreme thermal and arc endurance rather than structural strength
In such scenarios, mica board acts as a safety and reliability layer, complementing G11 and other materials.

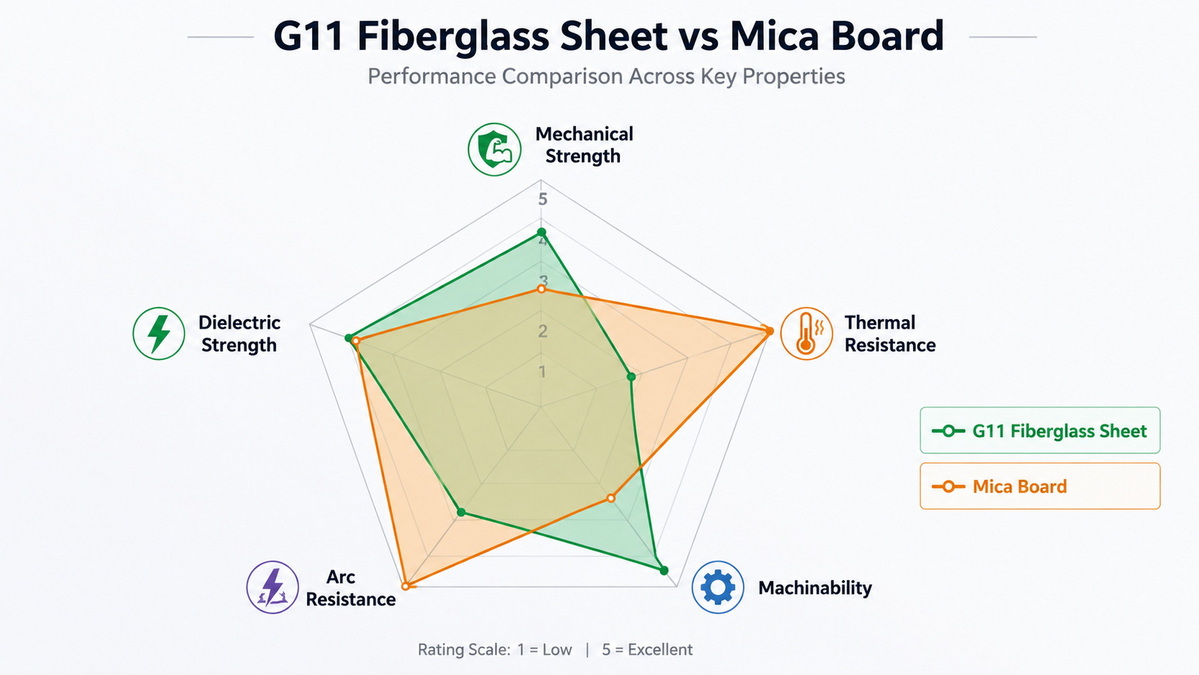

| Aspect | G11 Fiberglass Sheet | Mica Board |
|---|---|---|
| Base composition | Fiberglass cloth + high‑temperature epoxy resin | Mica paper + high‑temperature binder |
| Typical thermal class | Around Class H, continuous near 180°C | Often capable of far above 180°C, grade‑dependent |
| Continuous operation at 180°C | Designed specifically for this range | Operates well below its upper temperature limit |
| Short‑term overload / hot spots | Limited margin above 180°C | Excellent tolerance to very high local temperatures |
| Dielectric strength | High, suitable for motors and power equipment | High, with excellent high‑temperature performance |
| Arc and flame resistance | Good but limited compared with mica | Outstanding, often used in arc and flame zones |
| Mechanical strength | High flexural and compressive strength | Moderate, more brittle |
| Machinability | Good for CNC, drilling, tapping, complex shapes | More difficult, edge chipping more likely |
| Moisture and chemical resistance | Low water absorption, good chemical resistance | Strong mica base; behavior depends on binder and grade |
| Typical use at 180°C | Structural insulating parts and supports | Localized high‑heat, arc, or flame‑exposed components |
A structured process helps engineers choose the most appropriate material for each part in continuous 180°C equipment:
1. Define temperature distribution
Map the continuous operating temperature and the expected hot spots across the equipment. Identify which zones truly operate at 180°C and which may occasionally exceed it.
2. Separate structural and non‑structural parts
List components that carry mechanical loads, support other parts, or see vibration and impact. These usually benefit from the higher strength of G11 fiberglass sheet.
3. Assess electrical stress and arc risk
Determine the operating voltage, surge levels, and presence of switching arcs or partial discharges. Components close to intense arcs and high‑energy switching often justify the use of mica board.
4. Review geometry and tolerances
For complex, three‑dimensional, or tight‑tolerance parts, G11 typically offers a more reliable manufacturing route. For simple, flat profiles in extreme heat zones, mica board is often adequate and efficient.
5. Combine materials where appropriate
Many advanced designs use G11 for the majority of structural Class H insulation and reserve mica board for localized hot spots or arc‑intensive areas. This hybrid approach uses each material in the conditions where it performs best.
In numerous industrial motor and power‑equipment projects, a recurring pattern emerges:
- When structural components were originally made from mica board, assembly and maintenance teams often encountered cracked edges and chipped corners, especially after repeated disassembly or field repair
- After switching these structural and mechanically loaded insulators to G11 fiberglass sheet, manufacturers typically reported lower scrap rates, smoother machining, and better reliability under vibration and fastening loads
- Mica board remained in use in carefully chosen locations, such as near brush gear, terminals exposed to arcs, or zones adjacent to heating elements
This experience highlights how using G11 and mica board together, each in its ideal role, can improve both performance and manufacturability for continuous 180°C equipment.
A dedicated producer of high‑performance epoxy fiberglass laminates can significantly simplify material selection and implementation. With expertise in G11, G10, FR4, and other composite insulating plates, Guangdong Weishi New Materials Co., Ltd. supports equipment designers with:
- Stable‑quality G11 fiberglass sheets optimized for high‑temperature electrical applications
- Custom cutting and precision machining to deliver ready‑to‑assemble insulating parts
- Technical guidance in aligning material grades, thicknesses, and processing methods with specific operating conditions
This level of support helps ensure that the final equipment not only meets its temperature and electrical targets but also runs reliably across its entire service life.
For continuous 180°C electrical equipment, G11 fiberglass sheet is typically the primary choice for structural insulating parts that must combine mechanical strength, stable insulation, and reliable performance under load and vibration. Mica board plays a complementary and highly specialized role where local temperatures, arcing, or flame exposure exceed what epoxy‑glass laminates can comfortably endure.
By understanding the different strengths of these two materials and applying a structured selection framework, equipment designers can create more reliable, manufacturable, and robust high‑temperature systems. Coordinating closely with an experienced insulating‑materials manufacturer further helps align material properties with real operating conditions and production constraints.
