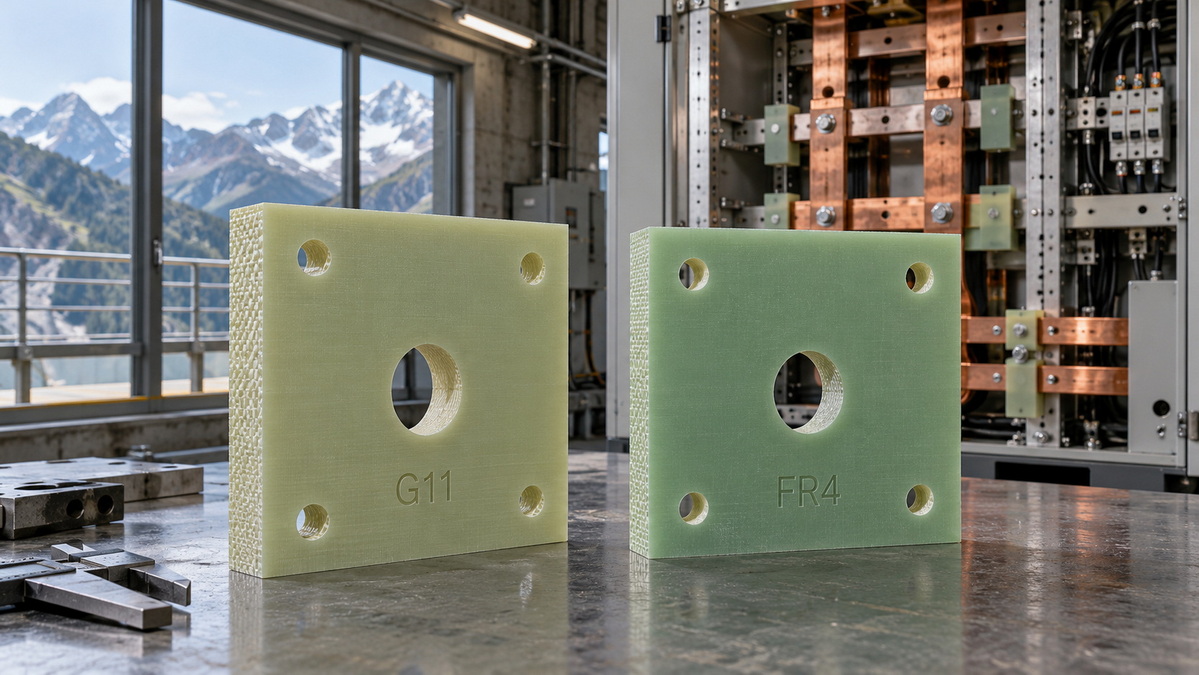

Choosing between G11 vs FR4 in high-altitude electrical equipment requires more than comparing insulation strength. G11 generally deserves consideration when elevated-temperature mechanical performance matters most. FR4 is often the more appropriate starting point when flame retardancy is a central requirement. Neither material, however, eliminates the need to evaluate electrical clearances at the intended operating altitude.
For designers and procurement teams, the decisive question is qualification: does the specific laminate, machined component, and assembled insulation system satisfy the actual operating conditions?
This guide compares G11 and FR4 insulation boards from a materials-selection perspective. It also explains altitude-related design risks, a practical clearance calculation, and the evidence buyers should request before approving either material.
G11 and FR4 are glass-fabric-reinforced epoxy laminates. Their shared construction provides useful electrical insulation and structural properties, but their resin systems and performance priorities differ.
| Selection factor | G11 insulation board | FR4 insulation board |
|---|---|---|
| Basic construction | Woven glass fabric with a high-temperature epoxy system | Woven glass fabric with a flame-retardant epoxy system |
| Main selection advantage | Mechanical and electrical performance at elevated temperatures | Flame retardancy combined with electrical and mechanical performance |
| Flame behavior | Standard G11 should not be assumed flame retardant | Flame retardant; verify the required classification |
| Thermal suitability | Often a stronger candidate for hot structural insulation | Depends substantially on the specific formulation |
| Electrical performance | Evaluate the actual grade and test conditions | Evaluate the actual grade and test conditions |
| High-altitude suitability | Requires assembly-level assessment | Requires assembly-level assessment |
| Purchasing priority | Hot-strength data and thermal endurance evidence | Flammability documentation and temperature suitability |
These are selection directions, not universal numerical specifications. Different products carrying the same grade designation can have different resin chemistry, reinforcement construction, and processing characteristics.

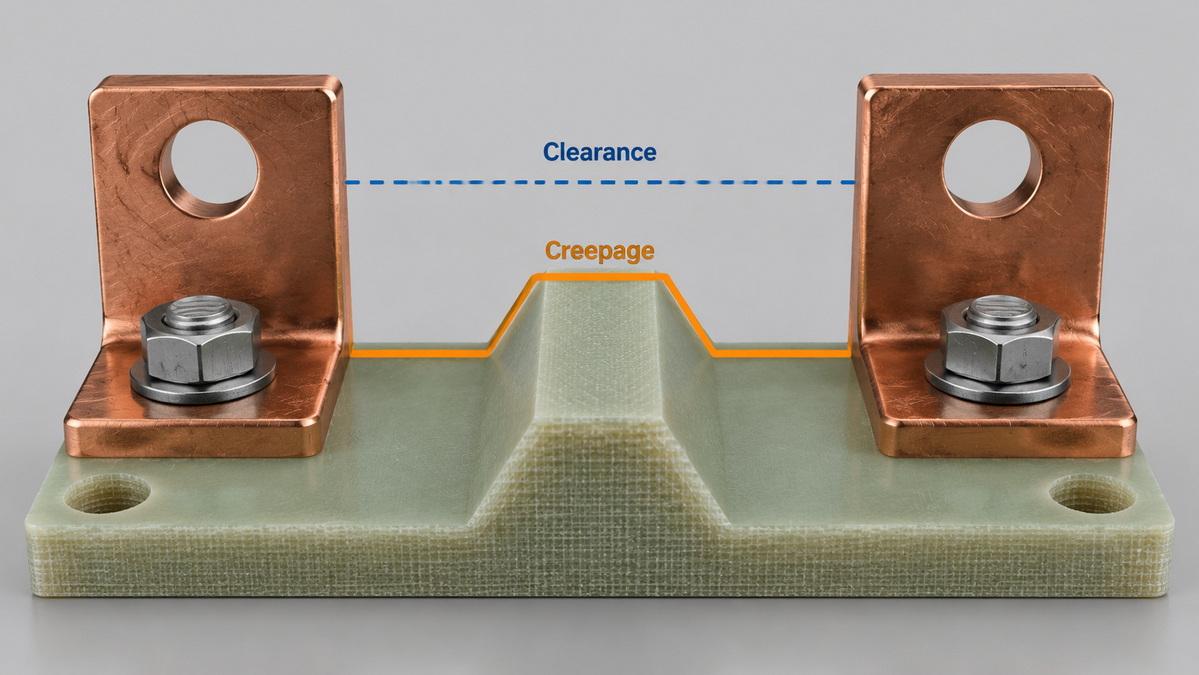

Clearance is the shortest distance through air between conductive parts. In high-altitude equipment, reduced air density affects the ability of that air gap to withstand voltage.
A laminate may perform well in a dielectric-strength test while the assembled equipment still fails across an adjacent air gap. This distinction matters for terminal supports, busbar barriers, insulating spacers, and machined mounting plates.
My recommended starting point is to separate material performance from insulation-system performance. Replacing FR4 with G11 does not automatically correct an undersized air clearance.
For equipment within its scope, IEC 60664-1 provides insulation-coordination guidance, including altitude corrections above 2,000 meters. Its low-voltage scope includes equipment rated up to 1,000 V AC or 1,500 V DC. Other equipment categories require their applicable product standards.
Creepage is the shortest distance along an insulating surface between conductors.
Its evaluation depends on working voltage, pollution degree, and material characteristics such as comparative tracking index, or CTI. Clearance, by contrast, addresses the air path and must account for the relevant voltage stresses.
Do not apply an altitude clearance multiplier indiscriminately to every surface distance. Determine clearance and creepage separately, then check their interaction under the applicable standard.
Outdoor ambient temperature does not describe the hottest insulation location inside an enclosure.
A support beside a power device or winding may experience a substantially different thermal environment. Consequently, material selection should use measured or conservatively established component temperatures, including abnormal conditions where required.
A reliable comparison considers altitude, temperature, voltage, contamination, and mechanical loading together.
G11 uses a high-temperature epoxy system intended to maintain useful properties at elevated temperatures.
Published manufacturer examples illustrate the importance of product-specific limits. Norplex-Micarta lists NP511, a G11 laminate, with a continuous operating temperature of 175°C. Its NP511EM grade lists 190°C specifically for mechanical applications.
These figures are examples from named products, not guaranteed ratings for every G11 board. They also cannot be transferred automatically to another manufacturer's electrical insulation system.
When assessing G11 for high-altitude electrical equipment, request:
- Flexural strength at the expected operating temperature.
- Thermal endurance information relevant to the application.
- Electrical properties after appropriate conditioning.
- Dimensional behavior across the operating temperature range.
- Clear identification of whether ratings apply to mechanical or electrical service.
FR4 is a material designation, not a single resin formulation.
A particularly important distinction is glass transition temperature, or Tg. Tg describes a transition in resin behavior; it is not a standalone continuous-service rating.
Norplex-Micarta's explanation of FR4 notes that the NEMA LI-1 standard does not specify a minimum Tg. Therefore, purchasing "FR4" without further thermal requirements leaves an important part of the specification unresolved.
For a hot assembly, compare actual FR4 and G11 products using equivalent test conditions. Do not select solely from a generic temperature chart.
Both materials can provide useful electrical insulation. However, a room-temperature dielectric-strength value does not establish a universal winner.
A meaningful G11 vs FR4 electrical comparison should identify:
- Test method and specimen thickness.
- Voltage application direction.
- Dry or moisture-conditioned results.
- Test temperature.
- Volume and surface resistivity.
- CTI or material-group information where needed.
- Relevant frequency and voltage waveform.
Through-thickness strength does not directly describe surface tracking behavior. Likewise, a high short-duration breakdown result does not demonstrate long-term reliability in the finished assembly.
From a specification perspective, I would prioritize comparable evidence over the largest published number. Two values obtained under different conditions may create a misleading ranking.
FR4 is designed as a flame-retardant glass-epoxy material. Standard G11 should not be treated as an equivalent flame-retardant substitute.
This distinction can outweigh G11's thermal advantages when the application requires a documented burning classification.
Nevertheless, "FR4" alone is not sufficient evidence that a supplied thickness meets a particular UL 94 classification. Request the relevant test documentation or recognition information for the actual material and thickness.
Flame retardancy also differs from resistance to electrical tracking or arcing. These properties address different failure mechanisms and should not be substituted for one another.
If elevated-temperature performance and flame retardancy are both essential, investigate a suitable FR5 or another documented high-temperature flame-retardant laminate. Do not force a choice between two products that fail separate mandatory requirements.
At room temperature, both G11 and FR4 can offer substantial mechanical strength. The distinction becomes more useful when the part carries load while hot.
For a busbar support or insulating bracket, evaluate:
- Bending and compressive loads.
- Fastener preload.
- Hole position and edge distance.
- Strength at operating temperature.
- Dimensional changes during thermal cycling.
Higher thermal capability is valuable only if the selected product maintains the properties the component needs.

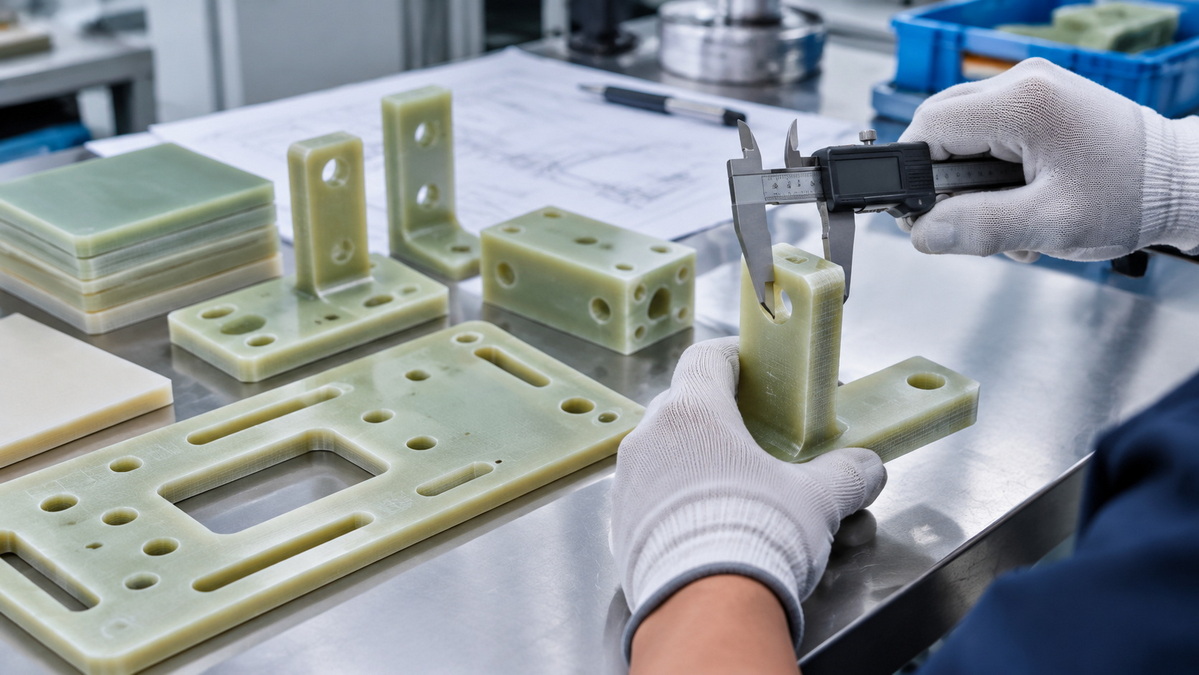

A machined insulation component is more than its parent sheet.
Slots, holes, thin sections, and exposed edges change the finished geometry. Inspection should therefore confirm that the part retains the required air and surface distances after machining and assembly.
Specify thickness tolerance, flatness, hole tolerance, and acceptable edge condition. Where relevant, include checks for cracks, delamination, contamination, and other defects.
For custom G11 and FR4 parts, drawing requirements and inspection criteria should accompany the material designation.
Consider an illustrative low-voltage design with a correctly established baseline clearance of 3.00 mm for operation up to 2,000 meters.
A Texas Instruments application report gives an altitude correction factor of 1.29 at 4,000 meters.
The important lesson is not simply the extra 0.87 mm. It is that changing laminate grade does not remove this air-gap requirement.
This example is not a general clearance recommendation. The baseline depends on the insulation category, voltage stresses, pollution conditions, and applicable standard. Manufacturing and assembly tolerances must also be considered.
Suppose G11 better satisfies the hot-load requirement. It may be the preferred support material, but the corrected clearance still needs to be maintained.
Alternatively, FR4 may satisfy the temperature requirement and provide the necessary flame-retardant characteristics. It can remain a valid candidate if the complete insulation design passes qualification.
Altitude changes the design assessment; it does not create an automatic material winner.

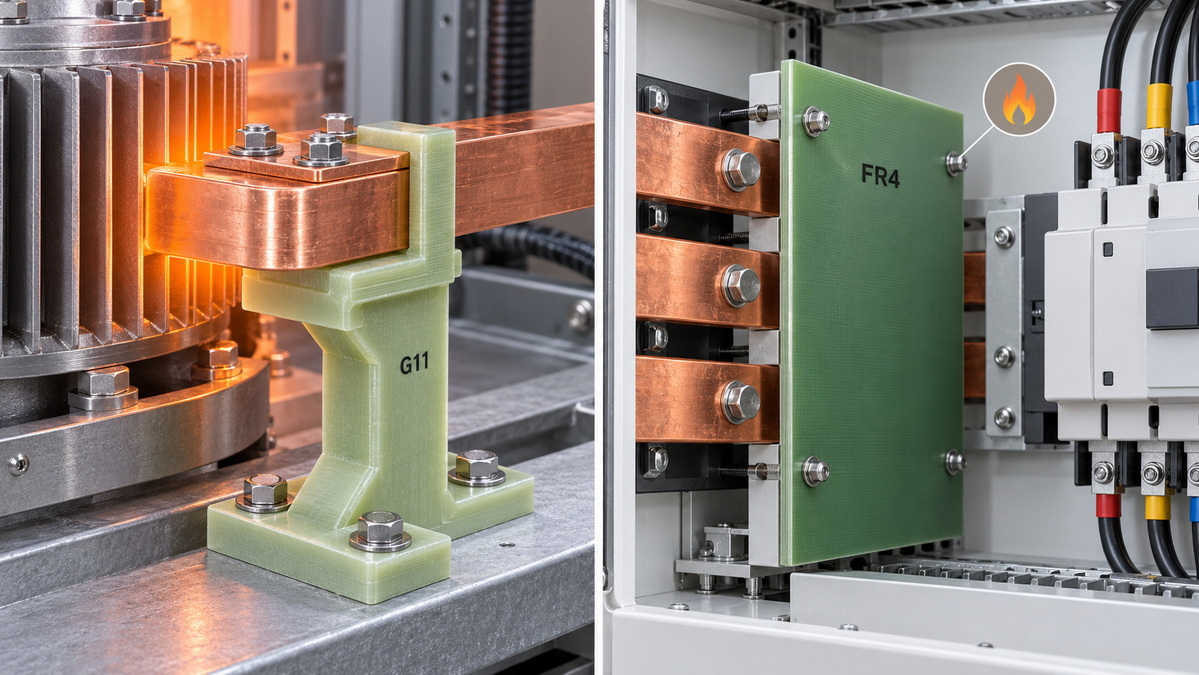

Imagine an insulating support located beside a heat-producing component. The controlling requirement is mechanical strength at the established maximum support temperature.
G11 would be a logical candidate for evaluation because elevated-temperature performance is its primary selection advantage.
Approval should still depend on hot-strength data, electrical requirements, flame requirements, and finished-assembly testing.
Imagine an enclosure barrier with a mandatory burning classification and temperatures within the documented capability of a selected FR4 product.
FR4 would be a logical starting point. Choosing G11 solely because the installation is at high altitude could introduce an unnecessary flame-performance gap.
These scenarios illustrate selection logic. They are not reported customer installations or proof of field performance.
1. Define the operating envelope. Record maximum altitude, voltage, component temperature, humidity, contamination, and mechanical loads.
2. Identify the applicable standard. Establish whether the component provides functional, basic, supplementary, or reinforced insulation.
3. Compare specific materials. Obtain matching thermal, electrical, mechanical, and flammability documentation for the proposed G11 and FR4 products.
4. Review finished geometry. Check clearance and creepage around terminals, fasteners, cutouts, slots, and grounded structures.
5. Qualify representative assemblies. Specify reduced-pressure, electrical withstand, thermal, and environmental tests as required by the governing standard and risk assessment.
6. Control production changes. Maintain material traceability and defined approval procedures for changes in formulation, thickness, machining, or assembly.
This workflow makes the decision auditable. It also reduces the risk of approving a material whose impressive datasheet does not address the actual failure mechanism.
A useful purchasing specification should include more than "G11 sheet" or "FR4 board."
Request the exact product designation, applicable material standard, thickness range, dimensional tolerances, and relevant test reports. Distinguish typical datasheet values from guaranteed acceptance criteria.
Also provide the supplier with:
- Installation altitude and operating environment.
- Maximum component temperature.
- Working voltage and insulation function.
- Required flame classification.
- Machining drawings and critical dimensions.
- Inspection and traceability requirements.
Guangdong Weishi New Materials Co., Ltd. manufactures and supplies epoxy fiberglass insulation materials, including FR4 and G10/G11 boards, with custom processing capabilities. Application requirements should be reviewed against the proposed product's documented performance rather than assumed from the grade name.
Send Guangdong Weishi New Materials Co., Ltd. your drawing, installation altitude, voltage, maximum component temperature, flame requirement, and quantity.
Request a product-specific G11 or FR4 proposal with the available technical documentation and machining tolerances. Base final approval on the selected material and finished assembly—not the grade designation alone.
Not automatically. G11 is often worth evaluating for elevated-temperature structural performance, while FR4 offers flame-retardant characteristics. Altitude-related clearance requirements apply independently of that choice.
Not necessarily. Increased thickness may affect the solid insulation path, but it does not automatically increase the shortest air distance between conductors. Review the complete geometry.
Potentially, yes. The selected product must satisfy its material requirements, and the assembled equipment must meet applicable altitude-adjusted insulation requirements. FR4 is neither automatically approved nor automatically excluded.
Standard G11 should not be assumed flame retardant. Where a burning classification is mandatory, require product-specific evidence or select a suitable documented alternative.
No. Tg describes a resin transition. Continuous operating capability requires separate evidence that accounts for the relevant properties, exposure duration, and application.
No. Review thermal, electrical, flame, dimensional, and machining requirements before substitution. A material change may require renewed component or assembly qualification.
