G11 epoxy glass laminate sheet is a high‑performance, glass‑fiber‑reinforced epoxy material designed for demanding electrical and mechanical applications. It is manufactured from continuous woven glass cloth impregnated with a high‑temperature epoxy resin and cured under heat and pressure into rigid sheets.

Compared with many standard laminates, G11 offers excellent mechanical strength, very good dielectric stability, and reliable performance at elevated temperatures. It is widely used for insulation parts in electrical equipment, thermal barriers, fixtures inside heated environments, and structural components that must retain strength when exposed to heat and electrical stress.

For manufacturers of insulating materials and composite solutions, G11 sits at the high end of the temperature and performance spectrum. Understanding how to process this material correctly is essential for achieving stable tolerances, clean edges, and long service life in real‑world conditions.

G11 vs FR4 vs G10: Why Processing Is Different

G11 belongs to the same family of glass‑epoxy laminates as FR4 and G10, but its resin system and performance level are different. This has a direct impact on cutting, drilling, routing, and finishing.

Key Property Comparison

The following table summarizes typical characteristics for standard grades of FR4, G10, and G11 based on commonly published data.

Property	FR4	G10	G11
Base system	Brominated epoxy	Non‑brominated epoxy	High‑temperature epoxy
Typical continuous temp (°C)	~130	~150	~180
Flexural strength (room temp)	High	Very high	Very high, stronger at high temp
Dielectric strength	High	High	High
Flammability rating (typical)	V‑0	Often HB	HB or V‑0 by formulation
Relative material cost	Low	Medium	High

From a processing point of view, several points stand out:

- G11 is more resistant to heat and maintains strength at higher temperatures than FR4 and G10.

- The high‑temperature resin system is tougher and more abrasive on cutting tools.

- Tool wear is faster, and poor parameter selection can lead to chipping, fiber pull‑out, and surface burn.

- Because G11 typically costs significantly more than FR4, process stability and scrap reduction are particularly important.

Material Preparation and Handling

Storage and Conditioning

Before any cutting or machining step, the way G11 sheets are handled and conditioned has a significant effect on dimensional stability.

- Store sheets in a dry, clean indoor space, away from moisture and direct sunlight.

- Keep storage temperature moderate to avoid unnecessary thermal cycling.

- For tight‑tolerance parts, allow sheets to stabilize at shop temperature for at least 24 hours before precise machining.

Initial Inspection

Upon receipt or before loading onto machines, it is good practice to check:

- Surface condition for scratches, resin pockets, or delamination near edges.

- Warpage or twist across the panel, especially for larger thicknesses or formats.

- Sheet identification, thickness, and grade markings according to the required standard.

Simple visual and dimensional checks at this stage prevent downstream issues and help maintain consistent part quality.

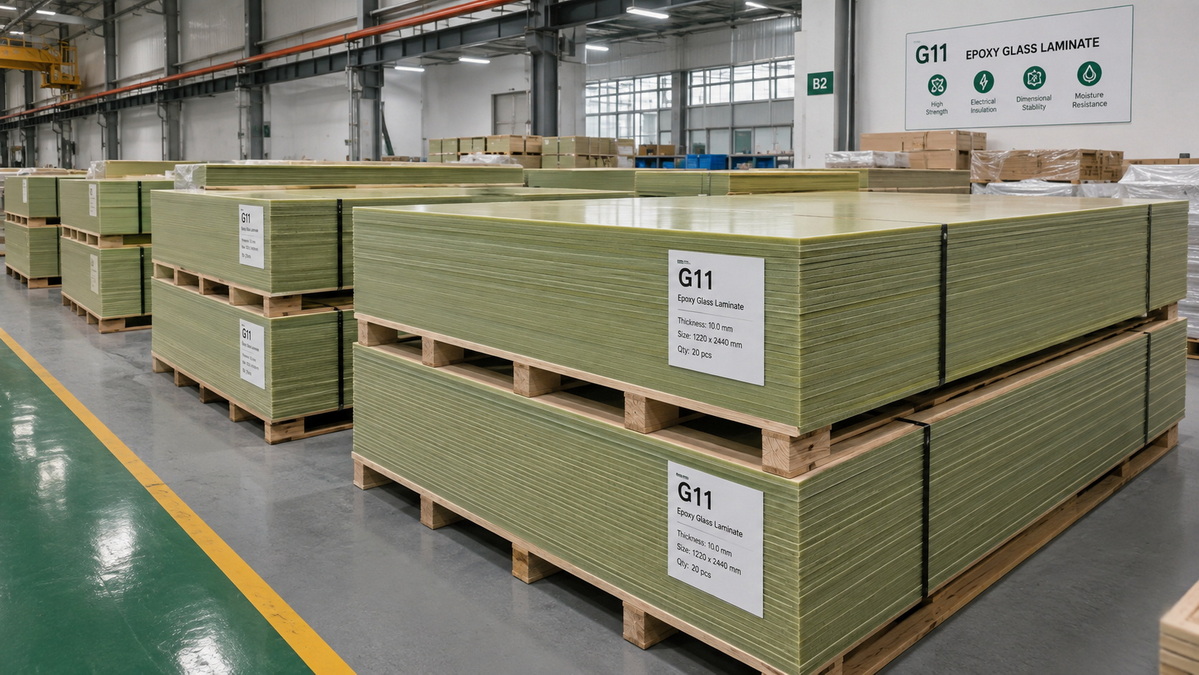

G11 Laminate Warehouse Storage

Cutting G11 Epoxy Glass Laminate Sheet

Cutting is usually the first transformation from full sheet to more manageable blanks. G11 can be cut using many of the same machine types as other laminates, but tool selection and dust control matter more.

Recommended Cutting Methods

Common cutting options include:

- Panel saws with carbide‑tipped blades for rough sizing.

- CNC routers for accurate external contours and nested layouts.

- Waterjet cutting for complex outlines without thermal impact on the material.

When using panel saws or routers, sharp tools and stable fixturing are critical. Fine‑tooth blades designed for composites help minimize edge chipping and fiber exposure.

Cutting Best Practices

To achieve consistent results:

- Use blades with a suitable tooth geometry for glass‑reinforced laminates.

- Maintain firm clamping or vacuum hold‑down across the sheet.

- Provide effective dust extraction at the cutting zone to manage glass and epoxy particles.

- Control feed speed so the material is cut cleanly rather than torn or overheated.

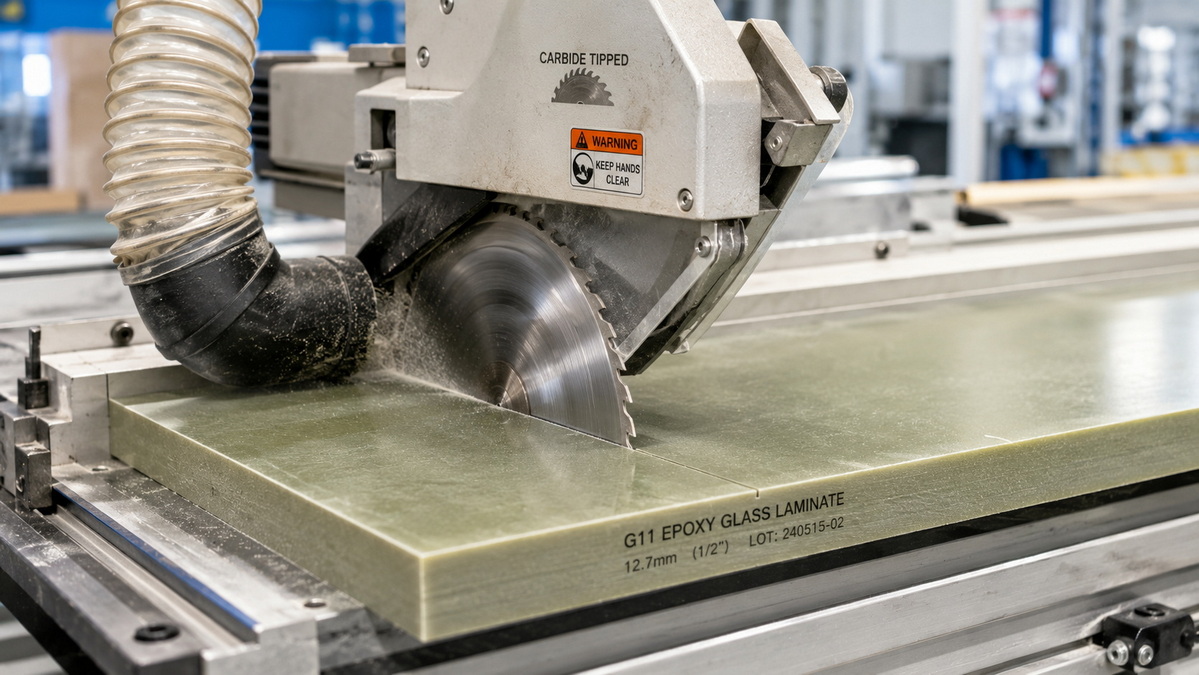

G11 Sheet Cutting Process

CNC Machining: Milling and Routing G11

Once blanks are prepared, many applications require more complex machining. Milling and routing allow the creation of slots, pockets, profiles, and precision contours.

Tooling Choices

Because G11 is abrasive, the tool material has a major influence on cost and quality.

- For prototypes and small runs, solid carbide tools are often used.

- For continuous production, diamond‑coated carbide or polycrystalline diamond (PCD) tools offer much longer life.

- Up‑cut or compression‑style spirals can improve chip evacuation and edge quality on thicker sections.

Tool geometry should be adapted to composites rather than metals, with edge forms designed to cut fibers cleanly and avoid excessive thrust force.

Machining Parameters and Techniques

G11 benefits from balanced cutting parameters that limit heat and vibration:

- Use medium to high spindle speeds appropriate for the tool diameter.

- Start with conservative feed rates and adjust upward based on edge appearance and tool behavior.

- Limit depth of cut per pass, especially in full‑slotting operations, to reduce tool load.

- Apply air blast or light mist cooling where appropriate, while avoiding heavy coolant application for electrical insulation parts.

Good fixturing is essential. Vacuum tables, custom fixtures, or a combination of mechanical clamps and backup boards help maintain part stability and reduce breakout on the exit side.

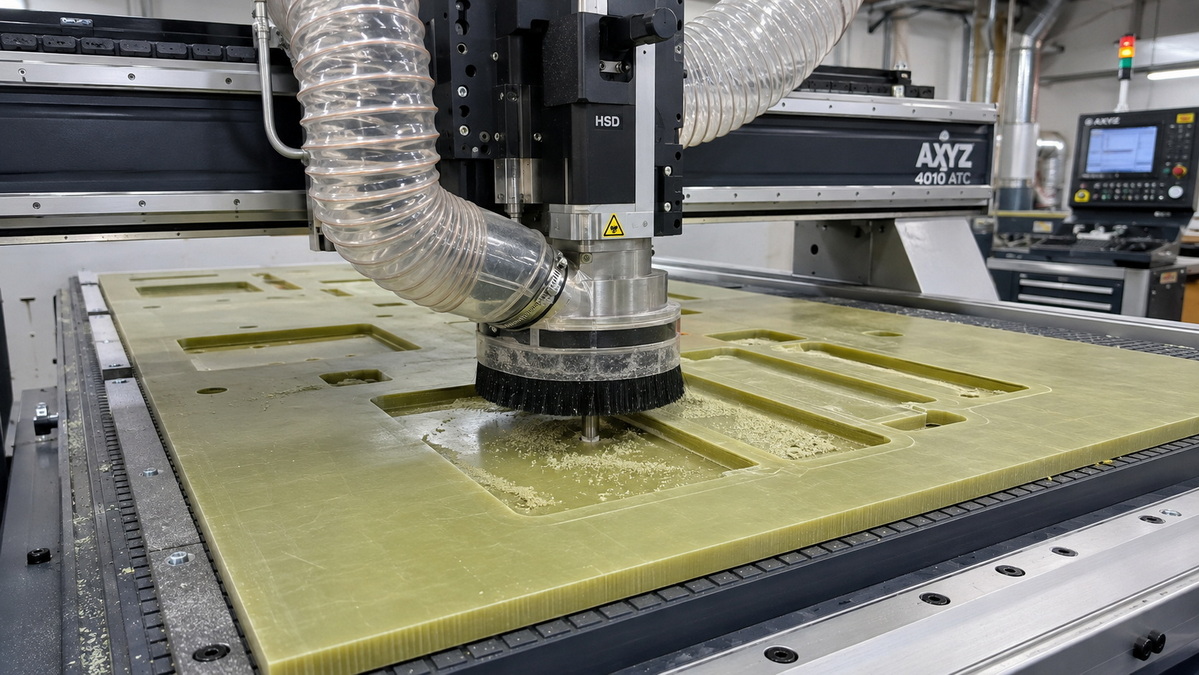

CNC Machining G11 Components

Drilling G11 Epoxy Glass Laminate Sheet

Holes for fasteners, terminals, and mounting features are common in G11 components. Drilling must balance accuracy, clean edges, and tool life.

Drill Selection and Setup

- Use carbide or PCD drills rather than standard high‑speed steel.

- Choose geometries that minimize thrust and delamination, such as split‑point or specially ground composite drills.

- Support the exit surface with a backing plate to prevent breakout and fiber tearing.

Drilling Practices for High‑Quality Holes

Several practical habits improve hole quality and consistency:

- Apply peck cycles in deeper holes to evacuate chips and limit heat build‑up.

- Maintain appropriate spindle speed and feed; excessive speed can burn the resin, while overly low speed can increase thrust and chipping.

- Inspect hole walls, diameters, and burrs periodically, especially in applications with strict electrical or mechanical requirements.

For critical parts, hole position, roundness, and surface finish can be checked against drawings and internal standards to confirm process capability.

Edge Finishing and Deburring

Freshly machined G11 edges may be sharp and slightly fibrous. Proper finishing improves safety, aesthetics, and functional performance.

Typical Finishing Methods

Several approaches are commonly used, depending on volume and design:

- Light sanding or deburring with fine abrasive belts or wheels.

- Hand scraping or chamfering with carbide tools for small batches or functional edges.

- Controlled edge rounding or polishing for visible components that require smoother appearance.

When parts are used in electrical insulation, consistent chamfers or radii can help manage creepage distances, reduce stress concentrations, and avoid sharp corners that may attract partial discharges in high‑voltage environments.

Advanced Processing Considerations

Beyond the basics of cutting, routing, and drilling, there are more detailed aspects that often arise in demanding industrial applications.

Controlling Thermal Damage and Micro‑Defects

Although G11 is designed for high‑temperature operation, local overheating during machining can still cause issues such as:

- Brownish discoloration of surfaces or edges.

- Micro‑cracks in the resin matrix around holes and sharp corners.

- Local reduction of dielectric strength in overstressed areas.

To minimize such damage:

- Keep tools sharp and replace them before visible deterioration.

- Use multi‑step machining strategies rather than trying to achieve full depth in a single aggressive pass.

- Monitor both surface appearance and internal quality in sample parts, using magnification or cross‑section analysis where necessary.

Flatness and Thickness Control for Large Components

In larger plates, fixtures, and support structures, flatness and thickness tolerances are critical.

Good practices include:

- Machining both sides of the sheet where possible, removing material symmetrically to balance internal stresses.

- Using controlled stock removal and, for tighter requirements, following with grinding or precision milling operations.

- Discussing realistic tolerance bands with material suppliers and machining partners, especially when working near the limits of sheet size and thickness.

Safety and Environmental Aspects

Processing G11 involves both mechanical and environmental considerations that should not be overlooked.

Dust and Personal Protection

Machining glass‑epoxy laminates generates fine dust composed of glass fibers and cured resin particles. To protect operators and maintain a clean work area:

- Use effective local exhaust systems at saws, routers, and drills.

- Provide suitable protective equipment such as safety glasses, gloves, and respirators rated for fine particulates.

- Implement housekeeping practices to prevent dust accumulation on machine surfaces and in surrounding areas.

Attention to dust management also supports consistent part quality by reducing contamination of machine beds, fixtures, and workpieces.

Testing and Documentation

In many applications, especially where parts operate at elevated temperatures or in high‑voltage systems, end users expect reliable test data and documentation. Typical items include:

- Mechanical property data at room temperature and elevated temperatures.

- Electrical insulation characteristics such as dielectric strength and insulation resistance.

- Flammability classification and compliance with relevant material standards.

Partnering with a manufacturer that can provide traceable material certificates and, when required, additional testing gives users more confidence in both raw sheets and machined components.

Application Examples for Processed G11 Components

Understanding where and how G11 parts are used helps guide design decisions and processing strategies.

High‑Temperature Motor and Generator Components

G11 is widely used in motor and generator insulation systems for components such as slot wedges, phase insulation parts, and structural supports. In these roles, parts must:

- Maintain mechanical stability at temperatures close to the upper operating limit of the machine.

- Offer consistent insulation performance under thermal cycling and electrical stress.

- Fit accurately within narrow spaces, often in repeated assembly operations.

Well‑controlled machining and finishing help ensure that tolerances are maintained and that edges and surfaces remain suitable for long‑term electrical operation.

Fixtures and Supports in Heated Environments

In ovens, curing lines, and other heated processes, G11 fixtures can hold workpieces or tools where conventional plastics or laminates would deform.

Key advantages include:

- Dimensional stability at sustained high temperatures.

- Resistance to many industrial environments where heat and electrical fields are present together.

- The ability to design complex shapes that combine insulation and mechanical support.

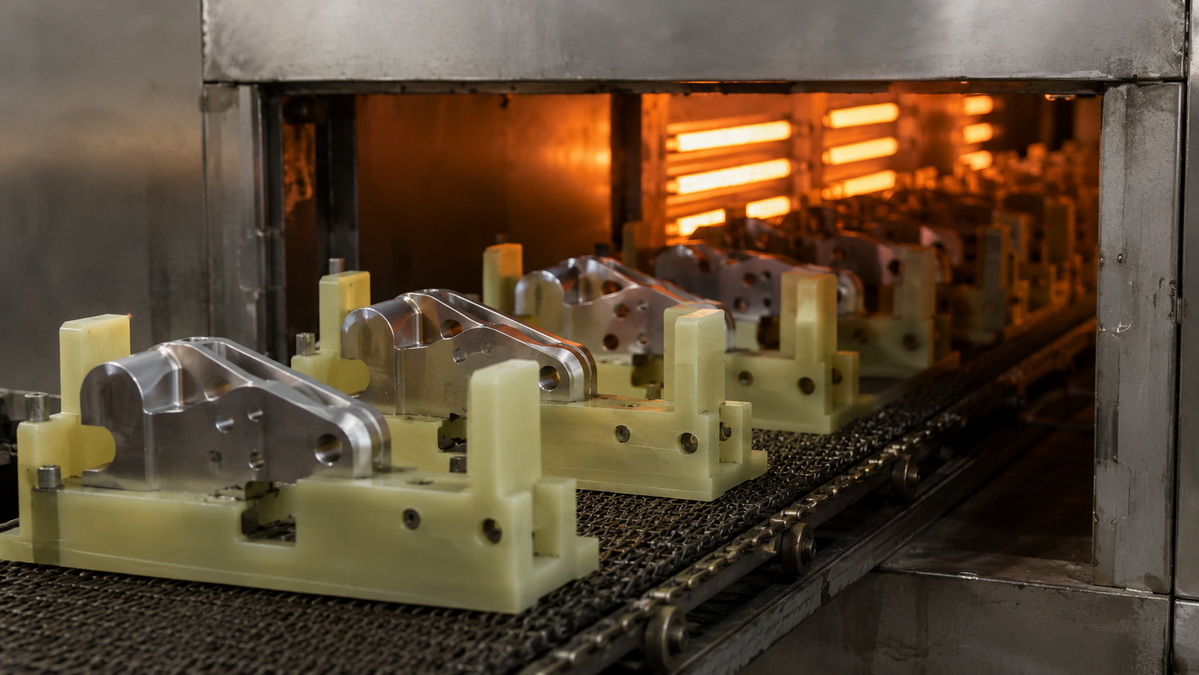

G11 Fixtures In Industrial Oven

How a Specialized Manufacturer Adds Value

A specialist in epoxy glass laminates and composite insulation materials can contribute much more than raw sheet supply. When working with G11, experienced partners can:

- Help select the appropriate grade and thickness for each application, considering temperature, mechanical load, and safety margins.

- Provide pre‑cut blanks or fully machined components to drawing, using optimized tools and processes.

- Support prototype development and gradual scale‑up, from first samples through to regular production.

- Offer technical support based on experience across different industries and operating conditions.

By combining material expertise with machining and quality capabilities, this type of partnership helps end users move from design concepts to reliable, repeatable G11 parts more efficiently.

Conclusion

Processing G11 epoxy glass laminate sheet effectively requires an understanding of its high‑temperature resin system, mechanical characteristics, and behavior under cutting and machining. Compared with FR4 and G10, G11 offers superior performance at elevated temperatures, but this comes with higher material cost and more demanding requirements for tooling, parameters, and dust control.

When the entire chain is well managed—starting from storage and conditioning, through cutting, drilling, and finishing, and ending with appropriate testing and documentation—G11 can deliver long‑term reliability in motors, generators, fixtures, and many other demanding applications. With the right methods, G11 transforms from a high‑performance sheet material into precise insulating components that perform consistently under heat, mechanical load, and electrical stress.

Frequently Asked Questions

1. Is G11 more difficult to machine than FR4?

Yes. G11 typically feels tougher and more abrasive on tools than standard FR4, because of its high‑temperature epoxy system. This leads to faster tool wear if unsuitable tooling is used, and it requires more attention to spindle speed, feed rate, and dust control.

2. Can the same drills used for metals be used on G11?

Standard drills for metals are not ideal. High‑speed steel tools wear quickly in G11. Carbide or PCD drills designed for composites give cleaner holes, longer life, and more stable performance, especially in continuous production.

3. Why does G11 cost more than FR4?

G11 generally uses a higher‑performance epoxy system and must meet more demanding property targets at elevated temperatures. These requirements, together with lower production volumes compared with FR4, contribute to a higher price level.

4. Is G11 suitable for printed circuit boards?

G11 is not commonly used as a standard printed circuit board base material. It is mainly chosen for structural and insulation components in electrical and mechanical systems that operate at higher temperatures than typical circuit boards.

5. How should G11 scrap and dust be handled?

G11 scrap and dust should be collected and disposed of according to local regulations for composite and industrial waste. Fine dust should be captured through extraction systems, and appropriate protective equipment should be used during cleanup to avoid inhalation and skin irritation.
