Choosing between phenolic board and G10 epoxy sheet for wear-resistant mechanical components involves more than comparing sheet prices or basic hardness values. The correct choice depends on load, friction, moisture, operating temperature, machining requirements, electrical insulation needs, and the expected service life of the finished part.

Phenolic board is often the practical solution for cost-sensitive mechanical wear parts that require efficient machining. G10 epoxy sheet is generally preferred when a component must provide higher mechanical strength, improved moisture resistance, dimensional stability, and dependable electrical insulation.

For industrial buyers, the most effective approach is to select the laminate according to the real operating environment rather than choosing a material based only on its general name or appearance.

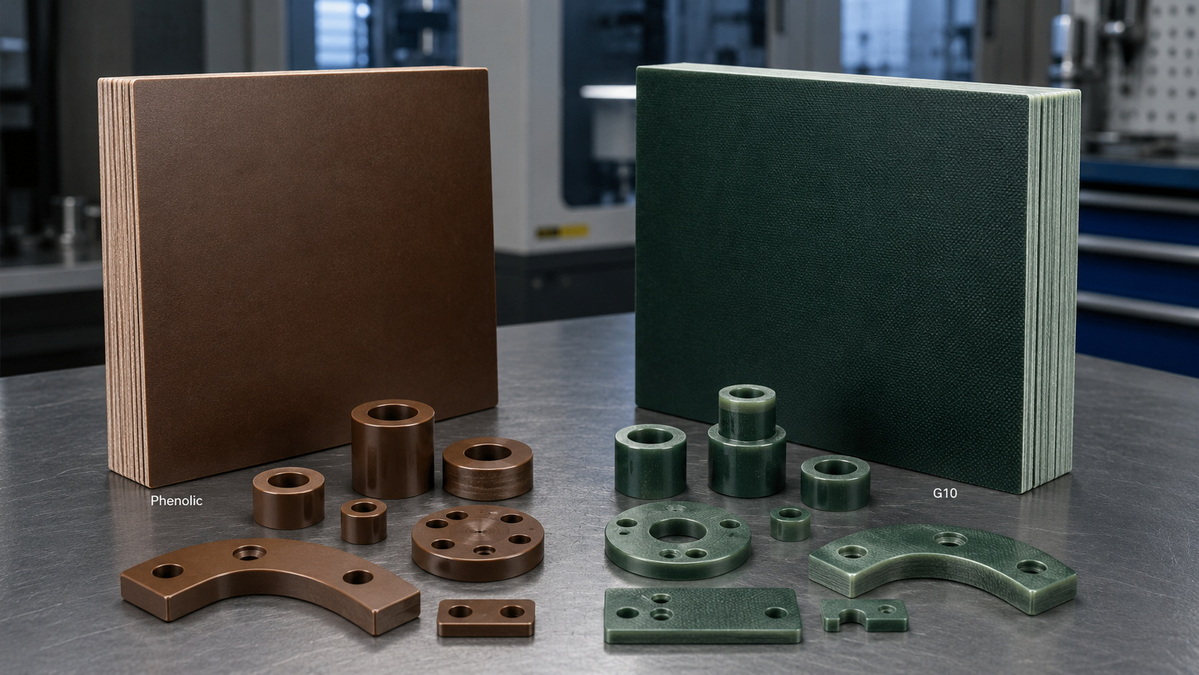

Phenolic Board And G10 Epoxy Sheet Comparison

What Are Phenolic Board and G10 Epoxy Sheet?

Phenolic board is a thermoset laminate manufactured by combining phenolic resin with reinforcing materials such as paper, cotton fabric, linen fabric, canvas, or glass fabric. The material is pressed and cured under controlled heat and pressure to create a rigid industrial sheet.

Different phenolic grades are designed for different working conditions. Paper phenolic is commonly used for economical electrical insulation and low-load applications. Cotton fabric phenolic and canvas phenolic are more suitable for mechanical parts because the fabric reinforcement improves toughness, compressive performance, and wear resistance.

G10 epoxy sheet is a high-pressure laminate made from woven fiberglass cloth and epoxy resin. It is widely used in electrical, mechanical, industrial, and machining applications where high strength and insulation performance are both required.

The main difference is in the material structure. Phenolic laminates are commonly selected for machining efficiency and cost control. G10 epoxy sheet is usually selected for stronger mechanical properties, better humidity resistance, and more stable electrical insulation performance.

Material	Typical Reinforcement	Resin System	Main Characteristics
Phenolic board	Paper, cotton cloth, linen, canvas, or fabric	Phenolic resin	Economical, easy to machine, mechanically capable
G10 epoxy sheet	Woven fiberglass cloth	Epoxy resin	High strength, rigid, moisture-resistant, electrically insulating
FR4 sheet	Woven fiberglass cloth	Flame-retardant epoxy resin	Similar to G10 with added flame-retardant performance

G10 and FR4 should not automatically be treated as identical materials. They share a similar fiberglass-and-epoxy construction, but FR4 is specifically formulated for flame-retardant requirements. When fire performance matters, the exact material grade and certification must be confirmed before production.

Phenolic Board vs G10 Epoxy Sheet: Key Differences

The comparison below reflects common industrial material characteristics. Actual performance can vary based on reinforcement type, resin formulation, thickness, curing process, test conditions, and supplier specifications.

Selection Factor	Phenolic Board	G10 Epoxy Sheet	Recommended Option
Mechanical strength	Moderate to high, depending on grade	High tensile and flexural strength	G10 epoxy sheet
Wear-part machinability	Excellent	Good, but fiberglass increases tool wear	Phenolic board
Moisture resistance	Moderate and grade-dependent	High	G10 epoxy sheet
Electrical insulation	Good to high	Excellent	G10 epoxy sheet
Dimensional stability	Good in dry environments	Better in humid conditions	G10 epoxy sheet
Initial material cost	Usually lower	Usually higher	Phenolic board
CNC tool wear	Lower	Higher due to fiberglass reinforcement	Phenolic board
Flame resistance	Depends on the selected grade	Standard G10 is not necessarily flame retardant	Specify FR4 if required
Heavy-load performance	Suitable for many applications	Better for demanding mechanical service	G10 epoxy sheet

Mechanical Strength and Load Capacity

G10 epoxy sheet is normally the stronger option when a component experiences concentrated loads, repeated stress, vibration, or structural deflection. Its woven fiberglass reinforcement helps distribute force through the material and supports high tensile and flexural performance.

This makes G10 epoxy sheet a strong candidate for structural insulators, high-load spacers, fixture plates, machine supports, terminal barriers, and precision mechanical components.

Phenolic board can also provide reliable mechanical performance, especially fabric-reinforced grades. Cotton phenolic and canvas phenolic are widely used for components that require compressive strength, impact resistance, and economical production.

The best choice depends on the real load condition.

- Use phenolic board for moderate-load wear parts, guides, bushings, jigs, and fixtures.

- Use G10 epoxy sheet for higher-load insulating parts, structural supports, and components exposed to vibration.

- Use a custom-machined grade when the part requires close tolerances or a specific reinforcement structure.

A component that is only lightly loaded may not benefit from the higher cost of G10. However, a part that combines mechanical load with electrical insulation requirements may justify G10 as the more reliable long-term material.

Wear Resistance and Friction Performance

Wear resistance is not determined by material hardness alone. A successful wear component must be matched to its counterface, contact pressure, sliding speed, lubrication condition, operating temperature, and expected maintenance cycle.

Phenolic board is widely used for mechanical wear parts because it is easy to machine and can provide a durable surface in moderate-friction applications. Fabric-reinforced phenolic grades are commonly selected for guide strips, bushings, gears, pulleys, friction plates, and other components exposed to repeated movement.

G10 epoxy sheet also has good wear resistance and higher structural strength. It is particularly useful when a wear part must remain rigid, dimensionally stable, electrically insulating, and resistant to moisture.

However, G10 contains glass fiber reinforcement. This gives the material strength, but it can also make machining more abrasive. For parts with many holes, slots, threads, curves, and detailed CNC profiles, phenolic board may offer a lower machining cost.

Practical Wear Selection Guide

Choose phenolic board when:

- The component operates in a relatively dry environment.

- The part requires extensive CNC machining.

- The application involves moderate pressure and moderate friction.

- Cost efficiency is a major purchasing factor.

- The component is designed as a replaceable wear part.

Choose G10 epoxy sheet when:

- The component must support higher mechanical loads.

- The application has humidity, water exposure, or moisture cycles.

- Electrical insulation is essential.

- The part must maintain close dimensional tolerances.

- Mechanical strength and environmental stability are more important than initial material cost.

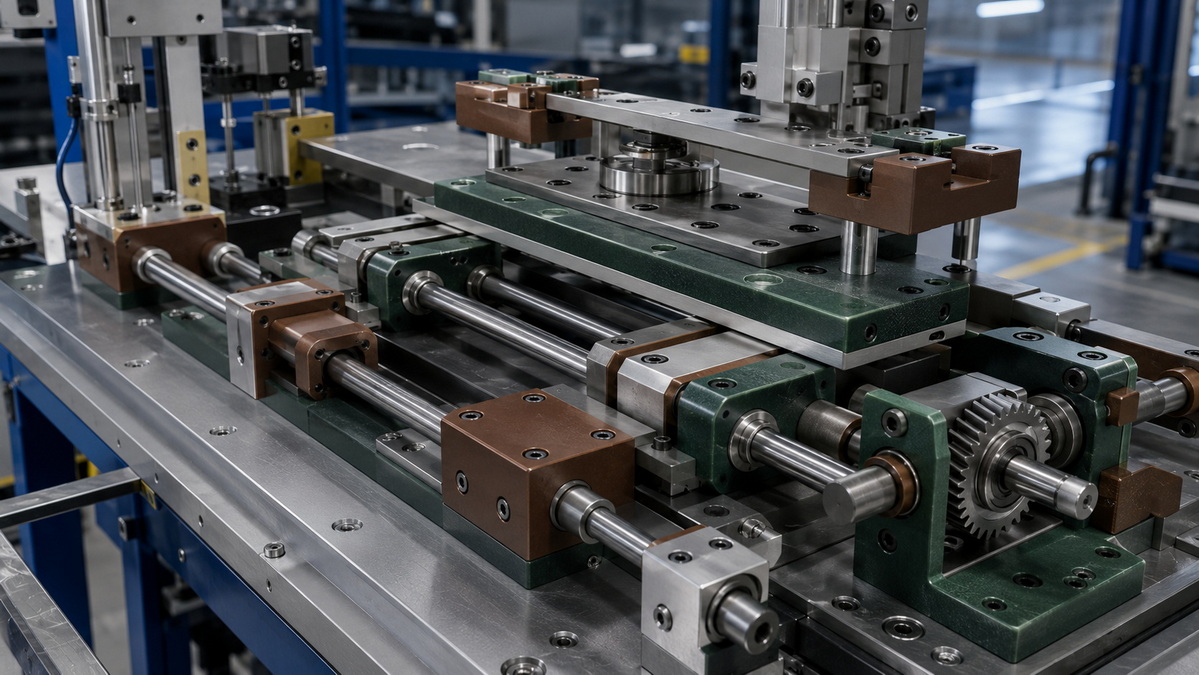

Wear Resistant Mechanical Components

Moisture Resistance and Dimensional Stability

Humidity is one of the most important factors in laminate selection. A material that performs well in a dry workshop may behave differently after long-term exposure to moisture, condensation, washdown conditions, or repeated humidity changes.

Phenolic board can perform very effectively in dry industrial environments. It is suitable for many machinery parts, fixture components, processing equipment parts, and general mechanical applications.

G10 epoxy sheet is typically the better solution when moisture resistance is important. Its epoxy resin and woven fiberglass construction help it maintain strength and dimensional stability in humid working conditions.

This is especially valuable for:

- Electrical insulation barriers

- Switchgear components

- Busbar supports

- Precision spacers

- Machine parts in coastal or humid areas

- Components used near water, oil, or process fluids

- Electrical fixtures requiring stable insulation performance

For example, phenolic board may be suitable for a dry-running guide block in a packaging machine. If the same machine operates in a humid production facility, a G10 epoxy sheet may provide better long-term stability and reduce the risk of swelling, dimensional variation, or early replacement.

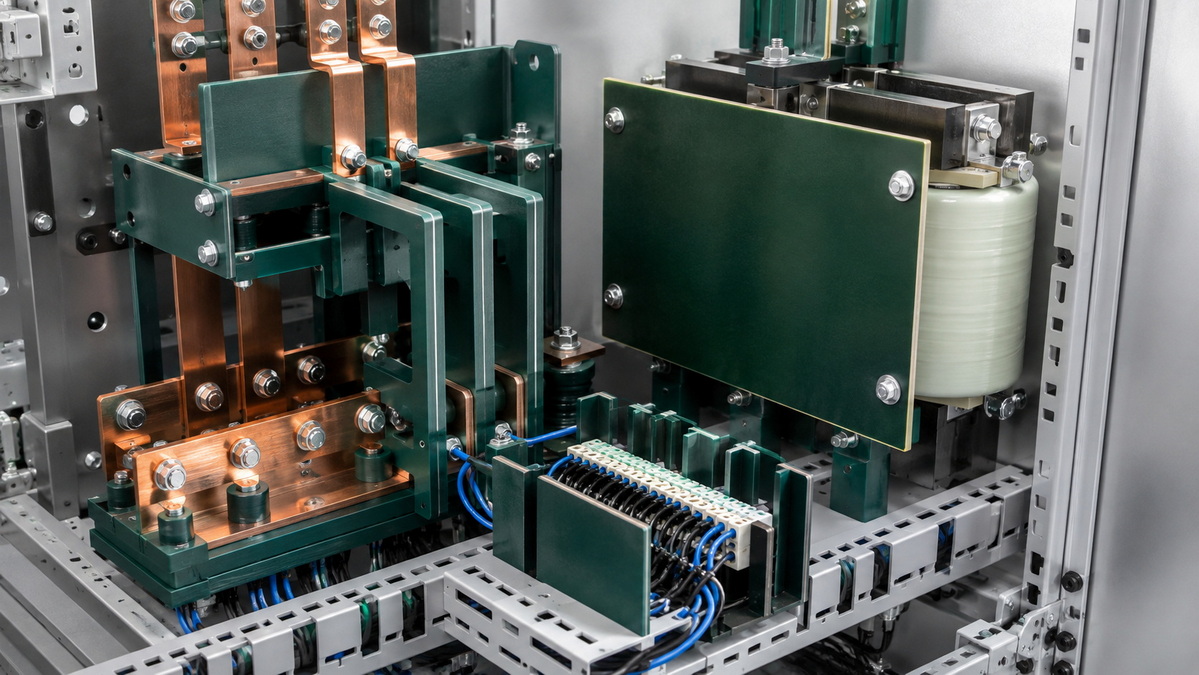

Electrical Insulation Performance

Both phenolic board and G10 epoxy sheet can be used as electrical insulation materials. However, G10 is more commonly selected for applications that require a strong combination of electrical insulation, mechanical durability, and moisture resistance.

G10 epoxy sheet is widely used in transformer components, electrical fixtures, terminal boards, switchgear supports, insulation barriers, busbar supports, and high-strength insulating parts.

Phenolic board remains a practical choice for lower-cost electrical insulation applications where operating voltage, moisture exposure, and mechanical stress are moderate. Paper phenolic, for example, is often used in terminal boards, insulation washers, and general electrical support parts.

The selection should be based on the full working condition rather than electrical performance alone.

Application Requirement	Better Material Choice
Basic dry electrical insulation	Phenolic board
High-strength electrical insulation	G10 epoxy sheet
Humid electrical environments	G10 epoxy sheet
Flame-retardant electrical assemblies	FR4 sheet
Economical terminal boards	Paper phenolic
Structural electrical supports	G10 epoxy sheet

Machining Phenolic Board and G10 Epoxy Sheet

Machining performance affects lead time, production cost, tool consumption, dust control, edge quality, and final part accuracy.

Phenolic board is generally easier to saw, drill, mill, tap, route, and CNC machine. It is less abrasive to cutting tools than fiberglass-reinforced epoxy laminate. This makes phenolic board a strong option for parts with detailed shapes, numerous holes, machined slots, and large production volumes.

G10 epoxy sheet can also be machined accurately, but its fiberglass reinforcement requires more careful processing. Cutting tools may wear faster, dust extraction becomes more important, and operators should use suitable tooling and machining parameters.

Machining Considerations

Machining Factor	Phenolic Board	G10 Epoxy Sheet
Sawing	Easy	Requires suitable blade selection
Drilling	Good	Good, but tool wear is higher
Milling	Efficient	Accurate but more abrasive
Threading	Suitable for selected applications	Suitable with proper design consideration
CNC routing	Excellent for complex shapes	Possible, but requires dust management
Tool life	Generally longer	Generally shorter due to glass fiber
Edge finish	Clean with correct tooling	Clean with proper speeds and tooling

For both materials, proper dust collection is essential. Machining dust should be controlled through suitable extraction equipment, protective measures, and safe operating procedures.

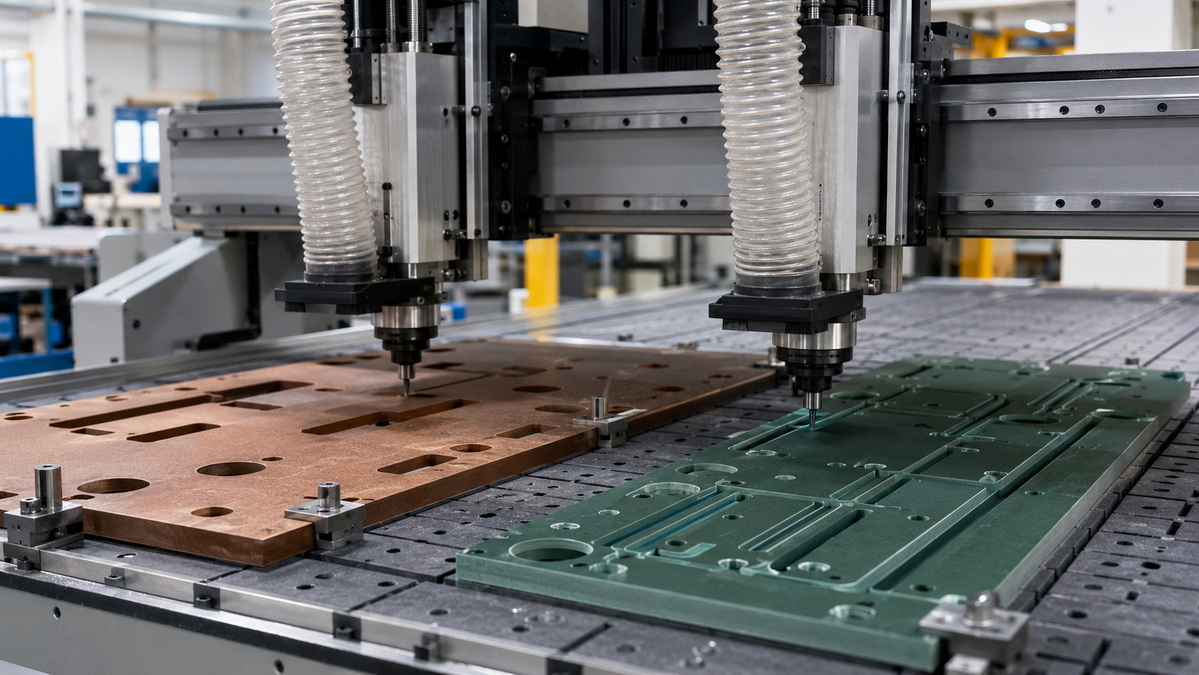

CNC Machining Phenolic And G10 Sheets

Best Applications for Phenolic Board

Phenolic board is often the right choice when a part requires reliable mechanical performance, efficient fabrication, and controlled material cost.

Typical phenolic board applications include:

- Mechanical wear pads

- Guide strips and slide blocks

- Low-to-medium-load bushings

- Pulleys and gears

- Textile machinery components

- Jigs and fixtures

- Drilling templates

- Machine support blocks

- General industrial spacers

- Low-cost terminal boards

- Friction-related mechanical components

- Custom CNC-machined nonmetallic parts

Fabric phenolic is especially useful for mechanical components because the reinforced structure improves durability compared with standard paper phenolic.

The main advantage of phenolic board is not simply its lower price. Its value comes from providing sufficient performance for suitable applications while reducing material cost and machining complexity.

Best Applications for G10 Epoxy Sheet

G10 epoxy sheet is a strong choice for demanding components that require mechanical strength, electrical insulation, and environmental stability in one material.

Typical G10 epoxy sheet applications include:

- High-strength electrical insulation parts

- Transformer components

- Switchgear insulation barriers

- Busbar supports

- Precision insulating spacers

- Industrial fixture plates

- High-load mechanical supports

- Electrical terminal supports

- Moisture-resistant machine components

- Vibration-resistant insulating parts

- Structural components used in industrial equipment

- Wear parts that require electrical isolation

G10 is especially valuable when one component must perform multiple functions. For example, a machine support block may need to carry mechanical load, resist moisture, maintain dimensional accuracy, and prevent electrical conduction. In this case, G10 epoxy sheet can provide a more complete solution than standard phenolic board.

Common Material Selection Mistakes

Selecting Only by Sheet Price

The initial sheet price does not show the full cost of a component. A lower-cost phenolic board may be more economical when machining is complex and the operating environment is controlled.

However, if a part fails early due to moisture, load, or insulation issues, the replacement cost may be much higher than the initial savings.

A better evaluation should include:

- Material purchase cost

- CNC machining time

- Tool consumption

- Scrap rate

- Maintenance interval

- Replacement frequency

- Equipment downtime risk

- Environmental requirements

- Safety and certification requirements

Treating All Phenolic Boards as the Same

Paper phenolic, cotton phenolic, linen phenolic, and canvas phenolic have different structures and performance characteristics.

For mechanical components, buyers should identify the appropriate reinforcement type rather than ordering a generic "phenolic board." The material specification should include thickness, tolerance, reinforcement structure, resin system, color, machining requirements, and applicable performance targets.

Assuming G10 and FR4 Are Identical

G10 and FR4 are both epoxy fiberglass laminates, but their flame behavior is different. When a project requires flame-retardant performance, the drawing and purchasing specification should clearly identify FR4 or the required flame classification.

Do not rely only on color or supplier naming. Request the technical data sheet and confirm the actual material grade before approving production.

How to Select the Right Material

A reliable selection process begins with the component's working condition.

Before choosing phenolic board or G10 epoxy sheet, review the following details:

1. Maximum compressive load and impact load

2. Continuous or intermittent operating cycle

3. Sliding, rolling, or static contact condition

4. Counterface material and surface finish

5. Operating temperature range

6. Humidity, water, oil, solvent, or chemical exposure

7. Electrical voltage and insulation requirements

8. Flame-retardancy requirements

9. Required thickness and dimensional tolerance

10. Annual production quantity and machining complexity

This process helps prevent a common engineering issue: choosing a material that performs well during short prototype testing but becomes unstable, worn, or unreliable during long-term field operation.

Final Material Recommendation

Phenolic board is an effective option for wear-resistant mechanical components where cost control, machining efficiency, and dry-service performance are the main priorities. It is particularly suitable for guide strips, bushings, gears, jigs, fixtures, and replaceable industrial wear parts.

G10 epoxy sheet is the stronger option when the component must withstand higher loads, moisture exposure, vibration, electrical requirements, or close dimensional tolerances. It is especially suitable for high-strength electrical insulation parts and industrial components that require long-term stability.

The correct material should be selected according to the actual operating environment, not only by sheet color, general material name, or initial purchase price.

Guangdong Weishi New Materials Co., Ltd. provides phenolic laminates, G10 epoxy sheets, FR4 sheets, G11 sheets, and customized insulation material solutions for industrial, electrical, mechanical, and machining applications. Technical drawings, operating conditions, thickness requirements, and machining needs can be evaluated to help match the material to the intended component.

FAQ

Is phenolic board more wear-resistant than G10 epoxy sheet?

Not in every application. Phenolic board, especially fabric-reinforced phenolic, is widely used for wear parts because it machines well and performs effectively in moderate-friction conditions. G10 epoxy sheet provides higher structural strength and stronger moisture resistance, making it more suitable for demanding environments.

Is G10 epoxy sheet stronger than phenolic board?

In general, G10 epoxy sheet provides higher tensile and flexural strength than common phenolic laminate grades because it uses woven fiberglass reinforcement and epoxy resin. Fabric phenolic can still provide good performance for moderate mechanical loads.

Can phenolic board be CNC machined?

Yes. Phenolic board is commonly machined by sawing, drilling, milling, routing, tapping, and CNC processing. It is generally less abrasive to tools than G10 epoxy sheet, which can make it more cost-effective for complex mechanical parts.

Is G10 epoxy sheet suitable for humid environments?

Yes. G10 epoxy sheet has strong moisture resistance and dimensional stability, making it suitable for humid industrial environments, electrical applications, and components exposed to changing moisture conditions.

Is G10 the same as FR4?

No. Both materials are fiberglass-reinforced epoxy laminates, but FR4 includes flame-retardant properties. Standard G10 should not automatically be used where flame-retardant performance is required.

Which material is better for electrical insulation?

G10 epoxy sheet is generally preferred for high-strength electrical insulation applications, particularly when moisture resistance and mechanical durability are important. Phenolic board can be used for economical insulation applications with lower mechanical and environmental demands.

Which material is better for custom-machined mechanical parts?

Phenolic board is often better for highly machined parts because it is easier on cutting tools and can reduce CNC processing costs. G10 epoxy sheet is better when the final component needs greater strength, moisture resistance, or electrical insulation performance.
