● What Are Transformer Spacer Blocks?
● Understanding Epoxy Board for Transformer Spacer Blocks
>> Why Glass Fiber Reinforcement Matters
● Understanding Phenolic Sheet for Transformer Spacer Blocks
>> Common Phenolic Sheet Types
>> Why Phenolic Sheet Remains Popular

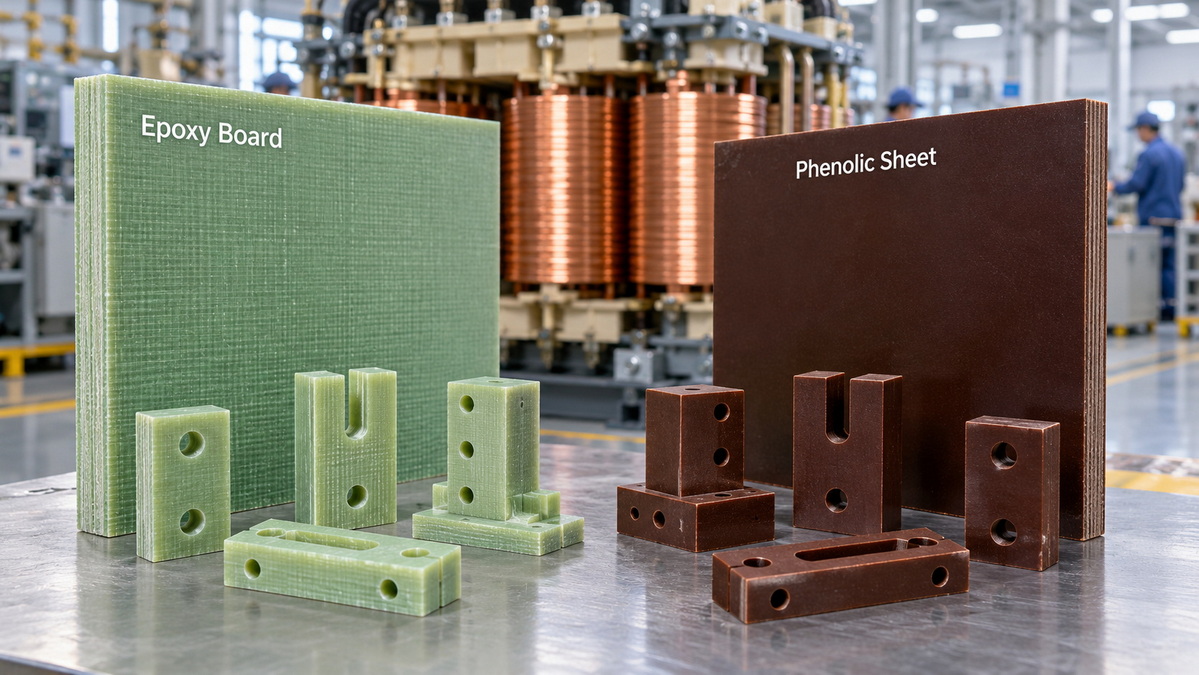

● Epoxy Board vs Phenolic Sheet: Core Performance Comparison
>> Electrical Insulation Performance
>> Mechanical Strength and Compression Resistance
>> Thermal Resistance and Long-Term Heat Exposure
>> Moisture Resistance and Humid Environments
● Machining Epoxy Board and Phenolic Sheet
>> Recommended Machining Practices for Epoxy Spacer Blocks
● Cost: Looking Beyond Sheet Price
● Material Selection by Transformer Application
● A Practical Selection Checklist
● Why Consistent Quality Is Critical
>> What is the best material for transformer spacer blocks?
>> Is epoxy board stronger than phenolic sheet?
>> Can phenolic sheet be used for transformer insulation?
>> What is the difference between FR4 and G10 sheet?
>> Why is G11 sheet used in high-temperature transformers?
>> Does epoxy board absorb moisture?
>> Can FR4 and G10 spacer blocks be CNC machined?
>> What information is needed to order custom transformer spacer blocks?
Choosing the right insulating material for transformer spacer blocks is a technical decision with a direct impact on electrical safety, thermal reliability, winding stability, manufacturing efficiency, and service life. When comparing epoxy board vs phenolic sheet for transformer spacer blocks, epoxy glass laminates such as FR4, G10, and G11 are often preferred for demanding applications because they combine strong dielectric properties, high mechanical strength, low moisture absorption, and reliable dimensional stability.
Phenolic sheet remains a useful and economical insulating material in selected applications. It can work well for moderate temperatures, lower mechanical loads, and cost-sensitive transformer designs. However, when spacer blocks must withstand elevated temperatures, high compressive force, vibration, humidity, or precision machining requirements, epoxy board usually offers a more dependable long-term solution.
Guangdong Weishi New Materials Co., Ltd. specializes in the research, production, supply, and custom machining of high-performance epoxy insulation boards and composite materials. Our product range includes FR4 sheet, G10 sheet, G11 sheet, epoxy glass fiber laminate, and customized insulating components for electrical, electronic, mechanical, mold, and industrial equipment applications.

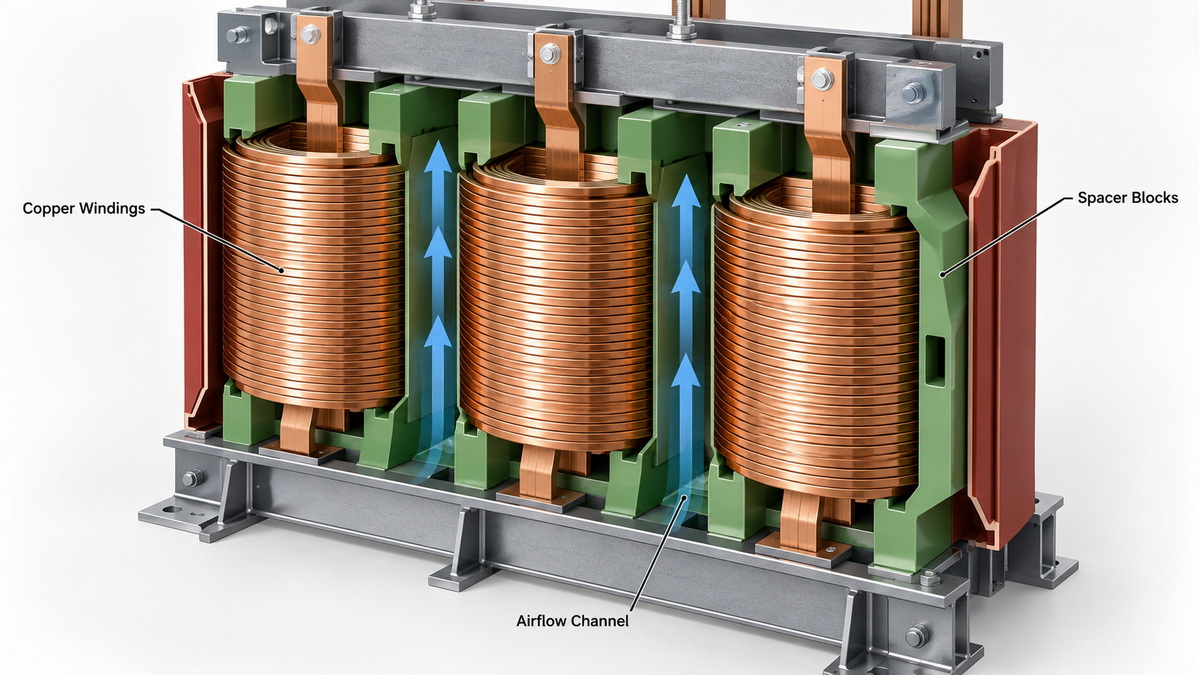

Transformer spacer blocks are rigid insulating components used between windings, conductors, coil structures, and supporting assemblies. Their primary purpose is to maintain the designed electrical clearance while supporting the mechanical structure of the transformer.
Although a spacer block may be a small part, it often performs several critical functions at the same time:
- Maintains safe electrical spacing between energized components
- Supports transformer windings during assembly and service
- Creates ventilation or oil-flow channels for thermal management
- Reduces winding movement caused by vibration and electromagnetic force
- Maintains coil alignment under compression and thermal expansion
- Prevents conductor contact and potential insulation failure
- Improves dimensional consistency in transformer manufacturing
In dry-type transformers, spacer blocks may help create air channels between windings for heat dissipation. In oil-immersed transformers, they may support winding structures while allowing transformer oil to circulate through the assembly.
The material must remain stable under electrical stress, mechanical loading, repeated heating and cooling, and environmental exposure. If the spacer block cracks, absorbs moisture, deforms, or loses insulation performance, the transformer's overall reliability can be affected.
Epoxy board is a thermoset composite insulation material made by combining resin with reinforcing material. In the transformer industry, the most common epoxy boards are glass-fiber-reinforced laminates, including FR4, G10, and G11.
These materials are typically manufactured by impregnating woven fiberglass cloth with epoxy resin and curing it under controlled heat and pressure. The fiberglass provides structural strength, while the cured epoxy resin contributes electrical insulation, moisture resistance, chemical resistance, and thermal stability.
| Material Grade | Main Structure | Main Characteristic | Typical Transformer Use |
|---|---|---|---|
| FR4 Sheet | Woven glass cloth with flame-retardant epoxy resin | Good electrical insulation and flame-retardant behavior | Insulating barriers, spacers, structural electrical parts |
| G10 Sheet | Woven glass cloth with epoxy resin | High mechanical strength and stable insulation | Spacer blocks, support rails, coil-end supports |
| G11 Sheet | Woven glass cloth with high-temperature epoxy resin | Better high-temperature performance | High-temperature electrical insulation systems |
| 3240 Epoxy Glass Sheet | Glass cloth with epoxy-based resin system | Balanced performance and cost | General insulation parts and industrial components |
FR4, G10, and G11 are not identical materials. They may look similar in appearance, especially when produced in green, yellow, or natural colors, but their resin systems, thermal performance, flame-retardant characteristics, and long-term behavior can differ.
For transformer spacer blocks, selecting the grade should depend on the actual application conditions. These include operating temperature, voltage level, insulation class, mechanical compression force, machining tolerance, transformer type, and environmental exposure.
The glass cloth inside epoxy board provides important structural benefits. It improves the board's resistance to bending, compression, cracking, and deformation.
This is particularly important for spacer blocks installed in areas where the transformer winding structure experiences:
- Clamping pressure during assembly
- Vibration during transportation
- Electromagnetic force during normal operation
- Short-circuit mechanical stress
- Thermal expansion and contraction
- Repeated loading over a long service life
A well-produced epoxy glass laminate can help maintain the designed shape and spacing of the transformer winding system.
Phenolic sheet is another thermoset laminate material commonly used in electrical insulation and mechanical components. It is usually made by combining phenolic resin with a reinforcement material such as paper, cotton fabric, linen fabric, or glass cloth.
Phenolic materials have been used in electrical equipment for many years because they are generally cost-effective, easy to machine, and suitable for a wide range of insulating applications.
| Phenolic Material Type | Reinforcement Material | Typical Features | Common Uses |
|---|---|---|---|
| Paper Phenolic Sheet | Paper | Economical and easy to process | Basic electrical insulation, low-load parts |
| Canvas Phenolic Sheet | Cotton canvas | Good toughness and impact resistance | Mechanical components, gears, bushings |
| Linen Phenolic Sheet | Fine woven cotton fabric | Better machining quality and surface finish | Precision mechanical insulating parts |
| Glass Phenolic Sheet | Glass fabric | Improved strength and electrical performance | Electrical insulation components |
Not all phenolic sheet materials provide the same level of performance. For example, paper phenolic sheet may be suitable for simple insulating panels but may not be the best choice for spacer blocks exposed to high humidity, high temperature, or continuous compression.
Glass phenolic sheet can provide stronger performance than paper-based or fabric-based phenolic materials. However, it may still have limitations compared with high-quality epoxy glass laminate in demanding transformer applications.
Phenolic sheet is still widely used because it offers several practical advantages:
- Lower material cost in many applications
- Good machinability with standard cutting tools
- Suitable performance for moderate electrical insulation requirements
- Availability in multiple reinforcement types
- Acceptable mechanical properties for many industrial parts
- Long history of use in electrical and mechanical manufacturing
The key is to match the phenolic grade to the actual operating environment. A low-cost material can be appropriate when the application is simple. It can become risky when the same material is used in a high-temperature, high-voltage, moisture-prone, or mechanically demanding transformer design.
The following comparison provides a practical overview of how epoxy board and phenolic sheet differ when used for transformer spacer blocks.
| Performance Factor | Epoxy Board: FR4, G10, G11 | Phenolic Sheet | Importance for Transformer Spacer Blocks |
|---|---|---|---|
| Electrical insulation | Excellent and stable | Good to moderate, depending on grade | Helps prevent electrical leakage and insulation failure |
| Mechanical strength | High | Moderate to high, depending on reinforcement | Supports windings and resists deformation |
| Compressive strength | Usually excellent | Acceptable for moderate loads | Prevents crushing during assembly and operation |
| Thermal resistance | Good to excellent | Moderate in many standard grades | Helps maintain performance at elevated temperature |
| Moisture resistance | Usually low water absorption | Can be more moisture-sensitive | Supports stable insulation performance in humid environments |
| Dimensional stability | Excellent | Good but more variable | Maintains designed clearance and coil positioning |
| Flame resistance | FR4 can offer flame-retardant performance | Depends on material grade | Important in safety-sensitive electrical equipment |
| CNC machining | Good but requires suitable tooling | Often easier to machine | Affects production efficiency and edge quality |
| Tool wear | Higher due to fiberglass reinforcement | Usually lower | Influences machining cost and tool replacement frequency |
| Initial material cost | Generally higher | Often lower | Must be compared with lifetime performance |
| Long-term reliability | Strong in demanding conditions | Suitable for moderate conditions | Affects maintenance and failure risk |
Both epoxy board and phenolic sheet are electrical insulating materials. However, epoxy glass laminate often provides more stable electrical performance in demanding operating conditions.
Transformer spacer blocks may be installed in locations where they experience electrical stress, local heating, pressure, humidity, vibration, and long-term aging. In these environments, epoxy board can offer a stronger balance of insulation and structural stability.
FR4, G10, and G11 sheets are widely used when reliable dielectric strength is required together with mechanical performance. The glass-fiber reinforcement helps maintain the spacer's shape, while the epoxy resin system supports electrical insulation.
Phenolic sheet can also provide suitable insulation in many applications. However, its electrical performance may be affected more significantly by the reinforcement type, resin quality, moisture exposure, and temperature conditions.
For example, paper phenolic sheet may be sufficient for basic low-load electrical parts, but it may not be the preferred material for a high-voltage transformer spacer block that must remain stable for years under thermal and mechanical stress.

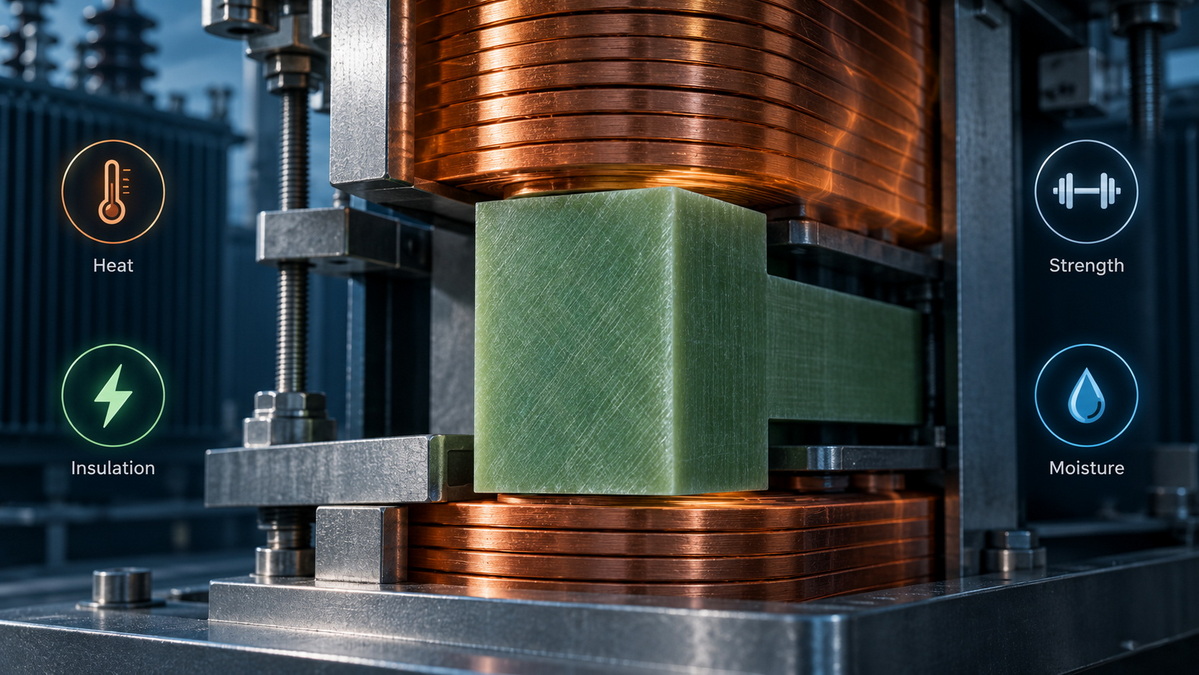

Transformer spacer blocks must resist compression and mechanical movement. During assembly, transformer windings can be clamped tightly. During operation, electromagnetic forces may create additional stress. During a short-circuit event, the mechanical load on winding structures can increase significantly.
Epoxy glass board is generally the stronger choice for structural insulation.
G10, FR4, and G11 are reinforced with woven fiberglass cloth. This reinforcement provides high strength in bending, compression, and tensile loading. It also helps the material resist cracking and deformation.
Epoxy board is commonly selected for:
- Coil-end spacer blocks
- Radial spacers
- Axial spacers
- Winding support rails
- Insulating support plates
- Precision-drilled coil supports
- Structural insulation brackets
- High-compression electrical components
Phenolic sheet can perform well in moderate mechanical applications. Canvas phenolic and linen phenolic often offer useful toughness and machinability. However, for transformer spacer blocks that must hold precise geometry under sustained compression, epoxy glass laminate usually provides greater confidence.
Heat is one of the most important factors in transformer insulation design. A spacer block may be exposed to continuous operating heat, hot spots, thermal cycling, and elevated temperatures near windings.
A material should not only survive short-term heat exposure. It should also retain its required electrical and mechanical properties after long-term thermal aging.
G11 epoxy board is often selected for higher-temperature applications because it is designed with a high-temperature epoxy resin system. G10 and FR4 are also widely used in general electrical insulation systems where temperature requirements are moderate.
Phenolic sheet may be suitable for lower-temperature or moderately heated applications. But standard phenolic grades may become less stable when exposed to prolonged elevated temperatures. In some conditions, they may show increased brittleness, reduced strength, discoloration, or dimensional change.
When comparing epoxy board vs phenolic sheet for transformer spacer blocks, thermal endurance should be evaluated as a long-term requirement rather than a short-term laboratory condition.
Moisture can reduce insulation resistance and affect the dimensional stability of electrical insulation components. Transformer spacer blocks used in humid climates, outdoor equipment, industrial facilities, coastal areas, or uncontrolled storage conditions require careful material selection.
Epoxy glass laminate generally offers lower moisture absorption than many conventional phenolic materials.
This property can help maintain stable electrical and mechanical performance after humidity exposure. It also supports consistent dimensional control, which is important when the transformer design includes narrow electrical clearances.
Phenolic sheet performance varies significantly depending on the reinforcement material:
- Paper phenolic sheet may be more sensitive to moisture.
- Cotton fabric phenolic sheet may have different absorption behavior than paper phenolic.
- Glass phenolic sheet may provide improved performance compared with paper-based phenolic.
- Material quality, resin content, curing process, and storage conditions can influence final results.
For humid operating environments, epoxy board is typically the more reliable option.
Spacer blocks are designed to maintain specific distances between transformer components. Even a small dimensional change can influence winding alignment, cooling-channel geometry, creepage distance, and electrical clearance.
Epoxy glass laminate has strong dimensional stability because of its glass-fiber reinforcement and cured epoxy structure. It is less likely to deform under normal mechanical and thermal stress when properly selected for the application.
Phenolic sheet can also provide acceptable dimensional stability, especially in well-controlled applications. However, it may be more sensitive to heat, moisture, and long-term compression depending on the material grade.
For precision transformer spacer blocks, the supplier should control:
- Sheet thickness tolerance
- Flatness
- Length and width accuracy
- Hole position
- Slot width
- Edge finish
- Burr removal
- Surface quality
- Batch consistency
Both epoxy board and phenolic sheet can be cut, drilled, milled, slotted, and shaped into transformer spacer blocks. However, the machining process is different.
Phenolic sheet is often easier to machine because it does not contain the same highly abrasive fiberglass reinforcement found in epoxy glass laminates. It can usually be processed with conventional cutting tools and may produce lower tool wear.
Epoxy board is also suitable for CNC machining, but fiberglass reinforcement requires more careful processing. The glass fibers can wear cutting tools faster, especially during high-volume drilling, slotting, and routing.
1. Use carbide tooling, diamond-coated tools, or other wear-resistant cutting tools
2. Select appropriate spindle speed and feed rate based on material thickness and part geometry
3. Use stable workholding to prevent vibration during cutting
4. Apply effective dust extraction to control fiberglass dust
5. Avoid excessive heat that may affect the cut edge
6. Deburr all machined edges and drilled holes
7. Inspect for delamination, exposed fibers, cracks, and surface damage
8. Verify final dimensions with calibrated measuring equipment
A precision-machined epoxy spacer block should have clean edges, accurate holes, smooth slots, and stable thickness. Poor machining can reduce assembly efficiency and may create localized stress points.
Phenolic sheet is often selected because its initial material price can be lower than epoxy board. For simple electrical insulation parts, this can offer a practical cost advantage.
However, transformer manufacturers should compare materials based on total lifecycle value, not only sheet cost.
A low-cost spacer material may create additional cost if it leads to:
- Higher rejection rates during machining
- Cracking during transformer assembly
- Inconsistent dimensions
- Moisture-related electrical issues
- Reduced mechanical support under compression
- Premature aging near hot spots
- Increased maintenance risk
- Warranty claims or field-service costs
Epoxy board may have a higher initial cost, especially for high-quality G10, FR4, and G11 grades. But it may reduce risk in demanding transformer applications by offering stronger long-term stability.
For high-value transformers, export projects, critical electrical equipment, or systems with strict quality requirements, the cost of one insulation-related failure can be much greater than the material savings achieved by selecting a lower-grade spacer board.
| Transformer Application | Recommended Material Direction | Main Selection Reason |
|---|---|---|
| Low-voltage control transformer | Qualified phenolic sheet or epoxy board | Moderate insulation and mechanical requirements |
| General dry-type transformer | G10 sheet or FR4 sheet | Good balance of strength, insulation, and dimensional stability |
| High-temperature dry-type transformer | G11 sheet | Better heat resistance for demanding operating conditions |
| High-voltage transformer support structure | FR4, G10, or G11 sheet | Strong electrical and mechanical reliability |
| Humid industrial environment | Epoxy glass laminate | Lower moisture absorption and stable dimensions |
| Precision-machined spacer blocks | G10 or FR4 sheet | Strong machining accuracy and structural support |
| High-compression coil support | G10 or G11 sheet | Better resistance to mechanical loading |
| Oil-immersed transformer | Validated epoxy or phenolic material | Oil compatibility and thermal conditions must be confirmed |
Before selecting epoxy board or phenolic sheet for transformer spacer blocks, review the following questions carefully.
- What is the transformer's operating voltage?
- What electrical clearance must the spacer maintain?
- What dielectric strength is required at the selected thickness?
- Is the material exposed to high electric-field stress?
- Is flame-retardant behavior required?
- What is the normal operating temperature?
- What is the expected hot-spot temperature?
- Will the component experience repeated thermal cycling?
- Does the insulation system require a higher-temperature material?
- Will the transformer operate continuously at elevated temperature?
- What compression force will the spacer block experience?
- Will the transformer be exposed to vibration or transport shock?
- Is the part used near coil-end regions with higher mechanical stress?
- Does the spacer need to maintain a precise gap over time?
- Are there short-circuit force considerations?
- Will the transformer operate in a humid environment?
- Will the spacer block contact transformer oil?
- Will it be exposed to varnish, resin, cleaning chemicals, or dust?
- Are storage conditions controlled before assembly?
- Is the final equipment intended for coastal, tropical, or outdoor use?
- What thickness tolerance is required?
- Does the part require CNC drilling, milling, routing, or slotting?
- Are there narrow holes, thin walls, or tight slots?
- Is batch-to-batch consistency important?
- Does the project require customized shapes or drawings?
Material grade alone is not enough. Two materials sold under similar product names may perform differently because of differences in raw materials, fiberglass content, resin formulation, curing quality, thickness control, moisture level, and production process.
For example, two products identified as "FR4 sheet" may differ in flame-retardant properties, glass cloth construction, mechanical performance, and machining quality. The same is true for phenolic sheet. A paper phenolic laminate, a canvas phenolic laminate, and a glass phenolic laminate should not be treated as interchangeable products.
For reliable transformer spacer block production, buyers should confirm:
- Exact material grade
- Material construction
- Thickness tolerance
- Density and resin content where relevant
- Electrical performance requirements
- Thermal performance requirements
- Moisture resistance requirements
- Machining drawings
- Sample approval process
- Quality inspection standards
- Batch traceability for critical applications
Guangdong Weishi New Materials Co., Ltd. provides epoxy glass laminate materials and customized insulating components based on customer drawings, thickness requirements, dimensional tolerances, and performance requirements. This supports transformer manufacturers that need stable, repeatable, and application-matched insulation solutions.
For demanding transformer spacer-block applications, epoxy board is usually the stronger material choice. FR4, G10, and G11 epoxy glass laminates provide an excellent balance of electrical insulation, mechanical strength, dimensional stability, moisture resistance, and thermal durability.
Phenolic sheet remains a practical choice for selected low-cost and moderate-demand applications. It can be easy to machine and suitable for basic insulating components. However, when transformer spacer blocks must withstand high mechanical compression, elevated temperature, moisture exposure, tight machining tolerances, or long-term electrical stress, epoxy board generally offers greater reliability.
The best material is not always the lowest-cost sheet. It is the material that performs consistently throughout the transformer's intended service life.
Guangdong Weishi New Materials Co., Ltd. supplies FR4 sheets, G10 sheets, G11 sheets, epoxy glass fiber laminates, and customized machined insulation components for transformer manufacturers and industrial equipment producers. Material selection should begin with your actual voltage level, thermal conditions, spacer dimensions, processing method, mechanical load, and operating environment.
For most demanding transformer applications, epoxy glass laminate such as G10, FR4, or G11 is a strong choice. These materials offer reliable insulation, mechanical strength, dimensional stability, and moisture resistance. The final grade should be selected based on operating temperature and transformer design requirements.
In many structural insulation applications, epoxy glass board is stronger than standard phenolic sheet. The woven fiberglass reinforcement in FR4, G10, and G11 helps improve compressive strength, flexural strength, and resistance to deformation.
Yes. Phenolic sheet can be used for transformer insulation parts when electrical, mechanical, thermal, and environmental requirements are moderate. The specific phenolic type should be selected carefully, especially when moisture, heat, or sustained compression is involved.
FR4 and G10 are both glass-fiber-reinforced epoxy laminates. FR4 generally uses a flame-retardant epoxy resin system, while G10 commonly uses a standard epoxy resin system. Both can offer high mechanical strength and good electrical insulation, but the correct choice depends on flame-retardant requirements, temperature conditions, and application specifications.
G11 sheet is designed with a high-temperature epoxy resin system. It is often selected when transformer spacer blocks or insulating components must retain electrical and mechanical performance at higher operating temperatures than standard epoxy laminate grades.
Epoxy glass laminate generally has low moisture absorption compared with many paper-based or fabric-based phenolic materials. This can help protect electrical insulation performance and dimensional stability in humid working environments.
Yes. FR4 and G10 sheets can be CNC cut, drilled, routed, slotted, and milled into custom transformer spacer blocks. Because the materials contain fiberglass reinforcement, manufacturers should use wear-resistant cutting tools, dust extraction, and dimensional inspection.
A supplier will usually need the material grade, thickness, drawings, dimensions, hole and slot requirements, tolerance requirements, operating temperature, quantity, and any special requirements related to transformer oil, flame resistance, electrical insulation, or surface finish.
1. International Electrotechnical Commission. "[New Commented Version of Standard for Determining RTI for Insulating Materials]." Information on IEC 60216-5:2022 and methods used to evaluate the thermal endurance of electrical insulating materials.
2. IEC / iTeh Standards. "[EN IEC 60216-5:2022: Electrical Insulating Materials—Thermal Endurance Properties—Part 5]." Procedures for deriving the Relative Temperature Index of electrical insulating materials.
3. Ready Plastics. "[Transformer Insulation Materials Guide]." Overview of materials used in transformer insulation applications, including G10 and G11 laminates.
4. Ready Plastics. "[NEMA G10 vs FR4, G11, G7, G9 Laminates]." Comparison of common glass-reinforced thermoset laminate grades.
5. Current Inc. "[G10/FR4 Industrial Laminates]." General information about the electrical, mechanical, dimensional, and moisture-resistance characteristics of G10 and FR4 laminates.
6. Interstate Plastics. "[G-10/FR4 Glass Epoxy Sheet]." Product overview for G10 and FR4 glass epoxy laminate sheets.
7. SIDA. "[Epoxy Glass Laminate vs Phenolic Sheet: Which to Choose?]." Comparison of epoxy glass laminate and phenolic sheet for electrical and industrial applications.
