Choosing the right insulation material for a high-voltage disconnect switch is not simply a matter of selecting the material with the highest heat rating or dielectric strength. Epoxy plate and mica board are both important electrical insulation materials, but they perform very differently in structural, thermal, electrical, and machining conditions.

For high-voltage disconnect switches, epoxy fiberglass laminates such as FR4, G10, and G11 plates are often preferred for components that require strong mechanical support, accurate machining, and reliable insulation. Mica board is usually more suitable for high-temperature zones, arc-resistant barriers, and thermal-protection applications.

The right material depends on the real operating environment. Temperature, electrical stress, mechanical load, humidity, contamination, assembly methods, and machining requirements should all be evaluated before finalizing the insulation design.

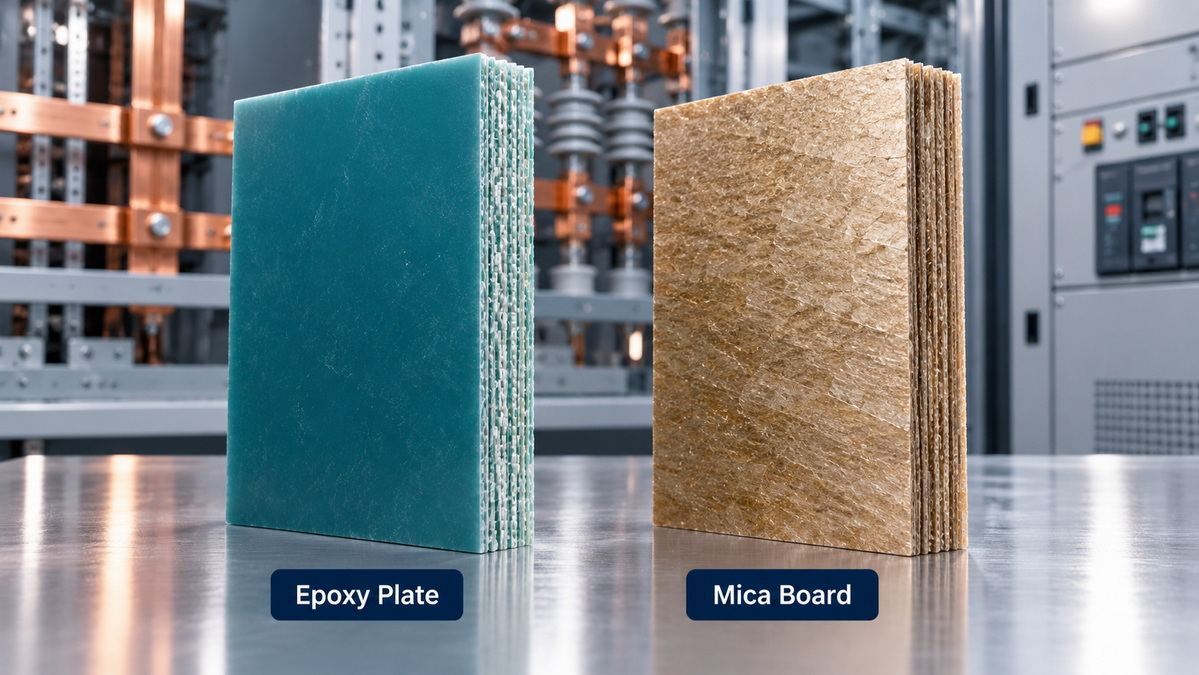

Epoxy Plate And Mica Board Comparison

Why Insulation Materials Matter in High-Voltage Disconnect Switches

A high-voltage disconnect switch, also known as a disconnector or isolator switch, creates a visible isolation gap in an electrical circuit. It is commonly installed in substations, industrial power systems, distribution equipment, switchgear assemblies, and maintenance isolation systems.

Although the disconnect switch does not usually interrupt heavy load current like a circuit breaker, it still operates in a high-voltage environment. The insulation system must protect against electrical breakdown, surface tracking, thermal stress, mechanical vibration, and environmental contamination.

Insulating materials inside a disconnect switch may be used for:

- Phase-to-phase separation

- Live-part support

- Insulating mounting bases

- Barrier panels

- Arc-resistant shields

- Mechanical support brackets

- Operating linkage insulation

- Spacer blocks and washers

- Custom-machined insulation components

- Heat isolation panels near conductors

A poor material choice can create long-term risks. These may include cracking around bolt holes, deformation under load, loss of insulation resistance, water absorption, surface discharge, delamination, or reduced mechanical strength after thermal cycling.

For this reason, material selection should be based on the complete function of the component rather than on one single property.

High Voltage Disconnect Switch Insulation Structure

What Is an Epoxy Plate?

An epoxy plate is a rigid laminated composite material. It is usually manufactured by combining reinforcing layers, such as woven fiberglass cloth, with epoxy resin under controlled pressure and heat.

The result is a high-strength insulation board with good electrical properties, mechanical stability, and machining performance.

Common epoxy insulation board grades include:

- G10 epoxy glass laminate

- FR4 epoxy fiberglass sheet

- G11 high-temperature epoxy glass laminate

These materials are widely used in electrical equipment, transformer components, switchgear insulation, PCB-related fixtures, motor parts, mold manufacturing, mechanical processing, and industrial machinery.

G10 Epoxy Plate

G10 is a glass-cloth epoxy laminate known for strong electrical insulation and mechanical strength. It is frequently selected for insulating structural parts, support plates, terminal boards, switchgear spacers, and CNC-machined components.

G10 performs well in normal industrial operating temperatures. It is especially useful when a component needs to withstand compression, bending, drilling, fastening, or repeated mechanical handling.

FR4 Epoxy Plate

FR4 is a flame-retardant epoxy fiberglass laminate. It is one of the most recognized insulation materials in electrical and electronic manufacturing.

FR4 offers a balanced combination of:

- Electrical insulation

- Flame resistance

- Mechanical strength

- Dimensional stability

- CNC machining capability

- Cost-effectiveness for many industrial applications

For general switchgear components, FR4 can be a practical option when the operating temperature and load conditions are within the material's capability.

G11 Epoxy Plate

G11 is a higher-temperature epoxy glass laminate. It is designed for applications where standard G10 or FR4 may not provide enough thermal stability.

G11 is often selected for high-temperature structural insulation because it combines elevated thermal performance with the mechanical strength of woven fiberglass reinforcement.

It is especially suitable for:

- High-temperature switchgear insulation

- Electrical support structures

- Busbar insulation components

- Mechanically loaded insulating brackets

- Custom-machined structural parts

- Industrial electrical equipment with elevated operating temperatures

What Is Mica Board?

Mica board is a rigid electrical insulation material made from mica paper, mica flakes, or mica layers bonded together with a resin system.

Mica is a naturally occurring mineral with excellent heat resistance and electrical insulation properties. When processed into rigid boards, it can serve as an effective thermal barrier and electrical insulation material in high-temperature applications.

Mica board is often used in:

- Industrial heating equipment

- Electrical furnace systems

- Arc-resistant insulation panels

- High-temperature electrical barriers

- Heating-element support components

- Thermal shields

- Fire-resistant cable systems

- Motor and generator insulation

- Electrical equipment exposed to localized heat

The main advantage of mica board is its ability to maintain insulating performance at temperatures that are much higher than those typically handled by standard epoxy resin systems.

However, mica board is not always the best choice for structural components. It may be more brittle than epoxy fiberglass laminate and may require greater care during drilling, bolting, and machining.

Epoxy Plate vs Mica Board: Core Comparison

Comparison Factor	Epoxy Plate: FR4, G10, G11	Mica Board
Material structure	Woven fiberglass reinforcement with cured epoxy resin	Compressed mica layers bonded with resin
Main advantage	Structural strength and precision machining	High-temperature resistance and thermal protection
Electrical insulation	Excellent for switchgear and industrial electrical components	Excellent, especially at elevated temperature
Mechanical strength	High flexural and compressive strength	Moderate to good, but often more brittle
Heat resistance	Moderate to high depending on grade	Very high, especially for high-temperature grades
Arc resistance	Good in properly designed electrical assemblies	Excellent for arc and heat barrier applications
CNC machinability	Good for drilling, routing, milling, and slotting	Possible, but requires more careful processing
Bolt and fastener support	Strong performance for structural assemblies	More limited in high-torque or heavily loaded areas
Dimensional precision	Excellent for tight-tolerance components	Suitable for panels and barriers but less ideal for complex structural parts
Common switch application	Insulating brackets, spacers, bases, linkage parts, machined support plates	Arc barriers, thermal shields, heat isolation panels
Preferred environment	Structural electrical insulation with mechanical loads	Extreme heat, arc exposure, and thermal protection

The most important difference is simple: epoxy plate is generally stronger and easier to machine, while mica board is generally more resistant to extreme heat.

Electrical Insulation Performance in Disconnect Switches

Both epoxy plate and mica board can provide strong electrical insulation. However, selecting insulation for high-voltage disconnect switches requires more than comparing dielectric-strength figures.

Electrical performance depends on many design factors:

- Material thickness

- Creepage distance

- Clearance distance

- Surface condition

- Humidity exposure

- Dust and pollution level

- Sharp metal edges

- Electric-field concentration

- Fastener location

- Temperature rise

- Thermal cycling

- Assembly tolerances

- Edge finishing after machining

A board with high dielectric strength can still fail if the switch design creates excessive electric-field stress at a corner, bolt hole, or metal contact edge.

For this reason, the insulating material should be selected together with the part geometry and system design.

Epoxy Plate for Electrical Support Components

Epoxy fiberglass plate is commonly used for structural insulation because it maintains good dielectric performance while also supporting mechanical loads.

It is especially useful for:

- Insulating support brackets

- Busbar support plates

- Terminal bases

- Structural spacers

- Electrical mounting plates

- Operating mechanism insulation

- Custom CNC-machined switchgear parts

When properly designed, FR4, G10, and G11 plates can provide reliable insulation in electrical assemblies while maintaining stable dimensions and strong support performance.

Mica Board for High-Temperature Insulation Zones

Mica board is especially valuable when electrical insulation must be maintained near hot components or in locations exposed to thermal stress.

It is often selected for:

- Arc-facing insulation barriers

- Heat shields behind copper conductors

- Thermal separation panels

- High-temperature compartment barriers

- Heating-element insulation

- Electrical fire-protection components

Mica board can provide excellent insulation at elevated temperatures, but it may not be the ideal choice for a part that must carry high mechanical loads or include many complex machined features.

Mechanical Strength and Structural Support

Mechanical performance is one of the most important reasons why epoxy plate is often preferred for disconnect switch assemblies.

Many insulation components are not passive barriers. They support moving parts, electrical conductors, fasteners, brackets, and operating mechanisms.

These components may experience:

- Bending force

- Compression force

- Vibration

- Opening and closing movement

- Bolt tightening pressure

- Transport shock

- Installation stress

- Thermal expansion and contraction

- Long-term equipment vibration

Why Epoxy Plate Performs Better in Structural Roles

Epoxy fiberglass plate contains woven glass fabric reinforcement. This gives the material high strength, good stiffness, and strong resistance to deformation.

For high-voltage disconnect switches, epoxy plate is often a better choice for components such as:

- Insulating brackets

- Switch operating arms

- Support blocks

- Machined mounting plates

- Busbar supports

- Bolt-through insulating parts

- Precision spacers

- Terminal supports

- Electrical fixture plates

The fiberglass reinforcement helps the material resist cracking around drilled holes and bolted connections. It also allows manufacturers to produce parts with more complex shapes and tighter tolerances.

Mechanical Limitations of Mica Board

Mica board can be rigid and stable, but it is generally less suitable for highly loaded structural parts.

Because it is made from layered mica material and resin binder, it can be more sensitive to concentrated force, edge impact, aggressive drilling, or excessive bolt torque.

Mica board should be used carefully in applications involving:

- Thin unsupported sections

- High clamp pressure

- Repeated bending

- Tight bolt fastening

- Heavy conductor loads

- Complex CNC machining

- Small edge distances around drilled holes

For these conditions, G10, FR4, or G11 epoxy plate will often provide more dependable performance.

Epoxy Plate Structural Insulation Application

Temperature Resistance: Where Mica Board Has an Advantage

Temperature resistance is the most important area where mica board can outperform traditional epoxy insulation boards.

Mica Board for Extreme Heat Exposure

Mica board is designed for high-temperature electrical insulation. Depending on the mica type, resin binder, board structure, and application condition, mica-based materials can tolerate temperatures far above the normal service range of standard epoxy laminates.

This makes mica board a strong option for:

- Arc barriers

- Thermal shielding

- High-temperature electrical chambers

- Heating equipment

- Electrical furnace systems

- Emergency heat-exposure areas

- Fire-resistant insulation systems

- Thermal separation between hot conductors and equipment surfaces

Mica board is particularly valuable when the insulation material must protect nearby components from heat transfer or localized arc energy.

G11 for Elevated-Temperature Structural Insulation

Not every high-temperature application requires mica board.

When a disconnect switch component must withstand elevated temperature while also providing strong structural support, G11 epoxy plate can be a better-balanced solution.

G11 is suitable for situations where the material must:

- Support mechanical load

- Maintain dimensional stability

- Resist moderate to high operating temperatures

- Be drilled or CNC machined

- Hold bolts and fasteners

- Provide reliable electrical insulation

- Function as part of a structural assembly

For many high-temperature switchgear components, G11 offers a practical middle ground between standard epoxy laminate and mica board.

Mica Board High Temperature Protection

Machining and Processing Differences

Material processing has a direct impact on manufacturing efficiency, scrap rate, assembly accuracy, and final product reliability.

Epoxy Plate Machining Advantages

Epoxy fiberglass plates are widely used because they can be fabricated into complex insulating components.

Common processing methods include:

- CNC milling

- CNC drilling

- Saw cutting

- Grinding

- Routing

- Slotting

- Countersinking

- Edge chamfering

- Punching for suitable geometries

- Custom profile cutting

This makes epoxy plate suitable for switchgear manufacturers that require consistent dimensions, repeatable hole patterns, and customized component designs.

Epoxy plate can be supplied as full sheets, cut-to-size panels, or finished insulating parts based on technical drawings.

Mica Board Machining Considerations

Mica board can also be cut and drilled. However, its layered structure requires more controlled processing.

Manufacturers should consider:

- Tool sharpness

- Cutting speed

- Feed rate

- Clamping method

- Hole diameter

- Edge distance

- Board thickness

- Dust extraction

- Surface protection

- Final component shape

Improper processing can increase the risk of edge chipping, layer separation, or cracking around holes.

For flat thermal shields and simple barrier panels, mica board is highly effective. For components with many holes, slots, tight radii, and complex structural geometry, epoxy plate is often easier to manufacture consistently.

When to Choose Epoxy Plate for Disconnect Switches

Epoxy plate is usually the preferred option when the insulation component must combine electrical performance with mechanical reliability.

Choose FR4, G10, or G11 epoxy plate when the part requires:

- High mechanical strength

- Reliable support for conductors

- Precision drilling and CNC machining

- Tight dimensional tolerances

- Strong bolt-hole performance

- Structural rigidity

- Complex custom shapes

- Stable electrical insulation

- Repeated mechanical operation

- Industrial durability

- High-volume production consistency

Recommended Epoxy Plate Grades

Application Requirement	Recommended Material
General switchgear insulation	FR4 epoxy fiberglass sheet
Structural insulating support	G10 epoxy plate
High-temperature structural insulation	G11 epoxy plate
Flame-retardant electrical panel	FR4 epoxy plate
Machined spacer or bracket	G10 or G11 epoxy plate
High-load insulating base	G11 epoxy plate
Custom CNC insulation component	G10, FR4, or G11 depending on temperature and load

When to Choose Mica Board for Disconnect Switches

Mica board is generally the better option when heat resistance is the primary design requirement.

Choose mica board when the part requires:

- Extreme-temperature resistance

- Arc-resistant protection

- Thermal shielding

- Heat isolation

- High-temperature electrical insulation

- Fire-resistant barrier performance

- Protection near hot conductors

- Insulation near heating components

- Reduced heat transfer to surrounding parts

- High-temperature flat-panel barriers

Mica board is particularly useful when the insulation component does not need to carry major mechanical loads.

A Hybrid Material Design Can Be the Best Solution

In demanding high-voltage switchgear systems, the best design may use both epoxy plate and mica board.

Instead of forcing one material to perform every function, engineers can assign each material to the location where it performs best.

A hybrid design may include:

- G11 epoxy plate for structural supports

- G10 or FR4 spacers for standard insulation components

- Mica board for high-temperature barriers

- Mica shields near arc-prone areas

- Machined epoxy brackets for bolt-mounted assemblies

- Mica panels for thermal separation

This approach can improve safety, reduce unnecessary material cost, and increase the service life of the complete switch assembly.

Example of a Hybrid Disconnect Switch Design

A disconnect switch assembly may include a copper conductor mounted on an insulating support structure.

The design can use:

1. G11 epoxy plate as the main structural support because it can carry mechanical load and maintain stable dimensions at elevated temperature.

2. Mica board behind the conductor to reduce heat transfer and provide thermal protection.

3. FR4 or G10 spacers to maintain electrical clearance and creepage distance.

4. Machined epoxy components for brackets, support blocks, and operating linkage insulation.

This material combination allows each component to perform a specific function instead of creating unnecessary compromise.

How to Select the Right Material

Before choosing epoxy plate or mica board, evaluate the actual working conditions of the disconnect switch.

Electrical Requirements

Consider:

- Rated voltage

- AC or DC application

- Required insulation level

- Electrical clearance

- Creepage distance

- Surface tracking risk

- Pollution level

- Humidity exposure

- Indoor or outdoor installation

- Partial-discharge requirements

- Electrical test expectations

Thermal Requirements

Consider:

- Normal operating temperature

- Maximum operating temperature

- Short-term heat exposure

- Local hot-spot temperature

- Arc exposure risk

- Thermal cycling frequency

- Heat transfer to nearby components

- Fire-resistance expectations

Mechanical Requirements

Consider:

- Board thickness

- Flexural load

- Compression load

- Bolt torque

- Hole pattern

- Edge distance

- Vibration

- Repeated operating movement

- Conductor weight

- Transportation and installation stress

Processing Requirements

Consider:

- Sheet size

- Finished-part dimensions

- Hole diameter

- Slot geometry

- CNC machining needs

- Thickness tolerance

- Flatness requirement

- Surface finish

- Quantity requirement

- Packaging method

- Export shipment requirements

Common Material Selection Mistakes

Selecting Mica Board Only Because the Voltage Is High

High voltage alone does not mean mica board is necessary. If the component must be machined, bolted, loaded, or used as a structural support, epoxy fiberglass plate may provide better overall performance.

Selecting FR4 Without Checking Temperature

FR4 is widely used, but it may not be suitable for every elevated-temperature application. If the component will operate near a heat source or carry load under thermal stress, G11 may be a better option.

Ignoring Bolt Holes and Fastener Pressure

Fastener areas can become stress points. Excessive bolt torque can damage insulation materials, especially if the board is too thin, the hole edge distance is too small, or the material is not suited for concentrated mechanical load.

Comparing Only Material Price

The lowest sheet price does not always produce the lowest finished-part cost. A cheaper material may increase machining time, tool wear, scrap rate, assembly difficulty, or long-term maintenance risk.

Using Generic Performance Claims

Material performance varies by resin system, fiberglass construction, mica content, board thickness, moisture condition, processing method, and test condition. Material data should match the actual product grade and intended application.

Summary

When comparing epoxy plate vs mica board for high-voltage disconnect switches, there is no single material that is best for every component.

Epoxy plate is generally the stronger choice for structural insulation. FR4, G10, and G11 epoxy fiberglass laminates provide excellent electrical insulation, mechanical strength, dimensional stability, and CNC machining performance. They are well suited for insulating supports, brackets, spacers, linkage parts, terminal bases, and custom-machined switchgear components.

Mica board is generally the stronger choice for high-temperature insulation. It performs well in thermal barriers, arc-resistant panels, heat shields, and electrical insulation zones exposed to severe heat.

For high-performance disconnect switch assemblies, a hybrid design can offer the most reliable result. G11 epoxy plate can provide structural support, while mica board can provide thermal and arc protection in critical zones.

Guangdong Weishi New Materials Co., Ltd. supplies FR4, G10, G11 epoxy insulation boards and custom-machined composite insulation components for electrical, electronic, mechanical, mold, and industrial equipment applications. By matching material grade, thickness, machining method, and service environment, manufacturers can improve component reliability and reduce long-term operating risk.

Frequently Asked Questions

1. Is epoxy plate suitable for high-voltage disconnect switches?

Yes. Epoxy fiberglass plates such as FR4, G10, and G11 are suitable for many high-voltage disconnect switch applications. They provide strong electrical insulation, good mechanical strength, dimensional stability, and reliable machining performance.

2. Which is better for high-voltage insulation, epoxy plate or mica board?

The better material depends on the application. Epoxy plate is usually better for structural, machined, and mechanically loaded insulation components. Mica board is usually better for extreme heat, arc resistance, and thermal barrier applications.

3. Can FR4 replace mica board?

FR4 can replace mica board in applications where temperature and arc exposure remain within FR4's capability. However, FR4 is not a direct replacement for mica board in severe high-temperature environments or areas requiring strong thermal shielding.

4. Is G11 better than G10 for disconnect switch insulation?

G11 is generally more suitable when higher temperature resistance is required. G10 remains a strong choice for standard structural insulation applications, while G11 is more appropriate for components exposed to elevated temperature and mechanical load.

5. Can mica board be CNC machined?

Yes, mica board can be cut, drilled, and machined. However, it requires careful tooling and controlled processing to reduce the risk of edge chipping, cracking, or layer separation.

6. What should be considered before purchasing epoxy insulation boards?

Buyers should confirm the required material grade, thickness, operating temperature, voltage environment, mechanical load, machining requirements, dimensions, tolerance, quantity, and finished-part drawing.

7. Can epoxy plate and mica board be used together?

Yes. A hybrid design can use epoxy plate for structural support and mica board for thermal protection. This is often an effective approach for high-voltage disconnect switch assemblies that require both mechanical reliability and heat resistance.

References

1. International Electrotechnical Commission. "IEC 62271-102: High-Voltage Switchgear and Controlgear—Part 102: Alternating Current Disconnectors and Earthing Switches."

[https://webstore.iec.ch/en/publication/78724]

2. ASTM International. "ASTM D709: Standard Specification for Laminated Thermosetting Materials."

[https://store.astm.org/standards/d709]

3. National Electrical Manufacturers Association. "Industrial Laminated Thermosetting Products."

[https://www.nema.org/standards/view/industrial-laminated-thermosetting-products]

4. National Electrical Manufacturers Association. "ANSI/NEMA IM 60000-2021: Industrial Laminating Thermosetting Products."

[https://www.nema.org/docs/default-source/standards-document-library/ansi_nema-im-60000-2021-contents-and-scope.pdf]

5. Ready Plastics. "NEMA G10—Glass-Epoxy Laminate Specification Page."

[https://www.readyplastics.com/resources/grades/g10]

6. Ready Plastics. "NEMA G11—Glass-Cloth Epoxy High-Temperature Laminate."

[https://www.readyplastics.com/resources/grades/g11]

7. Final Advanced Materials. "Mica-Silicone Technical Composite."
