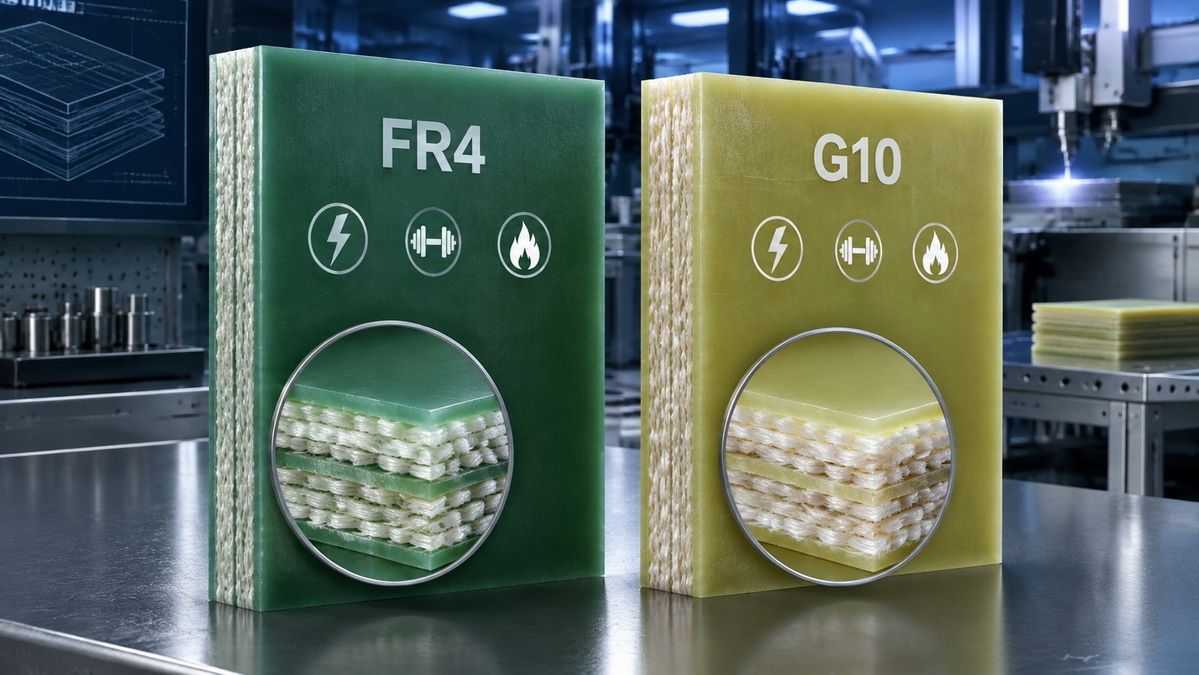

FR4 And G10 Sheet Material Comparison

What Are FR4 Sheet and G10 Sheet?

FR4 sheet and G10 sheet are both rigid laminated composite materials. They are typically produced by impregnating woven glass fabric with epoxy resin, then curing the layers under controlled heat and pressure.

The result is a dense, durable material with high mechanical strength, good electrical insulation, low moisture absorption, and strong resistance to deformation. Unlike thermoplastic materials, epoxy fiberglass laminates do not soften and remelt when exposed to normal industrial operating temperatures. Their thermoset structure supports stable performance in demanding applications.

What Is G10 Sheet?

G10 sheet is a glass-cloth reinforced epoxy laminate. It is commonly used where strength, rigidity, insulation performance, and machinability are required.

G10 is widely selected for industrial parts because it offers a practical balance between structural performance and electrical insulation. It can be CNC machined into complex components with holes, slots, profiles, chamfers, pockets, engraved markings, and custom shapes.

Common G10 sheet applications include:

- Electrical insulation spacers

- Industrial fixture plates

- Mechanical support blocks

- High-strength insulating washers

- Terminal separators

- Pump and valve components

- Precision guides and mounting plates

- CNC-machined structural inserts

- Tooling boards and assembly fixtures

G10 is especially useful when a part requires high strength and good insulation but does not need a flame-retardant material designation.

What Is FR4 Sheet?

FR4 sheet is also a glass-fabric reinforced epoxy laminate, but it uses a flame-retardant epoxy resin system. The term "FR" refers to flame resistance or flame retardancy.

FR4 is widely used in electrical and electronic industries because it combines insulation performance, mechanical stability, heat resistance, and flame-retardant properties. It is commonly specified for electrical equipment, control systems, transformers, circuit-related assemblies, battery systems, and industrial electrical components.

Typical FR4 sheet applications include:

- Electrical control cabinet barriers

- Transformer insulation parts

- Switchgear components

- Battery insulation plates

- Electrical mounting panels

- Precision terminal supports

- CNC-engraved electrical nameplates

- High-voltage insulation structures

- Electronics and power-system components

For many electrical applications, FR4 is the preferred material because flame retardancy is part of the end-product requirement.

FR4 Sheet vs G10 Sheet: Key Differences

FR4 and G10 have a similar base structure. Both are made from woven glass fabric and epoxy resin. Both provide good strength, stiffness, electrical insulation, and machinability.

However, the resin system and intended application may differ.

Property	FR4 Sheet	G10 Sheet	Importance for CNC Precision Parts
Base structure	Woven glass fabric with flame-retardant epoxy resin	Woven glass fabric with standard epoxy resin	Both provide strong and stable laminate structures
Flame resistance	Designed for flame-retardant performance	Usually not selected for flame-retardant requirements	Important for electrical equipment and regulated applications
Mechanical strength	High	High	Supports precision structural and insulation components
Electrical insulation	Excellent	Excellent	Suitable for electrical spacers, barriers, and support parts
CNC machinability	Good with correct tooling	Good with correct tooling	Both can be engraved, drilled, milled, and routed
Moisture resistance	Good	Good	Helps maintain performance in humid environments
Dimensional stability	High	High	Supports accurate slots, holes, profiles, and engraved details
Tool wear during machining	Moderate to high	Moderate to high	Glass fiber reinforcement is abrasive to cutting tools
Typical use	Electrical and electronic insulation parts	Mechanical and industrial insulation parts	Selection depends on flame-retardant and end-use requirements
Cost consideration	May be higher depending on grade	Often more economical for non-flame-rated projects	Material choice can influence total project cost

The key point is simple: FR4 is generally selected when flame-retardant performance is required, while G10 is often selected for strong and stable insulation parts without a flame-retardant requirement.

Which Material Is Better for CNC Engraving?

There is no single answer for every application. The better material depends on the functional requirements of the finished part.

From a CNC machining perspective, FR4 and G10 are similar because both contain glass-fiber reinforcement. Both materials can be cut, drilled, milled, engraved, routed, countersunk, and shaped into complex parts. Both also require suitable tools, good dust collection, stable workholding, and controlled machining parameters.

Choose FR4 Sheet for CNC Precision Parts When

FR4 sheet is usually the better option when a CNC precision part will be used in electrical, electronic, power, or safety-sensitive equipment.

Choose FR4 sheet when the application requires:

- Flame-retardant material performance

- Electrical insulation in control panels or switchgear

- Transformer and motor insulation components

- Battery-pack insulation structures

- Precision parts used near heat-generating equipment

- Electrical barriers inside industrial equipment

- Material consistency for regulated assemblies

- Stable performance in electronics and power systems

FR4 is commonly used where buyers need an insulation laminate that combines mechanical strength, dielectric properties, and flame resistance. It is especially appropriate for parts installed in enclosed electrical systems where safety requirements are more demanding.

Choose G10 Sheet for CNC Precision Parts When

G10 sheet is often the better choice when the project requires high mechanical strength and electrical insulation but does not require a flame-retardant grade.

Choose G10 sheet when the application involves:

- Industrial jigs and fixtures

- Mechanical support plates

- Insulating washers and sleeves

- High-strength machine components

- Tooling boards

- Non-flame-rated electrical insulation parts

- CNC-machined guide blocks

- Precision mounting components

- Cost-sensitive industrial projects

G10 can provide excellent rigidity and electrical insulation for general industrial use. It is often suitable for components exposed to moderate moisture, oils, mechanical load, and routine industrial environments.

CNC Machining Characteristics of FR4 and G10

FR4 and G10 are both suitable for CNC engraving precision parts, but their glass-fiber construction requires a careful machining approach.

The woven glass reinforcement provides strength and stiffness. At the same time, it can cause rapid tool wear if the wrong cutter, feed rate, or cutting strategy is used.

Tool Wear and Abrasive Glass Fiber

Glass fiber is highly abrasive. During CNC milling, drilling, and engraving, it can quickly dull conventional cutting tools.

Dull tools may create several problems:

- Rough edges

- Fiber breakout

- Poor engraving clarity

- Heat buildup

- Resin burning

- Inconsistent slot width

- Burrs around holes

- Reduced machining accuracy

- Delamination near thin features

For stable production, carbide tools are commonly used for FR4 and G10 machining. Diamond-coated tools or PCD tools can also be considered for high-volume production, difficult profiles, or extended machining runs.

The right tool selection can improve surface quality, increase tool life, reduce material waste, and support repeatable dimensional accuracy.

Edge Quality and Delamination Control

CNC engraving precision parts often include detailed features such as narrow channels, drilled holes, thin walls, internal corners, engraved text, countersinks, and complex profiles.

Poor machining conditions can cause fiber fraying or delamination. These defects may affect appearance, assembly fit, insulation performance, and long-term reliability.

To improve edge quality:

- Use sharp carbide or diamond-coated cutters

- Replace worn tools before quality declines

- Use stable clamping and full sheet support

- Select appropriate cutting depth

- Avoid excessive heat buildup

- Use suitable feed rates and spindle speeds

- Support the exit side during drilling

- Remove dust efficiently from the cutting zone

- Inspect critical features during production

For thin FR4 or G10 components, a backing board can help reduce exit-side damage during drilling and routing.

Dust Control During CNC Processing

CNC machining of epoxy fiberglass sheets creates fine composite dust. This dust may contain glass-fiber particles and cured epoxy-resin particles.

A professional processing environment should include:

- Local dust extraction near the cutting area

- Effective filtration systems

- Protective eyewear for operators

- Appropriate respiratory protection

- Regular cleaning of CNC work areas

- Safe handling procedures for cut parts

- Controlled collection of machining waste

Good dust control improves worker comfort, keeps machines cleaner, protects moving components, and supports a safer production environment.

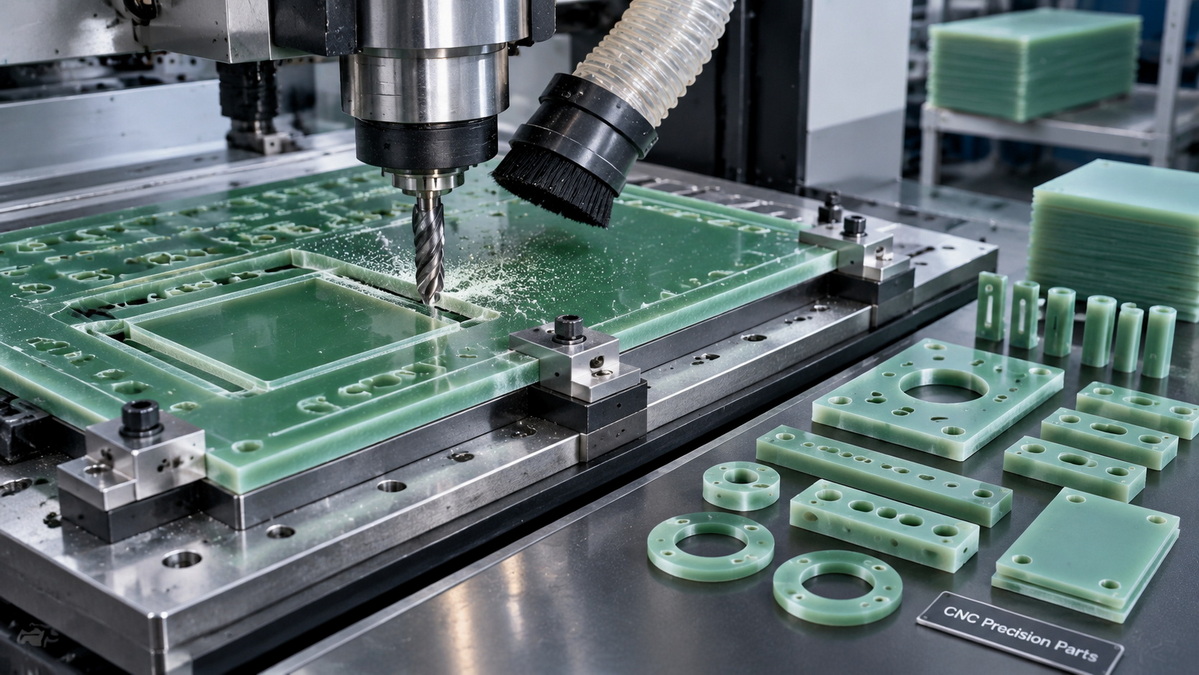

CNC Engraving FR4 Precision Parts

Recommended CNC Machining Process

Producing high-quality FR4 or G10 CNC engraving precision parts requires more than selecting the correct board. It requires a controlled workflow from raw-material selection to final inspection.

1. Confirm the Application Requirements

Before machining begins, confirm the exact functional requirement of the part.

Important information includes:

- Material grade

- Required thickness

- Thickness tolerance

- Flame-retardant requirement

- Operating temperature

- Electrical insulation requirement

- Mechanical load

- Moisture exposure

- Chemical exposure

- Part geometry

- Critical tolerances

- Surface-finish expectations

- Quantity requirement

A clear material specification prevents costly problems later in the production process.

For example, a part used as a mechanical fixture may perform well in G10 sheet. However, a part installed inside an electrical control cabinet may require FR4 because flame retardancy is part of the functional requirement.

2. Use Stable Workholding

FR4 and G10 sheets should be firmly supported during machining. Poor clamping can lead to vibration, edge chipping, inaccurate dimensions, and poor engraving results.

Depending on the part design, suitable workholding methods may include:

- Mechanical clamps

- Vacuum tables

- Fixture plates

- Double-sided industrial adhesive systems

- Sacrificial backing boards

- Custom positioning fixtures

Thin sheets require particular attention. Unsupported areas can flex during machining, resulting in uneven engraving depth, rough edges, or dimensional variation.

3. Match Cutting Tools to Part Features

Different part features require different cutter types. Using one tool for every operation may reduce efficiency and lower finish quality.

A practical machining strategy may include:

Part Feature	Recommended Tooling Consideration
Fine engraved text	Small-diameter carbide engraving cutter
Deep pocket	Carbide end mill with controlled step-down
Outer profile	Sharp end mill or compression cutter
Small holes	Composite-capable carbide drill
Countersink	Carbide countersink tool
Thin-wall feature	Small sharp end mill with stable support
High-volume production	Diamond-coated or PCD tooling consideration

Compression cutters can be useful for reducing fraying on the top and bottom surfaces of laminated sheets. Drill cycles should also be selected carefully to clear dust and prevent excessive heat buildup.

4. Control Heat and Chip Removal

FR4 and G10 are not materials that should be machined with excessive heat. High temperatures can affect edge quality, discolor resin, accelerate tool wear, and increase the risk of delamination.

The goal is to maintain a stable cutting process with effective dust removal.

Key machining principles include:

- Avoid excessively slow feed with very high spindle speed

- Prevent cutters from rubbing rather than cutting

- Use appropriate step-down and step-over values

- Keep cutters sharp

- Remove dust continuously

- Inspect the first sample before batch production

- Adjust parameters based on actual laminate behavior

Machining parameters should always be optimized through sample testing because material thickness, glass content, resin system, cutter geometry, and CNC machine rigidity can influence results.

5. Inspect Critical Features

High-quality CNC precision parts should be inspected before shipment and assembly.

Important checks may include:

- Overall length and width

- Hole diameter

- Hole location

- Slot width

- Engraving depth

- Engraving legibility

- Flatness

- Thickness consistency

- Surface finish

- Edge smoothness

- Burrs and loose fibers

- Delamination around holes or corners

- Packaging cleanliness

For close-tolerance parts, additional inspection equipment may include optical measurement systems, custom gauges, coordinate measuring machines, or dedicated inspection fixtures.

Application Examples

Electrical Control Cabinet Insulation Barrier

An electrical equipment manufacturer needs CNC-machined insulation barriers for an industrial control cabinet. The parts must provide electrical insulation, mechanical stability, accurate hole positions, and flame-retardant performance.

FR4 sheet is generally the more appropriate material.

FR4 provides the necessary glass-epoxy structure for precision machining while supporting applications where flame resistance is an important material-selection factor.

Industrial Assembly Fixture Plate

A manufacturing facility needs a rigid, electrically insulating fixture plate for holding components during assembly. The fixture will not be used inside a regulated electrical enclosure and does not require flame-retardant performance.

G10 sheet can be an efficient solution.

G10 can offer good rigidity, insulation properties, dimensional stability, and machinability for fixture plates, tooling boards, and mechanical support applications.

Battery System Insulating Spacer

A battery-pack manufacturer needs a CNC-machined spacer that separates conductive components. The part must remain dimensionally stable, resist moisture, provide insulation, and support safety-oriented material selection.

FR4 sheet is often preferred.

The combination of insulation, structural stability, and flame-retardant characteristics makes FR4 suitable for many battery, power, and electrical-energy applications.

Mechanical Guide Block for Industrial Equipment

A machine builder needs a non-metallic guide block that provides strength, insulation, and resistance to ordinary industrial conditions. The component is not exposed to a flame-rated environment.

G10 sheet is often suitable.

The material can be CNC machined into a detailed custom shape while maintaining strong mechanical support and electrical isolation.

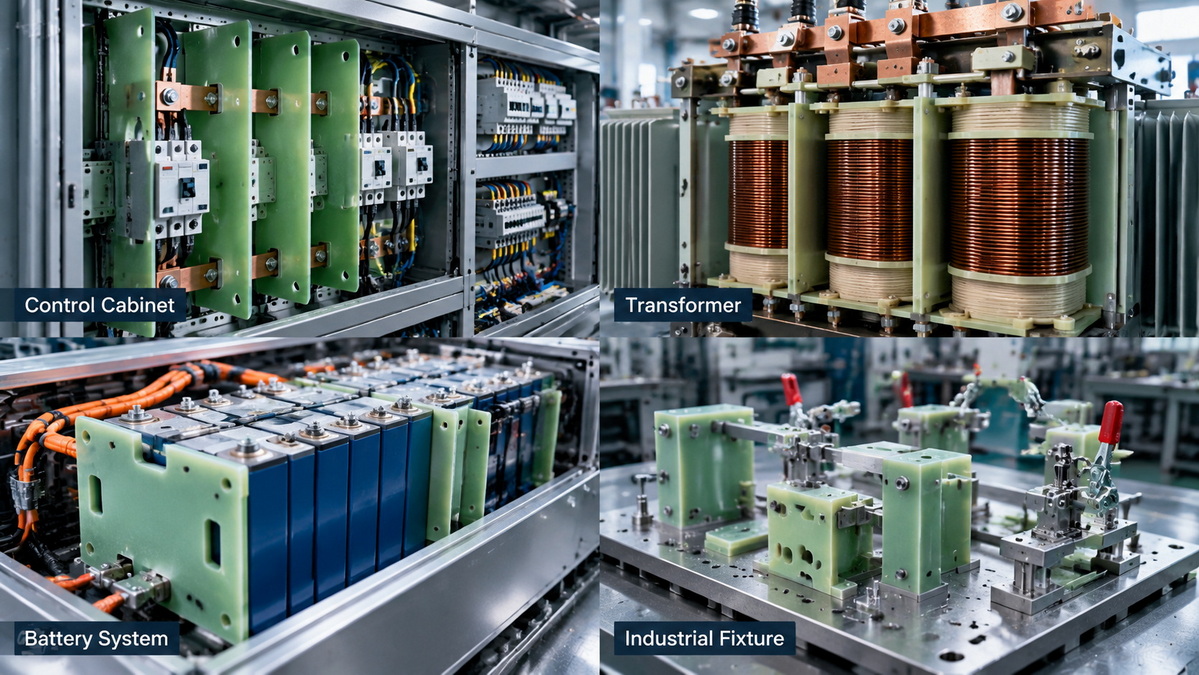

FR4 G10 Precision Insulation Applications

How to Specify FR4 or G10 CNC Parts

A detailed request helps ensure that the supplied material and finished parts match the actual application.

When requesting custom FR4 or G10 CNC engraving precision parts, provide the following information:

1. Required material grade, such as FR4, G10, G11, or another approved grade

2. Sheet thickness and allowable thickness tolerance

3. Part drawing in PDF, DXF, DWG, STEP, or another accepted format

4. Required quantity for prototypes, small batches, or mass production

5. Critical dimensions and tolerance requirements

6. Hole sizes, slot dimensions, chamfers, countersinks, and engraving details

7. Flame-retardant or other performance requirements

8. Operating temperature and environmental conditions

9. Electrical insulation requirements

10. Surface-finish and edge-quality expectations

11. Packaging, labeling, and delivery requirements

Clear specifications improve quotation accuracy, material selection, production planning, machining quality, and final inspection efficiency.

How to Select the Right Sheet Grade

The best material decision should be based on the finished part's working environment rather than only the initial material price.

Use the following questions to guide the selection:

- Does the part require flame-retardant performance?

- Will the part be installed inside electrical or electronic equipment?

- Is the material exposed to elevated temperatures?

- Does the component require electrical insulation?

- Is high mechanical strength necessary?

- Will the part include fine engraving, small holes, or thin sections?

- Is the application cost-sensitive?

- Does the customer require material certification or traceability?

- Will the component operate in a humid, oily, or industrial environment?

- Is a higher-temperature material such as G11 or high-temperature epoxy laminate more appropriate?

If flame resistance is required, FR4 is generally the preferred option. If the application mainly requires strength, insulation, stability, and cost control, G10 may be suitable.

For high-temperature applications, the material should be evaluated carefully. Standard FR4 may not be the best choice for every high-heat environment. In some cases, a high-temperature FR4 grade, G11 sheet, or another advanced insulation laminate may offer a more suitable performance range.

Why Material Consistency Matters

For CNC engraving precision parts, the quality of the raw sheet directly affects the quality of the finished component.

A stable epoxy fiberglass laminate should provide:

- Consistent thickness

- Uniform glass-fiber reinforcement

- Even resin distribution

- Low risk of voids

- Good surface smoothness

- Reliable mechanical strength

- Predictable machining behavior

- Stable insulation performance

- Controlled curing quality

- Good flatness

Inconsistent materials can increase tool wear, cause unexpected delamination, reduce engraving clarity, create thickness variation, and make tight-tolerance machining more difficult.

Reliable raw material is especially important when producing repeat orders or high-volume custom parts. A consistent sheet supports more stable CNC settings, repeatable machining results, lower scrap rates, and smoother assembly performance for the end customer.

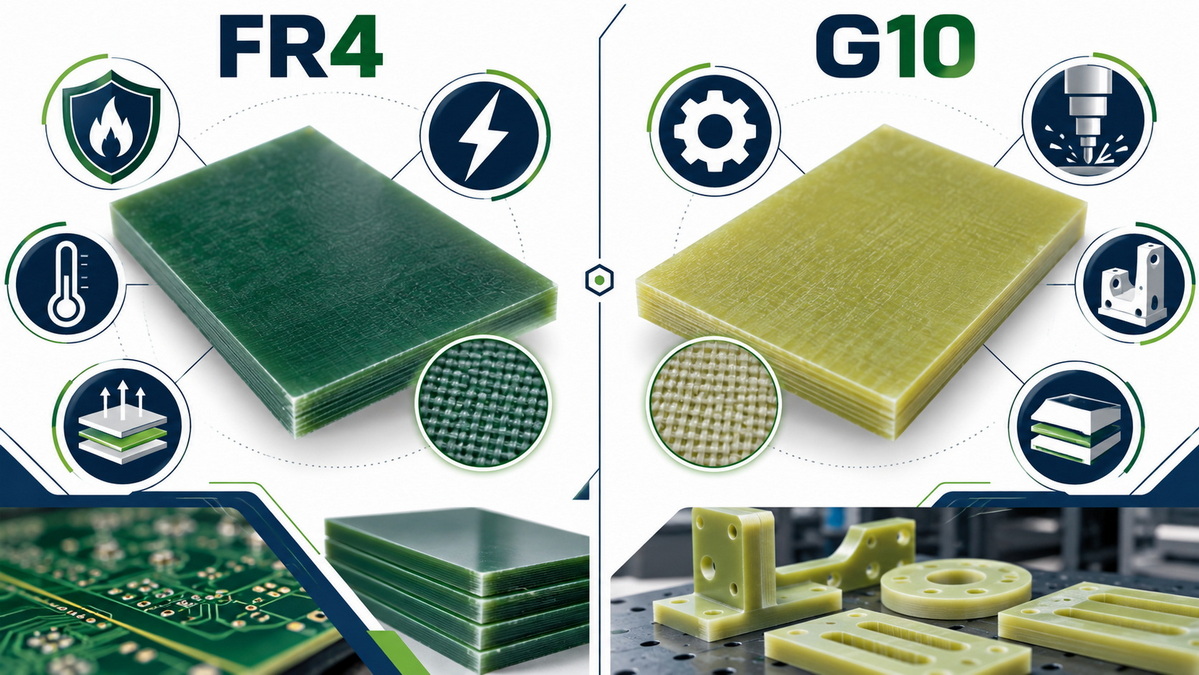

Choosing FR4 Or G10 For CNC Parts

Summary

Both FR4 sheet and G10 sheet are strong, stable, and highly practical materials for CNC engraving precision parts. They share many useful properties, including good electrical insulation, high mechanical strength, low moisture absorption, and reliable dimensional stability.

The main difference is the flame-retardant performance requirement.

Choose FR4 sheet for electrical, electronic, power, control-system, battery, and safety-sensitive applications where flame-resistant insulation material is required.

Choose G10 sheet for industrial fixtures, mechanical supports, insulation spacers, guide blocks, tooling plates, and other applications where strength and insulation matter but flame retardancy is not required.

The most reliable result comes from matching the material grade to the real operating environment, part geometry, tolerance requirements, and long-term service conditions.

Guangdong Weishi New Materials Co., Ltd. provides FR4 sheets, G10 sheets, G11 sheets, epoxy fiberglass boards, and customized CNC machining solutions for global industrial customers. With stable material quality, flexible processing capability, and experience in insulation-material applications, we support customers in developing dependable precision parts for electrical, electronic, mechanical, and industrial equipment.

Frequently Asked Questions

Is FR4 stronger than G10?

FR4 and G10 are closely related epoxy fiberglass laminates. Both can provide high mechanical strength and good rigidity. The main difference is that FR4 is designed with a flame-retardant epoxy resin system, while G10 is generally used where a flame-retardant designation is not required.

Can FR4 sheet be CNC engraved?

Yes. FR4 sheet can be CNC engraved, drilled, routed, milled, and cut into precision insulation parts. Because the material contains abrasive glass fiber, carbide, diamond-coated, or PCD cutting tools are commonly used to improve tool life and edge quality.

Is G10 sheet suitable for electrical insulation parts?

Yes. G10 sheet provides good electrical insulation and is commonly used for spacers, washers, terminal supports, fixture plates, guide blocks, and mechanical insulation components. If the application requires flame-retardant material performance, FR4 is generally the better choice.

Why do FR4 and G10 wear out CNC cutting tools?

Both FR4 and G10 contain woven glass-fiber reinforcement. Glass fiber is abrasive and can wear cutting edges quickly. Worn tools may create rough edges, fraying, poor hole quality, resin discoloration, and inconsistent dimensions.

What cutting tool is best for FR4 and G10 CNC machining?

Solid carbide tools are commonly used for standard CNC machining. Diamond-coated tools and PCD tooling can be suitable for longer production runs, difficult profiles, high-volume machining, or applications where extended tool life is required.

Can G10 replace FR4 sheet?

Not in every application. G10 should not be substituted for FR4 when a drawing, customer specification, safety requirement, or product design requires flame-retardant material performance. The selected material should always match the confirmed technical requirements.

Should I choose standard FR4 or high-temperature FR4?

The choice depends on the operating temperature and thermal exposure of the finished part. Standard FR4 may be suitable for many applications, but high-temperature FR4, G11 sheet, or another advanced epoxy insulation laminate may be more appropriate for parts exposed to elevated temperatures or repeated thermal cycling.

Are FR4 and G10 sheets moisture resistant?

Both materials have good moisture resistance compared with many conventional insulation materials. However, actual performance can vary by material grade, thickness, resin formulation, and operating environment. For demanding humidity or immersion conditions, the specific material data should be reviewed before final selection.
