As a manufacturer of high‑performance FR4 and related epoxy glass laminates, we see every day how proper storage directly affects machinability, dimensional stability and long‑term performance. FR4 epoxy laminate sheets need a clean, dry, temperature‑ and humidity‑controlled environment, with correct stacking, packaging and handling to maintain their mechanical and electrical properties over time.
This guide combines practical shop‑floor experience with widely adopted industry practices so that engineers, buyers and warehouse teams can manage FR4 stock confidently and consistently.

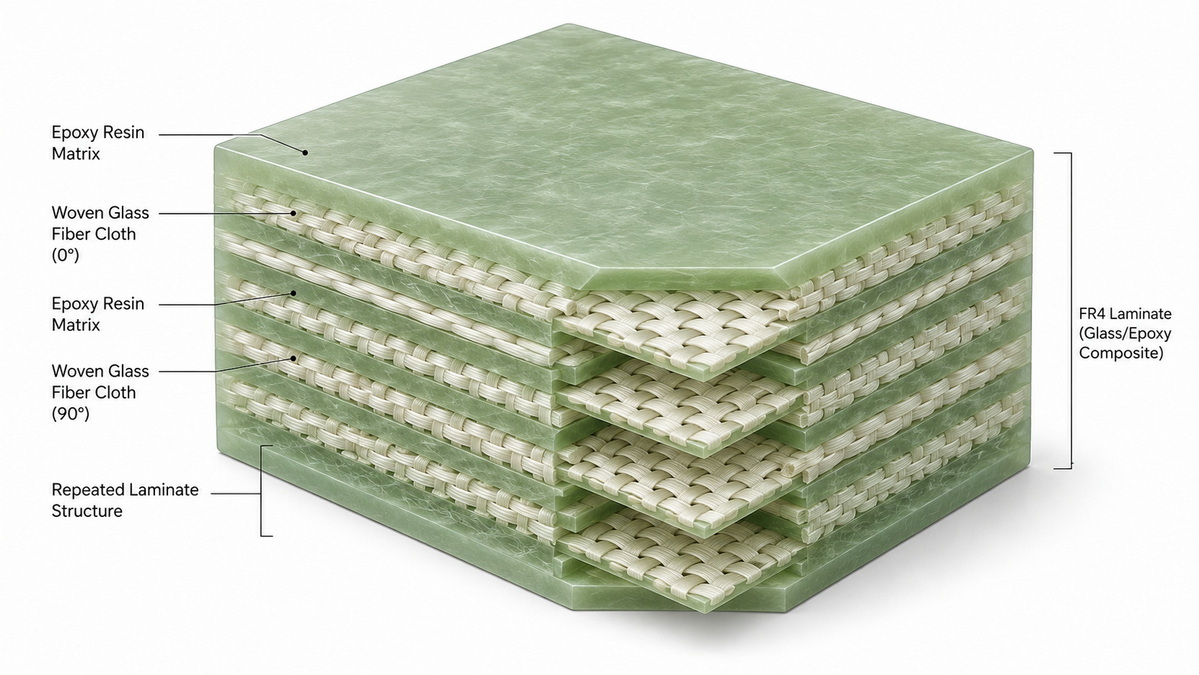

FR4 epoxy laminate sheets are glass fiber reinforced epoxy thermoset laminates used in printed circuit boards, electrical insulation components, mechanical parts and industrial fixtures. The material combines:
- High mechanical strength and stiffness
- Excellent electrical insulation
- Good dimensional stability over a wide temperature range
- Relatively low water absorption compared with many other insulating materials
In real projects, these advantages only translate into stable performance when the material is stored and handled correctly. Uncontrolled environments or improper stacking can introduce defects before any machining or assembly takes place.
From both a user and manufacturer point of view, the biggest risks during storage are not dramatic failures, but gradual degradation that only becomes visible later:
- Warping, bow and twist caused by uneven support, stacking pressure or thermal cycling
- Edge and corner damage from impact or poor racking design
- Surface contamination from oils, dust and metal particles, which can later reduce insulation or bonding strength
- Moisture‑related issues, such as micro‑delamination risk, dimensional drift and changes in dielectric behavior
In machining shops or assembly lines, these issues translate into extra re‑work, unstable tolerances, higher scrap rates and unpredictable performance. Good storage is a low‑cost way to stabilize quality before any cutting, drilling or routing starts.
For most FR4 epoxy laminate sheets, an indoor environment with moderate, stable temperature and humidity is ideal. As a practical working range, many facilities adopt:
- Temperature: typically 15–30 °C, with an optimal band around 20–25 °C
- Relative humidity (RH): about 30–60% RH, preferably in the mid‑range for long‑term stability
Within these ranges, FR4 is far less likely to absorb moisture or experience significant dimensional change. From an operational perspective:
- Avoid storage areas near exterior doors, loading docks, heaters, boilers or steam pipes.
- Where ambient humidity is high, use dehumidifiers or climate‑controlled warehouses.
- Do not allow sustained conditions above 70% RH, especially for long‑term stock.
Epoxy laminates can gradually discolor or age under strong ultraviolet light. While this may not always affect structural performance, it can be undesirable in visible parts or long‑term installations.
Best practice includes:
- Avoiding direct sunlight on stored sheets.
- Using opaque cartons, crates or films in well‑lit warehouses.
- Positioning racks so that large windows and skylights do not shine directly onto exposed laminate surfaces.
For large‑format or thinner FR4 epoxy laminate sheets, flat storage is often the safest approach.
Key points:
- Place sheets on a rigid, level, continuous support surface.
- Use clean kraft paper, polyethylene film or non‑abrasive spacers between sheets to prevent scratching.
- Limit total stack height to avoid long‑term compression or creep, especially for thinner gauges.
Flat storage is particularly important when working with thin laminates around 1.6 mm or below and when tight flatness tolerances are required for later machining.
For thicker sheets or smaller panels, vertical storage can save space while still protecting the material—provided that support is well designed.
Good practice includes:
- Using dedicated vertical racks that support the entire edge of each sheet, not just a few points.
- Keeping the lean angle moderate so that stress is distributed evenly.
- Avoiding situations where sheets can slip, sag or hit hard surfaces during loading and unloading.

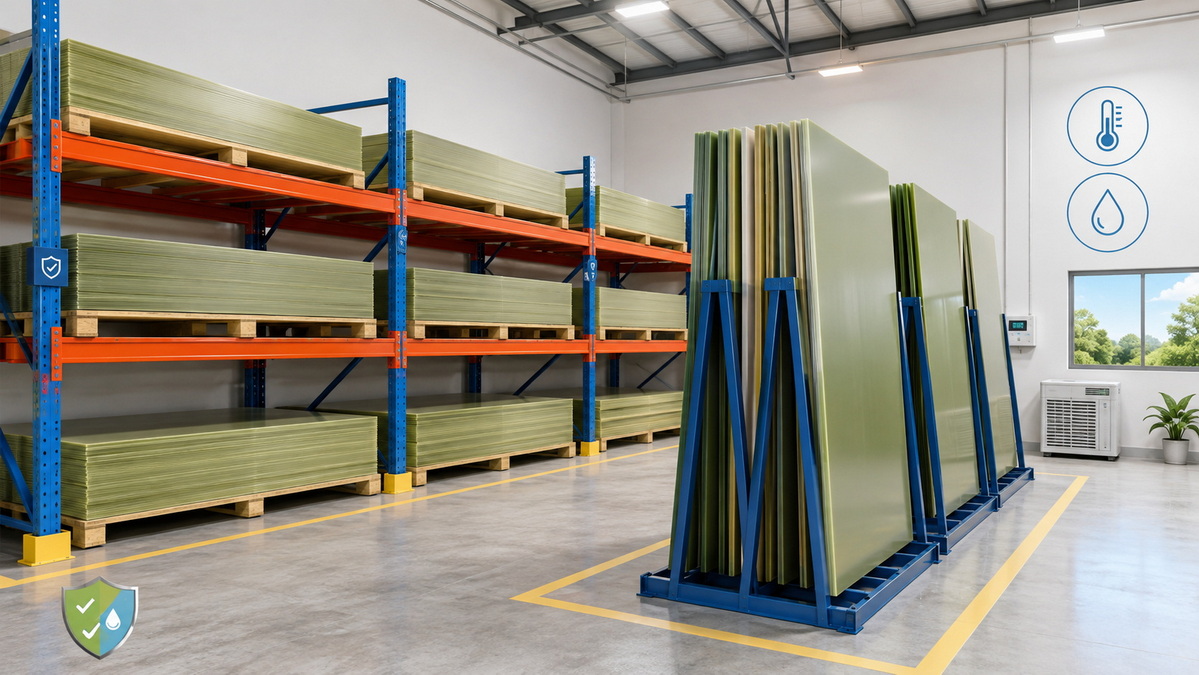

In many professional warehouses, a mixed approach is used: large or thin FR4 sheets are stored flat, while thicker or cut‑to‑size panels are held in engineered vertical racks.
Even when environmental conditions are correct, mechanical damage during storage and handling can later cause failures in machining or assembly.
To minimize this risk:
- Keep sheets in original crates, pallets or cartons as long as practical.
- Use corner protectors for large panels, especially when they are moved frequently.
- Do not place heavy tools, pallets, metal components or other materials on top of FR4 stacks.
- Clearly mark aisles to keep forklifts and pallet jacks at a safe distance from sheet edges.
In precision applications, small edge chips or micro‑cracks can initiate stress concentration during machining, so preventing this kind of damage at the storage stage is important.
For short‑term storage (several weeks to a few months) in a well‑controlled indoor environment, standard packaging is usually sufficient:
- Keep FR4 sheets in the factory polyethylene bags, shrink‑wrap or cartons.
- Maintain interleaving paper or film between individual sheets or small bundles.
The main objective is to keep dust, oils and incidental moisture away while allowing straightforward access for production.
For long‑term storage or environments with higher humidity and temperature variation, additional measures can significantly improve stability:
- Pack sheets or bundles inside moisture‑barrier bags or heavy‑duty polyethylene film.
- Place desiccant pouches of appropriate capacity inside each sealed package.
- Use humidity indicator cards where needed, especially for more sensitive downstream processes.
These approaches are similar to the methods applied in professional printed circuit board stock rooms and are proven to extend the stable life of laminate materials.
A simple inspection routine helps maintain protection over the full storage period:
- Every few months, check whether outer bags are intact, with no tears or obvious leaks.
- Replace desiccant packs if they show signs of saturation or if packages have been opened repeatedly.
- Reseal partially used packages with adhesive tape or heat‑sealing equipment whenever possible.
By treating packaging as a dynamic protective system rather than a disposable wrapper, storage performance becomes more predictable.
Surface contamination introduced by handling is a frequent cause of downstream problems. To avoid this:
- Wear clean gloves when touching FR4 sheet surfaces, particularly when the end use involves high voltage or bonding.
- Keep sheets away from cutting fluids, metal dust, welding fumes and corrosive chemicals.
- Use dedicated racks or trolleys for FR4 instead of placing sheets directly on general‑purpose work surfaces.
If contamination occurs, many users clean FR4 surfaces with suitable solvents (such as isopropyl alcohol) following local safety rules and internal cleaning procedures.

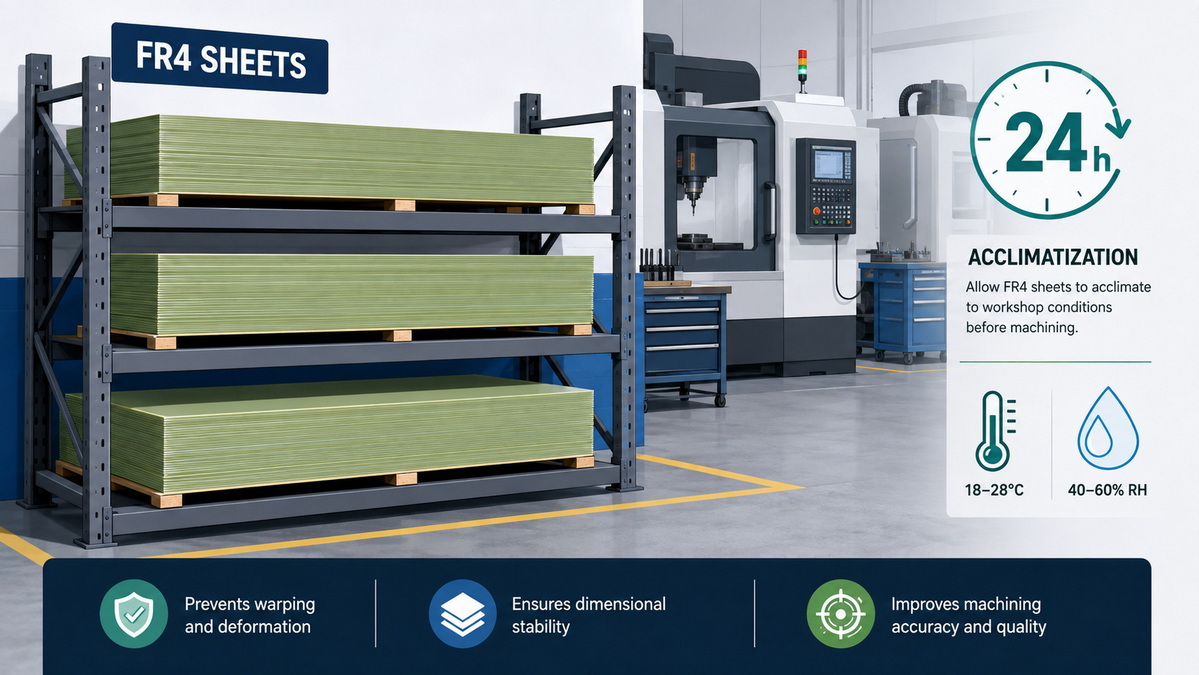

A crucial yet often overlooked step is allowing FR4 sheets to acclimatize to the workshop climate before precision machining:
- Move required sheets from long‑term storage to the machining area about 24 hours before processing.
- If sheets come from a significantly cooler or drier room, keep them wrapped for the first hours to reduce the risk of surface condensation.
- Avoid machining immediately after large temperature changes, as this is when dimensional drift is most likely.
Acclimatization helps ensure that the dimensions measured in the workshop are stable and that tight tolerances can be achieved consistently.
Many industrial users work not only with FR4 but also with G10 and G11 epoxy fiberglass laminates. While the storage principles are similar, a clear overview helps standardize procedures.
| Material type | Typical properties in use | Storage focus points |
|---|---|---|
| FR4 epoxy laminate sheet | Flame‑retardant glass epoxy laminate, good mechanical and electrical strength | Controlled temperature and humidity, flatness, avoidance of moisture and contamination |
| G10 laminate | Non‑flame‑retardant glass epoxy, similar mechanical profile | Same environment as FR4; protect from high humidity and thermal cycling |
| G11 laminate | High‑temperature glass epoxy with higher glass transition | Same environmental control; keep an eye on flatness during temperature changes |
In practice, a well‑designed storage space can support all three materials with one consistent set of procedures. Labeling and traceability then become the main tools for distinguishing grades and batches.
Suppliers of FR4 and related laminates often define a formal storage period (for example, 12 months) for warranty and traceability purposes. In a stable, controlled environment:
- Structural and insulation properties generally remain usable well beyond this period, especially for non‑critical applications.
- For high‑reliability or high‑frequency systems, engineers often prefer fresher stock, combined with more stringent handling and testing.
The key is to treat specified storage periods as a planning tool rather than an expiration date and to maintain records of warehouse conditions over time.
For teams looking to formalize or upgrade their internal standard, the following staged procedure is a practical starting point.
- Choose an indoor room dedicated or partially dedicated to laminate storage.
- Confirm that temperature and humidity can be monitored and controlled.
- Keep the area clean, dry and free from chemical vapors.
- Provide flat, rigid shelving for large or thin sheets.
- Install vertical racks with full edge support for thicker panels.
- Add non‑abrasive spacers between sheets to prevent scratching.
- Set acceptable temperature and humidity setpoints and post them visibly.
- Place thermometers and hygrometers at representative positions.
- Where needed, add dehumidifiers or climate‑control units.
- Keep materials in original packaging as long as possible.
- For long‑term storage, use sealed bags with desiccant and clear labels showing grade, thickness, batch and arrival date.
- Implement first‑in, first‑out (FIFO) routines using software or simple card systems.
- Inspect stored FR4 sheets regularly for signs of warping, discoloration or visible surface defects.
- Check packaging integrity and desiccant condition.
- Record findings and corrective actions in a simple log.
- Move materials from storage to machining areas in advance for acclimatization.
- Prohibit machining of sheets that are still cold from transport or storage.
- Train operators to recognize when sheets show suspicious warpage or contamination before cutting.

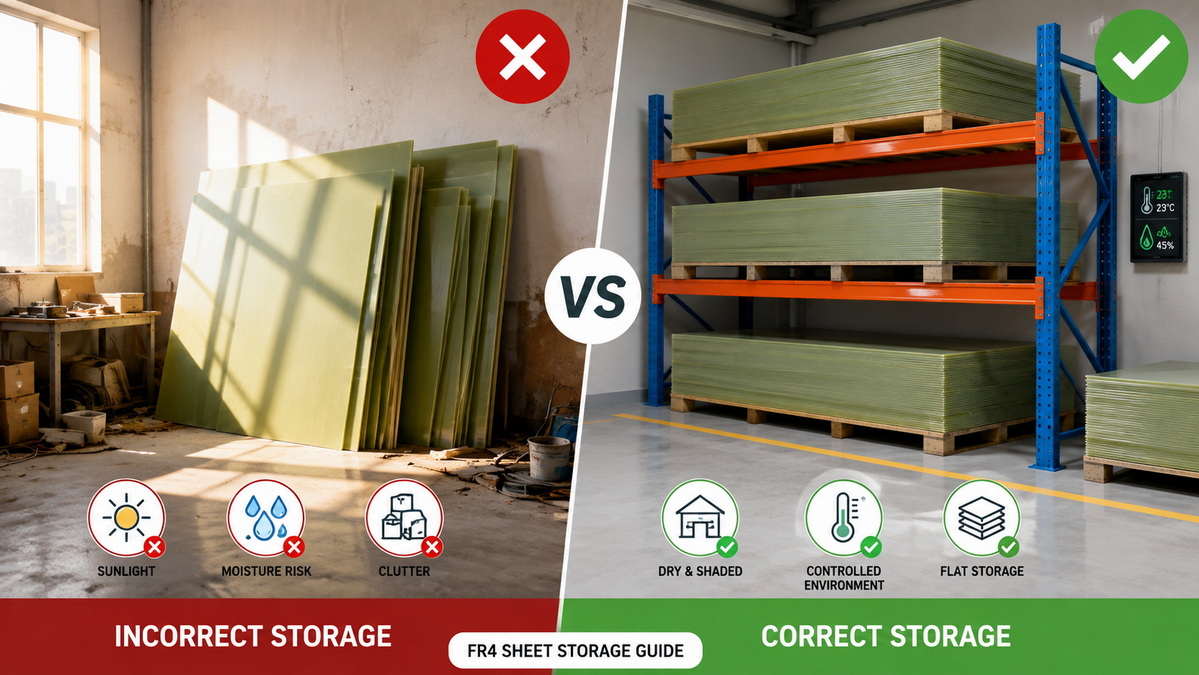

In practical audits of user facilities, several issues recur regularly:
- Treating FR4 as low‑value generic board material rather than as a precision laminate
- Leaning large sheets against walls without full support, creating permanent bow over time
- Storing laminate near open loading bays, where temperature and humidity are highly variable
- Opening sealed packaging long before use, exposing material to dust and moisture for extended periods
- Lack of clear labeling, making it difficult to apply FIFO or track specific batches
Each of these can be corrected with simple changes: better racking, relocating stock to a more stable room, basic monitoring equipment and straightforward labeling rules.
FR4 epoxy laminate sheets are engineered to provide reliable mechanical strength and electrical insulation in demanding applications. To preserve these properties from the factory to the final product, it is essential to:
- Maintain controlled temperature and humidity in an indoor storage area
- Use appropriate flat or vertical supports to protect flatness and edges
- Apply protective packaging and moisture control, especially for long‑term stock
- Follow a clear, documented procedure for receiving, storing, inspecting and preparing sheets before machining
By upgrading storage from an informal practice to a standardized internal process, manufacturers, machining shops and equipment builders can reduce scrap, stabilize product quality and extend the useful life of their FR4 inventory.
